Page 3 of 494

MITSUBISHI ECLIPSE 2012 4.G Owners Manual Overview
Instruments and controls (Driver’s area)
N00100201114
Combination headlights and
dimmer switch P.3-125
Turn signal lever P.3-129
Supplemental restraint system
- air bag (for driver’s se

Page 98 of 494

MITSUBISHI ECLIPSE 2012 4.G Owners Manual Features and controls
3-3
3
NOTEThe key number (A) is stamped on the key number plate
as shown in the illustration.
Make a record of the key number and store the key and
key number plate in separate

Page 100 of 494

MITSUBISHI ECLIPSE 2012 4.G Owners Manual Features and controls
3-5
3
NOTEElectronic immobilizer is not compatible with commer-
cially available remote starting systems. Use of commer-
cially available remote starting systems may result in
v

Features and controls
3-5
3
NOTEElectronic immobilizer is not compatible with commer-
cially available remote starting systems. Use of commer-
cially available remote starting systems may result in
vehicle starting problems and a loss of security protection.
A system failure is suspected when the ignition key is
turned to the “START” position, and the engine does not
start. In such a case, contact an authorized Mitsubishi
Motors dealer.Replacement keysOnly keys that have been programmed to the vehicle electron-
ics can be used to start the vehicle.
If you lose a key, you can order a key from your authorized
Mitsubishi Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the vehicle keys must
be changed.
Take your vehicle and all remaining keys to your authorized
Mitsubishi Motors dealer to have your ID code changed.
Additional keysTo add a key, you need to register the ID code to the vehicle.
Registering the ID code can be done by your authorized
Mitsubishi Motors dealer. Or it can be done by yourself (except
for vehicles sold in Canada).
For you to register the ID code yourself, follow the “Customer
key programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and any remain-
ing keys to your authorized Mitsubishi Motors dealer.NOTEYou are provided with 2 keys, but you may add up to 6
more keys.Customer key programming (Except for vehicles
sold in Canada)You can program new keys to the system if you have two valid
(already registered) keys and blank (not registered) immobi-
lizer key (specially cut for your vehicle at your Mitsubishi
Motors dealer) by doing the following:
1. Insert the first valid key into the ignition and turn the igni-
tion to the “ON” position for 5 seconds.
2. Turn the ignition to the “LOCK” position and remove the
first key.
3. Within 30 seconds of turning the first key to the “LOCK”
position, insert the second valid key into the ignition and
turn it to the “ON” position. About 10 seconds later, the
immobilizer indicator will start blinking.
CAUTION
!Do not make any alterations or additions to the
immobilizer system. Alterations or additions could
cause failure of the immobilizer.
BK0132701US.book 5 ページ２０１０年１２月６日　月曜日　午後２時３分

Page 102 of 494

MITSUBISHI ECLIPSE 2012 4.G Owners Manual Features and controls
3-7
3
General informationYour electronic immobilizer operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and In

Page 104 of 494

MITSUBISHI ECLIPSE 2012 4.G Owners Manual Features and controls
3-9
3
Horn deactivation/reactivation The answerback function can be set in the following three
ways.
Each time the answerback function is set, a tone will sound to
tell you the c

Features and controls
3-9
3
Horn deactivation/reactivation The answerback function can be set in the following three
ways.
Each time the answerback function is set, a tone will sound to
tell you the condition of the answerback function.
1. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
2. Release the LOCK and UNLOCK buttons within 10 sec-
onds of pressing the UNLOCK button in step 1.Turn signal light deactivation/reactivation The answerback function from the turn signal lights indicating
when the doors and the rear hatch or trunk lid are locked or
unlocked can be turned on or off separately.
A tone will sound once when the function has been turned on,
and twice if it has been turned off.To deactivate/reactivate the answerback function for lock-
ing of the doors and rear hatch or trunk lid, take the fol-
lowing steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the LOCK button and then release the UNLOCK
button within 10 seconds of pressing the LOCK button in
step 1.
To deactivate/reactivate the answerback function for
unlocking of the doors and rear hatch or trunk lid, take the
following steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the UNLOCK button and then release the LOCK
button within 10 seconds of pressing the LOCK button in
step 1.
Using the panic alarmIf you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (4) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
One chime: The horn will sound if the doors and the rear
hatch or trunk lid are locked with the keyless
entry system.
Two chimes: The horn will not sound, even if the doors and
the rear hatch or trunk lid are locked with the
keyless entry system.
Three chimes: The horn will sound if the doors and the rear
hatch or trunk lid are already locked and the key-
less entry system is used.
In this mode, the horn will only sound when the
keyless entry LOCK button is pressed again to
reconfirm that the doors and the rear hatch or
trunk lid are locked.
BK0132701US.book 9 ページ２０１０年１２月６日　月曜日　午後２時３分

Page 105 of 494

MITSUBISHI ECLIPSE 2012 4.G Owners Manual 3-10 Features and controls
3
NOTEThe indicator light (5) comes on each time a switch is
pressed.
The keyless entry system does not work if the key is in the
ignition.
The remote control transmitte

Page 106 of 494

MITSUBISHI ECLIPSE 2012 4.G Owners Manual Features and controls
3-11
3
Procedure for replacing the remote control trans-
mitter battery1. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the

Page 107 of 494

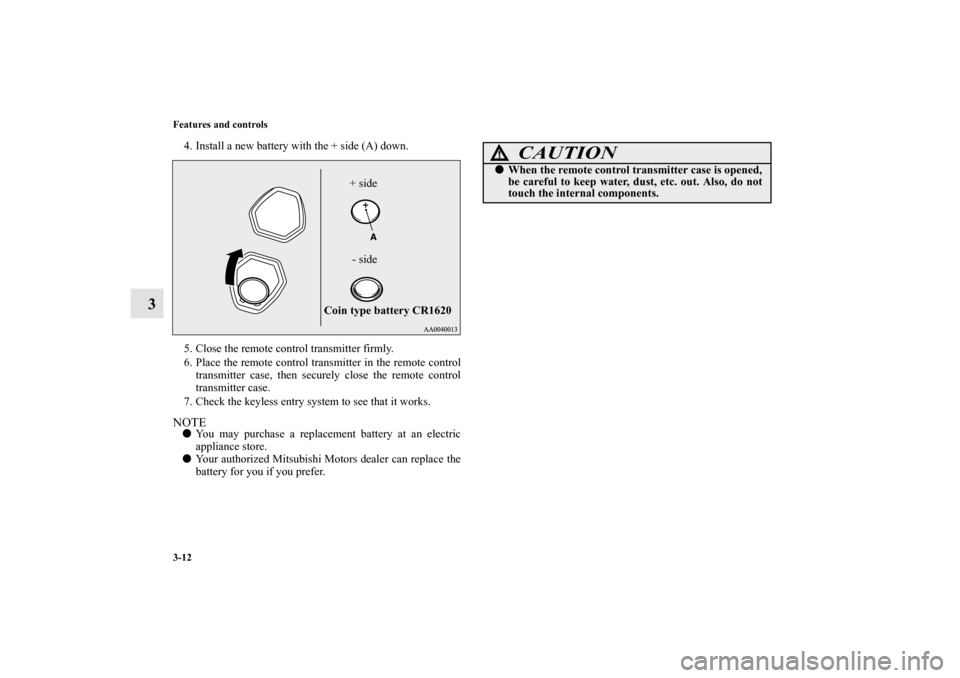

MITSUBISHI ECLIPSE 2012 4.G Owners Manual 3-12 Features and controls
3
4. Install a new battery with the + side (A) down.
5. Close the remote control transmitter firmly.
6. Place the remote control transmitter in the remote control
transmitte
