Page 432 of 494
Vehicle care and maintenance
7-41
7
Passenger compartment fuse location tablePassenger compartment fuse location
No.
Symbol
Electrical system
Capacity
1 Ignition coil 10 A
2 Gauge 7.5 A
3 Back-up lights 7.5 A
4 Electric convertible top 7.5 A
5 Relay 7.5 A
6 Door mirror heater 7.5 A
7— — —
8 Engine control 7.5 A
9— — —
10 — — —
11 Outside rearview mirrors 7.5 A
12 Engine control 7.5 A
13 — — —
14 Rear window wiper 15 A
15 Power door locks 15 A
16 Power outlet 15 A
17 — — —
18 — — —
19 Heater 30 A
20 Rear window defogger 30 A
BK0132701US.book 41 ページ ２０１０年１２月６日 月曜日 午後２時３分
Page 433 of 494
7-42 Vehicle care and maintenance
7
Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.
The table above shows the main equipment corresponding
to each fuse.
The fuse block does not contain spare 7.5 A, 10 A and 15
A fuses. If a fuse of one of these capacities blows, replace
it temporarily by borrowing the one that matches from:
7.5 A: Door mirror heater
10 A: Dome light (in engine compartment)
15 A: Power outlet
Replace the borrowed fuse as soon as possible.
Engine compartment fuse location table2.4 liter & 3.8 liter models
21 Sunroof 20 A
22 — — —
23 Electric window control 7.5 A
24 Electric convertible top 15 A
25 — Spare fuse 20 A
26 — Spare fuse 30 A
27 — Spare fuse 30 A No.
Symbol
Electrical system
Capacity
Engine compartment fuse location
Front
BK0132701US.book 42 ページ ２０１０年１２月６日 月曜日 午後２時３分
Page 434 of 494
Vehicle care and maintenance
7-43
7
No.
Symbol
Electrical system
Capacity
1 Fuse (+B)
80 A*
1
2 Radiator fan motor30 A*
2,
50 A*3
3 Anti-lock braking system
60 A*
1
4 Ignition switch
40 A*1
5 Power window control
30 A*1
6 Front fog lights 15 A
7 Heated seat 20 A
8 Horn 15 A
9 Engine control 20 A
10 Air conditioning 10 A
11 Stop lights 7.5 A
12 Audio 30 A
13 Alternator 7.5 A
14 Hazard warning flasher 10 A
15 Automatic transaxle 20 A
16 Headlight high beam (right) 10 A
17 Headlight high beam (left) 10 A
18 Headlight low beam (right)10 A*4,
20 A*5
19 Headlight low beam (left)10 A*
4,
20 A*5
20 Position light (right) 7.5 A
21 Position light (left) 7.5 A
22 Dome light 10 A
23 Radio 15 A
24
Fuel pump 15 A
25 Windshield wiper 30 A
26 Electric convertible top
40 A*
1
*1:Fusible link
*2:Fusible link (2.4 liter models)
*3:Fusible link (3.8 liter models)
*4:Except for vehicles with high intensity discharge headlights
*5:Vehicles with high intensity discharge headlightsNo.
Symbol
Electrical system
Capacity
BK0132701US.book 43 ページ ２０１０年１２月６日 月曜日 午後２時３分
Page 435 of 494
7-44 Vehicle care and maintenance
7
2.4 liter models
*: Fusible link
Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.
The table above shows the main equipment corresponding
to each fuse.
Identification of fuse
N00901100049
No.
Symbol
Electrical system
Capacity
1 Condenser fan motor 20 A*Engine compartment fuse location
Front
Capacity
Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow (fuse type) / Light blue (fusible link type)
30 A Green (fuse type) / Pink (fusible link type)
40 A Green
50 A Red
60 A Yellow
80 A White
BK0132701US.book 44 ページ ２０１０年１２月６日 月曜日 午後２時３分
Page 438 of 494
Vehicle care and maintenance
7-47
7 Replacement of light bulbs
N00942900219
Before replacing a bulb, be sure the light is off. Do not touch
the glass part of the new bulb with your bare fingers; the oil
from your skin will stay on the glass and dim or destroy the
bulb when it gets hot.NOTEIf you are unsure of how to carry out the work as required,
it is recommended that these procedures be carried out by
an authorized Mitsubishi Motors dealer or a repair facility
of your choice.
Be careful not to scratch the vehicle body when removing
a light and lens.
When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes temporarily foggy.
This is the same phenomenon as when window glass mists
up on a humid day, and does not indicate a functional
problem.
When the light is switched on, the heat will remove the
fog. However, if water gathers inside the light, please
have it checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
Bulb capacity
N00943000099
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.
CAUTION
!Bulbs are extremely hot immediately after being
turned off.
When replacing a bulb, wait for it to cool sufficiently
before touching it. You could otherwise be burned.
BK0132701US.book 47 ページ ２０１０年１２月６日 月曜日 午後２時３分
Page 439 of 494
7-48 Vehicle care and maintenance
7
Outside (front)
N00900900040
Vehicles with high intensity discharge headlights
Except for vehicles with high intensity discharge headlights
Description
Wattage or
Candle power
ANSI Trade No.
or Bulb type
1- Headlight 35 W D1S
2-Parking and side-marker
light1.5 cp 194NA
3- Front turn signal light 27/7 W 3757AK
4- Front fog light 45 W H10
Description
Wattage or
Candle power
ANSI Trade No.
or Bulb type
5- Headlight 60/55 W H13
6-Front turn signal, parking
and side-marker light30/2.2 cp 3457AK
7-Front fog light
(if so equipped)45 W H10
BK0132701US.book 48 ページ ２０１０年１２月６日 月曜日 午後２時３分

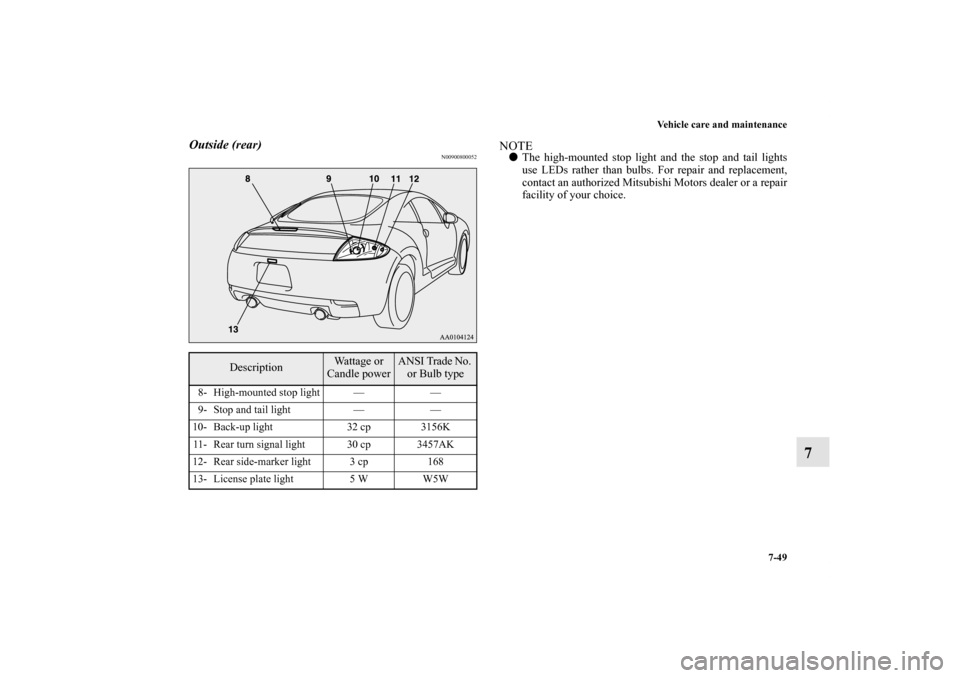

Page 440 of 494
Vehicle care and maintenance
7-49
7
Outside (rear)
N00900800052
NOTEThe high-mounted stop light and the stop and tail lights
use LEDs rather than bulbs. For repair and replacement,
contact an authorized Mitsubishi Motors dealer or a repair
facility of your choice.
Description
Wattage or
Candle power
ANSI Trade No.
or Bulb type
8- High-mounted stop light — —
9- Stop and tail light — —
10- Back-up light 32 cp 3156K
11- Rear turn signal light 30 cp 3457AK
12- Rear side-marker light 3 cp 168
13- License plate light 5 W W5W
BK0132701US.book 49 ページ ２０１０年１２月６日 月曜日 午後２時３分
Page 441 of 494
7-50 Vehicle care and maintenance
7
Inside
N00950400590
ECLIPSE
NOTEThe dome light (front)/reading lights (vehicles with sun-
roof) use LEDs rather than bulbs. For repair and replace-
ment, contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice.
Vehicles with sunroof Except for vehicles with sun-
roof
Description
Wattage
1- Cargo area light 5 W
2- Dome light (Rear) 8 W
3-Dome light (Front)/
Reading lightExcept for vehicles
with sunroof8 W
Vehicles with sun-
roof—
4- Vanity mirror light 1.4 W
5- Glove compartment light 1.4 W
