2012 MERCEDES-BENZ SPRINTER check engine

Display messages Possible causes/consequences and
0050 SolutionsThe exhaust gas aftertreatment system is defective or an
emissions-relevant malfunction has occurred. The defect or
malfunction can result in damage to the exhaust gas
aftertreatment system.
X
Visit a qualified specialist workshop immediately. 009B
StArtS RE xx In addition, the yellow
00E4 DEF indicator lamp lights up and a
warning tone sequence sounds.
The DEF supply has dropped below the 0.8 US gal (3.0 l) reserve
mark.
After the message appears for the first time, the remaining DEF
supply will last for approximately 1200 miles (1900 km). The
engine can then only be started another sixteen times.
The
number of remaining engine starts xx (16 to 0) is shown in the
message every time the engine is started. Once the number 0 is
shown, the yellow 00BB engine diagnosis indicator lamp lights up
and the engine can no longer be started.
X Add at least 2.0 US gal (7.6 l) of DEF (Y page 143).
After topping up, the system check takes approximately
20 seconds. The 00E4 DEF indicator lamp then goes out.Text messages on vehicles with steering wheel buttons
Display messages Possible causes/consequences and
0050 SolutionsABS
Visit workshop
G
Warning!
ABS has been deactivated due to a malfunction. ESP ®
, ASR and
BAS, as well as cruise control, have also been deactivated as a
result.
The brake system is still available with complete brake boosting
effect but without ABS.
X Drive on carefully.
X Visit a qualified specialist workshop immediately. ABS
Unavailable
G
Warning!
ABS is temporarily unavailable. Self diagnosis may not have been
completed yet.
The brake system

is still available with the normal braking effect.
X Drive a short distance at a speed above 13 mph (20 km/h).
ABS is available again if the display message goes out. Troubleshooting
201
Practical advice Z

Display messages Possible causes/consequences and
0050 SolutionsABS
Unavailable
G
Warning!
ABS has been deactivated due to undervoltage. The battery might
not be charging.
The brake system
is still available with the normal braking effect.
X Drive on carefully.
X Visit a qualified specialist workshop immediately. Check Diesel
Exhaust Fluid see
Operator's Manual The Diesel Exhaust Fluid (DEF) supply has dropped below
1.5 US gal (5.5 l).
After the message appears for the first time and under normal
driving conditions, the remaining DEF supply will last for
approximately 1000 miles (1600 km).
After

that, the 0.8 US gal (3.0 l) reserve mark is reached. A warning
tone sequence sounds. The engine can then only be started
another sixteen times.
X add DEF supply ( Y page 143).
After topping up, the system check takes approximately
20 seconds. The display message then disappears. Check Diesel
Exhaust Fluid see
Operator's Manual If the yellow
00BB engine diagnosis indicator lamp lights up in
addition, the DEF reducing agent is contaminated, diluted or not
compliant with ISO 22241.
After the message appears for the first time, and under normal
driving conditions, you can continue driving for approximately
50 miles

(80 km). After this, a warning tone sequence sounds. The
engine can then only be started another sixteen times.
Have the DEF tank cleaned and refilled at a qualified specialist
workshop as soon as possible. ESP
Visit workshop
G
Warning!
ESP ®
has been deactivated due to a malfunction. This also
deactivates cruise control.
The vehicle's stability is no longer automatically regulated at an
early stage. Engine power output may be reduced.
X Drive on carefully.
X Visit a qualified specialist workshop immediately.202
Troubleshooting
Practical advice

Display messages Possible causes/consequences and
0050 SolutionsESP
Unavailable
ESP
®
has been deactivated due to undervoltage. This also
deactivates cruise control.
The battery might not be charging.
The vehicle's stability is no longer automatically regulated at an
early stage. Engine power output may be reduced.
X Drive on carefully.
X Visit a qualified specialist workshop as soon as possible. Tire pres.
Adj. pres. The pressure in one or more tires is too low or there is a significant
difference between tire pressures on individual wheels.
X
Check the tire pressure at the next opportunity and correct it if
necessary ( Y page 281). Tire pres.
monitor
inoperative The tire pressure monitor has malfunctioned.
X
Have the tire pressure monitor and the wheels checked at a
qualified specialist workshop. Tire press.
monitor currently
unavail. The tire pressure monitor function is temporarily unavailable due
to radio interference or undervoltage.
X
As soon as the causes have been remedied, the tire pressure
monitor activates itself automatically. Tire press.
monitor
inoperative No
wheel sensors The tire pressure monitor is not receiving signals from one or more
wheels because:
R
a wheel has
been replaced with the spare wheel without wheel
electronics.
R the maximum temperature on one of the wheel electronics units
has been exceeded.
R the wheel electronics are malfunctioning.
X Have wheels with suitable wheel electronics units installed at a
qualified specialist workshop. Cruise control
Visit workshop Cruise control has been deactivated due to a malfunction.
X
Have cruise control checked at a qualified specialist workshop. SRS
Restraint system
Visit workshop
G
Warning!
The restraint systems have malfunctioned. The air bags or belt
tensioners could be triggered unintentionally or might not be
triggered at all in the event of an accident.
X Drive on carefully.
X Visit a qualified specialist workshop as soon as possible. Troubleshooting
203
Practical advice Z

Symbol messages on vehicles with steering wheel buttons
Display messages Possible causes/consequences and
0050 Solutions00E4
xx
starts remaining The Diesel Exhaust Fluid (DEF) supply has dropped below the
0.8 US gal (3.0 l) reserve mark.
After the message appears for the first time, the remaining DEF
supply will last for approximately 1200 miles (1900 km). The
engine can then only be started another twenty times.
The
number
of remaining engine starts xx (20 to 0) is shown in the
message every time the engine is started. Once the number 0 is
shown, the yellow 00BB engine diagnosis indicator lamp lights up
and the engine can no longer be started.
X Add at least 2.0 US gal (7.6 l) of DEF (Y page 143).
After topping up, the system check takes approximately
20 seconds. The display message then disappears. 00E4
xx
starts remaining In addition, the yellow
00BB engine diagnosis
indicator lamp lights
up.
After the message appears for the first time, the engine can only
be started another twenty times.
The number of remaining engine starts xx (20 to 0) is shown in the
message every time the engine is started. Once the number 0 is
shown, the engine can no longer be started. The DEF reducing agent is contaminated, diluted or is not
compliant with ISO 22241.
X
Have the DEF tank cleaned and refilled at a qualified specialist
workshop as soon as possible. The exhaust gas aftertreatment system is defective or an
emissions-relevant malfunction has occurred. The defect or
malfunction can result in damage to the exhaust gas
aftertreatment system.
X
Visit a qualified specialist workshop immediately. 003D
Visit workshop G
Warning!
ASR has been deactivated due to a malfunction.
The engine power output may then be lower.
X Drive on carefully.
X Visit a qualified specialist workshop immediately.204
Troubleshooting
Practical advice

Display messages Possible causes/consequences and
0050 Solutions00BE
Check coolant
level The coolant level is too low.
Never run the engine if the coolant level is too low. The engine
could overheat and be damaged.
X
Add coolant, observing the warning notes while doing so
(Y page 169).
X Have the coolant system checked at a qualified specialist
workshop if the
coolant needs topping up more often than usual.003E
Hood open You are already driving at walking pace, even though the hood is
not closed.
X
Close the hood. 00B4
Engine oil
Add

1.0
quart(Canada: 1.0
liter) The oil level is too low.
X
Check the oil level the next time you refuel ( Y page 171), and
top up the oil. 00B4
Engine oil level
Not when eng.
running You want to check the oil level even though the engine is running.
X
Switch off the engine.
X Check the oil level (Y page 171). 00B4
Engine oil level
Reduce oil level You have added too much engine oil. There is a risk of damaging
the engine or catalytic converter.
X
Siphon off excess oil until the oil is at the specified level.
Observe the legal requirements. 00B4
Engine oil level
Stop, turn engine
off There is not enough oil, or no oil in the engine. There is a danger
of engine damage.
X
Pull over immediately, paying attention to road and traffic
conditions.
X Check the oil level with the oil dipstick ( Y page 172).
If the oil level is OK: have the malfunction repaired
immediately at a qualified specialist workshop.
If the oil

level is too low: have the vehicle towed to a qualified
specialist workshop. 00B4
Oil sensor Visit
workshop The measuring system is malfunctioning.
X
Have the measuring system checked at a qualified specialist
workshop. 006D
Please enter PIN: You have not yet entered your PIN in the mobile phone.
X
Enter the PIN for the SIM card. Troubleshooting
207
Practical advice Z

Problem Possible causes/consequences and
0050 SolutionsThe engine does not
start.
The starter motor
cannot be heard. The battery is discharged or faulty.
X
Check the battery for damage.
X Charge the battery ( Y page 178).The engine does not
start.
The starter motor
cannot be heard. The starter is faulty.
X
Have the starter checked at a qualified specialist workshop. Automatic transmission
G
Warning
The operating safety of your vehicle could be jeopardized if maintenance work is carried out
incorrectly. As a
result, you could lose control of the vehicle and cause an accident. In addition,
the safety systems may no longer be able to protect you or others as they are designed to do.
Always have maintenance work carried out at a qualified specialist workshop. The qualified
specialist workshop must have the necessary specialist knowledge and tools to carry out the
work required. We recommend visiting an authorized Sprinter Dealer. In particular, work relevant
to safety or on safety-related systems must be carried out at a qualified specialist workshop. Problem Possible causes/consequences and
0050 SolutionsThe transmission no
longer changes gear
correctly. The transmission is losing oil.
X
Have the transmission checked immediately at a qualified
specialist workshop. The acceleration
characteristics have
deteriorated
noticeably.
The transmission does
not shift. The transmission is in emergency mode.
It is only possible to shift into second gear or reverse gear.
X
Stop the vehicle.
X Depress the brake pedal.
X Move the selector lever to position P.
X Switch off the engine.
X Wait at least 10 seconds before restarting the engine.
X Depress the brake pedal.
X Move the selector lever to position D or R.
X In position D, the transmission shifts into second gear; in
position R, the transmission shits into reverse gear.
X Have the transmission checked immediately at a qualified
specialist workshop.214
Troubleshooting
Practical advice

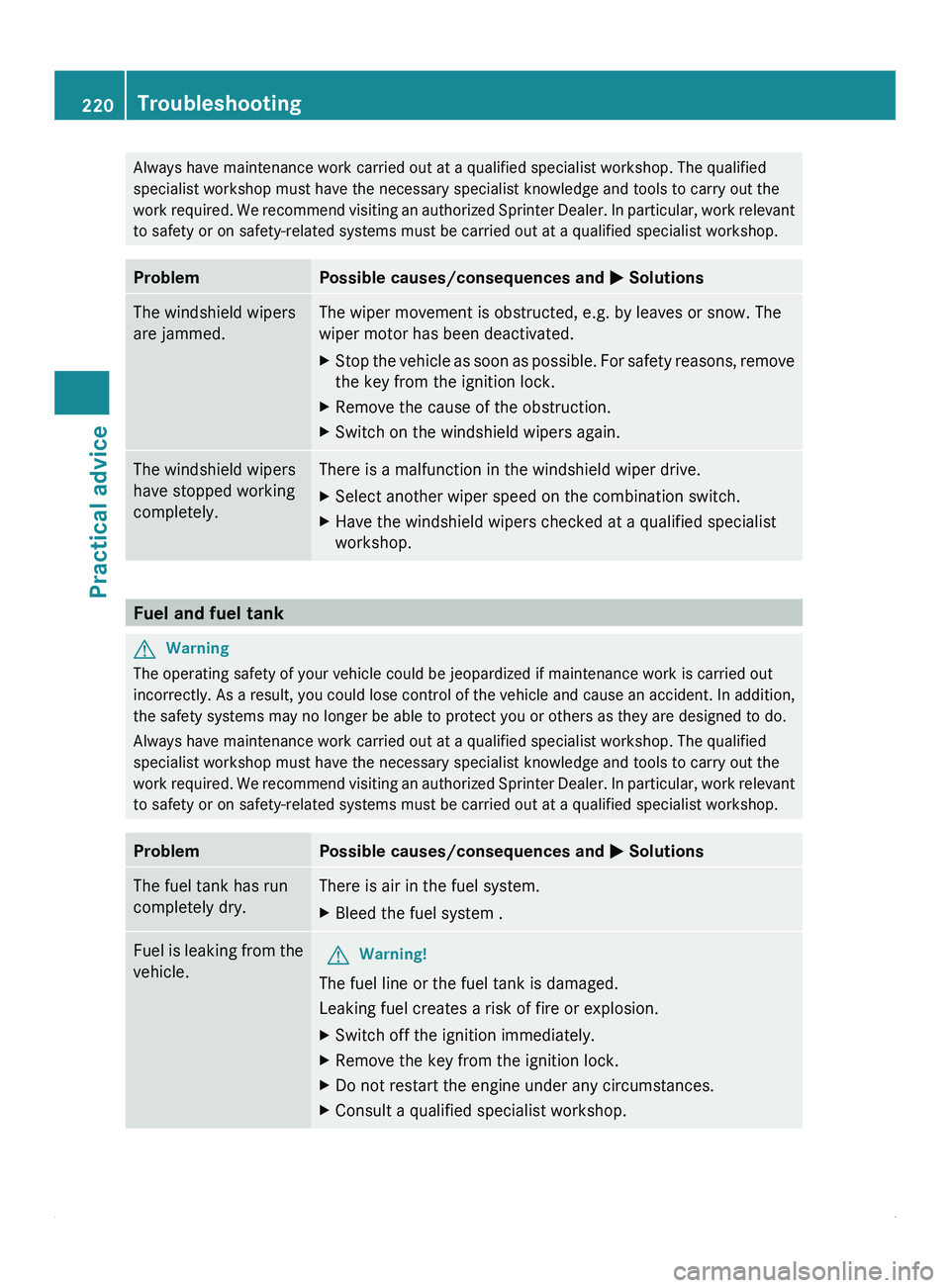

Always have maintenance work carried out at a qualified specialist workshop. The qualified
specialist workshop must have the necessary specialist knowledge and tools to carry out the
work required.
We
recommend visiting an authorized Sprinter Dealer. In particular, work relevant
to safety or on safety-related systems must be carried out at a qualified specialist workshop. Problem Possible causes/consequences and
0050 SolutionsThe windshield wipers
are jammed. The wiper movement is obstructed, e.g. by leaves or snow. The
wiper motor has been deactivated.
X
Stop the
vehicle as soon as possible. For safety reasons, remove
the key from the ignition lock.
X Remove the cause of the obstruction.
X Switch on the windshield wipers again. The windshield wipers
have stopped working
completely. There is a malfunction in the windshield wiper drive.
X
Select another wiper speed on the combination switch.
X Have the windshield wipers checked at a qualified specialist
workshop. Fuel and fuel tank
G
Warning
The operating safety of your vehicle could be jeopardized if maintenance work is carried out
incorrectly. As a

result, you could lose control of the vehicle and cause an accident. In addition,
the safety systems may no longer be able to protect you or others as they are designed to do.
Always have maintenance work carried out at a qualified specialist workshop. The qualified
specialist workshop must have the necessary specialist knowledge and tools to carry out the
work required. We recommend visiting an authorized Sprinter Dealer. In particular, work relevant
to safety or on safety-related systems must be carried out at a qualified specialist workshop. Problem Possible causes/consequences and
0050 SolutionsThe fuel tank has run
completely dry. There is air in the fuel system.
X
Bleed the fuel system . Fuel is
leaking from the
vehicle. G
Warning!
The fuel line or the fuel tank is damaged.
Leaking fuel creates a risk of fire or explosion.
X Switch off the ignition immediately.
X Remove the key from the ignition lock.
X Do not restart the engine under any circumstances.
X Consult a qualified specialist workshop.220
Troubleshooting
Practical advice

Engine
Draining the fuel filter
If the 00BA
indicator lamp lights up, you must
drain the fuel filter.
! When the 00BA indicator lamp lights up,
drain the fuel filter with water separator
immediately. Otherwise, the engine may be
damaged.
0040Environmental note
When handling, storing and disposing of
diesel and diesel mixtures, please observe
the relevant regulations.
To this end, have the fuel filter with water
separator drained at a qualified specialist
workshop which
has

the necessary specialist
knowledge and tools to carry out the work
required, e.g. an authorized Sprinter Dealer.
The fuel filter with water separator is in the
engine compartment. X
Apply the parking brake and move the
automatic
transmission selector

lever to P.
X Switch off the diesel engine and open the
hood ( Y page 168).
X Place a suitable receptacle under drain
hose 0046.
X Turn the key to position 2 in the ignition
lock.
X Open drain plug 0047
immediately until
liquid
flows out of drain hose 0046. Make sure that the liquid flows into the receptacle under
drain hose
0046.
X Screw in drain plug 0047 as soon as
approximately 0.2 US qt (0.2 l) of liquid have been collected.
i The electric fuel pump stops the flow of
liquid automatically after 30 seconds.
X After draining, turn the key back to
position

0 in the ignition lock.
X Dispose of the liquid in an environmentally
responsible manner.
0040Environmental note
Have the drained liquid disposed of at a
qualified specialist workshop, e.g. an
authorized Sprinter Dealer.
X Drain the fuel filter again if the 00BA
indicator lamp remains lit.
! If the
00BA

indicator lamp remains lit even
after draining for the second time, have the
cause checked immediately at a qualified
specialist workshop, e.g. at an authorized
Sprinter Dealer. Bleeding the fuel system
Wheels and tires
General notes
The vehicle is equipped either with a spare
wheel or with

Premium tire sealant. The spare
wheel is under the rear of the vehicle
(Y page 185). The Premium tire sealant is
located in the stowage compartment in the
right-hand door sill ( Y page 184). G
Warning
Defective or worn tires, and underinflated or
overinflated tires, can cause significant
changes in the

vehicle's handling and braking
characteristics. There is an increased risk of
an accident. Wheels and tires
221
Practical advice
Z
