2012 MERCEDES-BENZ SLS AMG ROADSTER transmission

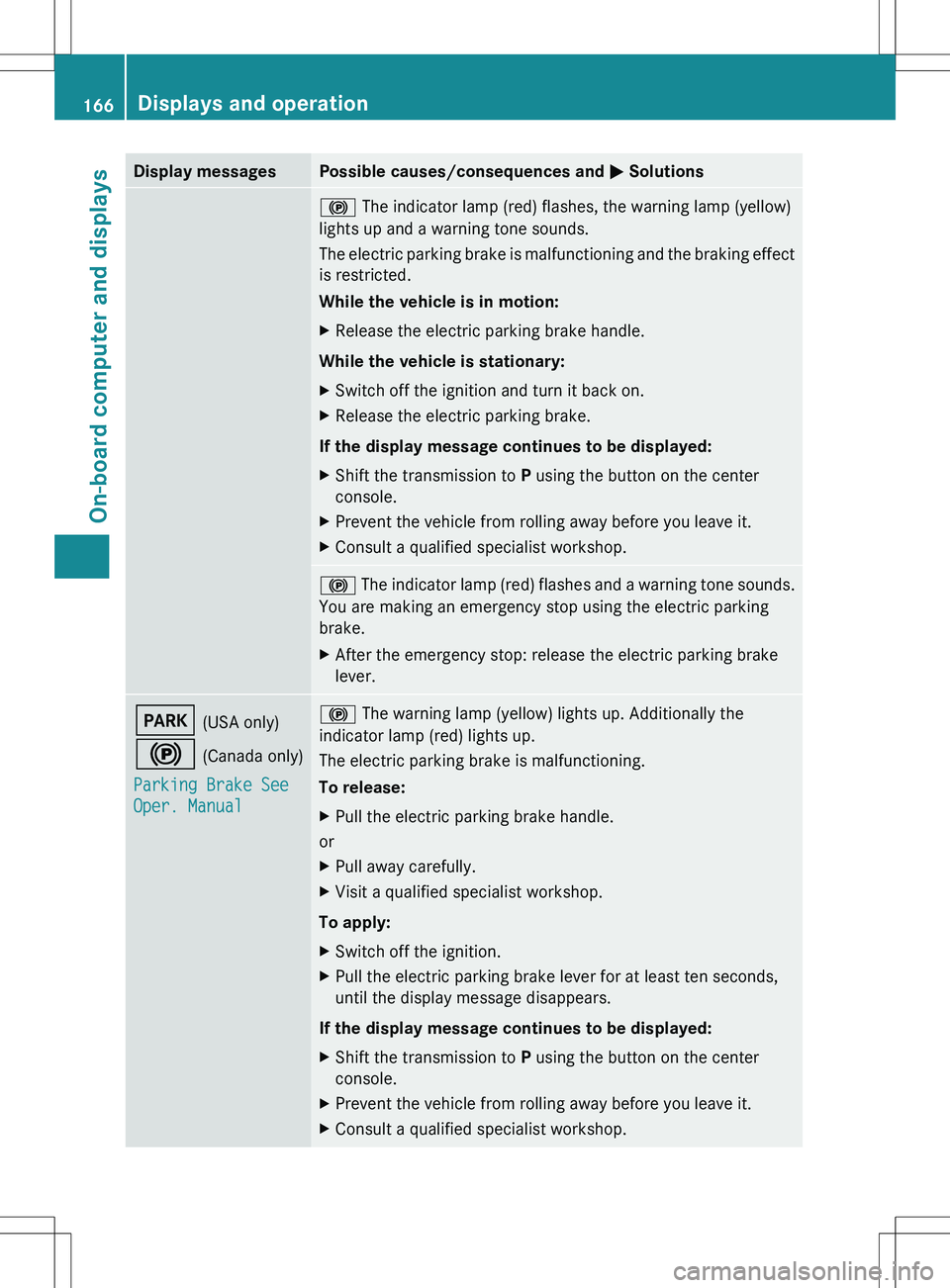

Display messagesPossible causes/consequences and M Solutions! The indicator lamp (red) flashes, the warning lamp (yellow)
lights up and a warning tone sounds.
The electric parking brake is malfunctioning and the braking effect
is restricted.
While the vehicle is in motion:XRelease the electric parking brake handle.
While the vehicle is stationary:
XSwitch off the ignition and turn it back on.XRelease the electric parking brake.
If the display message continues to be displayed:
XShift the transmission to P using the button on the center
console.XPrevent the vehicle from rolling away before you leave it.XConsult a qualified specialist workshop.! The indicator lamp (red) flashes and a warning tone sounds.
You are making an emergency stop using the electric parking
brake.XAfter the emergency stop: release the electric parking brake
lever.F (USA only)
! (Canada only)
Parking Brake See
Oper. Manual! The warning lamp (yellow) lights up. Additionally the
indicator lamp (red) lights up.
The electric parking brake is malfunctioning.
To release:XPull the electric parking brake handle.
or
XPull away carefully.XVisit a qualified specialist workshop.
To apply:
XSwitch off the ignition.XPull the electric parking brake lever for at least ten seconds,
until the display message disappears.
If the display message continues to be displayed:
XShift the transmission to P using the button on the center
console.XPrevent the vehicle from rolling away before you leave it.XConsult a qualified specialist workshop.166Displays and operationOn-board computer and displays

Display messagesPossible causes/consequences and M Solutions! The warning lamp (yellow) lights up. In addition, the indicator
lamp (red) flashes for about 10 seconds after the electric parking
brake has been engaged or released. It then goes out or remains
lit.
The electric parking brake has overheated.XAllow the vehicle to cool down. Do not engage or release the
electric parking brake during this time.XPrevent the vehicle from rolling away before you leave it.XWhen the vehicle has cooled down: switch the ignition off and
on again, then engage or release the electric parking brake.F (USA only)
! (Canada only)
Parking Brake
Inoperative! The warning lamp (yellow) lights up. In addition, the indicator
lamp (red) flashes for about 10 seconds after the electric parking
brake has been engaged or released. It then goes out or remains
lit.
The electric parking brake is malfunctioning.XSwitch the ignition off and on, and then engage the electric
parking brake.
If it is not possible to engage the electric parking brake:
XShift the transmission to P using the button on the center
console.XPrevent the vehicle from rolling away before you leave it.XVisit a qualified specialist workshop.F (USA only)
! (Canada only)
Turn On the
Ignition to
Release the
Parking Brake! The indicator lamp (red) flashes.
You attempted to release the electric parking brake while the
ignition was switched off.XSwitch on the ignition.168Displays and operationOn-board computer and displays

Display messagesPossible causes/consequences and M Solutions+
Insert KeyThe KEYLESS-GO start function is temporarily malfunctioning or
is defective. A warning tone also sounds.XInsert the SmartKey into the ignition lock and turn it to the
desired position ( Y page 115).+
Take Your Key From
IgnitionThe SmartKey is in the ignition lock.XRemove the SmartKey.
Transmission
Display messagesPossible causes/consequences and M SolutionsApply Brake to
Shift from
'P'You have attempted to move the transmission selector lever to
position D, R or N without depressing the brake pedal.XDepress the brake pedal.Apply Brake
and Start Engine
to Disengage 'P'When the engine is switched off, it is not possible to shift out of
park position P.XDepress the brake pedal and start the engine.Start Engine
to Engage GearThe gear cannot be engaged when the engine is switched off.XDepress the brake pedal and start the engine.Depress Brake
to Start EngineYou cannot start the engine. The engine was switched off in
position D or R.XDepress the brake pedal and start the engine.Door Open Vehicle
Not in 'P'The driver's door is open and the transmission is in position R, N
or D.
A warning tone also sounds.XShift the transmission to P using the button on the center
console.XPress the electric parking brake handle.186Displays and operationOn-board computer and displays

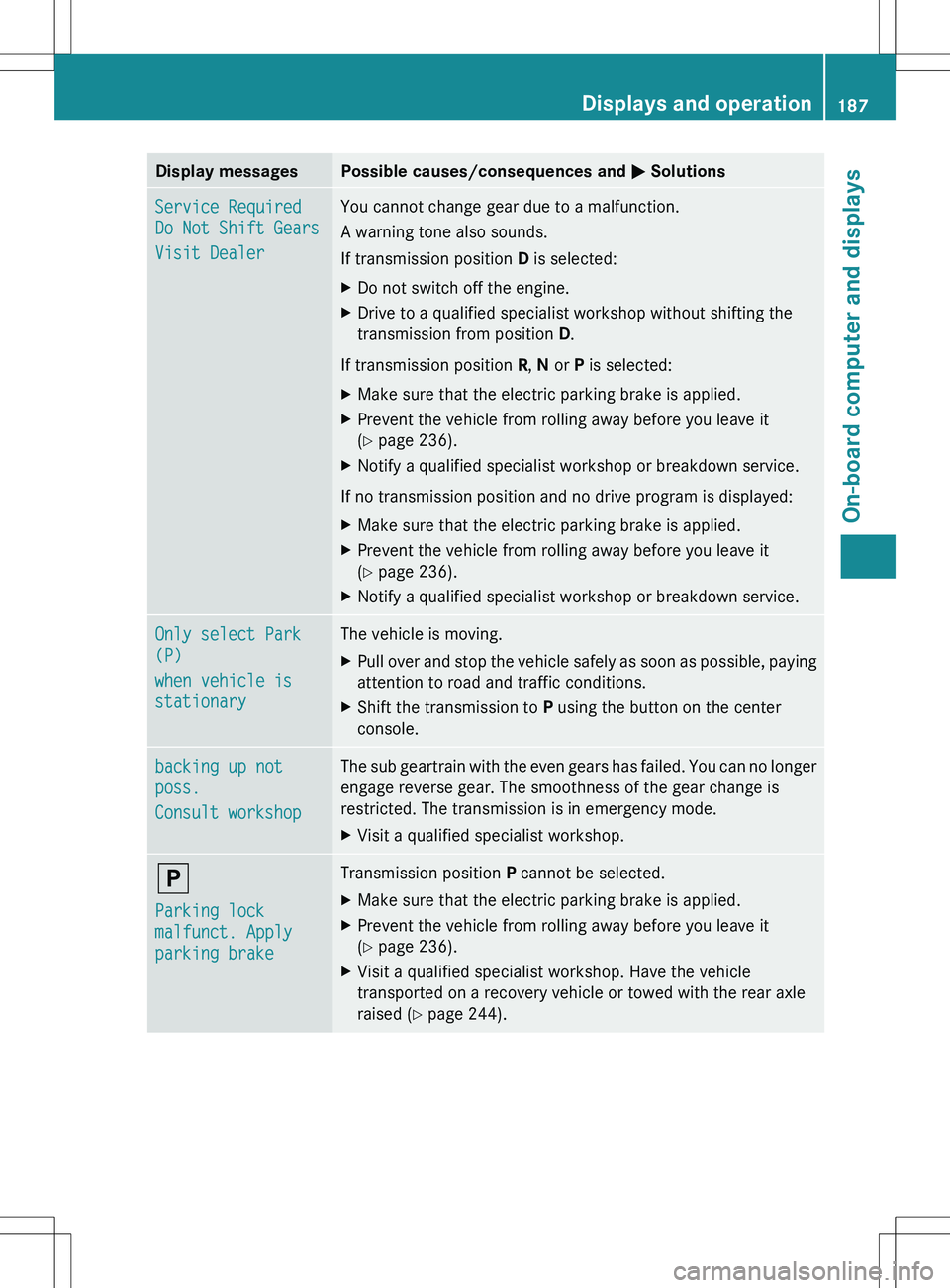

Display messagesPossible causes/consequences and M SolutionsService Required
Do Not Shift Gears
Visit DealerYou cannot change gear due to a malfunction.
A warning tone also sounds.
If transmission position D is selected:XDo not switch off the engine.XDrive to a qualified specialist workshop without shifting the
transmission from position D.
If transmission position R, N or P is selected:
XMake sure that the electric parking brake is applied.XPrevent the vehicle from rolling away before you leave it
( Y page 236).XNotify a qualified specialist workshop or breakdown service.
If no transmission position and no drive program is displayed:
XMake sure that the electric parking brake is applied.XPrevent the vehicle from rolling away before you leave it
( Y page 236).XNotify a qualified specialist workshop or breakdown service.Only select Park
(P)
when vehicle is
stationaryThe vehicle is moving.XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.XShift the transmission to P using the button on the center
console.backing up not
poss.
Consult workshopThe sub geartrain with the even gears has failed. You can no longer
engage reverse gear. The smoothness of the gear change is
restricted. The transmission is in emergency mode.XVisit a qualified specialist workshop.j
Parking lock
malfunct. Apply
parking brakeTransmission position P cannot be selected.XMake sure that the electric parking brake is applied.XPrevent the vehicle from rolling away before you leave it
( Y page 236).XVisit a qualified specialist workshop. Have the vehicle
transported on a recovery vehicle or towed with the rear axle
raised ( Y page 244).Displays and operation187On-board computer and displaysZ

Display messagesPossible causes/consequences and M Solutionsd
Stop Engage PThe transmission is faulty. The vehicle loses drive and rolls to a
standstill.XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.XMake sure that the electric parking brake is applied.XPrevent the vehicle from rolling away before you leave it
( Y page 236).XConsult a qualified specialist workshop.d
Transmission oil
cooling
MalfunctionThe transmission coolant pump is faulty. The transmission may
overheat.XIn the on-board computer, select the AMG menu and check the
transmission oil temperature.XAvoid excessive loading, e.g. due to dynamic driving.XAt transmission oil temperatures under 248 ‡(120 †), drive to
the nearest qualified specialist workshop.d
Trans. oil
overheated Drive
on with careThe transmission oil has overheated.
Manual drive program M and shift range restriction are no longer
available. Only drive program C is still available. The engine output
is reduced according to the degree of overheating.XAllow the transmission oil to cool by adopting a defensive driving
style.188Displays and operationOn-board computer and displays

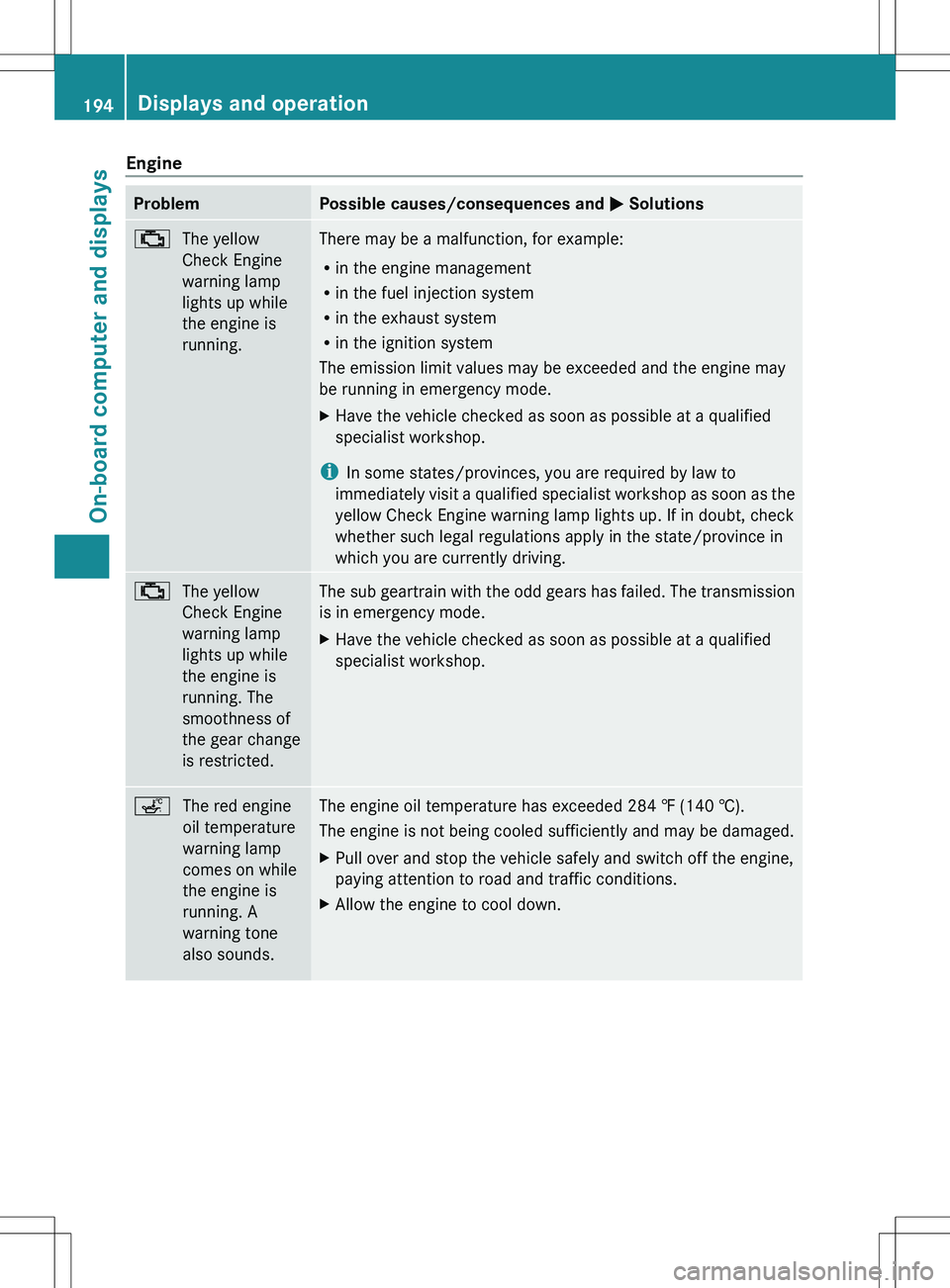

EngineProblemPossible causes/consequences and M Solutions;The yellow
Check Engine
warning lamp
lights up while
the engine is
running.There may be a malfunction, for example:
R in the engine management
R in the fuel injection system
R in the exhaust system
R in the ignition system
The emission limit values may be exceeded and the engine may
be running in emergency mode.XHave the vehicle checked as soon as possible at a qualified
specialist workshop.
i In some states/provinces, you are required by law to
immediately visit a qualified specialist workshop as soon as the
yellow Check Engine warning lamp lights up. If in doubt, check
whether such legal regulations apply in the state/province in
which you are currently driving.
;The yellow
Check Engine
warning lamp
lights up while
the engine is
running. The
smoothness of
the gear change
is restricted.The sub geartrain with the odd gears has failed. The transmission
is in emergency mode.XHave the vehicle checked as soon as possible at a qualified
specialist workshop.çThe red engine
oil temperature
warning lamp
comes on while
the engine is
running. A
warning tone
also sounds.The engine oil temperature has exceeded 284 ‡ (140 †).
The engine is not being cooled sufficiently and may be damaged.XPull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.XAllow the engine to cool down.194Displays and operationOn-board computer and displays

XPress and hold button B on remote control
A until indicator lamp : lights up green.
The programming has been successful if
indicator lamp : lights up or flashes
green.XRelease button ;, = or ? on the
integrated garage door opener and button
B on garage door remote control A.
If indicator lamp : lights up red:
XRepeat the programming operation for the
corresponding button on the rear-view
mirror. When doing so, vary the distance
between remote control A and the rear-
view mirror.
i If the indicator lamp flashes green after
successful programming, the garage door
system is operating on a rolling code. After
programming, you must synchronize the
garage door opener integrated in the rear-
view mirror with the receiver of the garage
door system.
Synchronizing the rolling code
Your vehicle must be within range of the
garage or gate opener drive. Make sure that
neither your vehicle nor any persons/objects
are present within the sweep of the door or
gate.
Observe the safety notes when performing
the rolling code synchronization
( Y page 212).
XTurn the SmartKey to position 2 in the
ignition lock.XPress the programming button of the door
or gate drive (see the door or gate drive
operating instructions, e.g. under
"Programming of additional remote
controls").
i Usually, you now have 30seconds to
initiate the next step.
XPress the previously programmed
button ;, = or ? of the integratedgarage door opener repeatedly until the
door starts to move.
The rolling code synchronization is then
complete.
Notes on programming the remote
control
Canadian radio frequency laws require a
"break" (or interruption) of the transmission
signals after broadcasting for a few seconds.
Therefore, these signals may not last long
enough for the integrated remote control. The
signal is not recognized during programming.
Comparable with Canadian law, some U.S.
garage door openers are designed to "time-
out" in the same manner.
Proceed as follows:
R if you live in Canada.
R if you have difficulties programming the
garage door opener (regardless of where
you live) when using the programming
steps.
XPress and hold one of the buttons ;
to ? on the integrated garage door
opener.
Indicator lamp : starts to flash yellow
after a short period.XRelease the switch.XPress button B of garage door remote
control A for two seconds, then release it
for two seconds.XPress button B again for two seconds.XRepeat this sequence on button B of
remote control A until indicator lamp :
lights up green.
Repeat the process if indicator lamp :
turns red.XContinue with the other programming
steps (see above).214FeaturesStowage and features

Problems when programming
If you are experiencing problems
programming the integrated garage door
opener on the rear-view mirror, take note of
the following instructions:
R Check remote control frequency of garage
door drive remote control A. This is
usually located on the back of the remote
control.
The integrated garage door opener is
compatible with devices that have units
which operate in the frequency range of
280 to 390 MHz.
R Change the batteries in garage door remote
control A. This increases the likelihood
that garage door remote control A will
send a strong and precise signal to the
integrated garage door opener in the rear-
view mirror.
R When programming, hold remote control
A at varying distances and angles from the
button which you are programming. Try
various angles at a distance of between 2
to 12 inches (5 to 30 cm) or at the same
angle but at varying distances.
R if another remote control for the same
garage door drive is available, repeat the
same programming steps with this remote
control. Before performing these steps,
make sure that new batteries have been
installed in garage door drive remote
control A.
R note that some remote controls only
transmit for a limited amount of time (the
indicator lamp on the remote control goes
out). Press button B on remote control
A before transmission ends.
R align the antenna cable of the garage door
opener unit. This can improve signal
reception/transmission.
Opening/closing the garage door
After it has been programmed, the integrated
garage door opener performs the function of
the garage door system remote control.
Please also read the operating instructions
for the garage door system.XTurn the SmartKey to position 2 in the
ignition lock.XPress one of the buttons ;, = or ?;
whichever one is programmed to operate
the garage door.
Garage door system with a fixed code:
indicator lamp : lights up green.
Garage door system with a rolling code:
indicator lamp : flashes green.
i
The transmitter will transmit a signal for
as long as the button is pressed. The
transmission is halted after a maximum of
ten seconds and indicator lamp : flashes
yellow. Press button ;, = or ? again if
necessary.
Clearing the memory of the integrated
garage door opener on the rear-view
mirror
XTurn the SmartKey to position 2 in the
ignition lock.XPress buttons ; and ?.
The indicator lamp lights up yellow.XPress and hold buttons ; and ? until the
indicator lamp turns green.
i Make sure that you clear the memory of
the integrated garage door opener before
selling the vehicle.
Charge maintenance socket
The battery may drain if the vehicle is left
stationary for long periods. In this case,
Mercedes-Benz recommends attaching the
trickle charger to the charge maintenance
socket.
The charge maintenance socket is designed
solely for connecting a trickle charger. A
trickle charger can be obtained from an
authorized Mercedes-Benz Center, for
example.
Features215Stowage and featuresZ
