2012 MERCEDES-BENZ C-Class SEDAN Circulation

CareCarpets .......................................... 289
Car wash ........................................ 284
Display ........................................... 288
Exterior lights ................................ 287
Gear or selector lever ....................288
Matte finish ................................... 285
Notes ............................................. 283
Paint .............................................. 285
Plastic trim .................................... 288
Power washer ................................ 284
Rear view camera .......................... 287
Roof lining ...................................... 289
Seat belt ........................................ 289
Seat cover ..................................... 288
Sensors ......................................... 287
Steering wheel ............................... 288
Tail pipes ....................................... 287
Trim pieces .................................... 288
Washing by hand ........................... 284
Wheels ........................................... 285
Windows ........................................ 286
Wiper blades .................................. 286
Wooden trim .................................. 288
Cargo tie down rings ......................... 258
Car wash (care) ................................. 284
CD player/CD changer (on-board
computer) .......................................... 202
Cell phone see Mobile phone
Center console ..................................... 32
Central locking Automatic locking (on-board
computer) ...................................... 208
Locking/unlocking (SmartKey) ........70
Changing bulbs
Brake lamps ................................... 116
Cornering light function .................115
High-beam headlamps ...................115
Important safety notes ..................113
Low-beam headlamps ....................114
Overview of bulb types ..................114
Parking lamps ................................ 115
Reversing lamps ............................ 116
Standing lamps (front) ...................115
Child-proof locks
Important safety notes ....................57
Rear doors ....................................... 57Children
In the vehicle ................................... 53
Restraint systems ............................ 53
Child seat
LATCH-type (ISOFIX) child seat
anchors ............................................ 55
Special seat belt retractor ...............55
Top Tether ....................................... 56
Cigarette lighter ................................ 262
Climate control Automatic climate control (3-
zone) .............................................. 125
Controlling automatically ...............127
Cooling with air dehumidification ..126
Defrosting the windows .................130
Defrosting the windshield ..............129
Dual-zone automatic climate
control ........................................... 123
Important safety notes ..................122
Indicator lamp ................................ 127
Maximum cooling .......................... 130
Notes on using automatic climate
control ................................... 124, 126
Overview of systems ......................122
Problems with cooling with air
dehumidification ............................ 127
Problem with the rear window
defroster ........................................ 130
Rear control panel .........................125
Refrigerant ..................................... 350
Setting the air distribution .............128
Setting the airflow .........................129
Setting the air vents ......................131
Setting the climate mode (AIR
FLOW) ............................................ 127
Setting the temperature ................128
Switching air-recirculation mode
on/off ............................................ 130
Switching on/off ........................... 126
Switching residual heat on/off ......131
Switching the rear window
heating on/off ............................... 130
Switching the ZONE function on/
off .................................................. 129
Cockpit
Overview .......................................... 28
see Instrument cluster 6Index

Stowage well beneath the trunk
floor .................................................... 258
Summer opening see Convenience opening feature
Summer tires ..................................... 312
Sun visor ............................................ 260
Supplemental Restraint System see SRS (Supplemental Restraint
System)
Surround lighting (on-board
computer) .......................................... 207
Switching air-recirculation mode
on/off ................................................. 130
Switching off the alarm (ATA) ............ 67
T
Tachometer ........................................ 195
Tail lamps Display message ............................ 223
Tank
see Fuel tank
Tank content
Fuel gauge ....................................... 29
Technical data
Notes ............................................. 342
Tires/wheels ................................. 335
Vehicle data ................................... 351
TELEAID
Call priority .................................... 268
Display message ............................ 218
Downloading destinations
(COMAND) ..................................... 269
Emergency call .............................. 266
Important safety notes ..................264
Locating a stolen vehicle ...............270
MB info call button ........................268
Remote vehicle locking ..................270
Roadside Assistance button ..........267
Search & Send ............................... 269
Self-test ......................................... 265
System .......................................... 265
Vehicle remote unlocking ..............269
Telephone
Accepting a call ............................. 203
Display message ............................ 237
Menu (on-board computer) ............202
Number from the phone book ........ 203
Redialing ........................................ 203
Rejecting/ending a call .................203
Temperature
Coolant .......................................... 194
Coolant (on-board computer) ......... 210
Engine oil (on-board computer) ...... 210
Outside temperature ...................... 195
Setting (climate control) ................128
Theft deterrent systems
ATA (Anti-Theft Alarm system) .........67
Immobilizer ...................................... 66
Through-loading feature ................... 256
Tilt/sliding sunroof see Sliding sunroof
Timing (RACETIMER) ......................... 211
Tiredness assistant see ATTENTION ASSIST
Tire pressure
Calling up (on-board computer) .....319
Checking manually ........................317
Display message ............................ 233
Maximum ....................................... 316
Notes ............................................. 315
Pressure loss warning ....................317
Recommended ............................... 313
Tire pressure monitoring system
Function/notes ............................. 319
Restarting ...................................... 321
Warning lamp ................................. 250
Tires
Aspect ratio (definition) .................333
Average weight of the vehicle
occupants (definition) ....................331
Bar (definition) ............................... 331
Characteristics .............................. 331
Checking ........................................ 311
Definition of terms .........................331
Direction of rotation ......................334
Display message ............................ 233
Distribution of the vehicle
occupants (definition) ....................334
DOT, Tire Identification Number
(TIN) ............................................... 330
DOT (Department of
Transportation) (definition) ............331
GAWR (Gross Axle Weight Rating)
(definition) ..................................... 332Index17

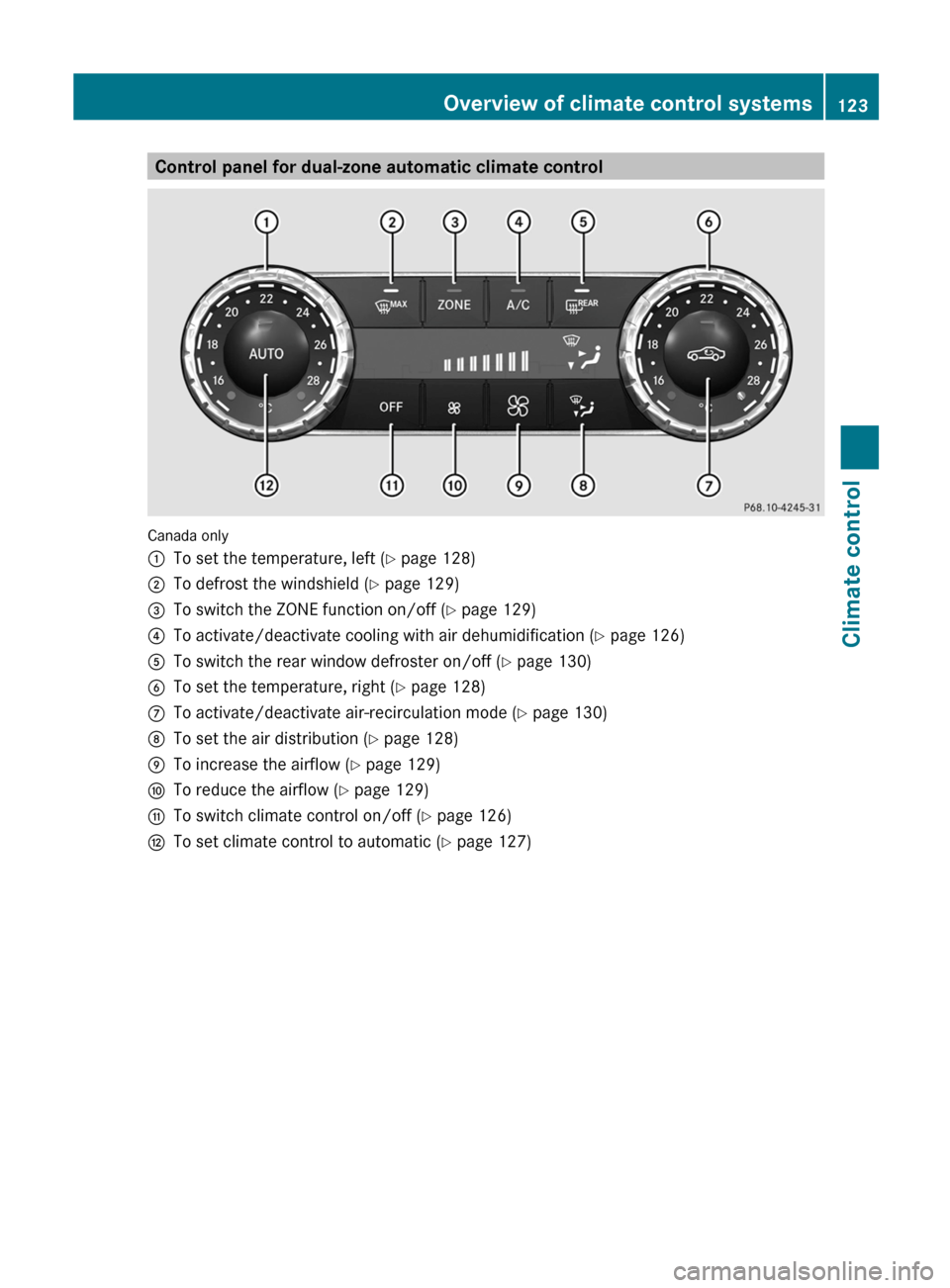

Control panel for dual-zone automatic climate control
Canada only
:To set the temperature, left (Y page 128);To defrost the windshield ( Y page 129)=To switch the ZONE function on/off ( Y page 129)?To activate/deactivate cooling with air dehumidification ( Y page 126)ATo switch the rear window defroster on/off ( Y page 130)BTo set the temperature, right ( Y page 128)CTo activate/deactivate air-recirculation mode ( Y page 130)DTo set the air distribution ( Y page 128)ETo increase the airflow ( Y page 129)FTo reduce the airflow ( Y page 129)GTo switch climate control on/off ( Y page 126)HTo set climate control to automatic ( Y page 127)Overview of climate control systems123Climate controlZ

USA only
:To set the temperature, left (Y page 128);To defrost the windshield ( Y page 129)=To switch maximum cooling MAX COOL on/off ( Y page 130)?To activate/deactivate cooling with air dehumidification ( Y page 126)ATo switch the rear window defroster on/off ( Y page 130)BTo set the temperature, right ( Y page 128)CTo activate/deactivate air-recirculation mode ( Y page 130)DTo set the air distribution ( Y page 128)ETo increase the airflow ( Y page 129)FTo reduce the airflow ( Y page 129)GTo switch climate control on/off ( Y page 126)HTo set climate control to automatic ( Y page 127)Notes on using dual-zone automatic
climate control
The following contains notes and
recommendations on optimum use of dual-
zone automatic climate control.
R Activate climate control using the à and
¿ buttons. The indicator lamps in the
à and ¿ buttons light up.
R Set the temperature to 72 ‡ (22 †).
R Only use the "defrosting" function briefly
until the windshield is clear again.
R Only use "air-recirculation" mode briefly,
e.g. if there are unpleasant outside odorsor when in a tunnel. The windows could
otherwise fog up as, in air-recirculation
mode, no fresh air is drawn into the vehicle.
R Use the ZONE function to adopt the
temperature settings on the driver's side
for the front-passenger side as well. The
indicator lamp in the á button goes out.124Overview of climate control systemsClimate control

Control panel for 3-zone automatic climate control
Canada only
Front control panel:To set the temperature, left (Y page 128);To defrost the windshield ( Y page 129)=To activate/deactivate the residual heat function ( Y page 131)?To activate/deactivate cooling with air dehumidification ( Y page 126)ATo switch the rear window defroster on/off ( Y page 130)BTo set the temperature, right ( Y page 128)CTo switch the ZONE function on/off ( Y page 129)DTo switch climate control on/off ( Y page 126)ETo set the air distribution ( Y page 128)FTo increase the airflow ( Y page 129)GTo reduce the airflow ( Y page 129)HTo adjust the climate control settings (AIR FLOW) ( Y page 127)ITo activate/deactivate air-recirculation mode ( Y page 130)JTo set climate control to automatic ( Y page 127) Rear control panelKTo increase the airflow ( Y page 129)LTo reduce the airflow ( Y page 129)MDisplayNTo reduce the temperature ( Y page 128)OTo increase the temperature ( Y page 128)Overview of climate control systems125Climate controlZ

Notes on using 3-zone automatic
climate control
The following contains instructions and
recommendations to enable you to get the
most out of your automatic climate control.
R Activate climate control using the à and
¿ buttons. The indicator lamps in the
à and ¿ buttons light up.
R In automatic mode, you can also use the
ñ button to set a climate mode
(FOCUS/MEDIUM/DIFFUSE). The
MEDIUM level is recommended.
R Set the temperature to 72 ‡ (22 †).
R Only use the "defrosting" function briefly
until the windshield is clear again.
R Only use "air-recirculation" mode briefly,
e.g. if there are unpleasant outside odors
or when in a tunnel. The windows could
otherwise fog up as, in air-recirculation
mode, no fresh air is drawn into the vehicle.
R Use the ZONE function to adopt the
temperature settings on the driver's side
for the front-passenger side and the rear
compartment as well. The indicator lamp in
the á button goes out.
R Use the residual heat function if you want
to heat or ventilate the vehicle interior
when the ignition is switched off. The
"residual heat" function can only be
activated or deactivated with the ignition
switched off.
Operating the climate control system
Activating/deactivating climate
control
Important information
GWARNING
When the climate control system is
deactivated, the outside air supply and
circulation are also deactivated. Only choose
this setting for a short time. Otherwise the
windows could fog up, impairing visibility and
endangering you and others.
i Switch on climate control primarily using
the à button ( Y page 127).
Activating/deactivatingXTurn the SmartKey to position 2 in the
ignition lock.XTo switch on: press the à button.
The indicator lamp in the à button lights
up. Airflow and air distribution are set to
automatic mode.
or
XPress the ^ button.
The indicator lamp in the ^ button goes
out. The previously selected settings come
into effect again.XTo switch off: press the ^ button.
The indicator lamp in the ^ button lights
up.
Activating/deactivating the cooling
with air dehumidification function
Important information
The cooling with air dehumidification function
is only available when the engine is running.
The air inside the vehicle is cooled and
dehumidified according to the temperature
selected.
GWARNING
If you switch off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog up
more quickly. Window fogging may impair
visibility and endanger you and others.
Condensation may drip from the underside of
the vehicle when it is in cooling mode. This is
normal and not a sign that there is a
malfunction.
126Operating the climate control systemClimate control

XTurn the SmartKey to position 2 in the
ignition lock.XPress the _ button repeatedly until the
desired symbol appears in the display.
The indicator lamp in the à button goes
out. Automatic control is deactivated and
the air distribution is controlled according
to the selected setting.
Setting the airflow
XTurn the SmartKey to position 2 in the
ignition lock.XTo increase/reduce: press the K or
I button.
i
You can use automatic climate control to
set the airflow in the rear compartment
separately.
Switching the ZONE function on/off
This function is only available in vehicles for
Canada.
XTo switch on: press the á button.
The indicator lamp in the á button lights
up.
Dual-zone automatic climate control: the
temperature setting for the driver's side is
not adopted for the front-passenger side.
3-zone automatic climate control: the
temperature setting for the driver's side is
not adopted for the front-passenger side
and the rear compartment.
When the buttons for temperature, airflow or
air distribution are activated, the temperature
setting for the driver's side is not adopted for
the other climate control zones.
XTo switch off: press the á button.
The indicator lamp in the á button goes
out.
Dual-zone automatic climate control: the
temperature setting for the driver's side is
adopted for the front-passenger side.3-zone automatic climate control: the
temperature setting for the driver's side is
adopted for the front-passenger side and
the rear compartment.
Defrosting the windshield
You can use this function to defrost the
windshield or to defrost the inside of the
windshield and the side windows.
i You should only select the defrosting
function until the windshield is clear again.
XTurn the SmartKey to position 2 in the
ignition lock.XTo activate: press the ¬ button.
The indicator lamp in the ¬ button lights
up.
The climate control system switches to the
following functions:
R cooling with air dehumidification on
R high airflow 13
R high temperature 13
R air distribution to the windshield and
front side windows
R air-recirculation mode offXTo switch off: press the ¬ button.
The indicator lamp in the ¬ button goes
out. The previously selected settings come
into effect again. The cooling with air
dehumidification function remains on. Air-
recirculation mode remains deactivated.
or
XPress the à button.
The indicator lamp in the ¬ button goes
out. Airflow and air distribution are set to
automatic mode.
or
XTurn temperature control : or B
clockwise or counter-clockwise
( Y page 123), ( Y page 125).13
Depending on the outside temperature.Operating the climate control system129Climate controlZ

orXPress the K or I button.
MAX COOL maximum cooling
The MAX COOL function is only available in
vehicles for the USA.
MAX COOL is only operational when the
engine is running.
When you activate MAX COOL, climate
control switches to the following functions:
R maximum cooling
R maximum airflow
R air-recirculation mode on
XTo activate: press the Ù button.
The indicator lamp in the button lights up.XTo deactivate: press the Ù button
again.
The indicator lamp goes out. The previously
selected settings come into effect again.
Defrosting the windows
Windows fogged up on the inside
XActivate the cooling with air
dehumidification function ¿.XActivate automatic mode Ã.XIf the windows continue to fog up, activate
the defrosting function ( Y page 129).
i
You should only select this setting until
the windshield is clear again.
Windows fogged up on the outside
XSwitch on the windshield wipers.XPress the _ button repeatedly until the
O or P symbol appears in the
display.
i You should only select this setting until
the windshield is clear again.
Rear window defroster
Activating/deactivatingGWARNING
Any accumulation of snow and ice should be
removed from the rear window before driving.
Visibility could otherwise be impaired,
endangering you and others.
The rear window defroster has a high current
draw. You should therefore switch it off as
soon as the window is clear as it only switches
off automatically after several minutes.
If the battery voltage is too low, the rear
window defroster may switch off.
XTurn the SmartKey to position 2 in the
ignition lock.XPress the ¤ button.
The indicator lamp in the ¤ button lights
up or goes out.
Problems with the rear window
defroster
The rear window defroster has deactivated
itself prematurely or cannot be activated.
XSwitch off any consumers that are not
required, e.g. reading lamps or interior
lighting.
When the battery is sufficiently charged,
the rear window defroster is activated
again automatically.
Activating/deactivating air-
recirculation mode
You can deactivate the flow of fresh air if
unpleasant odors are entering the vehicle
from outside. The air already inside the
vehicle will then be recirculated.
The operation of air-recirculation mode is the
same for all control panels.
GWARNING
Fogged windows impair visibility,
endangering you and others. If the windows
130Operating the climate control systemClimate control
