2012 MERCEDES-BENZ B-CLASS child lock

Power washer ................................
272
Rear view camera .......................... 275
Roof lining ...................................... 277
Seat belt
........................................ 277
Seat cover ..................................... 276
Sensors ......................................... 275
Steering wheel ............................... 276
Trim pieces .................................... 276
Washing by hand ........................... 272
Wheels ........................................... 273
Windows ........................................ 274
Wiper blades .................................. 274
Wooden trim .................................. 276
Cargo compartment cover ...............244
Cargo compartment enlargement ...240
Important safety notes .................. 240
Notes on use ................................. 242
Cargo compartment floor
Height adjustment .........................246
Important safety notes .................. 245
Opening/closing ............................ 246
Stowage well (under) ..................... 245
Cargo net
Attaching ....................................... 245
Important safety information ......... 245
Cargo tie down rings .........................243
Car wash (care) ................................. 271
Center console Lower section .................................. 33
Upper section .................................. 32
Central locking
Automatic locking (on-board
computer) ...................................... 198
Locking/unlocking (SmartKey) ........ 68
Changing bulbs
Brake lamps ................................... 109
Cornering light function .................108
High-beam headlamps ...................107
Important safety notes .................. 104
License plate lighting .....................111
Low-beam headlamps .................... 107
Overview of bulb types ..................105
Parking lamps ................................ 108
Rear fog lamp ................................ 109
Removing/replacing the cover
(front wheel arch) .......................... 106
Reversing lamps ............................ 109
Standing lamps (front) ...................108Tail lamps
...................................... 109
Turn signals (front) ......................... 108
Turn signals (rear)
..........................109
Child-proof locks
Important safety notes .................... 57
Rear doors ....................................... 58
Children
In the vehicle ................................... 50
Restraint systems ............................ 50
Child seat
Automatic recognition ..................... 53
LATCH-type (ISOFIX) child seat
anchors ............................................ 54
On the front-passenger seat ............52
Problem (malfunction) .....................57
Top Tether ....................................... 55
Cigarette lighter ................................ 250
Climate control Automatic climate control ............. 119
Automatic climate control (dual-
zone) .............................................. 121
Controlling automatically ...............125
Cooling with air dehumidification ..123
Defrosting the windows ................. 127
Defrosting the windshield .............. 127
Important safety notes .................. 118
Indicator lamp ................................ 125
Maximum cooling .......................... 127
Notes on using automatic climate
control ................................... 120, 122
Overview of systems ...................... 118
Problems with cooling with air
dehumidification ............................ 125
Problem with the rear window
defroster ........................................ 129
Refrigerant ..................................... 334
Refrigerant filling capacity .............335
Setting the air distribution .............126
Setting the airflow ......................... 126
Setting the air vents ......................130
Setting the temperature ................ 125
Switching air-recirculation mode
on/off ............................................ 129
Switching on/off ........................... 123
Switching residual heat on/off ...... 1296
Index
ProCarManuals.com

Important safety notes ..................
266
Opening ......................................... 266
Hydroplaning ..................................... 156I
Ignition lock see Key positions

Immobilizer .......................................... 64
Indicator lamps see Warning and indicator lamps
Instrument cluster
Overview .......................................... 29
Settings ......................................... 196
Warning and indicator lamps ...........30
Instrument cluster lighting .............. 186
Interior lighting ................................. 103
Automatic control .......................... 104
Delayed switch-off (on-board
computer) ...................................... 198
Emergency lighting ........................ 104
Manual control ............................... 104
Overview ........................................ 103
Reading lamp ................................. 103
Setting the brightness of the
ambient lighting (on-board
computer) ...................................... 197J
Jack Storage location ............................ 280
Using ............................................. 320
Jump starting (engine) ...................... 289K
Kickdown Driving tips .................................... 143
Manual drive program .................... 146
Knee bag .............................................. 44 L
Lamps see Warning and indicator lamps
Lane Keeping Assist
Activating/deactivating

.................195
Display message ............................ 215
Function/information .................... 183
Lane Tracking package .....................181
LATCH-type (ISOFIX) child seat
anchors ................................................ 54
License plate lamp Changing bulbs .............................. 111
License plate lamp (display
message) ............................................ 210
Light function, active Display message ............................ 211
Lighting
Light switch ..................................... 98
Lights
Activating/deactivating the
interior lighting delayed switch-off . 198
Automatic headlamp mode .............. 99
Cornering light function .................101
Display message ............................ 208
Driving abroad ................................. 98
Fog lamps ........................................ 99
Fog lamps (extended) ....................102
Hazard warning lamps ................... 101
High beam flasher .......................... 101
High-beam headlamps ...................100
Low-beam headlamps ...................... 99
Parking lamps ................................ 100
Rear fog lamp ................................ 100
Setting the brightness of the
ambient lighting (on-board
computer) ...................................... 197
Standing lamps .............................. 100
Switching Adaptive Highbeam
Assist on/off ................................. 197
Switching the daytime running
lamps on/off (on-board computer) 197
Switching the daytime running
lamps on/off (switch) ...................... 99
Switching the exterior lighting
delayed switch-off on/off (on-
board computer) ............................ 198 Index
11
ProCarManuals.com

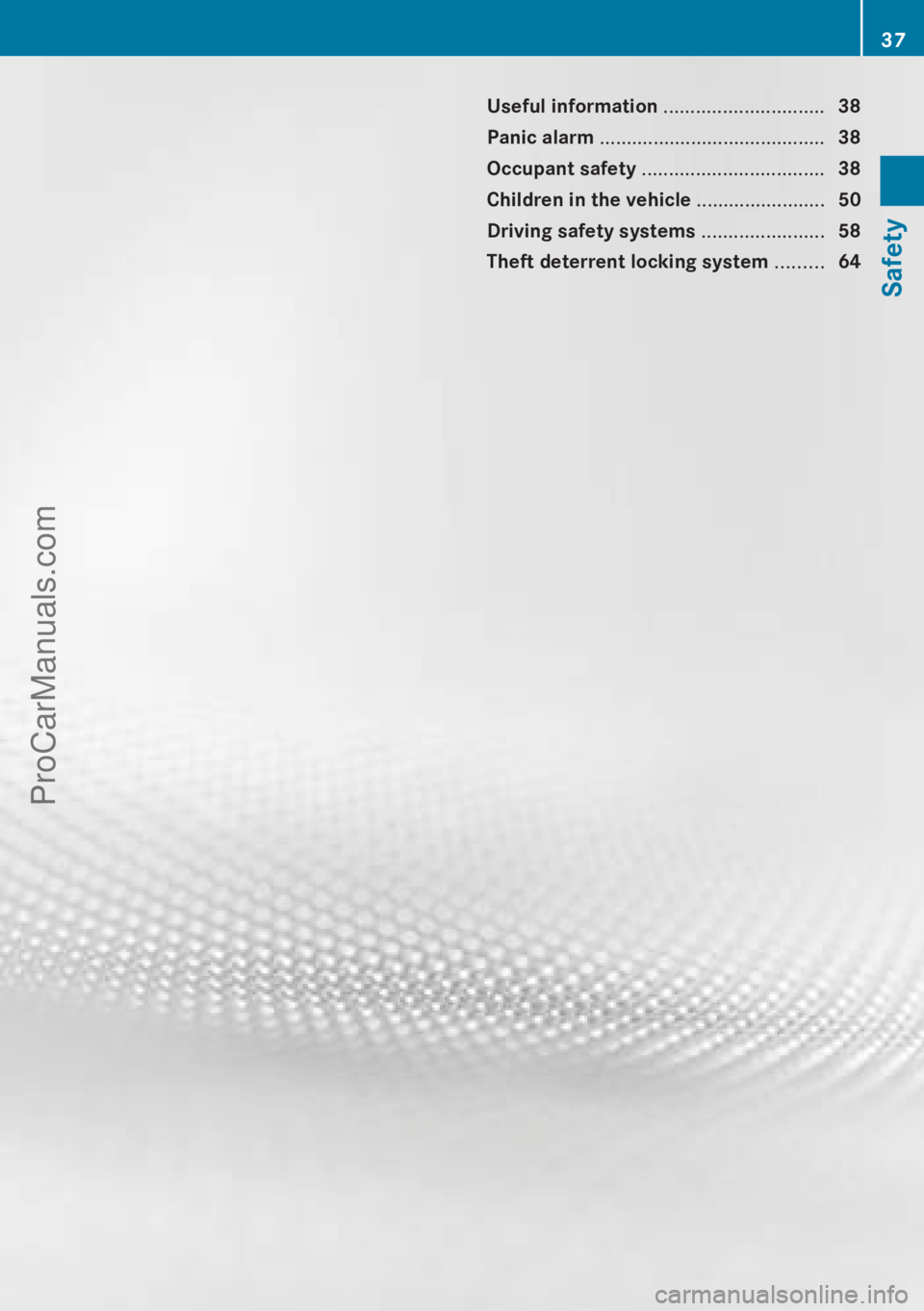

Useful information ..............................
38
Panic alarm .......................................... 38
Occupant safety .................................. 38
Children in the vehicle ........................50
Driving safety systems ....................... 58
Theft deterrent locking system ......... 64 37Safety
ProCarManuals.com

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note
that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: ( Y page 24).Panic alarm
X
To activate: press ! button : for at
least one second.
An alarm sounds and the exterior lighting
flashes.
X To deactivate: press ! button :
again.
or
X Insert the SmartKey into the ignition lock. Occupant safety
Important safety notes
G
WARNING
Modifications to or work improperly
conducted on restraint system components
or their wiring, as well as tampering with interconnected electronic systems, can lead
to the
restraint
systems no longer functioning
as intended.
Air bags or Emergency Tensioning Devices
(ETDs), for example, could deploy
inadvertently or fail to deploy in accidents
although the deceleration threshold for air
bag deployment is exceeded. Therefore,
never modify the restraint systems. Do not
tamper with electronic components or their
software.
In this section, you will learn the most
important facts about the restraint system
components of the vehicle.
The restraint system consists of:
R Seat belts
R Child restraint systems
R LATCH-type (ISOFIX) child seat securing
system
Additional protection is provided by:
R SRS (Supplemental Restraint System)
R Air bag system components with the
PASSENGER AIRBAG OFF indicator lamp
The different air bag systems work
independently of each other. The protective
functions of the system work in conjunction
with each other. Not all air bags are always
deployed in an accident.
i For information on infants and children
traveling with you in the vehicle restraint
systems for infants and children, see
"Children in the vehicle" ( Y page 50). SRS (Supplemental Restraint System)
Introduction Supplemental Restraint System (SRS) with:
R
The 6 SRS warning lamp
R Air bags
R Air bag control unit (with crash sensors)38
Occupant safety
Safety
ProCarManuals.com

passenger front air bag is deactivated.
Should the 4 5 indicator lamp not
illuminate or go out while the restraint is
installed, please check installation.
Periodically check
the 4
5 indicator
lamp while driving to make sure the 4
5 indicator lamp is illuminated. If the
4 5 indicator lamp goes out or
remains out, do not transport a child on the
front passenger seat until the system has
been repaired.
A child in a rear-facing child restraint on the
front passenger seat will be seriously
injured or even killed if the front passenger
front air bag inflates.
R If you have to place a child in a forward-
facing child restraint on the front passenger
seat, move the seat as far back as possible,
use the proper child restraint
recommended for the age, size and weight
of the child, and secure child restraint with
the vehicle's seat belt according to the
child seat manufacturer's instructions. G
WARNING
Infants and small children should never share
a seat belt

with another occupant. In the event
of an accident, they could be crushed
between the occupant and seat belt.
A child's risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and/
or the child is not properly secured in the child
restraint.
Children that are too large for a child restraint
must travel in seats using normal seat belts.
Position the shoulder belt across the chest
and shoulder, not the face or neck. A booster
seat may be necessary to achieve proper seat
belt positioning for children over 41 lbs
(18 kg) until they reach a height where a lap/
shoulder belt fits properly without a booster
seat.
When the child restraint is not in use, remove
it from the vehicle or secure it with the seat
belt to prevent the child restraint from becoming a projectile in the event of an
accident.
G
WARNING
When leaving the vehicle, always remove the
SmartKey from the ignition lock. Always take
the SmartKey with you and lock the vehicle.
Do not leave children unattended in the
vehicle, even if they are secured in a child
restraint system, or with access to an
unlocked vehicle. A child's unsupervised
access to a

vehicle could result in an accident
and/or serious personal injury. The children
could:
R injure themselves on parts of the vehicle
R be seriously or fatally injured through
excessive exposure to extreme heat or cold
R injure themselves or cause an accident with
vehicle equipment that can be operated
even if the SmartKey is removed from the
ignition lock or removed from the vehicle,
such as seat adjustment, steering wheel
adjustment, or the memory function
If children open a door, they could injure other
persons or get out of the vehicle and injure
themselves or be injured by following traffic.
Do not expose the child restraint system to
direct sunlight. The child restraint system's
metal parts, for example, could become very
hot, and the child could be burned on these
parts. G
WARNING
Do not carry heavy or hard objects in the
passenger compartment or

trunk unless they
are firmly secured in place.
Unsecured or improperly positioned cargo
increases a child's risk of injury in the event
of
R strong braking maneuvers
R sudden changes of direction
R an accident Children in the vehicle
51
Safety Z
ProCarManuals.com

Warning notice on the front-passenger sun visor
Warning symbol for a rearward-facing child
restraint system
Do not use a rearward-facing child restraint
system on a seat that is protected by an air
bag installed in front of it.
Air bag deactivation system on the
front-passenger seat
G
WARNING
If the 4 PASSENGER AIRBAG OFF
indicator lamp does not light up when the
child restraint system is installed, the front-
passenger air bag has not been disabled. If
the front-passenger air
bag deploys, the child
could be seriously or even fatally injured.
Proceed as follows:
R do not use a rearward-facing child restraint
system on the front-passenger seat.
R install a rearward-facing child restraint
system on a suitable rear seat.
or R
only use a forward-facing child restraint
system on the front-passenger seat and
move the front-passenger seat to the
rearmost position.
R have the air bag deactivation system
checked at a

qualified specialist workshop.
To ensure that the air bag deactivation system
on the front-passenger seat functions/
communicates correctly, never place objects,
e.g. a cushion, under the child restraint
system. The entire base of the child restraint
system must always rest on the seat cushion.
An incorrectly installed child restraint system
cannot perform its intended protective
function in the event of an accident, and could
lead to injuries. G
WARNING
Do not place electronic devices on the front-
passenger seat, e.g.:
R laptops, when switched on
R mobile phones
R cards with transponders,

e.g. ski passes or
access cards
Signals from electronic equipment can cause
interference in the sensor system of the air
bag deactivation system. This can lead to a
system malfunction. This may cause the
4 PASSENGER AIR BAG OFF indicator
lamp to light up even if no child seat with a
transponder for an air bag deactivation
system is installed. The front-passenger air
bag would not then deploy during an accident.
It is also possible that the 6 SRS warning
lamp lights up and/or the 4 PASSENGER
AIR BAG OFF indicator lamp does not light up
briefly when you turn the key in the ignition
lock to position 2. Children in the vehicle
53
Safety Z
ProCarManuals.com

If the front-passenger seat of your vehicle
does not
have
an air bag deactivation system,
this is indicated by a special sticker. The
sticker is affixed to the side of the dashboard
on the front-passenger side. The sticker is
visible when you open the front-passenger
door.
Vehicles without an air bag deactivation
system on the front-passenger seat: if you
turn the SmartKey to position 2 in the ignition
lock, the 45 indicator lamp lights up
briefly but has no function. It does not
indicate that there is an air bag deactivation
system on the front-passenger seat. The sensor system for the air bag deactivation
system detects
whether

a special Mercedes-
Benz child seat with a transponder for the air
bag deactivation system has been installed.
In this case, 45 indicator lamp :
lights up. The front-passenger front air bag is
deactivated: i
If the front-passenger front air bag is
disabled by the air bag deactivation
system, the following remain enabled on
the front-passenger side:
R the side impact air bag
R the window curtain air bag
R the Emergency Tensioning Device
LATCH-type (ISOFIX) child

seat anchors
in the rear G
WARNING
Children that are too large for a child restraint
must travel in seats using normal seat belts.
Position the shoulder belt across the chest
and shoulder, not the face or neck.
A booster seat may be necessary to achieve
proper seat belt positioning for children over
41 lbs (18 kg

) until they reach a height where
a normal shoulder/lap belt fit properly
without a booster.
Install the child seat according to
manufacturer's instructions.
The child seat must be firmly attached to both
anchors.
An incorrectly installed child restraint system
could come loose during an accident and
seriously or even fatally injure the child.
Damaged or impact damaged child seats or
child seat mountings must be replaced.
! When installing the LATCH-type (ISOFIX)
child restraint system, make sure that the
seat belt for the center seat does not get
trapped. Otherwise, the seat belt could be
damaged. 54
Children in the vehicle
Safety
ProCarManuals.com

Make sure that:
R
Top Tether hook A is hooked into Top
Tether anchorage ? as shown.
R Top Tether belt B is not twisted.
R Top Tether
belt B
is routed between rear
seat backrest = and cargo
compartment cover ; if cargo
compartment cover ; is installed.
X Swing back rear seat backrest = until it
engages.
The red lock verification indicator is no
longer visible.
X Move head restraint : back down again
slightly if necessary (
Y page 90). Make
sure that you do not interfere with the
correct routing of Top Tether belt B

.
X Install the LATCH-type (ISOFIX) child
restraint system with Top Tether. Comply
with the manufacturer's installation
instructions when
doing

so. Make sure that
Top Tether belt B is tight. 56
Children in the vehicle
Safety
ProCarManuals.com
