2012 MERCEDES-BENZ A CLASS remote control

ATA (anti-theft alarm system)
Activating/deactivating ...................69
ATA (Anti-Theft Alarm system)
Function ........................................... 69
Interior motion sensor .....................70
Switching off the alarm .................... 69
Tow-away protection ........................ 70
ATTENTION ASSIST
Activating/deactivating ................. 219
Display message ............................ 245
Function/notes ............................. 195
Audio menu (on-board computer) .... 214
AUTO lights Display message ............................ 242
see Lights
Automatic engine start (ECO start/
stop function) .................................... 147
Automatic engine switch-off (ECO
start/stop function) .......................... 146
Automatic headlamp mode ..............105
Automatic transmission Accelerator pedal position .............154
Automatic drive program ............... 156
Changing gear ............................... 154
DIRECT SELECT lever .....................151
Display message ............................ 252
Drive program display ....................152
Driving tips .................................... 154
Emergency running mode ..............159
Engaging drive position .................. 153
Engaging neutral ............................ 153
Engaging park position (AMG vehi-
cles) ............................................... 153
Engaging reverse gear ................... 153
Engaging the park position ............ 152
Holding the vehicle stationary on
uphill gradients .............................. 154
Kickdown ....................................... 154
Manual drive program ....................156
Overview ........................................ 151
Problem (fault) ............................... 159
Program selector button ................155
Pulling away ................................... 144
Selector lever ................................ 153
Starting the engine ........................ 144
Steering wheel gearshift paddles ...156
Trailer towing ................................. 155Transmission position display 152, 153
Transmission positions ..................
153
Automatic transmission emer-
gency running mode .........................159

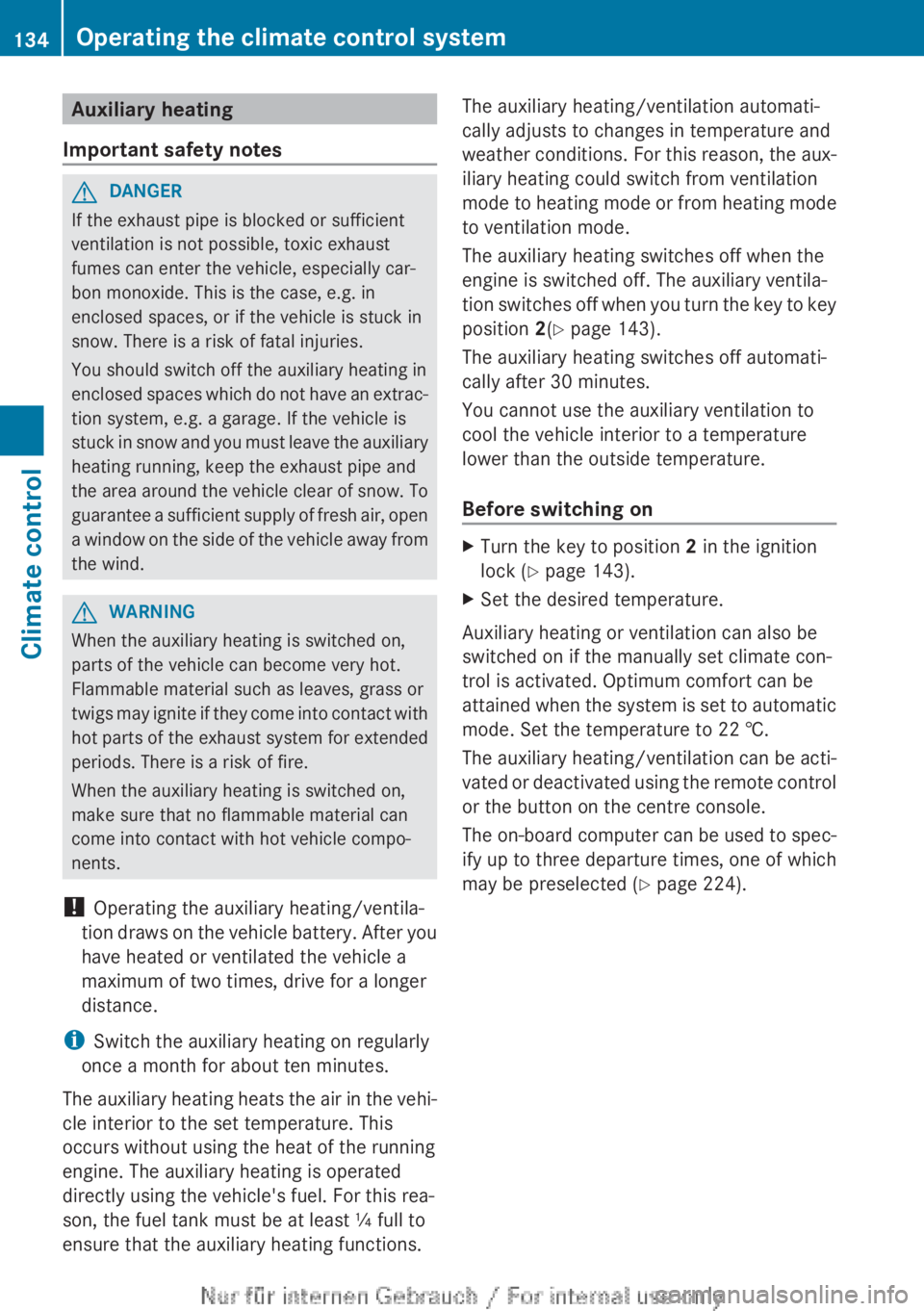

Auxiliary heating Activating/deactivating
.................134
Activating/deactivating (on the
centre console) .............................. 135
Display message ............................ 255
Important safety notes .................. 134
Problem (display message) ............138
Remote control .............................. 135
Setting ........................................... 224
Setting the departure time ............. 136
Auxiliary ventilation
Activating/deactivating ................. 134
Activating/deactivating (on the
centre console) .............................. 135
Problem (display message) ............138
Remote control .............................. 135
Axle load, permissible (trailer tow-
ing) ...................................................... 349 B
Bag hook ............................................ 273
Ball coupling Folding in ....................................... 205
Folding out .....................................

203
BAS (Brake Assist System) ................. 62
Battery (key) Checking .......................................... 76
Important safety notes .................... 76
Replacing ......................................... 76
Battery (vehicle)
Charging ........................................ 306
Display message ............................ 244
Important safety notes .................. 304
Jump starting ................................. 308
Belt force limiter
Activation ......................................... 49
Function ........................................... 49
Belt tensioner
Activation ......................................... 41
Function ........................................... 49
Blind Spot Assist
Activating/deactivating ................. 219
Display message ............................ 247 Index
5

R
RACE START (AMG vehicles) .............181
RACETIMER (on-board computer) .... 226
Radar sensor system Activating/deactivating
.................223
Country overview ........................... 350
Display message ............................ 246
Radio
Selecting a station .........................214
see separate operating instructions
Rain closing feature (panorama
sliding sunroof) ................................... 88
Reading lamp ..................................... 111
Rear bench seat Folding the backrest forwards/
back ............................................... 272
Rear compartment
Setting the air vents ......................140
Rear-compartment seat belt sta-
tus indicator ........................................ 49
Rear foglamp Changing bulbs .............................. 116
Display message ............................ 241
Switching on/off ........................... 106
Rear lamps
Changing bulbs .............................. 116
see Lights
Rear shelf ........................................... 273
Rear-view mirror Anti-dazzle mode (automatic) ........ 100
Dipping (manual) .............................. 98
Rear window heating
Problem (fault) ............................... 132
Switching on/off ........................... 131
Rear window wiper
Replacing the wiper blade .............. 119
Switching on/off ........................... 118
Refuelling
Fuel gauge ....................................... 30
Important safety notes .................. 159
Notes for AMG vehicles ................. 340
Refuelling process .........................160
see Fuel
Remote control
Auxiliary heating/ventilation .......... 135
Changing the batteries (auxiliary
heating) ......................................... 136Replacing bulbs
Important safety notes ..................112
Overview of bulb types ..................113
Removing/replacing the cover
(front wheel arch) .......................... 113
Replacing the battery (auxiliary
heating remote control) .................... 136
Reserve (fuel tank) see Fuel
Reserve fuel
Display message ............................ 245
Warning lamp ................................. 264
Residual heat (climate control) ........133
Restraint system see SRS (Supplemental Restraint
System)
Rev counter ........................................ 208
Reverse gear
Engaging (manual transmission) ....151
Reverse gear (selector lever) ...........153
Reversing camera Cleaning instructions ..................... 294
Function/notes ............................. 191
Switching on/off ........................... 191
Reversing feature
Panorama sliding sunroof ................ 87
Roller sunblinds ............................... 88
Side windows ................................... 84
Reversing lamp
Changing bulbs .............................. 116
Reversing lamps
Display message ............................ 241
Roller sunblind
Opening/closing .............................. 89
Panorama sliding sunroof ................ 88
Roof carrier ........................................ 275
Roof lining and carpets (cleaning
instructions) ...................................... 296
Roof load (maximum) ........................346
Route (navigation) see Route guidance (navigation)
Route guidance (navigation) ............213 Index
15

Useful information
i This Owner's Manual describes all mod-
els,
series and optional equipment for your
vehicle that were available at the time of
going to press. National variations are pos-
sible. Note that your vehicle may not be
equipped with all of the functions descri-
bed. This is also the case for systems and
functions relevant to safety.
i Read the information on qualified special-
ist workshops: (Y page 24). Key
Important safety notes
G
WARNING
If children are left unsupervised in the vehicle,
they could:
R open the doors, thus endangering other
people or road users.
R get out and disrupt traffic.
R operate the vehicle's equipment.
Additionally, children could set the vehicle in
motion if, for example, they:
R release the parking brake.
R shift the automatic transmission out of
parking position P.
R shift the manual transmission into neutral.
R start the engine.
There is a risk of an accident and injury.
When

leaving the vehicle, always take the key
with you and lock the vehicle. Never leave
children or animals unattended in the vehicle.
Always keep the key out of reach of children. G
WARNING
If persons (particularly children) are exposed
to heat or cold for a prolonged period, there
is

a risk of serious or even fatal injuries. Never
leave persons (particularly children) unatten-
ded in the vehicle. G
WARNING
If you attach heavy or large objects to the key,
the
key could be unintentionally turned in the
ignition lock. This could cause the engine to
be switched off. There is a risk of an accident.
Do not attach any heavy or large objects to
the key. Remove any bulky keyrings before
inserting the key into the ignition lock.
! Keep the key away from strong magnetic
fields. Otherwise, the remote control func-
tion could be affected.
Strong magnetic fields can occur in the
vicinity of powerful electrical installations.
Do not keep the key:
R with electronic devices, e.g. a mobile
phone or another key
R with metallic objects, e.g. coins or metal
film
R inside metallic objects, e.g. a metal case
United Kingdom only: G
WARNING
When the double locks are activated, the
doors can no longer be opened from the
inside.

People in the vehicle can no longer get
out, e.g. in hazardous situations. There is a
risk of injury.
Therefore, do not leave any people unsuper-
vised in the vehicle, particularly children, eld-
erly people or people in need of special assis-
tance. Do not activate the double lock when
people are in the vehicle.
If the vehicle has been locked with the key,
then the double lock function is activated as
standard. You can deactivate the double lock
function by deactivating the interior motion
sensor (Y page 70). The doors can then be
opened from the inside after the vehicle has
been locked from the outside. The anti-theft
alarm system is triggered if the door is
opened from the inside. Switch off the alarm
(Y page 69). 74
Key
Opening and closing

Problems with the key
Problem Possible causes/consequences and
M SolutionsYou cannot lock or
unlock the vehicle
using the key. The key battery is discharged or nearly discharged.
X
Try again to lock/unlock the vehicle using the remote control
function of the key. Point the tip of the key at the driver's door
handle from close range and press the % / & button.
If this does not work:
X Check the key battery and replace it if necessary ( Y page 76).
X Lock ( Y page 81) or unlock ( Y page 81) the vehicle using
the emergency key element. There is interference from a powerful source of radio waves.
X
Try again to lock/unlock the vehicle using the remote control
function of the key. Point the tip of the key at the driver's door
handle from close range and press the % / & button.The key is faulty.
X
Lock ( Y page 81) or unlock ( Y page 81) the vehicle using
the emergency key element.
X Have the key checked at a qualified specialist workshop. You have lost a key. X
Have the key deactivated at a qualified specialist workshop.
X Report the loss immediately to the vehicle insurers.
X If necessary, have the locks changed as well. You have lost the emer-
gency key element. X
Report the loss immediately to the vehicle insurers.
X If necessary, have the locks changed as well.78
KeyOpening and closing

Auxiliary heating
Important safety notes G
DANGER
If the exhaust pipe is blocked or sufficient
ventilation is not possible, toxic exhaust
fumes can enter the vehicle, especially car-
bon monoxide. This is the case, e.g. in
enclosed spaces, or if the vehicle is stuck in
snow. There is a risk of fatal injuries.
You should switch off the auxiliary heating in
enclosed
spaces which do not have an extrac-
tion system, e.g. a garage. If the vehicle is
stuck in snow and you must leave the auxiliary
heating running, keep the exhaust pipe and
the area around the vehicle clear of snow. To
guarantee a sufficient supply of fresh air, open
a window on the side of the vehicle away from
the wind. G
WARNING
When the auxiliary heating is switched on,
parts of the vehicle can become very hot.
Flammable material such as leaves, grass or
twigs

may ignite if they come into contact with
hot parts of the exhaust system for extended
periods. There is a risk of fire.
When the auxiliary heating is switched on,
make sure that no flammable material can
come into contact with hot vehicle compo-
nents.
! Operating the auxiliary heating/ventila-
tion draws on the vehicle battery. After you
have heated or ventilated the vehicle a
maximum of two times, drive for a longer
distance.
i Switch the auxiliary heating on regularly
once a month for about ten minutes.
The auxiliary heating heats the air in the vehi-
cle interior to the set temperature. This
occurs without using the heat of the running
engine. The auxiliary heating is operated
directly using the vehicle's fuel. For this rea-
son, the fuel tank must be at least ¼ full to
ensure that the auxiliary heating functions. The auxiliary heating/ventilation automati-
cally adjusts to changes in temperature and
weather

conditions. For this reason, the aux-
iliary heating could switch from ventilation
mode to heating mode or from heating mode
to ventilation mode.
The auxiliary heating switches off when the
engine is switched off. The auxiliary ventila-
tion switches off when you turn the key to key
position 2(Y page 143).
The auxiliary heating switches off automati-
cally after 30 minutes.
You cannot use the auxiliary ventilation to
cool the vehicle interior to a temperature
lower than the outside temperature.
Before switching on X
Turn the key to position 2 in the ignition
lock (Y page 143).
X Set the desired temperature.
Auxiliary heating or ventilation can also be
switched on if the manually set climate con-
trol is activated. Optimum comfort can be
attained

when the system is set to automatic
mode. Set the temperature to 22 †.
The auxiliary heating/ventilation can be acti-
vated or deactivated using the remote control
or the button on the centre console.
The on-board computer can be used to spec-
ify up to three departure times, one of which
may be preselected ( Y page 224).134
Operating the climate control systemClimate control

Switching the auxiliary heating/venti-
lation on/off using the centre console
button
Switching on the auxiliary heating/venti-
lation
The colours of the indicator lamps on the but-
ton have the following meanings:
Blue Auxiliary ventilation switched on
Red Auxiliary heating switched on
Yellow Departure time preselected
(Y page 224)
X Press button :.
The red or blue indicator lamp in but-
ton : lights up.
Switching off the auxiliary heating/venti-
lation
X Press button :.
The red or blue indicator lamp in but-
ton : goes out.
Switching the auxiliary heating/venti-
lation on/off using the remote control Your vehicle comes with one remote control.
You may use two additional remote controls
for
your vehicle. For more information, please
contact a qualified specialist workshop.
The remote control has a maximum range of
approximately 300 metres. This range is
reduced by:
R sources of radio interference
R solid objects between the remote control
and the vehicle R
the remote control being in an unfavoura-
ble position in relation to the vehicle
R transmitting from an enclosed space
i The

optimum range can be achieved if you
hold the remote control vertically, pointing
upwards when you press one of the but-
tons.
i A battery symbol appears in the display
when the battery in the remote control is
low. Replace the remote control battery
(Y page 136).
Switching the auxiliary heating/ventila-
tion on/off Remote control
:
Display
; . To check the status/set the depar-
ture time
= ^ To switch off the auxiliary heating/
ventilation
? u To switch on the auxiliary heating/
ventilation
A , To check the status/set the depar-
ture time
X To activate: press the u button.
ON is shown in the remote control display.
X To deactivate: press the ^ button.
OFF
is shown in the remote control display.
Checking the status of the auxiliary heat-
ing/ventilation
X Press the , or . button. Operating the climate control system
135
Climate control Z

The following messages may appear in the
display:
Display Meaning
The auxiliary heating/
ventilation is switched
off.
The auxiliary ventilation
is
switched on. The num-
ber in the display shows
the remaining time (in
minutes) for the auxiliary
ventilation. The auxiliary heating is
switched

on. The number
in the display shows the
remaining time (in
minutes) for the auxiliary
heating. A departure time has
been activated. The
departure time appears
in the display.
A departure time has
been activated. The aux-
iliary ventilation is cur-
rently activated. The
departure time appears
in the display.
A departure time has
been activated. The aux-
iliary heating is currently
activated. The departure
time appears in the dis-
play. Setting the departure time
X
Press the , or . button repeatedly
until
the time to be changed appears in the
display.
X Press the u and ^ buttons simulta-
neously.
The Î symbol in the remote control dis-
play flashes.
X Press the , or . button to set the
desired departure time.
i The longer you press the , or .
button, the faster the time changes.
X Press the u and ^ buttons simulta-
neously.
The new departure time is stored.
Activating the set departure time
X Press the , or . button repeatedly
until
the desired departure time appears in
the display.
X Press the u button.
The Í symbol and the departure time
appear in the display.
Deactivating a set departure time
X Press the , or . button.
The
status of the auxiliary heating is shown
in the display.
X Press the . button.
The first departure time stored appears in
the display.
X Press the ^ button.
OFF

is shown in the remote control display.
Replacing the remote control battery G
WARNING
Batteries contain toxic and corrosive substan-
ces.
If batteries are swallowed, it can result in
severe health problems. There is a risk of fatal
injury.
Keep batteries out of the reach of children. If
a battery is swallowed, seek medical attention
immediately. 136
Operating the climate control system
Climate control

H
Environmental note Batteries contain pollutants.
It
is illegal to dispose of them
with the household rubbish.
They must be collected sep-
arately and disposed of in an
environmentally responsible
recycling system. Dispose of batteries in an
environmentally responsible
manner. Take discharged
batteries to a qualified spe-
cialist workshop or to a col-
lection

point for used batter-
ies.
One 6 V pin battery, type 2CR11108 is
required. X
Prise apart the side arms of battery
cover ; and pull off battery cover ;.
X Remove old battery :.
X Insert the new battery. Observe the polarity
signs on the back of the remote control
when doing so.
X Slide battery cover ; back onto the
remote control.
X Use the remote control to check the vehi-
cle's auxiliary heating functions. Operating the climate control system
137
Climate control Z
