2012 MAZDA MODEL MX-5 MIATA PRHT Owners Manual

Black plate (393,1)
Thoroughly rinse with lukewarm or cold
water. Don't allow soap to dry on the
finish.
Waxing
Wax the hardtop when water no longer
beads on the paint. Always wash and dry
it before waxing.
CAUTION
ØWiping off dust or dirt with a dry
cloth will scratch the finish.
Ø Don't use abrasive wax. This may
damage the protective coating and
discolor or deteriorate the paint.
NOTE
A spot remover to remove oil, tar, and similar
materials will usually also take off the wax.
Rewax these areas.
q Plastic Part Maintenance
lWhen cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.
lIf plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately.
lHigh water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended
period of time, it could deform plastic
parts or damage the paint.
lDo not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
lIn addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result in
deformation of plastic parts or paint
damage.
Maintenance and Care
Appearance Care
8-57
MX-5_8CC1-EA-11F_Edition2 Page393
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (394,1)
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor
the dashboard. If these solutions get on
the dashboard, wipe them off
immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Remove dust and sand first using a
vacuum cleaner or other means, then wipe
dirt off using a soft cloth with a leather
cleaner or a soft cloth soaked in mild
soap.
Wipe off the remaining cleaner or soap
using a cloth soaked in clean water and
wrung out well.
Remove moisture with a dry, soft cloth
and allow the leather to further dry in a
well-ventilated, shaded area. If the leather
gets wet such as from rain, also remove
moisture and dry it as soon as possible. NOTE
lBecause genuine leather is a natural
material, its surface is not uniform and it
may have natural scars, scratches, and
wrinkles.
lTo maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.
lSand and dust on the seat surface may
damage the overcoat of the genuine leather
surfaces and accelerate wear.
lGreasy soiling on genuine leather may
cause molding and stains.
lRubbing hard with a stiff brush or cloth
may cause damage.
lDo not wipe the leather using alcohol,
chlorine bleach, or organic solvents such as
thinner, benzene, or gasoline. Otherwise, it
may cause discoloration or stains.
lIf the seats get wet, promptly remove
moisture with a dry cloth. Remaining
moisture on the surface may cause
deterioration such as hardening and
shrinkage.
lExposure to direct sunlight for long periods
may cause deterioration and shrinkage.
When parking the car under direct sunlight
for long periods, shade the interior using
sunshades.
lDo not leave vinyl products on the seats for
long periods as they may affect the leather
quality and coloring. If the cabin
temperature becomes hot, the vinyl may
deteriorate and adhere to the genuine
leather.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
8-58
Maintenance and Care
íSome models.
Appearance Care
MX-5_8CC1-EA-11F_Edition2 Page394
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (395,1)

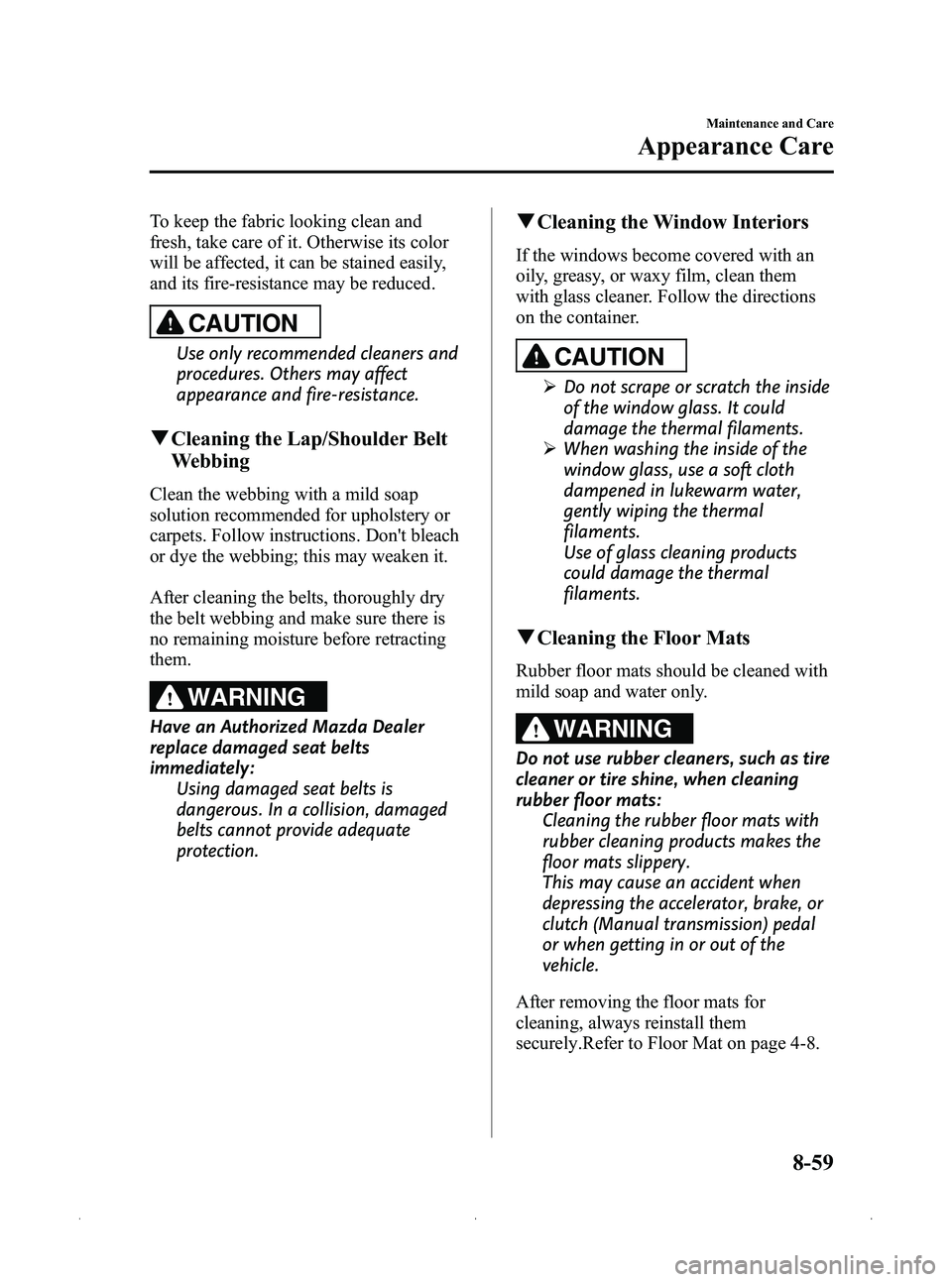

To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
qCleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Have an Authorized Mazda Dealer
replace damaged seat belts
immediately:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection.
qCleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them
with glass cleaner. Follow the directions
on the container.
CAUTION
Ø Do not scrape or scratch the inside
of the window glass. It could
damage the thermal filaments.
Ø When washing the inside of the
window glass, use a soft cloth
dampened in lukewarm water,
gently wiping the thermal
filaments.
Use of glass cleaning products
could damage the thermal
filaments.
qCleaning the Floor Mats
Rubber floor mats should be cleaned with
mild soap and water only.
WARNING
Do not use rubber cleaners, such as tire
cleaner or tire shine, when cleaning
rubber floor mats:
Cleaning the rubber floor mats with
rubber cleaning products makes the
floor mats slippery.
This may cause an accident when
depressing the accelerator, brake, or
clutch (Manual transmission) pedal
or when getting in or out of the
vehicle.
After removing the floor mats for
cleaning, always reinstall them
securely.Refer to Floor Mat on page 4-8.
Maintenance and Care
Appearance Care
8-59
MX-5_8CC1-EA-11F_Edition2 Page395
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (396,1)
8-60
MX-5_8CC1-EA-11F_Edition2 Page396
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (397,1)
9
Customer Information and Reporting
Safety Defects
Important consumer information including warranties and add-on equipment.
Customer Assistance ............................... 9-2 Customer Assistance (U.S.A.) ............ 9-2
Customer Assistance (Canada) ........... 9-6
Customer Assistance (Puerto Rico) .... 9-9
Customer Assistance (Mexico) ......... 9-10
Mazda Importer/Distributors ............... 9-12 Importer/Distributor .......................... 9-12
Distributor in Each Area ................... 9-12
Warranty ................................................ 9-14 Warranties for Your Mazda ............... 9-14
Outside the United States and
Canada .............................................. 9-15
Outside the United States .................. 9-16
Outside Canada ................................. 9-17
Registering Your Vehicle in A Foreign
Country (Except United States and
Canada) ............................................. 9-18
Add-On Non-Genuine Parts and
Accessories ....................................... 9-19
Cell Phones ............................................. 9-20 Cell Phones Warning ......................... 9-20
Uniform Tire Quality Grading System
(UTQGS) ................................................ 9-21 Uniform Tire Quality Grading System
(UTQGS) .......................................... 9-21
Tire Information (U.S.A.) ..................... 9-23 Tire Labeling ..................................... 9-23
Location of the Tire Label
(Placard) ............................................ 9-29
Tire Maintenance .............................. 9-32
Vehicle Loading ................................ 9-35
Steps for Determining the Correct Load
Limit: ................................................ 9-41 Reporting Safety Defects ....................... 9-42
Reporting Safety Defects (U.S.A.) .... 9-42
Reporting Safety Defects (Canada) ... 9-43
Service Publications .............................. 9-44 Service Publications .......................... 9-44
9-1
MX-5_8CC1-EA-11F_Edition2 Page397
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (398,1)
Customer Assistance (U.S.A.)
Your complete and permanent satisfaction is our business. We are here to serve you. All
Authorized Mazda Dealers have the knowledge and the tools to keep your Mazda vehicle
in top condition.
If you have any questions or recommendations for improvement regarding the service of
your Mazda vehicle or servicing by Mazda Dealer personnel, we recommend that you take
the following steps:
NOTE
If it becomes necessary to have the components or wiring system for the supplementary restraint
system modified to accommodate a person with certain medical conditions in accordance with a
certified physician, contact an Authorized Mazda Dealer.
qSTEP 1: Contact Your Mazda Dealer
Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to
address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS,
SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL
MANAGER of the dealership or the OWNER.
qSTEP 2: Contact Mazda North American Operations
If for any reason you feel the need for further assistance after contacting your dealership
management, you can reach Mazda North American Operations by one of the following
ways.
Log on: at www.mazdaUSA.com
Answers to many questions, including how to locate or contact a local Mazda dealership in
the U.S., can be found here.
E-mail: click on “Contact Us ”located on the “Inside Mazda ”tab, or at the bottom of the
page at www.mazdaUSA.com
By phone at: 1 (800) 222-5500
By letter at:
Attn: Customer Assistance
Mazda North American Operations
7755 Irvine Center Drive
Irvine, CA 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
9-2
Customer Information and Reporting Safety Defects
Customer Assistance
MX-5_8CC1-EA-11F_Edition2 Page398
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (399,1)
In order to serve you efficiently and effectively, please help us by providing the following
information:
1. Your name, address, and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (17 digits, noted on your registration or title or located onthe upper driver's side corner of the dash)
4. Purchase date and current mileage
5. Your dealer's name and location
6. Your question(s)
If you live outside the U.S.A., please contact your nearest Mazda Distributor.
q STEP 3: Contact Better Business Bureau (BBB)
Mazda North American Operations realizes that mutual agreement on some issues may not
be possible. As a final step to ensure that your concerns are being fairly considered, Mazda
North American Operations has agreed to participate in a dispute settlement program
administered by the Better Business Bureau (BBB) system, at no cost to you the consumer.
BBB AUTO LINE works with consumers and the manufacturer in an attempt to reach a
mutually acceptable resolution of any warranty related concerns. If the BBB is not able to
facilitate a settlement they will provide an informal hearing before an arbitrator.
You are required to resort to BBB AUTO LINE before exercising rights or seeking
remedies under the Federal Magnuson-Moss Warranty Act, 15 U.S.C. § 2301 et seq. To the
extent permitted by the applicable state “Lemon Law ”, you are also required to resort to
BBB AUTO LINE before exercising any rights or seeking remedies under the “Lemon
Law ”. If you choose to seek remedies that are not created by the Magnuson-Moss Warranty
Act or the applicable state “Lemon Law ”, you are not required to first use BBB AUTO
LINE.
The whole process normally takes 40 days or less. The arbitration decision is not binding
on you or Mazda unless you accept the decision. For more information about BBB AUTO
LINE, including current eligibility standards, please call 1-800-955-5100 or visit the BBB
website at www.lemonlaw.bbb.org.
Being truly committed to customer satisfaction is more than a phrase with Mazda. We hope
to satisfy every customer directly, but if there is ever a question about our decision, Mazda
believes in providing a fast, fair and free method such as the BBB AUTO LINE to ensure
Mazda delivers on our commitment to do the right thing for our customers!
Customer Information and Reporting Safety Defects
Customer Assistance
9-3
MX-5_8CC1-EA-11F_Edition2 Page399
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (400,1)
qCalifornia Customers
1. Mazda North American Operations participates in BBB AUTO LINE, a mediation/
arbitration program administered by the Council of Better Business Bureaus [4200
Wilson Boulevard, Arlington, Virginia 22203] through local Better Business Bureaus.
BBB AUTO LINE and Mazda have been certified by the Arbitration Certification
Program of the California Department of Consumer Affairs.
2. If you have a problem arising under a Mazda written warranty, we encourage you to bring it to our attention. If we are unable to resolve it, you may file a claim with BBB
AUTO LINE. Claims must be filed with BBB AUTO LINE within six (6) months after
the expiration of the warranty.
3. To file a claim with BBB AUTO LINE, call 1-800-955-5100. There is no charge for the call.
4. In order to file a claim with BBB AUTO LINE, you will have to provide your name and address, the brand name and vehicle identification number (VIN) of your vehicle, and a
statement of the nature of your problem or complaint. You will also be asked to provide:
the approximate date of your acquisition of the vehicle, the vehicle's current mileage, the
approximate date and mileage at the time any problem(s) were first brought to the
attention of Mazda or one of our dealers, and a statement of the relief you are seeking.
5. BBB AUTO LINE staff may try to help resolve your dispute through mediation. If mediation is not successful, or if you do not wish to participate in mediation, claims
within the program's jurisdiction may be presented to an arbitrator at an informal
hearing. The arbitrator's decision should ordinarily be issued within 40 days from the
time your complaint is filed; there may be a delay of 7 days if you did not first contact
Mazda about your problem, or a delay of up to 30 days if the arbitrator requests an
inspection/report by an impartial technical expert or further investigation and report by
BBB AUTO LINE.
6. You are required to use BBB AUTO LINE before asserting in court any rights or remedies conferred by California Civil Code Section 1793.22. You are also required to
use BBB AUTO LINE before exercising rights or seeking remedies created by Title I of
the Magnuson-Moss Warranty Act, 15 U.S.C. sec. 2301 et seq. If you choose to seek
redress by pursuing rights and remedies not created by California Civil Code Section
1793.22 or Title I of the Magnuson-Moss Warranty Act, resort to BBB AUTO LINE is
not required by those statutes.
9-4
Customer Information and Reporting Safety Defects
Customer Assistance
MX-5_8CC1-EA-11F_Edition2 Page400
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F
