2012 MAZDA MODEL MX-5 MIATA engine

Black plate (326,1)

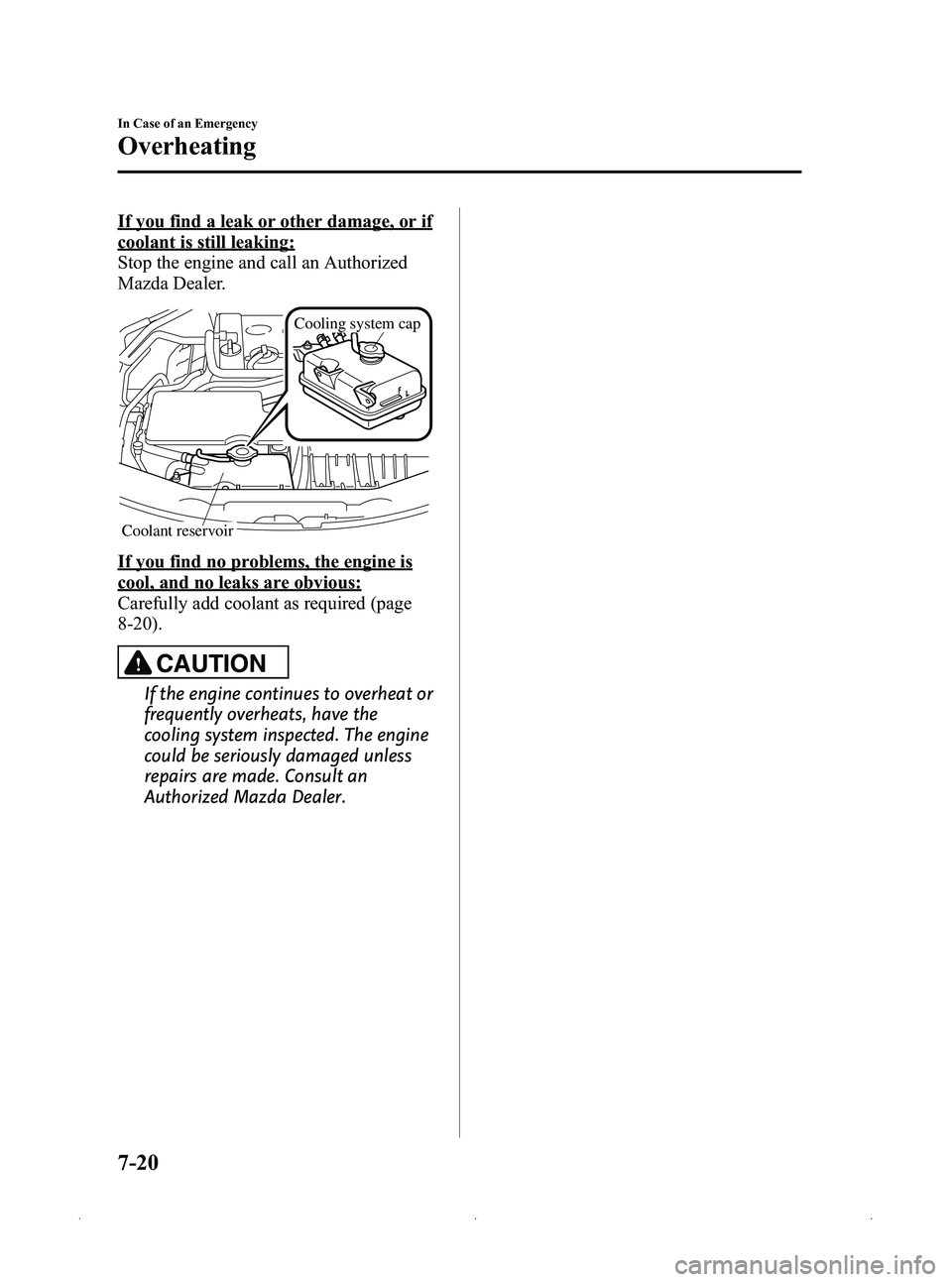

If you find a leak or other damage, or if
coolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.
Cooling system cap
Coolant reservoir
If you find no problems, the engine is
cool, and no leaks are obvious:
Carefully add coolant as required (page
8-20).
CAUTION
If the engine continues to overheat or
frequently overheats, have the
cooling system inspected. The engine
could be seriously damaged unless
repairs are made. Consult an
Authorized Mazda Dealer.
7-20
In Case of an Emergency
Overheating
MX-5_8CC1-EA-11F_Edition2 Page326
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (327,1)
Starting a Flooded Engine
If the engine fails to start, it may be
flooded (excessive fuel in the engine).
Follow this procedure:
1. If the engine does not start within fiveseconds on the first try, switch the
ignition off, wait ten seconds and try
again.
2. Make sure the parking brake is on.
3. Depress the accelerator all the way and hold it there.
4. Depress the clutch pedal (Manual transmission) or the brake pedal
(Automatic transmission).
5. Switch the ignition to START and hold it there ―for up to ten seconds. If the
engine starts, release the key and
accelerator immediately because the
engine will suddenly rev up.
6. If the engine fails to start, crank it without depressing the accelerator ―for
up to ten seconds.
If the engine still does not start using the
above procedure, have your vehicle
inspected by an Authorized Mazda
Dealer.
In Case of an Emergency
Emergency Starting
7-21
MX-5_8CC1-EA-11F_Edition2 Page327
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (329,1)
Keep all flames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.
Do not jump-start a frozen battery or one with a low fluid level: Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.
Connect the negative cable to a good ground point away from the battery: Connecting the end of the second jumper cable to the negative (
) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Route the jumper cables away from parts that will be moving: Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous.
The cable could get caught when the engine starts and cause serious injury.
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).
Discharged battery
Connect cables in numerical order and disconnect in reverse order.
Jumper cables
Booster battery
In Case of an Emergency
Emergency Starting
7-23
MX-5_8CC1-EA-11F_Edition2 Page329
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (330,1)
1. Remove the rubber hose from thebattery cover.
2. Remove the battery cover from its right
side.
3. Make sure the booster battery is 12 Vand that its negative terminal is
grounded.
4. If the booster battery is in another vehicle, don't allow both vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles. 5. Connect the jumper cables in the exact
sequence as in the illustration.
lConnect one end of a cable to the
positive terminal on the discharged
battery (1).
lAttach the other end to the positive
terminal on the booster battery (2).
lConnect one end of the other cable
to the negative terminal of the
booster battery (3).
lConnect the other end to the ground
point indicated in the illustration
away from the discharged battery
(4).
6. Start the engine of the booster vehicle and run it a few minutes. Then start the
engine of the other vehicle.
7. When finished, carefully disconnect the cables in the reverse order described in
the illustration.
8. If the battery cover has been removed, install it in the reverse order of
removal.
7-24
In Case of an Emergency
Emergency Starting
MX-5_8CC1-EA-11F_Edition2 Page330
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (331,1)
NOTElBefore installing the battery cover, make
sure both of the cables connecting the
negative battery terminal (right side of
battery) are connected with the cables
routed toward the right and back of the
battery as shown in the figure.
lVerify that the covers are securely installed.
Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it:Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured.
CAUTION
Do not push-start a vehicle that has
a manual transmission. It can
damage the emission control system.
NOTE
You can't start a vehicle with an automatic
transmission by pushing it.
In Case of an Emergency
Emergency Starting
7-25
MX-5_8CC1-EA-11F_Edition2 Page331
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (337,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3 Scheduled Maintenance (USA, Canada, and Puerto Rico) ....... 8-3
Scheduled Maintenance (Mexico) ............................................. 8-8
Owner Maintenance ................................................................... 8-15 Owner Maintenance Schedule ................................................ 8-15
Owner Maintenance Precautions ............................................. 8-16
Engine Compartment Overview .............................................. 8-17
Engine Oil ............................................................................... 8-18
Engine Coolant ....................................................................... 8-20
Brake/Clutch Fluid .................................................................. 8-22
Power Steering Fluid ............................................................... 8-23
Washer Fluid ........................................................................... 8-23
Body Lubrication .................................................................... 8-24
Wiper Blades ........................................................................... 8-25
Battery ..................................................................................... 8-27
Tires ........................................................................................ 8-30
Light Bulbs ............................................................................. 8-36
Fuses ....................................................................................... 8-44
Appearance Care ........................................................................ 8-50 How to Minimize Environmental Paint Damage .................... 8-50
Exterior Care ........................................................................... 8-52
Interior Care ............................................................................ 8-58
8-1
MX-5_8CC1-EA-11F_Edition2 Page337
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (340,1)
qSchedule 1
Maintenance Interval Number of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
ENGINE
Drive belts I
Engine valve clearance Audibly inspect every 120,000 km (75,000 miles), if noisy,
adjust
Engine oil RRRRRRRR
Engine oil filter RRRRRRRR
COOLING SYSTEM
Engine coolant FL22 type
*1Replace at first 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years
Others Replace at first 96,000 km (60,000 miles) or 4 years; after that,
every 2 years
FUEL SYSTEM
Air filter CC R C
Fuel lines and hoses
*2II
Hoses and tubes for emission*2I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles)
8-4
Maintenance and Care
Scheduled Maintenance
MX-5_8CC1-EA-11F_Edition2 Page340
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (342,1)
qSchedule 2
Maintenance Interval Number of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts I
Engine valve clearance Audibly inspect every 120,000 km (75,000 miles), if noisy,
adjust
Engine oil Puerto Rico Replace every 5,000 km (3,000 miles) or 3 months
Others
RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
COOLING SYSTEM
Engine coolant FL22 type
*1Replace at first 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years
Others Replace at first 96,000 km (60,000 miles) or 4 years; after that,
every 2 years
Engine coolant level IIIIIIIIIIII
FUEL SYSTEM
Air filter Puerto Rico
CRCR
Others C C R C
Fuel lines and hoses
*2II
Hoses and tubes for emission*2I
IGNITION SYSTEM
Spark plugs USA Replace every 96,000 km (60,000 miles)
Others Replace every 120,000 km (75,000 miles)
ELECTRICAL SYSTEM
Function of all lights IIIIIIIIIIII
8-6
Maintenance and Care
Scheduled Maintenance
MX-5_8CC1-EA-11F_Edition2 Page342
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F
