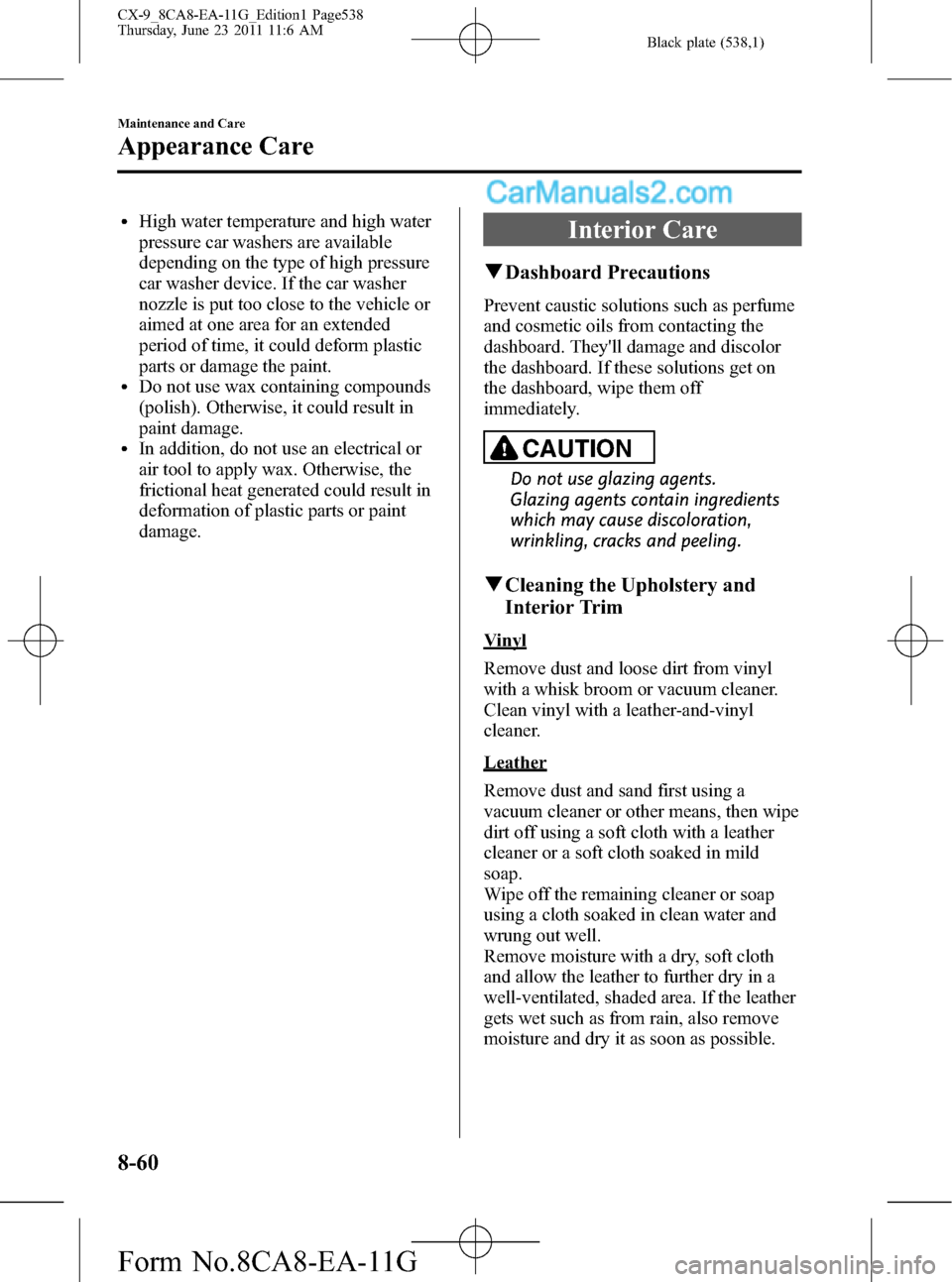

Black plate (538,1)
lHigh water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended
period of time, it could deform plastic
parts or damage the paint.
lDo not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
lIn addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result in
deformation of plastic parts or paint
damage.
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor
the dashboard. If these solutions get on
the dashboard, wipe them off
immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leather
Remove dust and sand first using a
vacuum cleaner or other means, then wipe
dirt off using a soft cloth with a leather
cleaner or a soft cloth soaked in mild
soap.
Wipe off the remaining cleaner or soap
using a cloth soaked in clean water and
wrung out well.
Remove moisture with a dry, soft cloth
and allow the leather to further dry in a
well-ventilated, shaded area. If the leather
gets wet such as from rain, also remove
moisture and dry it as soon as possible.
8-60
Maintenance and Care
Appearance Care
CX-9_8CA8-EA-11G_Edition1 Page538
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G
Black plate (590,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
Open the cover shown in the figure to
check the chassis number.
qVehicle Emission Control
Information Label
10-2
Identification Numbers
CX-9_8CA8-EA-11G_Edition1 Page590
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G
Black plate (599,1)
B
Bluetooth Hands-Free
(Panel Operation) ............................ 6-164
Basic Bluetooth Hands-Free
Operation ................................. 6-166
Convenient Use of the Hands-Free
System ...................................... 6-169
Hands-Free Setting ................... 6-173
Mazda Bluetooth Hands-Free
Customer Service ..................... 6-176
Safety Certification .................. 6-176
When Bluetooth Hands-Free Cannot
be Used .................................... 6-175
Bluetooth Hands-Free
(Voice Recognition) ........................ 6-133
Basic Bluetooth Hands-Free
Operation ................................. 6-138
Convenient Use of the Hands-Free
System ...................................... 6-144
Hands-Free Setting ................... 6-153
Mazda Bluetooth Hands-Free
Customer Service ..................... 6-163
Safety Certification .................. 6-162
When Bluetooth Hands-Free Cannot
be Used .................................... 6-162
Body Lubrication .............................. 8-25
Bottle Holder ................................... 6-193
Brake
Fluid ........................................... 8-23
Brakes
Anti-lock brake system (ABS) ..... 5-8
Brakes assist ............................... 5-10
Foot brake .................................... 5-5
Pad wear indicator ...................... 5-10
Parking brake ............................... 5-7
Warning light ............................... 5-8
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-38
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops .................... 6-194
Cargo Sub-Compartment ................ 6-195
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-21
Center Console ................................ 6-194
Child Restraint
Child restraint precautions ......... 2-36
Child-restraint system installation
position ...................................... 2-41
Installing child-restraint
systems ....................................... 2-42
LATCH child-restraint
systems ....................................... 2-50
Child Safety Locks for Rear Doors ... 3-32
Climate Control System ...................... 6-2
Gas specifications ...................... 10-5
Clock ............................................... 6-187
Coin Box ......................................... 6-194
Courtesy Lights ............................... 6-185
Cruise Control ................................... 5-20
Cup Holder ...................................... 6-191
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-42
Daytime Running Lights ................... 5-65
Defroster
Mirror ......................................... 5-74
Rear window .............................. 5-73
Dimensions ....................................... 10-5
Door Locks ....................................... 3-28
Driving In Flooded Area ................... 4-12
Driving on Uneven Road .................. 4-13
Index
11-3
CX-9_8CA8-EA-11G_Edition1 Page599
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G
