qOperation
Arming
The system is armed when the ignition is
switched from ON to ACC or OFF. The
security indicator light in the instrument
cluster flashes every 2 seconds until the
system is disarmed.
Disarming
The system is disarmed when the ignition
is switched ON with the registered
advanced key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine does not start with the
correct advanced key, and the security
indicator light keeps illuminating or
flashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer.NOTE
lThe engine may not start and the security
indicator light may illuminate or flash if the
advanced key is placed in an area where it
is difficult for the system to detect the
signal, such as on the dashboard, or in the
glove box. Move the advanced key to
another place, switch the ignition off, and
then restart the engine.
lSignals from a TV or radio station, or from
a transceiver or a mobile telephone could
interfere with your immobilizer system. If
you are using the proper advanced key and
the engine fails to start, check the security
indicator light. If the indicator light is
flashing, switch the ignition to ACC or
switch the ignition off and wait for a while,
then restart the engine. If it does not start
after 3 or more tries, contact an Authorized
Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If the
engine is shut off while the indicator light is
flashing, you will not be able to restart it.
lSince the electronic codes are reset when
repairing the immobilizer system, the
advanced key (including auxiliary key) are
needed. Bring all the advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer.
Knowing Your Mazda
Security System
3-57
CX-9_8CA8-EA-11G_Edition1 Page145
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (146,1)
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.
Immobilizer System
(without Advanced Key)
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
ØTo avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
3-58
Knowing Your Mazda
Security System
CX-9_8CA8-EA-11G_Edition1 Page146
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (217,1)
Meters and Gauges
Speedometer ...................................................................................................... page 5-40
Odometer, Trip Meter and Trip Meter Selector .................................................. page 5-40
Tachometer ........................................................................................................ page 5-41
Engine Coolant Temperature Gauge .................................................................. page 5-41
Fuel Gauge ........................................................................................................ page 5-42
Dashboard Illumination ..................................................................................... page 5-42
NOTE
When the ignition is switched ON, the dashboard gauges illuminate.
Driving Your Mazda
Instrument Cluster and Indicators
5-39
CX-9_8CA8-EA-11G_Edition1 Page217
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (220,1)
qFuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON.
We recommend keeping the tank over 1/4
full. When the low fuel warning light
illuminates or when the needle is near E,
refuel as soon as possible.
Low fuel
warning lightFull
Approx. 1/4 Full
NOTElAfter refueling, it may require some time for
the needle to stabilize. In addition, the
needle may deviate while driving on a slope
or curve since the fuel moves in the tank.
lThe direction of the arrow () next to the
low fuel warning light indicates that the
fuel-filler lid is on the left side of the
vehicle.
qDashboard Illumination
Rotate the knob to adjust the brightness of
the instrument cluster and other
illuminations in the dashboard.
NOTE
lThe brightness of dashboard illuminations
can be adjusted when the headlight switch
is in the
orposition.lWhen the dashboard illumination
brightness cannot be adjusted any more, a
beep sound will be heard.
l(Black-out meter)
The brightness of the instrument cluster
illumination can be adjusted when the
headlight switch is in any position.
Dim
Bright
Canceling the illumination dimmer
(Black-out meter and dashboard
illuminations)
When the headlight switch is in the
orposition, the illumination of the
instrument cluster and the information
display dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster or information display's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer and increase the illumination
intensity.
5-42
Driving Your Mazda
Instrument Cluster and Indicators
CX-9_8CA8-EA-11G_Edition1 Page220
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (221,1)
To cancel the illumination dimmer, press
the dashboard illumination knob.
NOTE
lThis symbol () indicates the knob to
adjust the brightness of the dashboard
illumination.
lIf the illumination dimmer is cancelled, the
instrument cluster and the information
display will not dim when the headlight
switch is turned to the
orposition
again. Press the dashboard illumination
knob to activate the illumination dimmer.
Driving Your Mazda
Instrument Cluster and Indicators
5-43
CX-9_8CA8-EA-11G_Edition1 Page221
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (235,1)
Cruise Main Indicator Light (Amber)
The indicator light illuminates amber
when the ON switch is pressed and the
cruise control system is activated.
Cruise Set Indicator Light (Green)
The indicator light illuminates green when
a cruising speed has been set.
qBSM OFF Indicator Lightí
This indicator light illuminates for a few
seconds when the ignition is switched
ON.
The BSM OFF indicator light illuminates
when the BSM system is turned off by
pressing the BSM OFF switch.
The indicator light flashes if the BSM
system has a malfunction. Consult an
Authorized Mazda Dealer.
NOTE
If the vehicle is driven on a road with less
traffic and few vehicles that the radar sensors
can detect, the system may pause (The BSM
OFF indicator light in the instrument panel
flashes). However, it does not indicate a
malfunction.
qLights-On Indicator Light
This indicator light illuminates when the
exterior lights and dashboard illumination
are on.
qTurn Signal/Hazard Warning
Indicator Lights
When operating the turn signal lights, the
left or right turn signal indicator light
flashes to indicate which turn signal light
is operating (page 5-66).
When operating the hazard warning
lights, both turn signal indicator lights
flash (page 5-75).
NOTE
If an indicator light remains illuminated (does
not flash) or if it flashes abnormally, one of the
turn signal bulbs may be burned out.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-57íSome models. CX-9_8CA8-EA-11G_Edition1 Page235
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (238,1)
Lighting Control
qHeadlights
Turn the headlight switch to turn the headlights, other exterior lights and dashboard
illumination on or off.
NOTE
lTo prevent discharging the battery, do not leave the lights on while the engine is off unless safety
requires them.
lIf the light switch is left on, the lights will automatically switch off (if equipped) approximately 30
seconds after switching the ignition to ACC or switching the ignition off.
Without AUTO position
Type A
Type B
5-60
Driving Your Mazda
Switches and Controls
CX-9_8CA8-EA-11G_Edition1 Page238
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

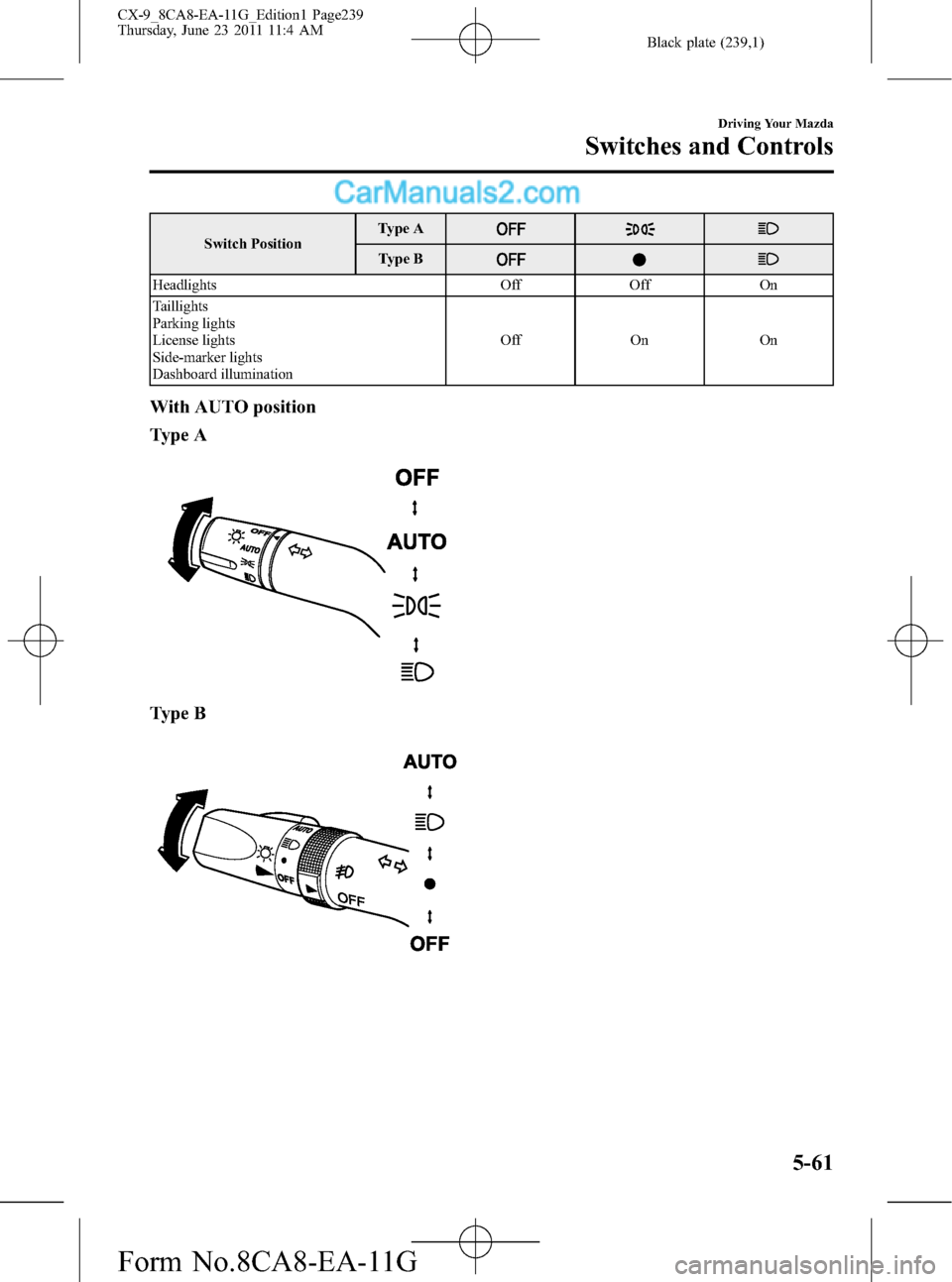

Black plate (239,1)
Switch PositionType AType B
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illuminationOff On On
With AUTO position
Type A
Type B
Driving Your Mazda
Switches and Controls
5-61
