2012 MAZDA MODEL CX-9 Owners Manual (in English)

Black plate (281,1)
Bit rate
Refers to the volume of data per second,
expressed in bps (bits per second).
Generally, the larger the number of the
transfer bit rate when compressing an
MP3 file, the more information regarding
musical reproduction it carries, and
therefore the better the sound quality.
Packet writing
A general term for the method, similar to
that used for floppy discs or hard drives,
of recording the required file in a single
increment on a CD-R and similar.
ID3 Tag
ID3 tag is a method for storing
information related to the music in an
MP3 file. Information such as track, artist
and album name can be stored. This
content can be freely edited using ID3
editing function software.
VBR
Abbreviation for Variable Bit Rate. While
CBR (Constant Bit Rate) is generally
used, VBR varies the bit rate for audio
compression according to compression
conditions and this allows for
compression with preference given to
sound quality.
qOperating Tips for WMA
WMA is short for Windows Media Audio
and is the audio compression format used
by Microsoft.
Audio data can be created and stored at a
higher compression ratio than MP3.
* Microsoft and Windows Media are
registered trademarks of Microsoft
Corporation U.S. in the United States
and other countries.
Playable WMA file specification
CD-R and CD-RW including WMA files
can be played with this unit. Discs which
conform to the following formats can be
played.
Playable WMA files are as follows:
Item Content
SpecificationWindows Media
Audio Version 7.0,
8.0, 9.0
Sampling
frequencyBit rate32kHz.......32,40,
48 kbps
44.1kHz.....32,48,
64, 80, 96, 128, 160,
192, 256, 320 kbps
48kHz.......64,96,
128, 160, 192 kbps
VBR (Variable Bit Rate) Supported
Channel mode Stereo/Monaural
WMA tagTitle, artist name,
album name
CAUTION
This unit plays files with the (.wma)
file extension as a WMA file. Do not
use the WMA file extension for files
other than WMA files. It may cause
noise or a malfunction.
lIn a WMA file, the track name, artist
name and album name are recorded
with data called“WMA-Tag”, and the
information can be displayed.
lWMA files which do not comply with
the specific standard may not be played
correctly or its file and folder name
may not be displayed correctly.
lThe file extension may not be provided
depending on the computer operating
system, version, software, or settings.
In this case, add the file extension
“.wma”to the end of the file name, and
then write the disc.
Interior Comfort
Audio System
6-25
CX-9_8CA8-EA-11G_Edition1 Page281
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (282,1)
MEMO
6-26
CX-9_8CA8-EA-11G_Edition1 Page282
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (283,1)
Types of the Audio Set
Audio Set (Type A) ................................................................................................ page 6-29
Audio Set (Type B) ................................................................................................ page 6-39
Interior Comfort
Audio System
6-27
CX-9_8CA8-EA-11G_Edition1 Page283
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (284,1)

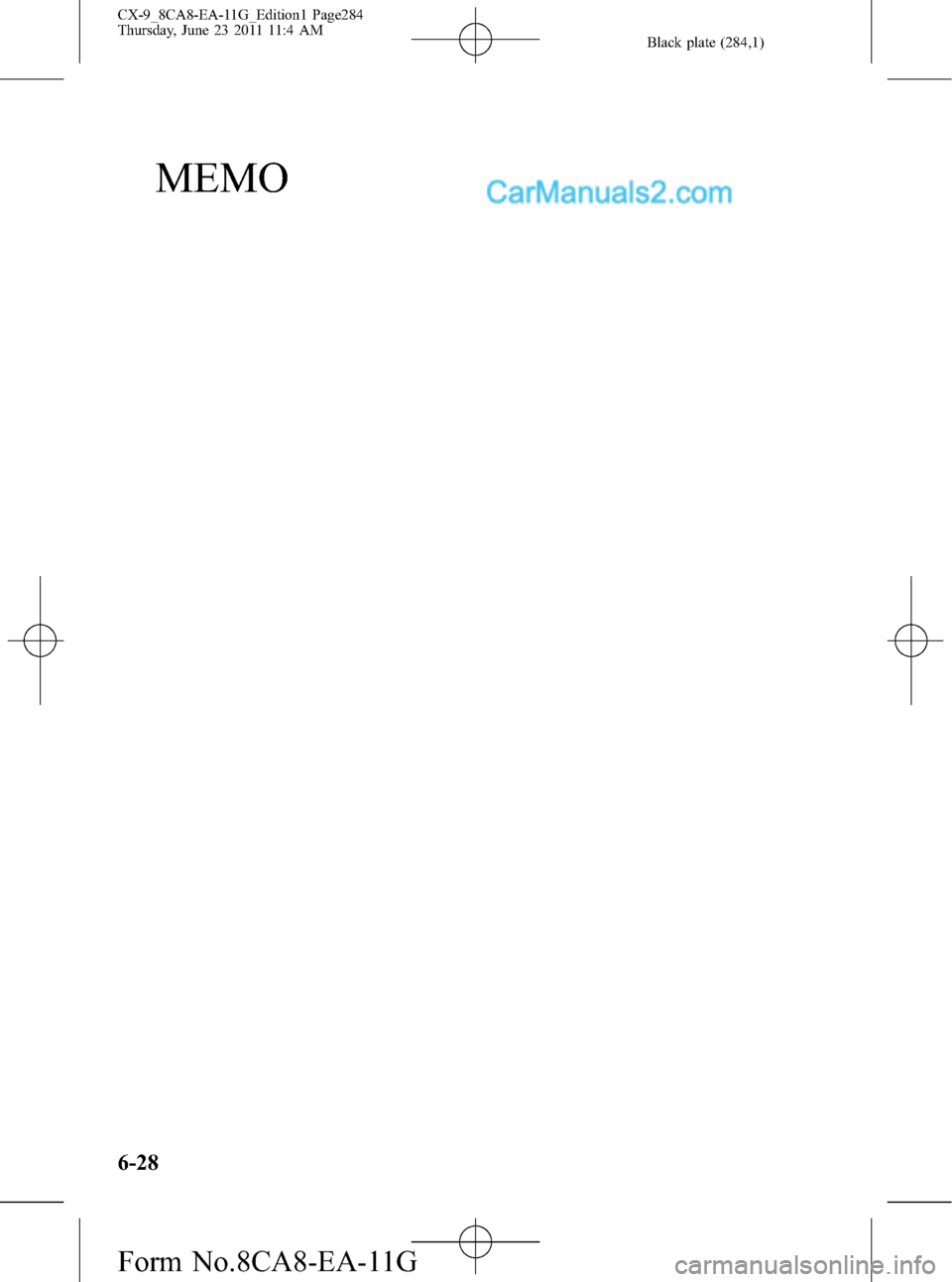

MEMO
6-28
CX-9_8CA8-EA-11G_Edition1 Page284
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (285,1)
Audio Set (Type A)
Audio information is displayed on the information display.
The/(),buttons are only functional if the vehicle is equipped with the
separately purchased SIRIUS digital satellite radio unit (U.S.A. and Canada).
Power/Volume/Sound Controls .............................................................................. page 6-30
Operating the Radio ............................................................................................... page 6-32
Operating the Compact Disc (CD) Player .............................................................. page 6-34
Operating the Auxiliary jack .................................................................................. page 6-37
Error Indications ..................................................................................................... page 6-38
Interior Comfort
Audio System
6-29
CX-9_8CA8-EA-11G_Edition1 Page285
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (286,1)
qPower/Volume/Sound Controls
Power/Volume dialAudio control dial
Power ON/OFF
Switch the ignition to ACC or ON.
Press the power/volume dial to turn the
audio system on.
Press the power/volume dial again to turn
the audio system off.
NOTE
To prevent the battery from being discharged,
do not leave the audio system on for a long
period of time when the engine is not running.
Volume adjustment
To adjust the volume, turn the power/
volume dial.
Turn the power/volume dial to the right to
increase volume, to the left to decrease it.
Audio sound adjustment
1. Press the audio control dial to select the
function. The selected function will be
indicated.
*1
*1
*2
*1
*3
*1 Depending on the mode selected, the
indication changes.
*2 Depending on the model, this function
may not be available.
6-30
Interior Comfort
Audio System
CX-9_8CA8-EA-11G_Edition1 Page286
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (287,1)
*3 The function may appear on the
display but is only adjustable in the
European market models.
2. Turn the audio control dial to adjust the
selected functions as follows:
Indication Turn Left Turn Right
Select mode
Decrease
bassIncrease
bass
Decrease
trebleIncrease
treble
Shift the
sound to the
frontShift the
sound to the
rear
Shift the
sound to the
leftShift the
sound to the
right
Off On
Off On
12Hr
(Flashing)24Hr
(Flashing)
* The function may appear on the display but is only
adjustable in the European market models.
NOTE
About 5 seconds after selecting any mode, the
volume function will be automatically selected.
To reset bass, treble, fade, and balance, press
the audio control dial for 2 seconds. The unit
will beep and“CLEAR”will be displayed.
Automatic Level Control (ALC)
The automatic level control (ALC) is a
feature that automatically adjusts audio
volume and sound quality according to
the vehicle speed.
The volume increases in accordance with
the increase in vehicle speed, and
decreases as vehicle speed decreases.Select the desired ALC mode.
Mode Volume change
No change
Minimum
Medium
Maximum
Turn the audio control dial to select ALC
OFF or ALC LEVEL1―3 modes. The
selected mode will be indicated.
BEEP setting
The beep-sound when operating the audio
system can be set on or off.
ILLM EFT setting (Action Illumination
setting during operation)
The audio system illumination during
operation can be set on or off.
Time adjustment
Rotating the audio control dial switches
the display between 12 and 24-hour clock
time (page 6-187).
Interior Comfort
Audio System
6-31
CX-9_8CA8-EA-11G_Edition1 Page287
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (288,1)
qOperating the Radio
Band selector button Scan button
Seek tuning
buttonsManual tuning dial/Auto memory button
Channel preset buttons
Radio ON
Press a band selector button (
)to
turn the radio on.
Band selection
Successively pressing the band selector
button (
) switches the bands as
follows: FM1→FM2→AM.
The selected mode will be indicated. If
FM stereo is being received,“ST”will be
displayed.
NOTE
If the FM broadcast signal becomes weak,
reception automatically changes from
STEREO to MONO for reduced noise, and the
“ST”indicator will go out.
Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
NOTE
If the power supply is interrupted (fuse blows
or the battery is disconnected), the preset
channels will be erased.
Manual tuning
Turning the manual tuning dial will
change the frequency higher or lower.
Seek tuning
Pressing the seek tuning button (
,)
will cause the tuner to seek a higher or
lower frequency automatically.
6-32
Interior Comfort
Audio System
CX-9_8CA8-EA-11G_Edition1 Page288
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G
