2012 MAZDA MODEL CX-9 engine

Black plate (527,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 MAIN 150 A For protection of all circuits
2 ENGINE 20 A Engine control system
3 R HEATER 40 A Heater
4 P.SEAT R 30 A Power seat (RH)
í
5 HEATER 50 A Heater
6 IGKEY2 40 A For protection of various circuits
7 FAN130 A
íCooling fan
40 Aí
8 P.SEAT L 40 A Power seat (LH)í
9 DEFOG 30 A Rear window defroster
10 BTN 50 A For protection of various circuits
11 FUEL PUMP 30 A Fuel pump
12 IGKEY1 30 A For protection of various circuits
13 FOG 15 A Fog lights
í
14 ABS (SOL) 30 A ABS
15 D/L 25 A Power door locks
16 ROOM 15 A Overhead light
Maintenance and Care
Owner Maintenance
8-49íSome models. CX-9_8CA8-EA-11G_Edition1 Page527
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (528,1)

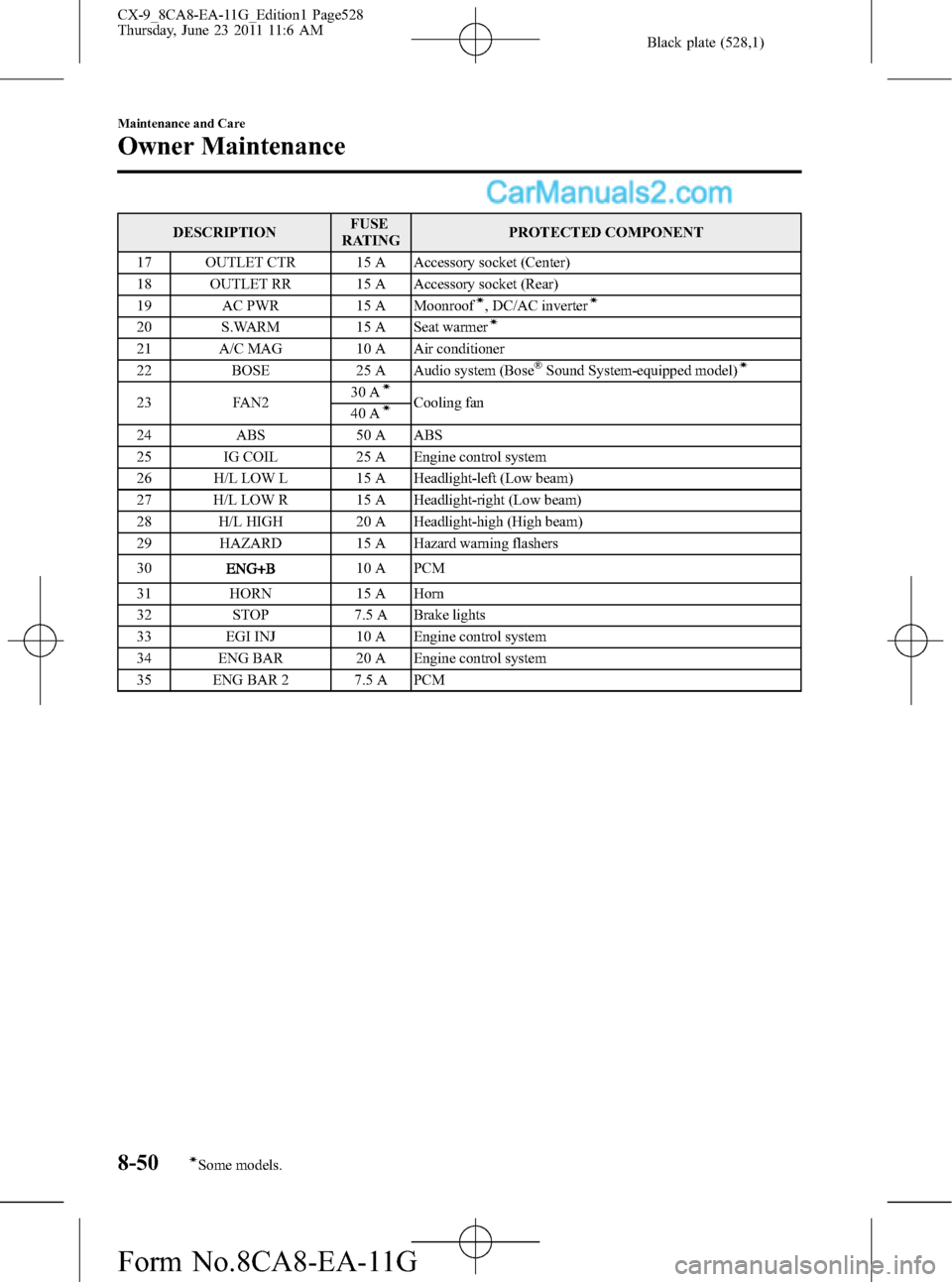

DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
17 OUTLET CTR 15 A Accessory socket (Center)
18 OUTLET RR 15 A Accessory socket (Rear)
19 AC PWR 15 A Moonroof
í, DC/AC inverterí
20 S.WARM 15 A Seat warmerí
21 A/C MAG 10 A Air conditioner
22 BOSE 25 A Audio system (Bose®Sound System-equipped model)í
23 FAN230 AíCooling fan
40 Aí
24 ABS 50 A ABS
25 IG COIL 25 A Engine control system
26 H/L LOW L 15 A Headlight-left (Low beam)
27 H/L LOW R 15 A Headlight-right (Low beam)
28 H/L HIGH 20 A Headlight-high (High beam)
29 HAZARD 15 A Hazard warning flashers
30
10 A PCM
31 HORN 15 A Horn
32 STOP 7.5 A Brake lights
33 EGI INJ 10 A Engine control system
34 ENG BAR 20 A Engine control system
35 ENG BAR 2 7.5 A PCM
8-50
Maintenance and Care
íSome models.
Owner Maintenance
CX-9_8CA8-EA-11G_Edition1 Page528
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (529,1)
Relay box (Engine compartment)í
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 INJ 7.5 A Engine control system
2―― ―
3―― ―
Maintenance and Care
Owner Maintenance
8-51íSome models. CX-9_8CA8-EA-11G_Edition1 Page529
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (530,1)
Fuse block (Glove box)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 OUTLET FR 15 A Accessory socket (Front)
2 MIRROR 7.5 A Power control mirror
3―― ―
4 METER 10 A Instrument cluster
5 SAS 7.5 A ABS, Air bag
6 ENG.IGA 7.5 A Engine control system
7 STA 7.5 A Ignition system
8―― ―
9 A/C 7.5 A Air conditioner
10 R.WIPER 15 A Rear window wiper and washer
11 TRAILER――
12 P.LIFT GATE 20 A Power lift gate
í
13 SUNROOF 15 A Moonroofí
14 AUDIO 10 A Audio systemí
15 M.DEF 10 A Mirror defrosterí
16 P/W 25 A Power windows (Passenger-side)
17 TAIL 10 A Taillight
18 ILLUMI 10 A Dashboard illumination
19 INJ 7.5 A Engine control system
8-52
Maintenance and Care
íSome models.
Owner Maintenance
CX-9_8CA8-EA-11G_Edition1 Page530
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (534,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
qMaintaining the Finish
Washing
CAUTION
ØWhen the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched or wiped with
a cloth.
ØIf the windshield is struck with
a hand or other object from
either outside or inside the
vehicle.
Keep hands and scrapers clear of
the windshield when the wiper
lever is in the AUTO position and
the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely―this is
particularly important when
clearing ice and snow―when it is
most likely that the engine is left
running.
ØDo not spray water in the engine
compartment. Otherwise, it could
result in engine-starting problems
or damage to electrical parts.To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for scratches
caused by automatic car washes or
improper washing.
lScratches are more noticeable on vehicles
with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDo not use abrasive cleansers or wax
that contain abrasives.
8-56
Maintenance and Care
Appearance Care
CX-9_8CA8-EA-11G_Edition1 Page534
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (537,1)
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal:
Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
CAUTION
Do not use any detergent other than
mild detergent. Before using any
detergent, verify the ingredients.
Otherwise, the product could discolor
or stain the aluminum wheels.NOTE
lDo not use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lAlways use a sponge or soft cloth to clean
the wheels.
Rinse the wheels thoroughly with lukewarm
or cold water. Also, be sure to clean the
wheels after driving on dusty or salted
roads to help prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
(With Tire Pressure Monitoring System)
Check special requirements for Tire Pressure
Monitoring System.
Refer to Tires and Wheels on page 5-32.
qPlastic Part Maintenance
lWhen cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.
lIf plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately.
Maintenance and Care
Appearance Care
8-59
CX-9_8CA8-EA-11G_Edition1 Page537
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (556,1)

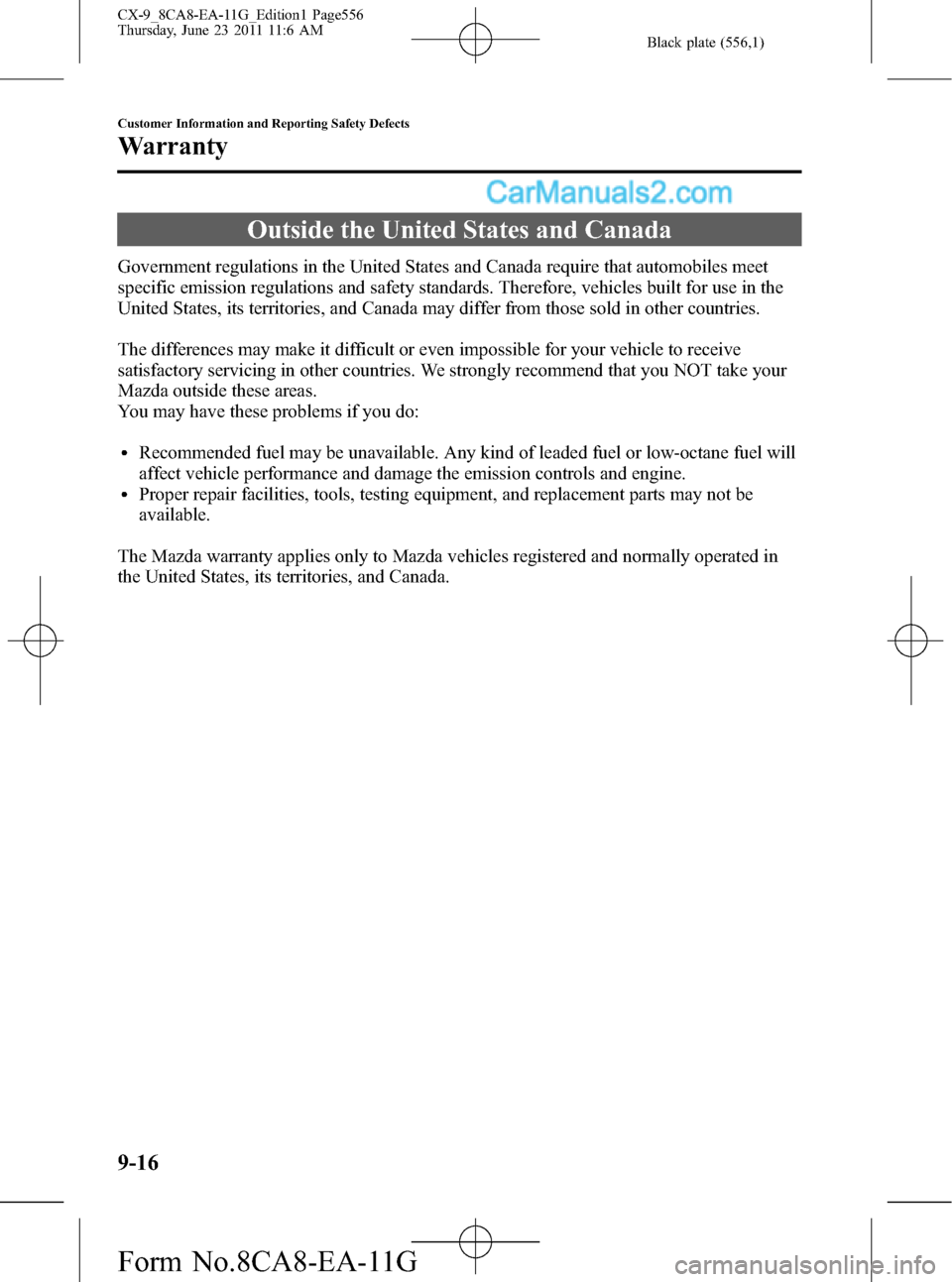

Outside the United States and Canada
Government regulations in the United States and Canada require that automobiles meet
specific emission regulations and safety standards. Therefore, vehicles built for use in the
United States, its territories, and Canada may differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside these areas.
You may have these problems if you do:
lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
The Mazda warranty applies only to Mazda vehicles registered and normally operated in
the United States, its territories, and Canada.
9-16
Customer Information and Reporting Safety Defects
Warranty
CX-9_8CA8-EA-11G_Edition1 Page556
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (557,1)
Outside the United States
Government regulations in the United States require that automobiles meet specific
emission regulations and safety standards. Therefore, vehicles built for use in the United
States may differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside the United States. However, in the event that you are moving to Canada
permanently, Mazda vehicles built for use in the United States could be eligible for
exportation to Canada with specific vehicle modifications to comply with the Canadian
Motor Vehicle Safety Standards (CMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to travelers on
vacation.
You may have the following problems if you do take your vehicle outside of the United
States:
lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
Customer Information and Reporting Safety Defects
Warranty
9-17
CX-9_8CA8-EA-11G_Edition1 Page557
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G
