Outside Canada
Government regulations in Canada require that automobiles meet specific emission
regulations and safety regulations. Therefore, vehicles built for use in Canada may differ
from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside Canada. However, in the event that you are moving to the United States
permanently, Mazda vehicles built for use in Canada could be eligible for exportation to the
United States with specific vehicle modifications to comply with the United States Federal
Motor Vehicle Safety Standards (FMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to travelers on
vacation.
You may have the following problems if you do take your vehicle outside of Canada:lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
9-18
Customer Information and Reporting Safety Defects
Warranty
CX-9_8CA8-EA-11G_Edition1 Page558
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (560,1)
Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your
vehicle's performance or safety systems; the Mazda warranty doesn't cover this. Before you
install any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WARNING
Always consult an Authorized Mazda Dealer before you install non-genuine parts or
accessories:
Installation of non-genuine parts or accessories is dangerous. Improperly designed
parts or accessories could seriously affect your vehicle's performance or safety
systems. This could cause you to have an accident or increase your chances of
injuries in an accident.
Be very careful in choosing and installing add-on electrical equipment, such as
mobile telephones, two-way radios, stereo systems, and car alarm systems:
Incorrectly choosing or installing improper add-on equipment or choosing an
improper installer is dangerous. Essential systems could be damaged, causing engine
stalling, air-bag (SRS) activation, ABS/TCS/DSC inactivation, or a fire in the vehicle.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
9-20
Customer Information and Reporting Safety Defects
Warranty
CX-9_8CA8-EA-11G_Edition1 Page560
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (581,1)
SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:
Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
Do not tow a trailer with this vehicle:
Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
Customer Information and Reporting Safety Defects
Tire Information (except Canada)
9-41
CX-9_8CA8-EA-11G_Edition1 Page581
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (591,1)

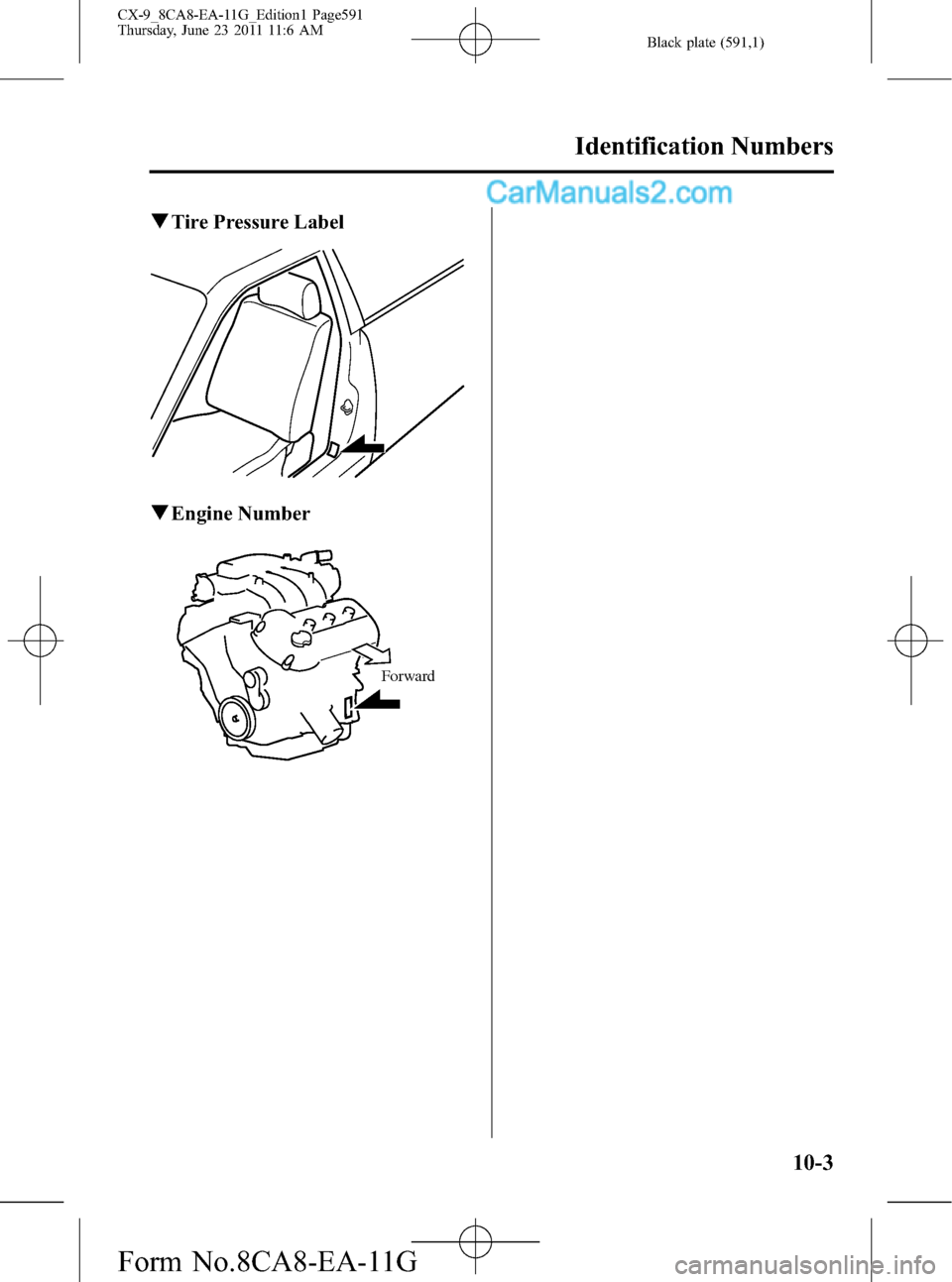

qTire Pressure Label
qEngine Number
Forward
Identification Numbers
10-3
CX-9_8CA8-EA-11G_Edition1 Page591
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (592,1)
Specifications
qEngine
Item Specification
Type DOHC-24V 60°V, 6-cylinder
Bore×Stroke 95.5 × 86.7 mm (3.75 × 3.41 in)
Displacement 3,726 ml (3,726 cc, 227.4 cu in)
Compression ratio 10.3
qElectrical System
Item Classification
Battery 12V-55AH/5HR
Spark-plug number Motorcraft AYFS22FM
Spark-plug gap 1.29―1.45 mm (0.051―0.057 in)
CAUTION
When cleaning the platinum plugs, do not use a wire brush. The fine particulate
coating on the platinum alloy could be damaged.
qLubricant Quality
Lubricant Classification
Engine oil Refer to Recommended Oil on page 8-19.
Automatic transaxle fluid Mazda Genuine JWS3309
Transfer case oil API Service GL-5 (SAE 75W-140)
Rear differential oil API Service GL-5 (SAE 80W-90)
Power steering fluid Mazda Genuine ATF M-III, M-V, or equivalent (e.g. Dexron® II)
Brake fluid SAE J1703, or FMVSS116 DOT-3
10-4
Specifications
CX-9_8CA8-EA-11G_Edition1 Page592
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (593,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oilWith oil filter replacement 5.2 L (5.5 US qt, 4.6 Imp qt)
Without oil filter replacement 4.7 L (5.0 US qt, 4.2 Imp qt)
CoolantMexico 12.1 L (12.8 US qt, 10.6 Imp qt)
Except MexicoWith Towing Package 12.1 L (12.8 US qt, 10.6 Imp qt)
Without Towing Package 11.5 L (12.2 US qt, 10.1 Imp qt)
Automatic transaxle fluid 6.6 L (7.0 US qt, 5.8 Imp qt)
Transfer case oil 0.532 L (0.562 US qt, 0.468 Imp qt)
Rear differential oil 1.0 L (1.1 US qt, 0.9 Imp qt)
Washer fluid 4.5 L (4.8 US qt, 4.0 Imp qt)
Fuel tank 76.0 L (20.1 US gal, 16.7 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Vehicle specification
Overall length 5,086 mm (200.2 in)
Overall width 1,936 mm (76.2 in)
Overall height 1,728 mm (68.0 in)
Front tread 1,654 mm (65.1 in)
Rear tread 1,644 mm (64.7 in)
Wheelbase 2,875 mm (113.2 in)
qWeights
ItemWeight
2WD AWD
GVWR (Gross Vehicle Weight Rating) 2,645 kg (5,831 lbs) 2,720 kg (5,997 lbs)
GAWR (Gross Axle Weight Rating)Front 1,276 kg (2,813 lbs) 1,307 kg (2,881 lbs)
Rear 1,400 kg (3,086 lbs) 1,458 kg (3,214 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-5
CX-9_8CA8-EA-11G_Edition1 Page593
Thursday, June 23 2011 11:6 AM
Form No.8CA8-EA-11G

Black plate (598,1)
A
Accessory Socket ............................ 6-197
Add-On Non-Genuine Parts and
Accessories ....................................... 9-20
Advanced Key ..................................... 3-2
Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-17
Auxiliary key .............................. 3-17
Locking, unlocking with request
switch ........................................... 3-8
Operational range ......................... 3-7
Remote control function ............. 3-13
Service ......................................... 3-7
Warning and beep sounds .......... 3-18
When warning indicator/beep is
activated ..................................... 3-20
Air Bag Systems ............................... 2-55
All-Wheel Drive
(AWD) Operation ............................. 5-17
AWD warning light .................... 5-18
Ambient Temperature Display ........ 6-187
Antenna ............................................. 6-17
Anti-Lock Brake System (ABS) ......... 5-8
Warning light ............................... 5-9
Appearance Care ............................... 8-54
Armrest Box .................................... 6-194
Audio System ................................... 6-17
Audio control switch .................. 6-65
Audio set (Type A) ..................... 6-29
Audio set (Type B) ..................... 6-39
AUX mode ................................. 6-68
Operating tips for audio
system ........................................ 6-17
Safety certification ..................... 6-71
A
Automatic Transaxle
Driving tips ................................ 5-16
Manual shift mode ..................... 5-13
Shift-lock system ....................... 5-13
Transaxle ranges ........................ 5-12
B
Battery
Emergency starting .................... 7-18
Maintenance ............................... 8-30
Specifications ............................. 10-4
Beep Sounds
Blind spot monitoring system
warning ...................................... 5-59
Ignition key reminder ................. 5-58
Lights-on reminder ..................... 5-58
Parking brake reminder .............. 5-59
Seat belt warning ........................ 5-58
Tire inflation pressure warning ... 5-59
Before Starting the Engine .................. 4-5
After getting in ............................. 4-5
Before getting in .......................... 4-5
Blind Spot Monitoring
(BSM) System .................................. 5-34
BSM OFF Indicator Light .......... 5-36
BSM OFF Switch ....................... 5-37
Care of radar sensors .................. 5-37
Warning Light/Beep ................... 5-36
Bluetooth Audio (Type B) .............. 6-125
