2012 MAZDA MODEL 2 engine

Black plate (326,1)
SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
Do not tow a trailer with this vehicle: Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
9-38
Customer Information and Reporting Safety Defects
Tire Information (except Canada)
Mazda2_8CC7-EA-11H_Edition2 Page326
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (335,1)
qTire Pressure Label
qEngine Number
Forward
Identification Numbers
10-3
Mazda2_8CC7-EA-11H_Edition2 Page335
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (336,1)
Specifications
qEngine
Item Specification
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 78.0 × 78.4 mm (3.07 × 3.09 in)
Displacement 1,498 ml (1,498 cc, 91.4 cu in)
Compression ratio 10.0
qElectrical System
Item Classification
Battery 12V-40AH/5HR, 12V-52AH/5HR
Spark-plug number DENSO SK16PR-E13
Spark-plug gap 1.2―1.3 mm (0.047 ―0.051 in)
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
q Lubricant Quality
Lubricant type and classification
Engine oil Refer to Recommended Oil on page 8-12.
Manual transaxle oil API Service GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Genuine ATF M-V
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
q Capacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
Without oil filter replacement 3.7 L (3.9 US qt, 3.3 Imp qt)
Coolant Manual transaxle 5.1 L (5.4 US qt, 4.5 Imp qt)
Automatic transaxle 5.4 L (5.7 US qt, 4.8 Imp qt)
Manual transaxle oil 2.91 L (3.07 US qt, 2.56 Imp qt)
Automatic transaxle fluid 7.0 L (7.4 US qt, 6.2 Imp qt)
Fuel tank 42.8 L (11.3 US gal, 9.41 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
10-4
Specifications
Mazda2_8CC7-EA-11H_Edition2 Page336
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (342,1)
A
Accessory Socket .............................. 6-42
Add-On Non-Genuine Parts and
Accessories ....................................... 9-17
Air Bag Systems ............................... 2-36
Antenna ............................................... 6-9
Anti-Lock Brake System (ABS) ......... 5-8Warning light ............................... 5-8
Appearance Care ............................... 8-45
Audio System ..................................... 6-9 Audio control switch .................. 6-33
Audio set .................................... 6-19
AUX mode ................................. 6-35
Operating tips for audio
system ........................................ 6-10
Safety certification ..................... 6-37
Automatic Transaxle ......................... 5-12 Driving tips ................................ 5-14
Fluid ........................................... 8-16
Overdrive ................................... 5-14
Shift-lock system ....................... 5-13
Transaxle ranges ........................ 5-12
B
BatteryEmergency starting .................... 7-17
Maintenance ............................... 8-23
Specifications ............................. 10-4
Beep Sounds
Ignition key reminder ................. 5-49
Lights-on reminder ..................... 5-49
Seat belt warning ........................ 5-49
Tire inflation pressure warning ... 5-49
Before Starting the Engine .................. 4-5 After getting in ............................. 4-5
Before getting in .......................... 4-5
Body Lubrication .............................. 8-19
Bottle Holder ..................................... 6-40
B
Brake/Clutch
Fluid ........................................... 8-15
Brakes Anti-lock brake system (ABS) ..... 5-8
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Pad wear indicator ...................... 5-10
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-32
C
Capacities .......................................... 10-4
Carbon Monoxide ............................... 4-4
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-18
Center Console Tray ......................... 6-41
Child Restraint Child restraint precautions ......... 2-21
Child-restraint system installation
position ...................................... 2-25
Installing child-restraint
systems ....................................... 2-26
LATCH child-restraint
systems ....................................... 2-32
Child Safety Locks for Rear Doors ... 3-11
Climate Control System ...................... 6-2 Gas specifications ...................... 10-5
Cruise Control ................................... 5-16
Cup Holder ........................................ 6-39
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-32
Daytime Running Lights ................... 5-52
11-2
Index
Mazda2_8CC7-EA-11H_Edition2 Page342
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (343,1)
D
DefrosterMirror ......................................... 5-58
Rear window .............................. 5-58
Dimensions ....................................... 10-5
Door Locks ......................................... 3-8
Driving In Flooded Area ................... 4-10
Driving on Uneven Road .................. 4-11
Driving Tips ........................................ 4-6 Automatic transaxle ................... 5-14
Break-in period ............................ 4-6
Driving in flooded area .............. 4-10
Driving on uneven road .............. 4-11
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-8
Winter driving .............................. 4-8
Dynamic Stability Control (DSC) ..... 5-21 DSC OFF indicator light ............ 5-22
DSC OFF switch ........................ 5-22
TCS/DSC indicator light ............ 5-21
E
Emergency Starting ........................... 7-17Flooded engine ........................... 7-17
Jump-starting .............................. 7-18
Push-starting .............................. 7-21
Emergency Towing ........................... 7-22
Emission Control System .................... 4-3
Engine Coolant ....................................... 8-13
Exhaust gas .................................. 4-4
Hood release .............................. 3-20
Oil .............................................. 8-12
Overheating ................................ 7-15
Starting ......................................... 5-3
Engine Compartment Overview ........ 8-11
E
Engine Coolant Overheating ................................ 7-15
Event Data Recorder ......................... 9-19
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-47
F
Flasher Hazard warning .......................... 5-59
Headlights .................................. 5-50
Flat Tire ............................................... 7-3 Changing ...................................... 7-6
Spare tire and tool storage ............ 7-3
Fluids Classification .............................. 10-4
Owner maintenance ..................... 8-8
Fog Lights ......................................... 5-53
Foot Brake .......................................... 5-5
Front Seats .......................................... 2-2
Fuel Filler lid and cap ........................ 3-19
Gauge ......................................... 5-31
Requirements ............................... 4-2
Tank capacity ............................. 10-4
Fuses ................................................. 8-39 Panel description ........................ 8-42
Replacement ............................... 8-39
G
Gauges .............................................. 5-29
Glove Compartment .......................... 6-41
H
Hazard Warning Flasher .................... 5-59
Hazardous Driving .............................. 4-7
Index
11-3
Mazda2_8CC7-EA-11H_Edition2 Page343
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

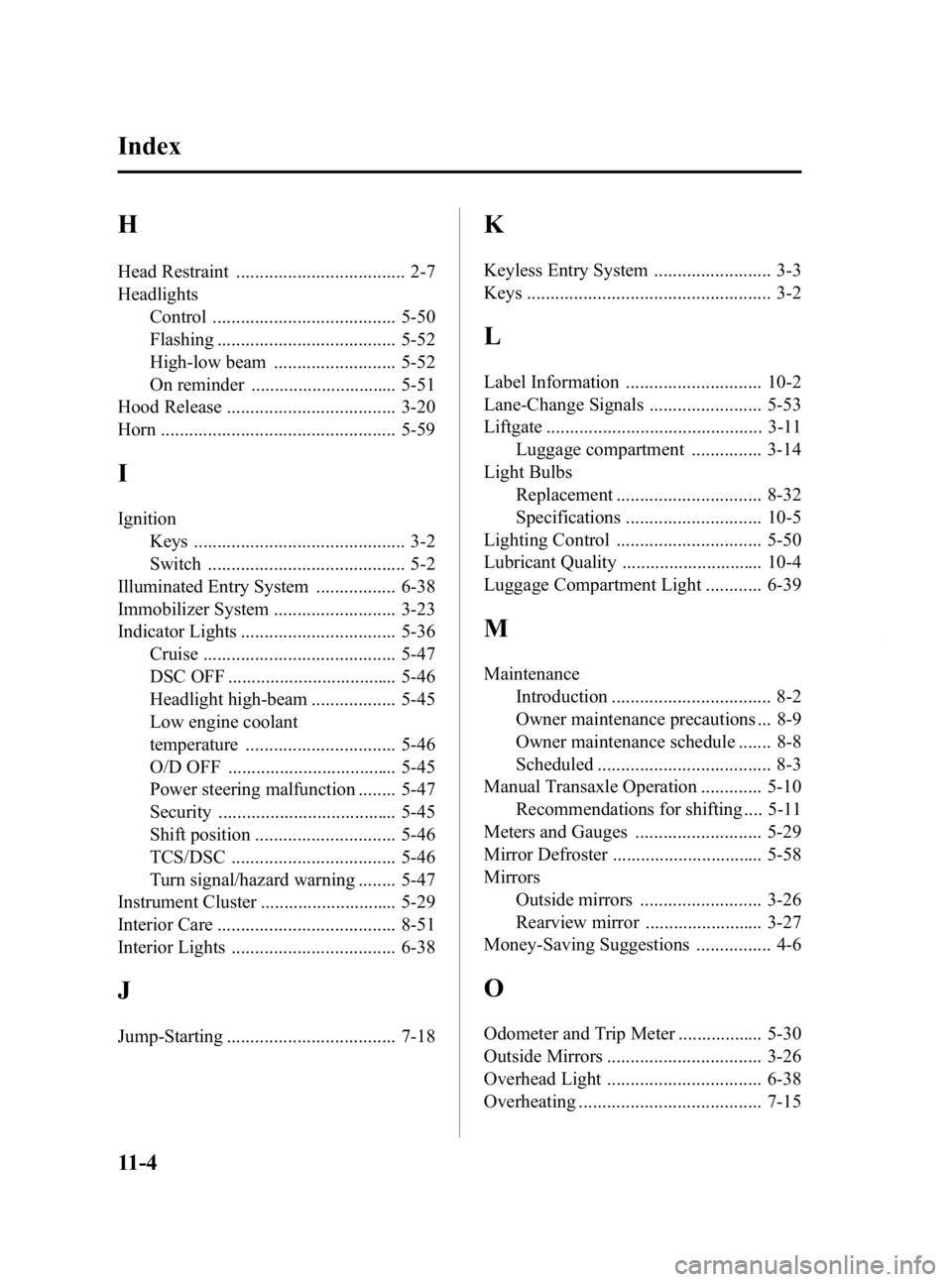

Black plate (344,1)
H
Head Restraint .................................... 2-7
HeadlightsControl ....................................... 5-50
Flashing ...................................... 5-52
High-low beam .......................... 5-52
On reminder ............................... 5-51
Hood Release .................................... 3-20
Horn .................................................. 5-59
I
Ignition
Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-38
Immobilizer System .......................... 3-23
Indicator Lights ................................. 5-36 Cruise ......................................... 5-47
DSC OFF .................................... 5-46
Headlight high-beam .................. 5-45
Low engine coolant
temperature ................................ 5-46
O/D OFF .................................... 5-45
Power steering malfunction ........ 5-47
Security ...................................... 5-45
Shift position .............................. 5-46
TCS/DSC ................................... 5-46
Turn signal/hazard warning ........ 5-47
Instrument Cluster ............................. 5-29
Interior Care ...................................... 8-51
Interior Lights ................................... 6-38
J
Jump-Starting .................................... 7-18
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-53
Liftgate .............................................. 3-11 Luggage compartment ............... 3-14
Light Bulbs Replacement ............................... 8-32
Specifications ............................. 10-5
Lighting Control ............................... 5-50
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-39
M
Maintenance
Introduction .................................. 8-2
Owner maintenance precautions ... 8-9
Owner maintenance schedule ....... 8-8
Scheduled ..................................... 8-3
Manual Transaxle Operation ............. 5-10 Recommendations for shifting .... 5-11
Meters and Gauges ........................... 5-29
Mirror Defroster ................................ 5-58
Mirrors Outside mirrors .......................... 3-26
Rearview mirror ......................... 3-27
Money-Saving Suggestions ................ 4-6
O
Odometer and Trip Meter .................. 5-30
Outside Mirrors ................................. 3-26
Overhead Light ................................. 6-38
Overheating ....................................... 7-15
11-4
Index
Mazda2_8CC7-EA-11H_Edition2 Page344
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (345,1)
O
Overloading ...................................... 4-10
P
Paint Damage .................................... 8-45
Parking Brake ..................................... 5-6
Parking in an Emergency .................... 7-2
Personalization Features ................... 10-7
Power Door Locks .............................. 3-9
Power Steering .................................. 5-15Power steering malfunction indicator
light ............................................ 5-15
Power Windows ................................ 3-16
Push-Starting ..................................... 7-21
R
Rear Door Child Safety Locks .......... 3-11
Rear Seat ............................................. 2-4
Rear Window Defroster .................... 5-58
Rear Window Washer ....................... 5-57
Rear Window Wiper .......................... 5-57
Rearview Mirror ................................ 3-27
Recreational Towing ......................... 7-24
Registering Your Vehicle in A Foreign
Country ............................................. 9-16
Rocking the Vehicle ............................ 4-8
S
Safety Defects, Reporting ................. 9-41
S
Seat Belt System 3-point type ................................ 2-13
Automatic locking ...................... 2-12
Emergency locking .................... 2-11
Extender ..................................... 2-17
Pregnant women ......................... 2-11
Pretensioner and load limiting .... 2-15
Seat belt precautions .................... 2-9
Seat belt reminder ....................... 2-19
Warning light ............................. 2-19
Seats Front seat ...................................... 2-2
Head restraint ............................... 2-7
Rear seat ....................................... 2-4
Security System
Immobilizer system .................... 3-23
Service Publications .......................... 9-43
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speedometer ...................................... 5-30
SRS Air Bags Driver and front passenger occupant
classification system .................. 2-50
How the SRS air bags work ....... 2-42
Limitations to SRS air bag ......... 2-48
Monitoring and maintenance ..... 2-55
SRS air bag deployment
criteria ........................................ 2-47
Supplemental restraint system
(SRS) precautions ...................... 2-36
Supplemental restraint system
components ................................ 2-41
Starting the Engine .............................. 5-3
Steering Wheel .................................. 3-26 Horn ........................................... 5-59
Storage Compartments ...................... 6-41 Center Console Tray ................... 6-41
Glove Compartment ................... 6-41
Index
11-5
Mazda2_8CC7-EA-11H_Edition2 Page345
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (346,1)
S
Sunvisors .......................................... 6-38
T
Tachometer ........................................ 5-31
Temporary Spare Tire ....................... 8-29
TiedownHook .......................................... 7-23
Tire Information ................................ 9-22
Tire Pressure Monitoring System ...... 5-23
System error activation .............. 5-27
Tire pressure monitoring system
warning light .............................. 5-25
Tires and wheels ......................... 5-27
Tires Flat Tire ........................................ 7-3
Inflation pressure ........................ 8-26
Replacement ............................... 8-28
Rotation ...................................... 8-27
Snow tires .................................... 4-9
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................... 4-9
Uniform tire quality grading system
(UTQGS) ................................... 9-20
Tool ..................................................... 7-3
Towing Description ................................. 7-22
Emergency towing ..................... 7-22
Hook .......................................... 7-23
Recreational towing ................... 7-24
Trailer towing ............................. 4-12
Traction Control System (TCS) ........ 5-20
TCS/DSC indicator light ............ 5-20
Trailer Towing .................................. 4-12
Trip Computer ................................... 5-32
Trip Meter ......................................... 5-30
Turn and Lane-Change Signals ......... 5-53
V
Vanity Mirrors ................................... 6-38
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-36 ABS ............................................ 5-39
Air bag system ........................... 5-41
Brake system .............................. 5-38
Charging system ......................... 5-40
Check engine .............................. 5-40
Check fuel cap ........................... 5-42
Door-ajar .................................... 5-42
Engine oil pressure ..................... 5-40
Front seat belt pretensioner
system ........................................ 5-41
High engine coolant
temperature ................................ 5-41
Low washer fluid level ............... 5-42
Malfunction ................................ 5-38
Seat belt ...................................... 5-42
Tire pressure monitoring
system ........................................ 5-43
Warranty ............................................ 9-12
Washer Fluid ..................................... 8-18
Weights ............................................. 10-5
Wheel Replacement .......................... 8-30
Windows Power windows .......................... 3-16
Windshield Washer ........................... 5-57
Windshield Wipers ............................ 5-54 Blades replacement .................... 8-19
Winter Driving .................................... 4-8
11-6
Index
Mazda2_8CC7-EA-11H_Edition2 Page346
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H
