DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
18 ENG INJ 15 A Engine control system
19 ENG INJ2 ――
20 H/L HI RH ――
21 H/L HI LH ――
22 DCDC3 ――
23 H/L LO RH 15 A Headlight (RH)
24 H/L LO LH 15 A Headlight (LH)
25 AUDIO2 ――
26 DSC-V2 ――
27 HORN2 ――
28 METER ――
29 ROOM 15 A Overhead light
30 GLOW ――
31 EVVT ――
32 IG KEY 1 40 A For protection of various circuits
33 FAN 3 ――
34 FAN 2 30 A Cooling fan
35 FAN 1 ――
36 INJ ――
37 IG KEY 2 30 A For protection of various circuits
38
――
39 ABS
DSC-P2 ――
40 BLOWER 30 A Air conditioner
Maintenance and Care
Owner Maintenance
8-43
Mazda2_8CC7-EA-11H_Edition2 Page277
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (278,1)
Fuse block (Left side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 TCM ――
2 ILLUMI 7.5 A Dashboard illumination
3 CIGAR 15 A Accessory Socket
4 MIRROR 7.5 A Power control mirror
5 M.DEF 7.5 A Mirror defroster
í
6 S.WARM ――
7 A/C 7.5 A Air conditioner
8 F.WIP 20 A Front window wiper and washer
9 R.WIP 10 A Rear window wiper and washer
10 STARTER ――
11 METER 2 ――
12 ENG 10 A Engine control system
13 METER 10 A Instrument cluster
14 SAS 10 A Air bag
15 AUDIO 3 ――
16 P/W 30 A Power windows
8-44
Maintenance and Care
íSome models.
Owner Maintenance
Mazda2_8CC7-EA-11H_Edition2 Page278
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (281,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
q Maintaining the Finish
Washing
CAUTION
Ø When the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched or wiped with
a cloth.
ØIf the windshield is struck with
a hand or other object from
either outside or inside the
vehicle.
Keep hands and scrapers clear of
the windshield when the wiper
lever is in the AUTO position and
the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely ―this is
particularly important when
clearing ice and snow ―when it is
most likely that the engine is left
running.
Ø Do not spray water in the engine
compartment. Otherwise, it could
result in engine-starting problems
or damage to electrical parts. To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for scratches
caused by automatic car washes or
improper washing.
lScratches are more noticeable on vehicles
with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDo not use abrasive cleansers or wax
that contain abrasives.
Maintenance and Care
Appearance Care
8-47
Mazda2_8CC7-EA-11H_Edition2 Page281
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (284,1)
NOTElDo not use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lAlways use a sponge or soft cloth to clean
the wheels.
Rinse the wheels thoroughly with lukewarm
or cold water. Also, be sure to clean the
wheels after driving on dusty or salted
roads to help prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
(With Tire Pressure Monitoring System)
Check special requirements for Tire Pressure
Monitoring System.
Refer to Tires and Wheels on page 5-27.
q Plastic Part Maintenance
lWhen cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.
lIf plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately.
lHigh water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended
period of time, it could deform plastic
parts or damage the paint.
lDo not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
lIn addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result in
deformation of plastic parts or paint
damage.
8-50
Maintenance and Care
Appearance Care
Mazda2_8CC7-EA-11H_Edition2 Page284
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (301,1)
Outside the United States and Canada
Government regulations in the United States and Canada require that automobiles meet
specific emission regulations and safety standards. Therefore, vehicles built for use in the
United States, its territories, and Canada may differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside these areas.
You may have these problems if you do:
lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
The Mazda warranty applies only to Mazda vehicles registered and normally operated in
the United States, its territories, and Canada.
Customer Information and Reporting Safety Defects
Warranty
9-13
Mazda2_8CC7-EA-11H_Edition2 Page301
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (302,1)
Outside the United States
Government regulations in the United States require that automobiles meet specific
emission regulations and safety standards. Therefore, vehicles built for use in the United
States may differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside the United States. However, in the event that you are moving to Canada
permanently, Mazda vehicles built for use in the United States could be eligible for
exportation to Canada with specific vehicle modifications to comply with the Canadian
Motor Vehicle Safety Standards (CMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to travelers on
vacation.
You may have the following problems if you do take your vehicle outside of the United
States:
lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
9-14
Customer Information and Reporting Safety Defects
Warranty
Mazda2_8CC7-EA-11H_Edition2 Page302
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (303,1)
Outside Canada
Government regulations in Canada require that automobiles meet specific emission
regulations and safety regulations. Therefore, vehicles built for use in Canada may differ
from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside Canada. However, in the event that you are moving to the United States
permanently, Mazda vehicles built for use in Canada could be eligible for exportation to the
United States with specific vehicle modifications to comply with the United States Federal
Motor Vehicle Safety Standards (FMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to travelers on
vacation.
You may have the following problems if you do take your vehicle outside of Canada:lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
Customer Information and Reporting Safety Defects
Warranty
9-15
Mazda2_8CC7-EA-11H_Edition2 Page303
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (305,1)

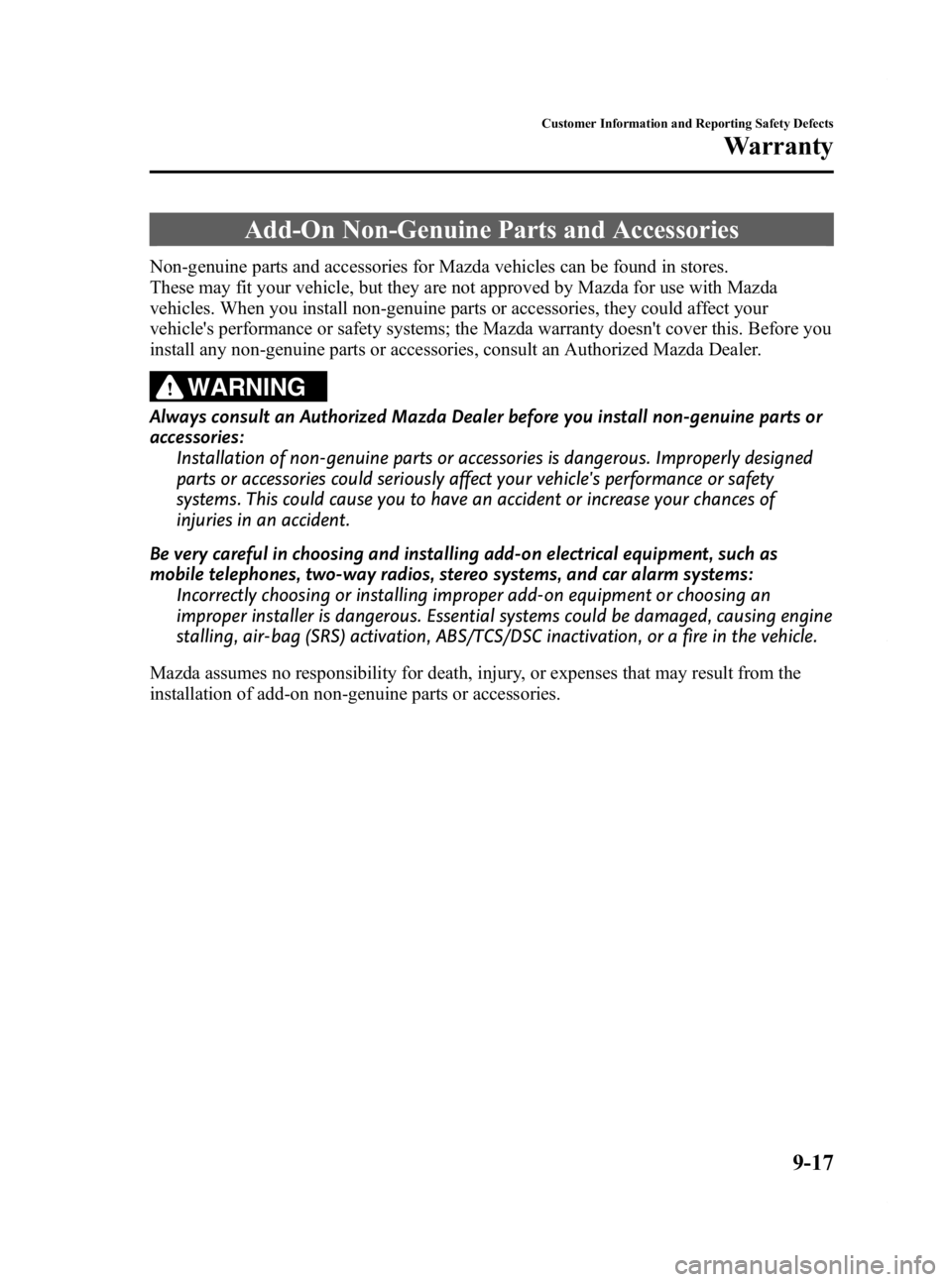

Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your
vehicle's performance or safety systems; the Mazda warranty doesn't cover this. Before you
install any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WARNING
Always consult an Authorized Mazda Dealer before you install non-genuine parts or
accessories:Installation of non-genuine parts or accessories is dangerous. Improperly designed
parts or accessories could seriously affect your vehicle's performance or safety
systems. This could cause you to have an accident or increase your chances of
injuries in an accident.
Be very careful in choosing and installing add-on electrical equipment, such as
mobile telephones, two-way radios, stereo systems, and car alarm systems: Incorrectly choosing or installing improper add-on equipment or choosing an
improper installer is dangerous. Essential systems could be damaged, causing engine
stalling, air-bag (SRS) activation, ABS/TCS/DSC inactivation, or a fire in the vehicle.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
Customer Information and Reporting Safety Defects
Warranty
9-17
