following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
WARNING:The tire pressure monitoring system is NOT a
substitute for manually checking tire pressure. The tire pressure
should be checked periodically (at least monthly) using a tire gauge,
seeInflating your tiresin this chapter. Failure to properly maintain
your tire pressure could increase the risk of tire failure, loss of control,
vehicle rollover and personal injury.
Changing tires with a TPMS
Each road tire is equipped with
a tire pressure sensor located
inside the tire/wheel cavity. The
pressure sensor is attached to
the valve stem. The pressure
sensor is covered by the tire and
is not visible unless the tire is
removed. Care must be taken
when changing the tire to avoid
damaging the sensor.It is
recommended that you always have
your tires serviced by an authorized dealer.
The tire pressure should be checked periodically (at least monthly) using
an accurate tire gauge, refer toInflating your tiresin this chapter.
Understanding your tire pressure monitoring system (TPMS)
The tire pressure monitoring system measures pressure in your four road
tires and sends the tire pressure readings to your vehicle. The low tire
pressure warning light will turn on if the tire pressure is significantly low.
Once the light is illuminated, your tires are under-inflated and need to be
inflated to the manufacturer’s recommended tire pressure. Even if the
light turns on and a short time later turns off, your tire pressure still
needs to be checked. Visit www.checkmytires.org for additional
information.
When your temporary spare tire is installed
When one of your road tires needs to be replaced with the temporary spare,
the TPMS will continue to identify an issue to remind you that the damaged
road wheel/tire needs to be repaired and put back on your vehicle.
Tires, Wheels and Loading
192
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

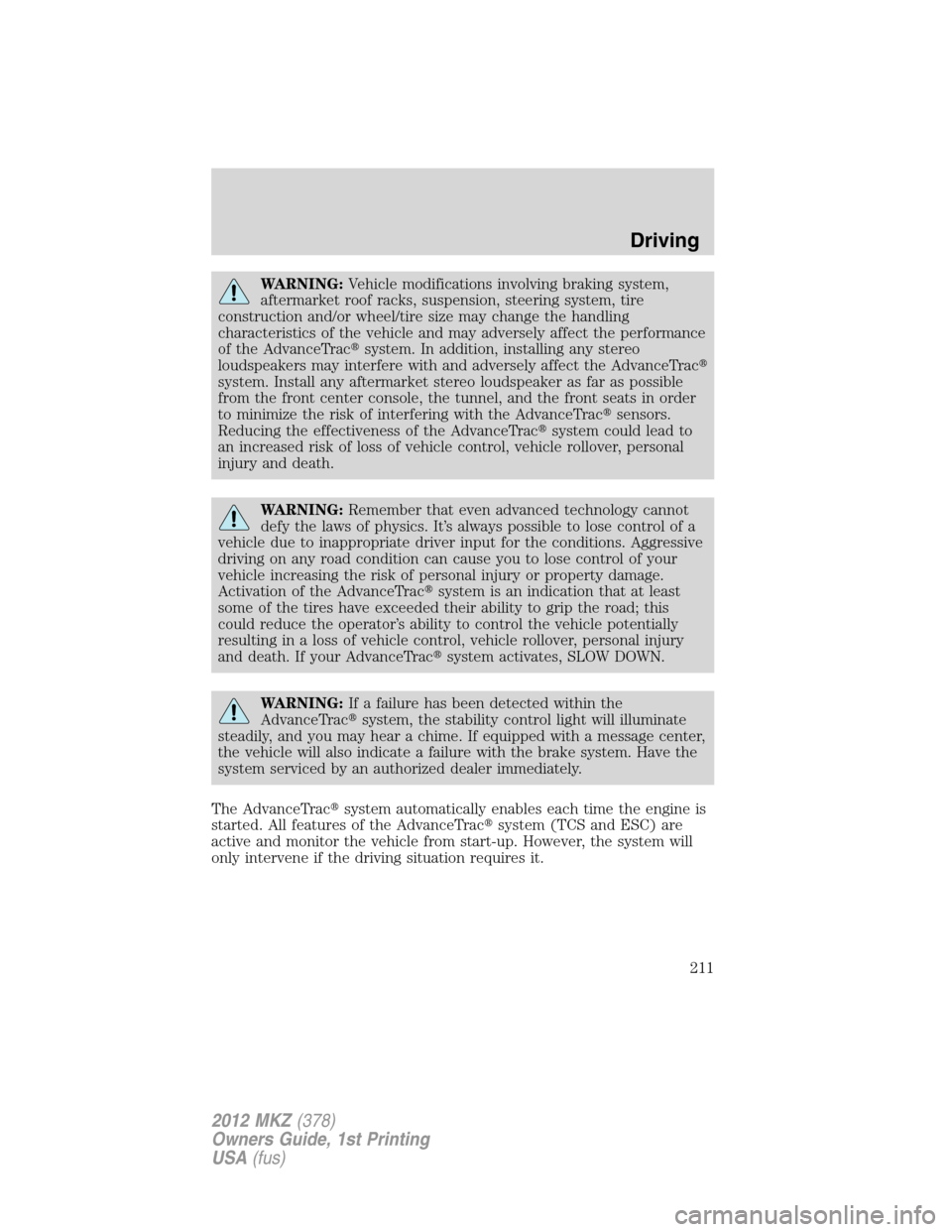

WARNING:Vehicle modifications involving braking system,
aftermarket roof racks, suspension, steering system, tire
construction and/or wheel/tire size may change the handling
characteristics of the vehicle and may adversely affect the performance
of the AdvanceTracsystem. In addition, installing any stereo
loudspeakers may interfere with and adversely affect the AdvanceTrac
system. Install any aftermarket stereo loudspeaker as far as possible
from the front center console, the tunnel, and the front seats in order
to minimize the risk of interfering with the AdvanceTracsensors.
Reducing the effectiveness of the AdvanceTracsystem could lead to
an increased risk of loss of vehicle control, vehicle rollover, personal
injury and death.
WARNING:Remember that even advanced technology cannot
defy the laws of physics. It’s always possible to lose control of a
vehicle due to inappropriate driver input for the conditions. Aggressive
driving on any road condition can cause you to lose control of your
vehicle increasing the risk of personal injury or property damage.
Activation of the AdvanceTracsystem is an indication that at least
some of the tires have exceeded their ability to grip the road; this
could reduce the operator’s ability to control the vehicle potentially
resulting in a loss of vehicle control, vehicle rollover, personal injury
and death. If your AdvanceTracsystem activates, SLOW DOWN.
WARNING:If a failure has been detected within the
AdvanceTracsystem, the stability control light will illuminate
steadily, and you may hear a chime. If equipped with a message center,
the vehicle will also indicate a failure with the brake system. Have the
system serviced by an authorized dealer immediately.
The AdvanceTracsystem automatically enables each time the engine is
started. All features of the AdvanceTracsystem (TCS and ESC) are
active and monitor the vehicle from start-up. However, the system will
only intervene if the driving situation requires it.
Driving
211
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

WARNING:This system is not designed to prevent contact with
small or moving objects. The system is designed to provide a
warning to assist the driver in detecting large stationary objects to
avoid damaging the vehicle. The system may not detect smaller
objects, particularly those close to the ground.
WARNING:Certain add-on devices such as large trailer hitches,
bike or surfboard racks and any device that may block the
normal detection zone of the RSS system may create false beeps.
The RSS detects obstacles up to six
feet (two meters) from the rear
bumper with a decreased coverage
area at the outer corners of the
bumper, (refer to the figures for
approximate zone coverage areas). As
you move closer to the obstacle, the
rate of the tone increases. When the
obstacle is less than 10 inches
(25.0 cm) away, the tone will sound
continuously. If the RSS detects a
stationary or receding object further
than 10 inches (25.0 cm) from the
side of the vehicle, the tone will sound
for only three seconds. Once the
system detects an object approaching,
the tone will sound again.
While receiving a warning the radio
volume will be reduced to a
predetermined level. After the
warning goes away, the radio will
return to the previous value.
The RSS automatically turns on when the gearshift lever is placed in R
(Reverse) and the ignition is on. A control in the message center allows
the driver to disable the system. Refer toMessage centerin the
Instrument Clusterchapter for more information.
Keep the RSS sensors (located on the rear bumper/fascia) free
from snow, ice and large accumulations of dirt (do not clean the
sensors with sharp objects). If the sensors are covered, it will
affect the accuracy of the RSS.
Driving
221
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

The BLISwill trigger the alert for vehicles that enter your blind zone
from the rear or merge in to the blind zone from the side. Vehicles that
you pass, or a vehicle that enters the blind zone from the front, will
trigger the alert only after the vehicle is present in the blind zone for
three seconds.Note:For vehicles that pass through the blind zone
quickly, typically less than two seconds, the system will not illuminate
the alert.
The BLISconsists of two radar
sensors each located rearward of
the rear wheel hidden behind the
bumper fascia. Do not place any
type of bumper sticker in this area.
Note:The BLIStypically will not
detect parked vehicles, humans,
animals, or infrastructure (fences,
guard rails, trees, etc.). The BLIS
does not function when the transmission is in R (Reverse) or P (Park).
The BLISdoes not provide any additional warning when your turn
signal is activated.
BLISdetection limitations:Due to the nature of radar technology,
there may be certain instances where vehicles entering and exiting the
blind spot zones may not be detected. Below is a list of circumstances
that may cause non-detection:
•Debris build-up on the rear quarter panel fascias
•Certain maneuvering of vehicles entering and exiting the blind zone
•Vehicles passing through the blind zone at very fast rates
•Severe weather conditions
•When several vehicles forming a convoy pass through the blind zone.
BLISFalse Alerts
Due to the nature of radar technology, there may be certain instances
when the BLISwill alert with no object present in the blind zone. This
is known as a false alert. Some level of false alerts are normal.
Circumstances that may cause a false alert are; guardrails, freeway
concrete walls, cyclone fencing, sharp turns around a pole or building, or
coming to a stop with a vehicle directly behind but very close. False
alerts are temporary and self-correct.
Driving
226
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Cross traffic alert (CTA) system operation
The CTA system warns the driver of approaching vehicles when R
(Reverse) is selected and the vehicle is backing out of a front-in parking
spot. It sounds a series of tones and flashes the BLISindicator found on
the exterior mirror on the side of the approaching vehicle. Additionally,
the message center will display either, VEHICLE COMING FROM RIGHT
or VEHICLE COMING FROM LEFT to warn the driver from which
direction vehicles are approaching.
The system is not designed to prevent contact with other vehicles or
objects. The system is designed to provide a warning to assist the driver
in detecting vehicles in the blind zones. The system will not detect
infrastructure, pedestrians, or bicyclists.
WARNING:To help avoid personal injury, NEVER use the CTA
system as a replacement for using the side and rear view mirrors
and looking over your shoulder before backing out of a parking space.
CTA is not a replacement for careful driving and only an assist.
The CTA system detects vehicles approaching up to 45 feet (14 meters)
away (approximately the width of five parking spaces). Coverage
decreases when vehicles and objects in close proximity block the CTA
sensors (refer to figure for approximate zone coverage areas[sensor
obstructed to vehicle on left]). Backing slowly from the parking spot
in these situations helps to increase the sensor coverage and
effectiveness.
Driving
227
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

CTA coverage also decreases when parking at shallow angles (refer to
figure for approximate zone coverage areas[sensor obstructed to
vehicle on left]).
CTA detection limitations:Due to the nature of radar technology,
there may be certain instances where vehicles entering and exiting the
blind spot zones may not be detected. Below is a list of circumstances
that may cause non detection:
•Debris build-up on the rear quarter panel fascias
•The rear quarter panel radar beams are obstructed or partially
obstructed by an adjacently parked vehicle or object.
•Approaching vehicles passing at speeds greater than 15 mph
(24 km/h)
•Severe weather conditions
•Driving in reverse faster than 3 mph (5 km/h)
•Backing out of an angled parking spot
CTA False Alerts
Due to the nature of radar technology, there may be certain instances
when the BLISwill alert with no object present when backing up. This
is known as a false alert. Some level of false alerts are normal.
Circumstances that may cause a false alert when backing up are backing
out of a garage, backing in to a parking space, and objects very close to
the sensor. False alerts are temporary and self-correct.
Driving
228
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

CTA and Reverse Sensing System (RSS) interaction
CTA works along with the Reverse Sensing System (RSS) (if equipped).
Become familiar with the warning tones of both systems.
BLIS-CTA on/off and disable operation
The BLISand/or the CTA can be turned off via the message center.
Turning the BLISoff does not turn off the CTA and vice-versa. If either
the BLISor CTA is turned off, the systems will automatically turn back
on at the next ignition key cycle. When either the BLISor CTA is
turned off, the message center displays BLIND SPOT SYS OFF and/or
CTA SYSTEM OFF. When the BLISor CTA system is off, the driver will
not receive alerts. Refer toMessage centerin theInstrument Cluster
chapter.
The BLIS-CTA can be disabled permanently even after an ignition key
cycle. This must be done by your dealership service technician.
Once either of the systems are disabled, enabling must also be performed
at the dealership. When disabled, the message center will display BLIND
SPOT DISABLED and/or CTA DISABLED.
BLIS-CTA fault operation
If the BLIS-CTA senses a fault on either the left or right sensor, the
BLISalert indicator will go ON and remain ON and the message center
will display BLIND SPOT SYSTEM FAULT or CROSS TRAFFIC SYSTEM
FAULT. For faults that may cause the associated left or right alert
indicator not to illuminate, only the message center faults will occur.
Blocked sensor
An extreme build-up of materials on
the left and/or right quarter panel
fascias such as mud or snow can
cause degraded performance of the
BLIS. Also, heavy rain can cause
the same effect. The BLIScan
detect this degraded performance
and issue a blocked warning to the
driver via the message center. If condition is determined by the system,
the message center displays BLIND SPOT NOT AVAILABLE or CROSS
TRAFFIC NOT AVAILABLE warning and the appropriate left and/or right
exterior mirror alert indicator will illuminate. The message center
warning may be cleared by the driver but the exterior mirror alert
indicator will remain illuminated.
Driving
229
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

WARNING:Just prior to the system recognizing a blocked
condition and alerting the driver, the number of missed objects
will increase. To help avoid injuries, NEVER use the BLISas a
replacement for using the side and rear view mirrors and looking over
your shoulder before changing lanes. BLISis not a replacement for
careful driving and only an assist.
Once blockage is removed, the system will require some driving time and
detection of at least two vehicle object prior to realizing it is unblocked,
or the driver can cycle the ignition key. If blocked and the ignition key is
cycled, the system resets to unblocked. If however blockage is still
present after the key cycle, the system will sense again that it is blocked
after driving in traffic.
The following table lists possible causes and actions for this message
being displayed:
The surface of the left or right radar
is dirty or obstructed in some wayClean the fascia area in front of the
radar, either left or right side, or
remove obstruction.
The surface of the left or right radar
is not dirty or obstructedDrive normally in traffic for a few
minutes to allow the radar to detect
that it is no longer blocked.Note:
the vehicle must be in D (Drive) and
a few vehicles must pass so that the
BLIScan clear a blocked state.
Heavy rainfall or heavy snowfall is
interfering with the radar signalsNo action required by the driver.
The system will automatically go
unblocked once the rainfall/snowfall
rate decreases or stops. Do not use
BLIS-CTA in heavy rainfall or heavy
snowfall.
Due to the nature of radar technology, it is possible to get a blockage
warning and not be blocked. This is rare and known as a false blockage
warning. A false blocked condition will either self clear or clear after a
key cycle.
Day and night brightness
The BLIS-CTA alert will automatically dim when the headlamp switch is
in the parking, on, or autolamp position and night time darkness has
been detected by the sun sensor.
Driving
230
2012 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
