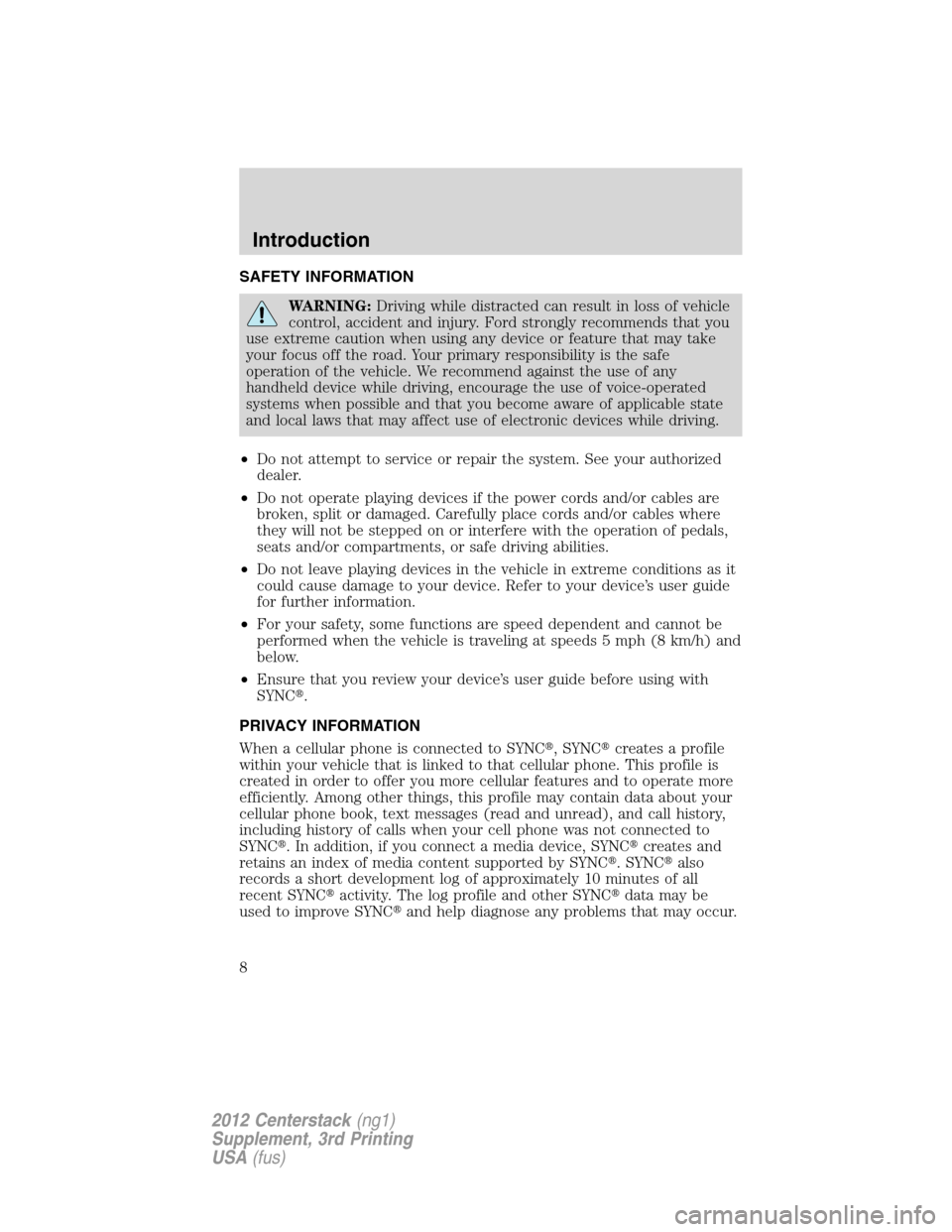

SAFETY INFORMATION
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
•Do not attempt to service or repair the system. See your authorized
dealer.
•Do not operate playing devices if the power cords and/or cables are
broken, split or damaged. Carefully place cords and/or cables where
they will not be stepped on or interfere with the operation of pedals,
seats and/or compartments, or safe driving abilities.
•Do not leave playing devices in the vehicle in extreme conditions as it
could cause damage to your device. Refer to your device’s user guide
for further information.
•For your safety, some functions are speed dependent and cannot be
performed when the vehicle is traveling at speeds 5 mph (8 km/h) and
below.
•Ensure that you review your device’s user guide before using with
SYNC.
PRIVACY INFORMATION
When a cellular phone is connected to SYNC, SYNCcreates a profile
within your vehicle that is linked to that cellular phone. This profile is
created in order to offer you more cellular features and to operate more
efficiently. Among other things, this profile may contain data about your
cellular phone book, text messages (read and unread), and call history,
including history of calls when your cell phone was not connected to
SYNC. In addition, if you connect a media device, SYNCcreates and
retains an index of media content supported by SYNC. SYNCalso
records a short development log of approximately 10 minutes of all
recent SYNCactivity. The log profile and other SYNCdata may be
used to improve SYNCand help diagnose any problems that may occur.
Introduction
8
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

2.Multicast button:This button
will appear in FM mode (only) if the
current station has multiple digital
broadcasts. Press the multicast
button repeatedly to access the
other digital broadcasts. The
numbers that are highlighted signify available digital channels where
new/different content is available. HD1 will signify the main programming
service and is available in analog and digital broadcasts. Any additional
multicast stations (HD2–HD8) are only broadcast digitally.
When HD Radio broadcasts are active, you can access the
following functions:
•
Set PTY/ALL:Select ‘All HD Stations’ to have your system only access
HD stations. Press Seek to initiate the search for HD Radio stations.
Note:When your system is searching for an HD Radio station, it will
momentarily pause on all strong stations in an attempt to decode the
station (to see if there is a digital broadcast).
•Scan:Press to scan through available stations.Note:You will not be
able to access HD2–HD8 stations but you may see the HD logo appear
if the station has a digital broadcast.
•Seek:Press to seek to the next strong radio station.If the current
station has multiple digital broadcasts,the mutlicast button will
display. Press Seek repeatedly to advance through all available
broadcasts. If you are on the last multicast channel, press Seek to
advance to the next strong station.
•Tune:Turn the tune knob to go up/down the frequency in individual
increments.If the current station has multiple digital
broadcasts,the mutlicast button will display. Turn the tune knob to
advance through all available broadcasts. If you are on the last
broadcast channel, turn to advance to the next frequency on the band.
•Multicast button:Press the multicast button repeatedly to access
other available HD Radio broadcasts (these will be highlighted). HD1
is the main programming status and is available in analog and digital
broadcasts. Any additional multicast stations (HD2–HD8) are only
broadcast digitally.
•Saving a multicast station as a presetWhen the channel is active
on-screen, press and hold a memory preset slot on the right side of
the screen until the sound returns.When recalling a HD2/HD3
memory preset,there will be a momentary mute before the digital
audio is played as the system must once again acquire the digital
Audio features
47
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Troubleshooting
Experience Cause Possible action
Echo, stutter, skip or
repeat in audio
Increase or decrease in
audio volumePoor time alignment by
the radio broadcaster.None — broadcast issue.
Sound fading, blending
in and outRadio is shifting
between analog and
digital audio.Reception issue that may
clear up as you continue
to drive.
Audio mute delay when
selecting HD2/HD3
multicast preset or
using the direct tune
voice commandThe digital multicast is
not available until HD
Radio broadcast can be
decoded and make the
audio available.This is normal behavior.
Wait until the audio is
available.
Cannot access
HD2/HD3 multicast
channel when recalling
a preset or using the
direct tune voice
commandThe previously stored
multicast preset or
direct tune is not
available in your
current reception area.None — the station is
not available in your
current location.
Text information does
not match currently
playing audioData service issue by
the radio broadcaster.Fill out the station issue
form at
www.ibiquity.com/
automotive/report_radio
_station_experiences.
No text information
shown for currently
selected frequency.Data service issue by
the radio broadcaster.Fill out the station issue
form at
www.ibiquity.com/
automotive/report_radio
_station_experiences.
HD2–HD8 stations not
found when Scan is
pressed.Pressing Scan will
disable HD2–HD8
channel search.None — this is normal
behavior.
HD Radio™ technology is manufactured under license from iBiquity
Digital Corp. U.S. and foreign patents. HD Radio™ and the HD and HD
Radio logos are proprietary trademarks of iBiquity Digital Corp. Ford
Motor Company and iBiquity Digital Corp are not responsible for the
content sent using HD Radio technology. Content may be changed,
added or deleted at any time at the station owner’s discretion.
Audio features
49
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Satellite radio channels:SIRIUSbroadcasts a variety of music, news,
sports, weather, traffic and entertainment satellite radio channels. For
more information and a complete list of SIRIUSsatellite radio channels,
visit www.sirius.com in the United States, www.siriuscanada.ca in
Canada, or call SIRIUS at 1–888–539–7474.
Satellite radio reception factors:To receive the satellite signal, your
vehicle has been equipped with a satellite radio antenna located on the
roof of your vehicle. The vehicle roof provides the best location for an
unobstructed, open view of the sky, a requirement of a satellite radio
system. Like AM/FM, there are several factors that can affect satellite
radio reception performance:
•Antenna Obstructions: For optimal reception performance, keep the
antenna clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible.
•Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and thunderstorms can
interfere with your reception.
•Station overload: When you pass a ground based broadcast repeating
tower, a stronger signal may overtake a weaker one and result in an
audio mute.
Unlike AM/FM audible static, you will hear an audio mute when there is
a satellite radio signal interference. Your radio display may display
ACQUIRING...toindicatetheinterference.
SIRIUSsatellite radio service:SIRIUSSatellite Radio is a
subscription based satellite radio service that broadcasts music, sports,
news and entertainment programming. A service fee is required in order
to receive SIRIUSservice. Vehicles that are equipped with a factory
installed SIRIUSSatellite Radio system include:
•Hardware and limited subscription term, which begins on the date of
sale or lease of the vehicle.
For information on extended subscription terms, the online media player
and other SIRIUSfeatures, please contact SIRIUSat 1–888–539–7474.
Note:SIRIUSreserves the unrestricted right to change, rearrange, add
or delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming
changes.
Audio features
53
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Satellite Radio Electronic Serial Number (ESN):This12digit
satellite serial number is needed to activate, modify or track your
satellite radio account. You will need this number when communicating
with SIRIUS. While in satellite radio mode, you can view this number by
pressing the I button (
) on the navigation system and select the
‘System Info’ tab on the touchscreen.
Radio Display Condition Action Required
ACQUIRING Radio requires more
than two seconds to
produce audio for the
selected channel.No action required.
This message should
disappear shortly.
SAT FAULT Internal module or
system failure
present.If this message does
not clear within a short
period of time, or with
an ignition key cycle,
your receiver may have
a fault. See your
authorized dealer for
service.
INVALID CHANNEL Channel no longer
available.This previously
available channel is no
longer available. Tune
to another channel. If
the channel was one of
your presets, you may
choose another channel
for that preset button.
UNSUBSCRIBED
CHANNELSubscription not
available for this
channel.Contact SIRIUSat
1–888–539–7474 to
subscribe to the
channel, or tune to
another channel.
Audio features
54
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Radio Display Condition Action Required
NO SIGNAL Loss of signal from
the SIRIUSsatellite
or SIRIUStower to
the vehicle antenna.You are in a location
that is blocking the
SIRIUSsignal (i.e.,
tunnel, under an
overpass, dense foliage,
etc). The system is
working properly. When
you move into an open
area, the signal should
return.
UPDATING Update of channel
programming in
progress.No action required. The
process may take up to
three minutes.
CALL SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUSSatellite
Radio.Call SIRIUSat
1–888–539–7474 to
re-activate or resolve
subscription issues.
PLAYING A CD
Note: CD units are designed to play commercially pressed 4.75 in
(12 cm) audio compact discs in the ISO 9660 format only. (UDF
format is not supported.) Due to technical incompatibility,
certain recordable and re-recordable compact discs may not
function correctly when used in CD players. Irregular shaped
CDs, CDs with a scratch protection film attached, and CDs with
homemade paper (adhesive) labels should not be inserted into
the CD player. The label may peel and cause the CD to become
jammed. It is recommended that homemade CDs be identified
with permanent felt tip marker rather than adhesive labels.
Ballpoint pens may damage CDs. Please contact your authorized
dealer for further information.
If you press CD/DVD and there is not a disc loaded into the system, NO
DISC will appear in the status bar and you will not be able to access the
CD screen.
•Insert a disc into the slot. The disc will begin to play.
You can access any of the following options in CD mode:
Scan:Press for a brief sampling of all listenable CD tracks.
Audio features
55
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

SIRIUSTRAVEL LINK™ (IF EQUIPPED AND ACTIVATED)
Your navigation system contains SIRIUSTravel Link™ (if activated), a
data service feature which can help you locate the best gas prices, find
movie listings, get current traffic alerts, access the current weather map,
get accurate ski conditions as well as scores to current sports games.
Note:A paid subscription is required to access/use these features. Go to
www.sirius.com/travellink for more information.
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any handheld
device while driving and that you comply with all applicable laws.
Press the I button ()onthe
navigation system and then select
the ‘Sirius Travel Link’ tab on the
touch screen.
From this screen you can select from the following options:
Traffic:
•On route:Select to identify
traffic incidents on your route.
You can select any of the list
items to view more details on that
incident. When viewing the
incident, you can select ‘Avoid’ to
have the system re-route you
around the incident.
Note:This button is disabled if a
route is not active or the vehicle
goes off route.
•Nearby:Select to identify traffic incidents around the vehicle’s
current location.
•My Places:Select to identify traffic incidents around your personal
traffic places (if programmed).
Information menu
82
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Other Services:
•Fuel Prices:Select to show gas
prices at stations close to your
vehicle’s location or gas stations
on an active navigation route. You
can choose to sort the list by
distance, price or alphabetical
order.
You can also select to view Unleaded or Diesel fuel prices from the
‘Navigation Prefs’ (Preferences) tab under the NAV menu features. If you
select ‘Unleaded’, the navigation system will only show list items with
Unleaded fuel prices and if you select ‘Diesel’, the navigation system will
only show diesel prices. List items with ‘NA’ represent stations where
fuel prices are either not available or has a fuel price that is not selected
under ‘Navigation Prefs’ screen. The different hour glass icons indicate
the age of the collected data.
•Movie Listings:Select to display
movie theaters located nearby the
vehicle’s current location. Select
the clock icon to view the show
times. Show times are only
available for the list items which
have a clock next to them.
•
Sports Information:Select to
display scores and schedules for a
variety of sports. You can even save
up to 10 favorite teams for easier
access. The score screen
automatically refreshes when a
game or event is in progress. On
the score screen, a TUNE button is
shown next to the list item when a
live radio broadcast is in process.
Note:Neither SIRIUSnor Ford is responsible for any errors or
inaccuracies in the SIRIUSTravel Link™ services or its use in vehicles.
Fuel Station
Movie Theater
Information menu
85
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
