ACCESSING YOUR QUICK DESTINATION OPTIONS
To access your Quick Destination options:
1. Press the DEST hard button on the navigation system.
2. Select the ‘Quick’ tab on the touchscreen to select from the following:
Cancel route:Select to cancel the
current route. The system will ask
you for confirmation.
Emergency:Select to find Hospitals
and Police close to the vehicle’s
current location. The system may
list up to 25 locations.
Favorite Destination Presets:
This feature will store your home
location as well as five address book
entries for quick access. To set a favorite destination preset: press the
desired preset location and follow the system’s screens to choose the
desired selection to store. The system will display the icon and name
associated with the location.
Find nearest POI:Your navigation system allows you to select up to
five different Point of Interest (POI) icons which will appear on the
navigation map. You can change these icons at any time but the default
icons are as follows:
•Gas Station
•AT M
•Restaurant
•Accommodations
•Parking Garage
Once one of these categories is selected, a list will be shown in order of
distance from the vehicle’s current location. The Quick POI search range
will expand to a 50 mile radius automatically if no POI is found in the
default radius of 25 miles.
•List all categories:Select to have the system display a list of all
categories. Select the desired category and then the desired
subcategory. The system will show a list with name and your distance
to each POI from the current location. Once a specific location is
selected, the system will display the Destination map screen for
confirmation.
Setting a destination
93
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Your navigation system can store up
to 25 entries which can be used as
destinations, waypoints, and areas to
avoid.
Entries can be sorted alphabetically
(A-Z), by date or icon. Press the
ADD button to add entries to the
address book and select the desired
destination entry method.
Once address book entries are
input, they can be selected for
display. Once displayed on the
map/information split screen, you
can choose to ‘Set as Dest’, ‘Set as
Waypoint’, ‘Delete’ or ‘Edit’ the
address book entry.
Edit allows you to name/change the
entry, add/edit a phone number,
add/edit the icon or set the entry as
a favorite destination. (These are
destination presets which work
similarly to the audio presets. Once
set, the favorite destinations appear
at the bottom of the Quick
destination entry screen for
one-touch fast entry.)
All address book entries can be deleted at once by pressing the MENU
hard button, selecting the ‘System Settings’ tab, and then pressing the
‘View’ button for ‘Delete stored items’. Then, select ‘Address Book.’
Setting a destination
95
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Previous Destination
1. Press the DEST hard button on the navigation system.
2. Select the ‘Standard’ tab on the
touchscreen.
3. Press ‘Previous Destination’ to
access your ’Previous Destination
List’.
The navigation system can store up to 20 recently used destinations and
waypoints. Destinations already present in the list will not be duplicated.
When a new entry is added to the list, the oldest one will be removed.
•Set as Dest:Select this feature to set the current entry as your
destination. The screen will display the destination map screen
showing the selected destination. You can then select to set it as a
final destination or a waypoint.
•Delete:Select to delete individual entries.
•Delete all:Select to delete all entries.
You can delete all previous destinations at once by pressing the MENU
hard button, then select the ‘System Settings’ tab, and press the ‘View’
button for ‘Delete stored items’. Then, select ‘Previous Destinations.’
Phone number
1. Press the DEST hard button on the navigation system.
2. Select the ‘Standard’ tab on the
touchscreen.
3. Press ‘Phone Number’.
Setting a destination
96
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Enter the name of the first street
and then the first letter of the
second. The system will pull up a
list of possible matches based on
that letter. Select the desired street.
You can sort the list alphabetically
or in order of distance from the
vehicle.
•State/Prov:Type using the keyboard or select the area to search
from the list. The search is based on the current position or the
previous selection. You can also set the Auto Fill preference on or off.
Select USA, Canada or Mexico and then select the desired state,
province or territory (if applicable). Depending on your settings, this
may be automatically filled in.
•City:Enter the desired city name.
•Street #1:Enter the desired street name. Streets which include
numbers in their name can be searched if the name is input using
digits or a spelling of the number. This applies to street names
containing whole numbers from 1 (one) to 20 (twenty) or 1st (first)
to 20th (twentieth) only.
•Street #2:Enter the name of the second street or simply the first
letter of the second street for a list of possible matches.
•List:Select to view and select from a list of State, Province,
Territories, Cities, and Names. The system will provide a list based on
the first letter you type into the system.
Route selection screen
Once you have programmed a destination into the system using either
the quick or standard method, a route selection screen will then appear.
This screen will display the route length and estimated time of arrival for
up to three route choices: fastest, shortest and unrestricted. These
choices will appear on the right side of the screen and each will be
highlighted in a different color on the map.
Setting a destination
105
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

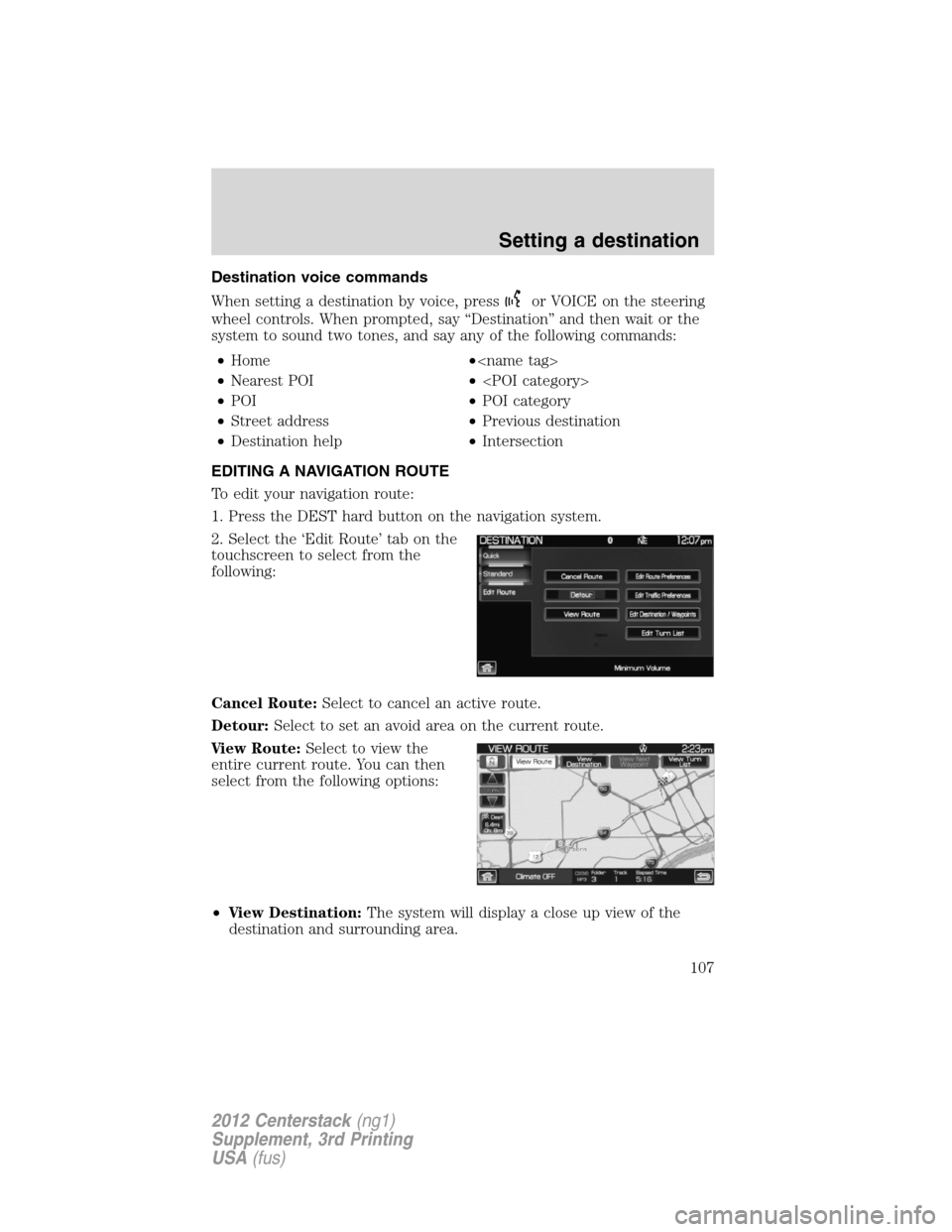

Destination voice commands
When setting a destination by voice, press
or VOICE on the steering
wheel controls. When prompted, say “Destination” and then wait or the
system to sound two tones, and say any of the following commands:
•Home•
•Nearest POI•
•POI•POI category
•Street address•Previous destination
•Destination help•Intersection
EDITING A NAVIGATION ROUTE
To edit your navigation route:
1. Press the DEST hard button on the navigation system.
2. Select the ‘Edit Route’ tab on the
touchscreen to select from the
following:
Cancel Route:Select to cancel an active route.
Detour:Select to set an avoid area on the current route.
View Route:Select to view the
entire current route. You can then
select from the following options:
•View Destination:The system will display a close up view of the
destination and surrounding area.
Setting a destination
107
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

•View Next Waypoint:The system will display a close up view of the
next way point and surrounding area.
•View Turn list:The system will display the turn list computed for the
current destination. You can then select to avoid a road on the turn
list if desired.
Edit Route Preferences:Once you have selected a route to be
displayed as the shortest distance or fastest route, you can also select
from the following options:
•Avoid Freeways
•Avoid Toll Roads
•Avoid Ferries
•Avoid Time restrictions
•Avoid HOV lanes
Edit Traffic Preferences:Select to edit traffic preferences.
Note:Requires SIRIUSTravel Link™ (if activated).
Edit Destination/Waypoints:Select to edit the destination or
waypoints in a defined route.
Edit Turn List:Select to delete or avoid a road in the current turn list.
DISCLAIMER
The disclaimer will appear once per ignition cycle when the DEST button
is pressed. Press the ‘Accept’ button on the screen to concur and to
access navigation functions. If you do not press ‘Accept’ you will only
have access to non-navigation functions. The disclaimer will be the
following or similar to the following:
•Always obey local traffic regulations.
•It is recommended to program the system only when stopped.
•Some functions are unavailable while the vehicle is in motion to help
minimize distraction.
•Please refer to your Owner’s Guide for further details.
•Periodic map updates are available at an additional cost.
Setting a destination
108
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

MAP MODE
To enter map mode:
1. Ensure that the system is on.
2. Press the MAP hard button on the navigation system. The map screen
will display.
When in MAP mode, an icon appears on the upper left side of the
screen; this is a toggle button to change the view of the map displayed.
The following methods exist for orientation of the map:
•Heading up:In this mode, the
direction of forward travel is
always the upward direction on
screen. Available for map scales up to 2.5 mi /5km. For scales above
that, the setting for Heading-Up is remembered, but the map is shown
in North-Up only. If the scale returns below this level, then the
Heading-Up setting is restored.
•North up:In this mode, the
Northern Direction is always the
upward direction on screen.
MAP SCALE
The map display scale on the map
has 17 levels, ranging from
0.02 miles to 1,000 miles. Zoom
scales for ‘North up’ , ‘Heading up’
and 3D map view are synchronized. In MAP mode, you can also zoom in
or out, changing the display scale by pressing on one of the arrows on
the button appearing on the left side of the screen. When in Full Screen
Map Mode, touching this button will cause the Zoom Direct buttons to
appear. The Zoom Direct buttons represent the most common scales and
can be pressed directly to show the map at the desired scale. The scale
is approximate and based on the width of the display button (A). The
size of the scale will vary based on the screen size.
Map road colors and building representation on the map:
•Roads:Will be displayed in a variety of colors.
•Building footprints:Will display areas of major buildings in the 20
largest cities in the U.S. These areas will be displayed depending on
their size and the map zoom level.
A
Setting a destination
109
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Quick touch buttons
When in Map mode, you have the
ability to view six quick touch
buttons. In order to view these,
press and release anywhere on the
map display. The map position will
not change and they will appear on
the map. These buttons are:
•Set as Dest:Press in order to select a scrolled location on the map as
your destination. (You may scroll the map by pressing your index
finger on the map display. When you reach the desired location,
simply let go and then press ‘Set as Dest’ to go to the Destination Map
View Screen.
•Set as Waypoint:Press to set the current location as a waypoint.
•Save to Address Book:Press to save the current location to the
address book.
•POI Icons ON/OFF:Press to
view set POI icons to be
displayed on the map. Up to
three icons can be selected for
display on the map at the same
time.
•View Traffic:Press to adjust the map display to the right scale. This
scale allows the entire route to be visible in the screen.
•View/Edit Route:Press in order to adjust the following features of
the current active route:
Cancel route:Press cancel the current active route.
View route:Select to view the current route.
Edit route preferences:Press to adjust route preferences.
Setting a destination
110
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
