2012 Lexus IS250 display

1
2
3
4
5
6
7
3
IS350/250_U
2-1. Driving proceduresDriving the vehicle ........................ 130
Engine (ignition) switch ................ 141
Automatic transmission.............. 146
Manual transmission .................... 152
Turn signal lever ............................ 154
Parking brake ................................. 155
Horn.................................................... 157
2-2. Instrument cluster Gauges and meters ..................... 158
Indicators and warning lights................................................. 164
Multi-information display........... 167
2-3. Operating the lights and windshield wipers
Headlight switch ............................. 172
Fog light switch .............................. 176
Windshield wipers and washer............................................. 178
Headlight cleaner switch ........... 185 2-4. Using other driving systems
Cruise control ................................ 186
Intuitive parking assist ................. 190
Driving assist systems.................. 196
2-5. Driving information Cargo and luggage ..................... 202
Vehicle load limits....................... 205
Winter driving tips ....................... 206
Trailer towing .................................. 210
Dinghy towing (vehicles with an automatic
transmission) .................................. 211
Dinghy towing (vehicles with a manual
transmission) ................................ 212
2When driving

TABLE OF CONTENTSIndex
6
IS350/250_U
5-1. Essential informationEmergency flashers..................... 462
If your vehicle needs to be towed.............................................. 463
If you think something is wrong ............................................. 469
Fuel pump shut off system ........ 470
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer
sounds... ......................................... 471
If a warning message is displayed ........................................ 481
If you have a flat tire..................... 492
If the engine will not start ........... 501
If the shift lever cannot be shifted from P ............................. 503
If you lose your keys ................... 504
If the electronic key does not operate properly .............. 505
If the vehicle battery is discharged .................................... 510
If your vehicle overheats ............ 513
If the vehicle becomes stuck................................................. 516
If your vehicle has to be stopped in an emergency ....... 518 6-1. Specifications
Maintenance data (fuel, oil level, etc.).................... 520
Fuel information ............................ 537
Tire information.............................. 541
6-2. Customization Customizable features.............. 553
6-3. Initialization Items to initialize .......................... 559
Reporting safety defects for U.S. owners........................... 562
Seat belt instructions for Canadian owners
(in French) .................................... 563
SRS airbag instructions for Canadian owners
(in French) ................................... 565
5When trouble arises6Vehicle specifications
7For owners

IS350/250_U
14
Pictorial indexInstrument panel
Headlight switch Turn signal lever
Fog light switch P. 172
P. 154
P. 176
Shift paddle switches (automatic transmission) P. 147, 149
Gauges and meters P. 158
Multi-information display P. 167
Windshield wiper and washer switch P. 178
Engine (ignition) switch P. 141
Trunk opener main switch P. 52
Glove box P. 329
Tilt and telescopic steering lock release lever ∗ P. 72
Tilt and telescopic steering control switch ∗ P. 73
Parking brake pedal (automatic transmission) P. 155
Audio remote control switches P. 273
Horn P. 157
Hood release lever P. 394

37
1-2. Opening, closing and locking the doors and trunk
1
Before driving
IS350/250_U
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: Once; Unlocked: Twice)
■Conditions affecting operation
The smart access system with push-button start uses weak radio waves. In the fol-
lowing situations, the communication between the electronic key and the vehicle
may be affected, preventing the smart access system with push-button start from
operating properly:
(Ways of coping: →P. 505)
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wire-
less communication devices
●When the electronic key is in contact with, or is covered by the following metal-
lic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When multiple electronic keys are in the vicinity
●When another wireless key (that emits radio waves) is being used nearby
●When carrying or using the electronic key together with the following devices
that emit radio waves
• Another vehicle's electronic key or a wireless key that emits radio waves
• Personal computer or personal digital assistant (PDA)
• Digital audio player
• Portable game system
●If window tint with a metallic content or metallic objects are attached to the rear
window

38
1-2. Opening, closing and locking the doors and trunk
IS350/250_U
■Switching the door unlock function
It is possible to set which doors the entry function unlocks. Turn the “ENGINE START STOP” switch OFF.
When the indicator on the key surface is turned off, push and
hold , or for approximately 5 seconds while pushingon the key.
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat step 2.)
To prevent unintended triggering of the alarm, unlock the doors using the electronic
key and open and close a door once after the settings have been changed. (If a
door is not opened within 60 seconds after is pressed, the doors will be locked
again and the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm. ( →P. 92)
STEP1
STEP2
Multi-information
displayUnlocking doorsBeep
Hold the driver's door handle
to unlock only the driver's
door.
Exterior: Beeps three
times
Interior: Pings once
Hold the front passenger’s
door handle to unlock all
doors.
Hold either front door handle
to unlock all doors.Exterior: Beeps twice
Interior: Pings once

41
1-2. Opening, closing and locking the doors and trunk
1
Before driving
IS350/250_U

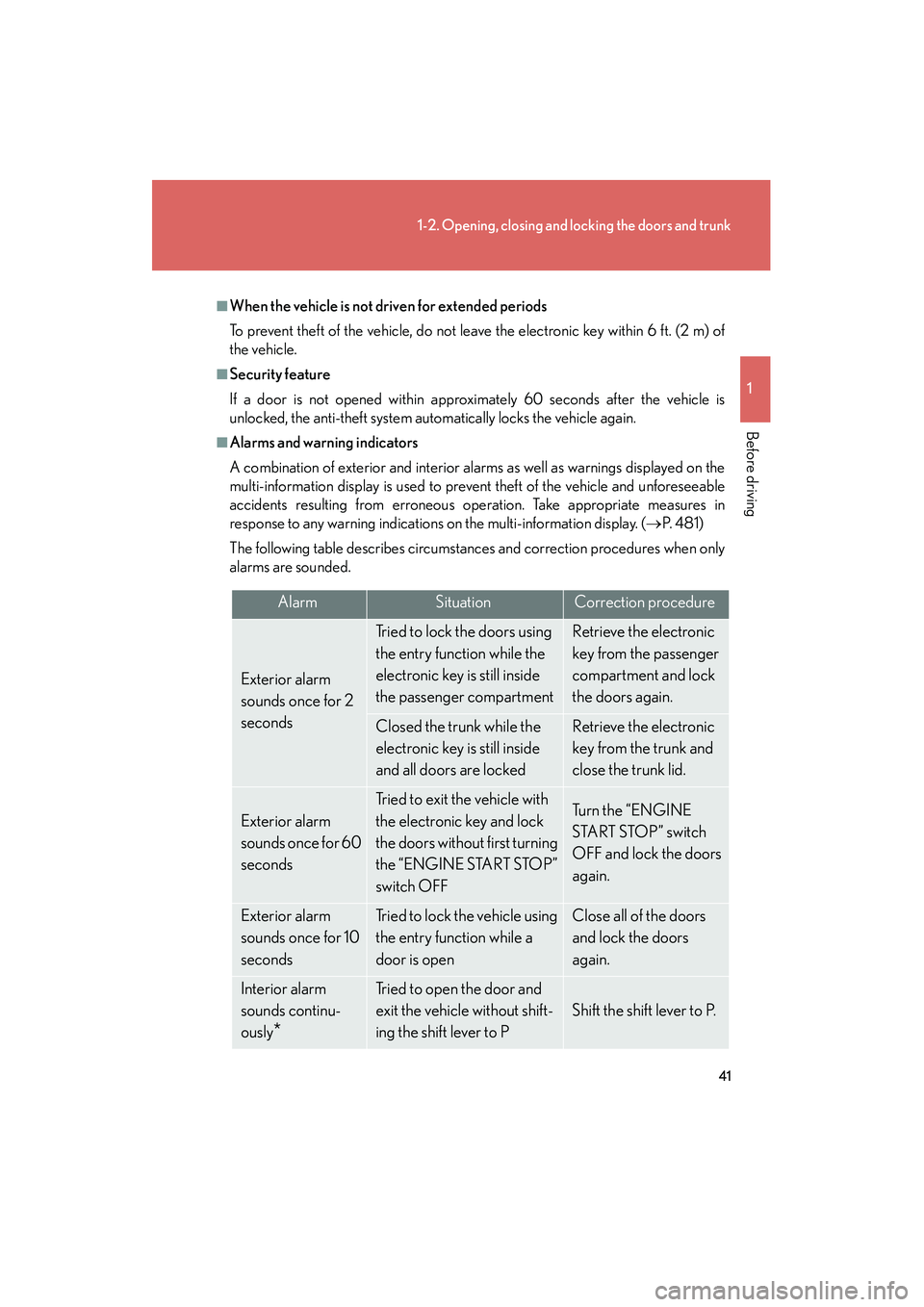

■When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of
the vehicle.
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the anti-theft system automatically locks the vehicle again.
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warnings displayed on the
multi-information display is used to prevent theft of the vehicle and unforeseeable
accidents resulting from erroneous operation. Take appropriate measures in
response to any warning indications on the multi-information display. ( →P. 4 8 1 )
The following table describes circumstances and correction procedures when only
alarms are sounded.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for 2
seconds
Tried to lock the doors using
the entry function while the
electronic key is still inside
the passenger compartmentRetrieve the electronic
key from the passenger
compartment and lock
the doors again.
Closed the trunk while the
electronic key is still inside
and all doors are lockedRetrieve the electronic
key from the trunk and
close the trunk lid.
Exterior alarm
sounds once for 60
seconds
Tried to exit the vehicle with
the electronic key and lock
the doors without first turning
the “ENGINE START STOP”
switch OFFTu r n t h e “ E N G I N E
START STOP” switch
OFF and lock the doors
again.
Exterior alarm
sounds once for 10
secondsTried to lock the vehicle using
the entry function while a
door is openClose all of the doors
and lock the doors
again.
Interior alarm
sounds continu-
ously
*
Tried to open the door and
exit the vehicle without shift-
ing the shift lever to P
Shift the shift lever to P.

84
1-4. Opening and closing the windows and moon roof
IS350/250_U
■The moon roof can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the
instrument panel when the “ENGINE START STOP” switch is turned OFF and the
driver's door is opened with the moon roof open.
■Door lock linked moon roof operation
The moon roof can be opened and closed using the mechanical key. (→P. 5 0 5 )
■Operating the moon roof after turning the “ENGINE START STOP” switch OFF
The moon roof can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF. It cannot, however, be operated once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and the moon roof opens slightly.
■To reduce moon roof wind noise
When the moon roof is opened automatically, it will stop slightly before the fully
open position. Driving with the moon roof in this position can help reduce wind
noise.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.

118
1-7. Safety information
IS350/250_U
Installing child restraints
Follow the child restraint system manufacturer's instructions. Firmly
secure child restraints to the rear seats using the LATCH anchors or a seat
belt. Attach the top tether strap when installing a child restraint.
The lap/shoulder belt can be used if your child restraint system is not com-
patible with the LATCH (Lower Anchor s and Tethers for Children) system.
Child restraint LATCH anchors
LATCH anchors are provided
for the outside rear seats. (But-
tons displaying the location of
the anchors are attached to the
seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (→P. 6 5 )
Anchor bracket (for top tether
strap)
Anchor brackets are provided
for all rear seats.
