TABLE OF CONTENTSIndex
2
GX460_U.S.A. (OM60J00U)
1-1. Key informationKeys ...................................................... 26
1-2. Opening, closing and locking the doors
Smart access system with push-button start .......................... 29
Wireless remote control .............. 47
Side doors ......................................... 50
Back door ........................................... 53
Glass hatch ....................................... 58
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
Front seats .......................................... 63
Rear seats ........................................... 67
Driving position memory (driver’s seat) ................................. 78
Head restraints................................. 82
Seat belts ........................................... 85 Steering wheel.................................. 93
Inside rear view mirror.................. 95
Outside rear view mirrors ........... 97
1-4. Opening and closing the windows and moon roof
Power windows............................... 101
Moon roof ........................................ 104
1-5. Refueling Opening the fuel tank cap......... 109
1-6. Theft deterrent system Engine immobilizer system ......... 115
Alarm.................................................... 117
1-7. Safety information Correct driving posture ............. 120
SRS airbags ..................................... 122
Front passenger occupant classification system .................. 139
Child restraint systems ............... 146
Installing child restraints ............... 151
1Before driving
For vehicles with a navigation system, refer to the “Navigation System Owner’s
Manual” for information regarding the equipment listed below.
• Navigation system
• Audio/video system
• Rear seat entertainment system
• Air conditioning
• Windshield wiper de-icer
• Rear window and outside rear view mirror defogging •Hands-free system (for cellular
phone)
• Intuitive parking assist
• Wide view front & side monitor
• Lexus Enform with Safety Connect

16
GX460_U.S.A. (OM60J00U)
Pictorial indexInstrument panel
B
Audio remote control switches* P. 460
Telephone switches* P. 490
Menu switch P. 205
“ENTER” switch
P. 205
Horn P. 194
Wide view front & side monitor switch∗ P. 286
Talk switch*
P. 490
Cruise control switch P. 246, 250
“LDA” switch∗ P. 275
Vehicle-to-vehicle distance button∗ P. 250

21
GX460_U.S.A. (OM60J00U)
Installation of a mobile two-way radio system
The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:
●Multiport fuel injection system/sequential multiport fuel injection system
● Cruise control system
● Dynamic radar cruise control system
● Anti-lock brake system
● SRS airbag system and
● Seat belt pretensioner system
Be sure to check with your Lexus dealer for precautionary measures or special
instructions regarding installation of a mobile two-way radio system.
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These components may
include airbag, seat belt pretensioners, and wireless remote control batteries.

Before driving1
25
GX460_U.S.A. (OM60J00U)
1-1. Key informationKeys ............................................... 26
1-2. Opening, closing and locking the doors
Smart access system with push-button start .................... 29
Wireless remote control ......... 47
Side doors................................... 50
Back door .................................... 53
Glass hatch ................................ 58
1-3. Adjustable components (seats, mirrors, steering
wheel, etc.)
Front seats ................................... 63
Rear seats .................................... 67
Driving position memory (driver’s seat) ........................... 78
Head restraints ......................... 82
Seat belts .................................... 85
Steering wheel ........................... 93
Inside rear view mirror ............ 95
Outside rear view mirrors ...... 97 1-4. Opening and closing the
windows and moon roof
Power windows ......................... 101
Moon roof ................................. 104
1-5. Refueling Opening the fuel tank cap ............................................ 109
1-6. Theft deterrent system Engine immobilizer system ....................................... 115
Alarm............................................ 117
1-7. Safety information Correct driving posture ....... 120
SRS airbags .............................. 122
Front passenger occupant classification system............ 139
Child restraint systems ......... 146
Installing child restraints........ 151

26
GX460_U.S.A. (OM60J00U)

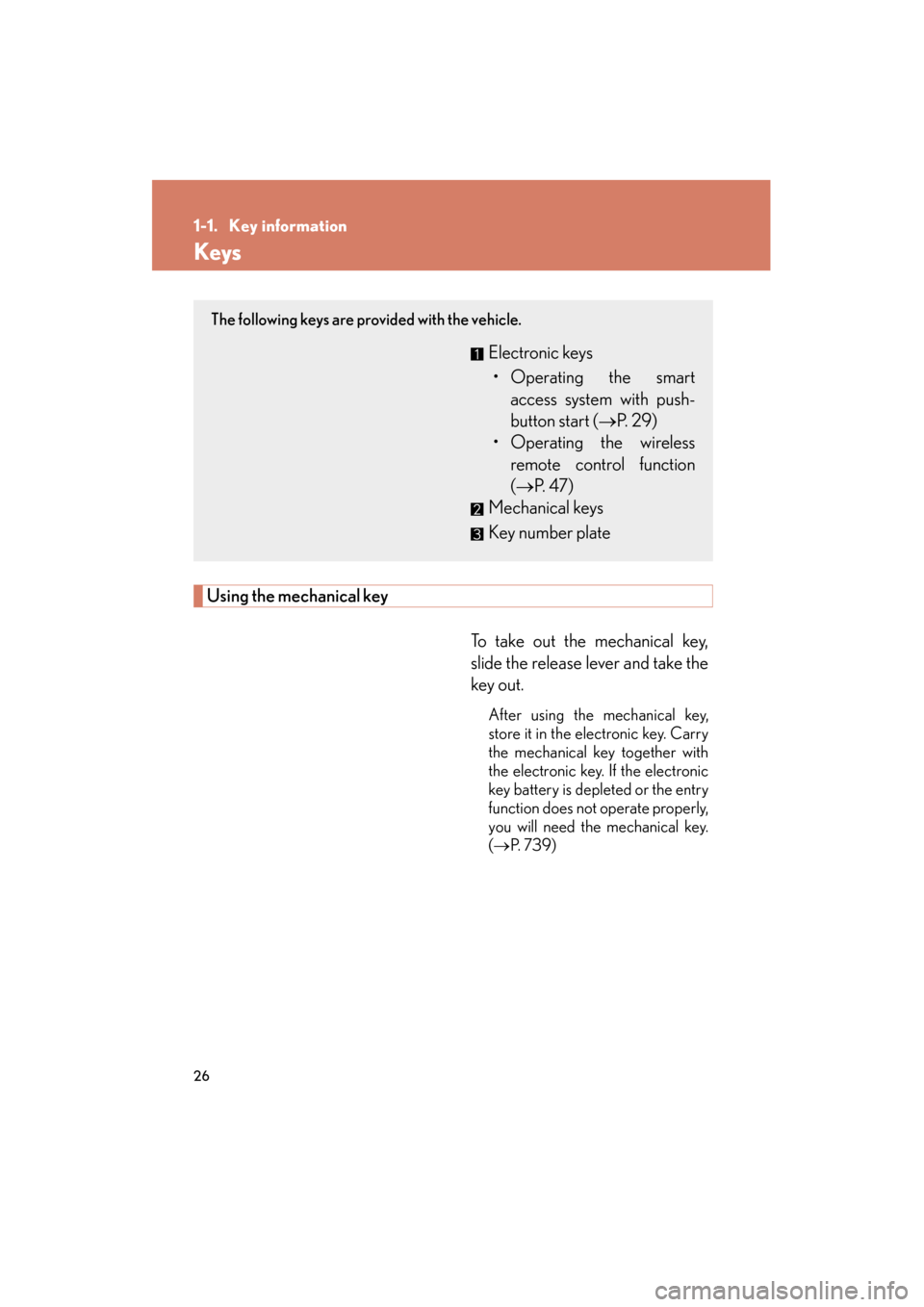

1-1. Key information
Keys
Using the mechanical keyTo take out the mechanical key,
slide the release lever and take the
key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(→ P. 7 3 9 )
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart access system with push-
button start ( →P. 2 9 )
• Operating the wireless
remote control function
(→ P. 4 7 )
Mechanical keys
Key number plate

38
1-2. Opening, closing and locking the doors
GX460_U.S.A. (OM60J00U)
■Switching the door unlock function
It is possible to set which doors the entry function unlocks.Turn the “ENGINE START STOP” switch OFF.
When the indicator on the key surface is turned off, press and hold
or for approximately 5 seconds while pressing on the key.
The setting changes each time an operation is preformed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat .)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open a door once after the settings have been changed. (If a
door is not opened within 60 seconds after is pressed, the doors will be
locked again and the alarm will automatically be set).
In case that the alarm is triggered, immediately stop the alarm. ( →P. 117)
STEP1
STEP2
STEP2
Multi-information
displayUnlocking functionBeep
Hold the driver’s door handle
to unlock only the driver’s
door.
Exterior: Beeps three
times
Interior: Pings once
Hold the front passenger’s
door handle to unlock all
doors.
Hold either door handle to
unlock all doors.Exterior: Beeps twice
Interior: Pings once

39
1-2. Opening, closing and locking the doors
1
Before driving
GX460_U.S.A. (OM60J00U)
■Battery-saving function
The battery-saving function will be activated in order to prevent the electronic key
battery and the vehicle battery from being discharged while the vehicle is not in
operation for a long time.
●In the following situations, the smart access system with push-button start may
take some time to unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of theoutside of the vehicle for 10 minutes or longer.
• The smart access system with push-button start has not been used for 5 days
or longer.
●If the smart access system with push-button start has not been used for 14 days
or longer, the doors cannot be unlocked at any doors except the driver’s door.
In this case, take hold of the driver’s door handle, or use the wireless remote
control or the mechanical key, to unlock the doors.
■Conditions affecting operation
The smart access system with push-button start uses weak radio waves. In the fol-
lowing situations, the communication between electronic key and the vehicle may
be affected, preventing the smart access system with push-button start and wireless
remote control from operatin g properly. (Way of coping: →P. 7 3 9 )

41
1-2. Opening, closing and locking the doors
1
Before driving
GX460_U.S.A. (OM60J00U)
■Note for the entry function
●Even when the electronic key is within the effective range (detection areas), the
system may not operate properly in the following cases:
• The electronic key is too close to the window, near the ground, or in a highplace when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the window when the glass hatch is opened.
• The electronic key is on the instrument panel, luggage cover or floor, or in the
glove box.
●Do not leave the electronic key on top of the instrument panel or near the door
pockets when exiting the vehicle. Depending on the radio wave reception con-
ditions, it may be detected by the antenna outside the cabin and the door will
become lockable from the outside, possibly trapping the electronic key inside
the vehicle.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.
●The doors may lock or unlock if the electronic key is within the effective range
and a large amount of water splashes on the door handle, such as in the rain or
in a car wash. The doors will automatically be locked after approximately 60
seconds if a door is not opened and closed.
●If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
entry function. (Use the wireless remote control to unlock the doors.)
