2012 Lexus GX460 stop start

TABLE OF CONTENTSIndex
6
GX460_U.S.A. (OM60J00U)
5-1. Essential informationEmergency flashers..................... 676
If your vehicle needs to be towed .................................. 677
If you think something is wrong ............................................ 683
Fuel pump shut off system ....... 684
Event data recorder ................... 685
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer
sounds... ........................................ 688
If a warning message is displayed ...................................... 700
If you have a flat tire...................... 721
If the engine will not start .......... 735
If the shift lever cannot be shifted from P .............................. 737
If you lose your keys .................... 738
If the electronic key does not operate properly ............... 739
If the vehicle battery is discharged .................................... 741
If your vehicle overheats ........... 744
If the vehicle becomes stuck................................................ 747
If your vehicle has to be stopped in an emergency ........................ 749 6-1. Specifications
Maintenance data (fuel, oil level, etc.)..................... 752
Fuel information ............................ 764
Tire information............................. 768
6-2. Customization Customizable features............... 782
6-3. Initialization Items to initialize .......................... 802
Reporting safety defects for U.S. owners.......................... 804
Seat belt instructions for Canadian owners
(in French) ................................... 805
SRS airbag instructions for Canadian owners
(in French) ................................... 807
5When trouble arises6Vehicle specifications
7For owners

33
1-2. Opening, closing and locking the doors
1
Before driving
GX460_U.S.A. (OM60J00U)■
Effective range (areas within wh ich the electronic key is detected)
When locking or unlocking
the doors
The system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
either of the outside front
door handle.
When starting the engine
or changing “ENGINE
START STOP” switch
modes
The system can be operated
when the electronic key is
inside the vehicle.
When opening the glass
hatch and locking or
unlocking the back door.
This system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
the back door handle.

35
1-2. Opening, closing and locking the doors
1
Before driving
GX460_U.S.A. (OM60J00U)
AlarmSituationCorrection procedure
Interior alarm pings
once and exterior
alarm sounds once
for 10 seconds
*1
An attempt was made to lock
the doors using the entry
function while the electronic
key was still inside the pas-
senger compartmentRetrieve the electronic
key from the passenger
compartment and lock
the doors again
An attempt was made to exit
the vehicle and lock the
doors without first turning the
“ENGINE START STOP”
switch OFFTu r n t h e “ E N G I N E
START STOP” switch
OFF and lock the doors
again
Exterior alarm
sounds once for
10 seconds
An attempt was made to lock
the vehicle while a door is
openClose all of the doors
and lock the doors again
An attempt was made to
close the glass hatch while
the electronic key was still
inside the passenger com-
partmentOpen the glass hatch
again and retrieve the
electronic key from the
passenger compart-
ment

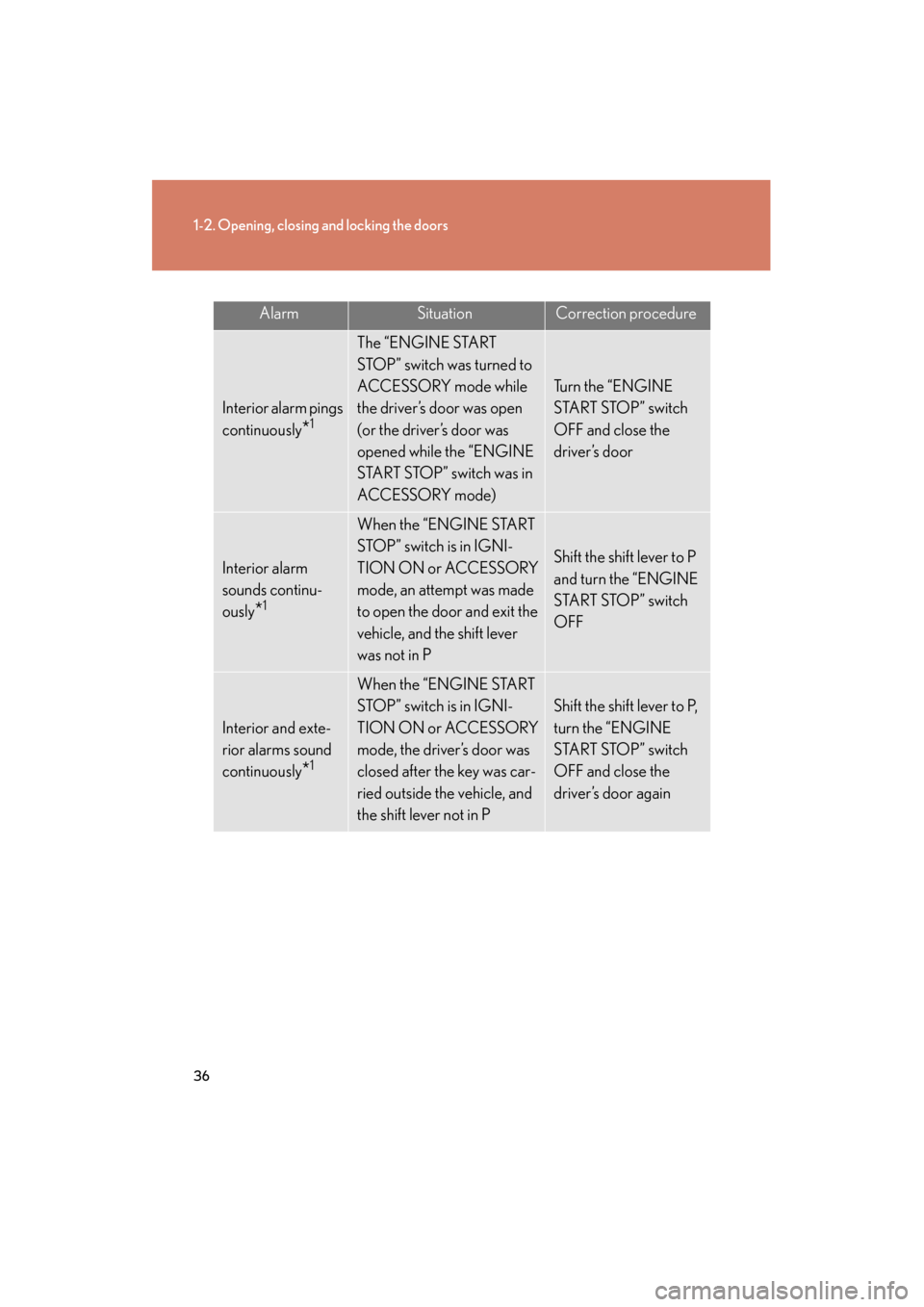

36
1-2. Opening, closing and locking the doors
GX460_U.S.A. (OM60J00U)
AlarmSituationCorrection procedure
Interior alarm pings
continuously
*1
The “ENGINE START
STOP” switch was turned to
ACCESSORY mode while
the driver’s door was open
(or the driver’s door was
opened while the “ENGINE
START STOP” switch was in
ACCESSORY mode)
Tu r n t h e “ E N G I N E
START STOP” switch
OFF and close the
driver’s door
Interior alarm
sounds continu-
ously
*1
When the “ENGINE START
STOP” switch is in IGNI-
TION ON or ACCESSORY
mode, an attempt was made
to open the door and exit the
vehicle, and the shift lever
was not in P
Shift the shift lever to P
and turn the “ENGINE
START STOP” switch
OFF
Interior and exte-
rior alarms sound
continuously
*1
When the “ENGINE START
STOP” switch is in IGNI-
TION ON or ACCESSORY
mode, the driver’s door was
closed after the key was car-
ried outside the vehicle, and
the shift lever not in P
Shift the shift lever to P,
turn the “ENGINE
START STOP” switch
OFF and close the
driver’s door again

37
1-2. Opening, closing and locking the doors
1
Before driving
GX460_U.S.A. (OM60J00U)
*1: A message will be shown on the multi-information display in the instrumentcluster.
*2: If the engine does not start when the electronic key is inside the vehicle, theelectronic key battery may be depleted or there may be difficulties receiving
signal from the key. ( →P. 74 0 )
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
AlarmSituationCorrection procedure
Interior alarm pings
once
*1
The electronic key has a low
batteryReplace the electronic
key battery
An attempt was made to start
the engine without the elec-
tronic key being present, or
the electronic key was not
functioning normally
Start the engine with the
electronic key
present
*2
Interior alarm pings
once and exterior
alarm sounds 3
times
*1
The driver’s door was closed
after the key was carried out-
side the vehicle, and the
“ENGINE START STOP”
switch was not turned OFFTu r n t h e “ E N G I N E
START STOP” switch
OFF and close the
driver’s door again
An occupant carried the
electronic key outside the
vehicle and closed the door
while the “ENGINE START
STOP” switch was not OFF
Bring the electronic key
back into the vehicle

38
1-2. Opening, closing and locking the doors
GX460_U.S.A. (OM60J00U)
■Switching the door unlock function
It is possible to set which doors the entry function unlocks.Turn the “ENGINE START STOP” switch OFF.
When the indicator on the key surface is turned off, press and hold
or for approximately 5 seconds while pressing on the key.
The setting changes each time an operation is preformed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat .)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open a door once after the settings have been changed. (If a
door is not opened within 60 seconds after is pressed, the doors will be
locked again and the alarm will automatically be set).
In case that the alarm is triggered, immediately stop the alarm. ( →P. 117)
STEP1
STEP2
STEP2
Multi-information
displayUnlocking functionBeep
Hold the driver’s door handle
to unlock only the driver’s
door.
Exterior: Beeps three
times
Interior: Pings once
Hold the front passenger’s
door handle to unlock all
doors.
Hold either door handle to
unlock all doors.Exterior: Beeps twice
Interior: Pings once

44
1-2. Opening, closing and locking the doors
GX460_U.S.A. (OM60J00U)
■Electronic key battery depletion
●The standard battery life is 1 to 2 years.
●If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (→P. 3 4 )
●As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indicate
that the electronic key battery may be depleted. Replace the battery when nec-
essary. ( →P. 6 4 4 )
• The smart access system with push-button start or the wireless remote con- trol does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
•Glass top ranges
•Table lamps
■When the electronic key battery is fully depleted
→ P. 6 4 4
■Customization
Settings (e.g. smart access system with push-button start) can be changed.
(Customizable features →P. 7 8 2 )

51
1-2. Opening, closing and locking the doors
1
Before driving
GX460_U.S.A. (OM60J00U)
Locking the driver’s door from the outside without a keyMove the inside lock button to the lock position.
Close the door.
The door cannot be locked if the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode, or the electronic key is left
inside the vehicle.
The key may not be detected correctly and the door may be locked.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock is
set.Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
STEP1
STEP2
