2-5. Driving information
2
When driving
GX460_U.S.A. (OM60J00U)
NOTICE
■To prevent the water damage
Take all necessary safety measures to ensure that water damage to the engine or
other components does not occur.
●Water entering the engine air intake will cause severe engine damage.
●Water entering the automatic transmission will cause deterioration in shift quality,
locking up of your transmission accompanied by vibration, and ultimately dam-
age.
●Water can wash the grease from wheel bearings, causing rusting and premature
failure, and may also enter the differentials, transmission and transfer case, reduc-
ing the gear oil’s lubricating qualities.
■When you drive through water
If driving through water, such as when crossing shallow streams, first check the
depth of the water and the bottom of the riverbed for firmness. Drive slowly and
avoid deep water.
■Inspection after off-road driving
●Sand and mud that has accumulated in brake drums and around brake discs may
affect braking efficiency and may damage brake system components.
●Always perform a maintenance inspection after each day of off-road driving that
has taken you through rough terrain, sand, mud, or water. For scheduled mainte-
nance information, refer to the “Warranty and Services Guide”, “Owner’s Manual
Supplement” or “Scheduled Maintenance”.

366
2-5. Driving information
GX460_U.S.A. (OM60J00U)
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■Pre-winter preparations
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the level and specific gravity of
battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
■ Before driving the vehicle
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is fro-
zen. Pour warm water over the frozen area to melt the ice. Wipe
away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Remove any ice that has accumulated on the vehicle chassis.
● Periodically check for and remove any excess ice or snow that
may have accumulated in the wheel well or on the brakes.

557
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60J00U)
CAUTION
■Before driving
●Check that the floor mat is securely fixed in
the correct place with all the provided
retaining hooks (clips). Be especially care-
ful to perform this check after cleaning the
floor.
●With the engine stopped and the shift lever
in P, fully depress each pedal to the floor to
make sure it does not interfere with the
floor mat.

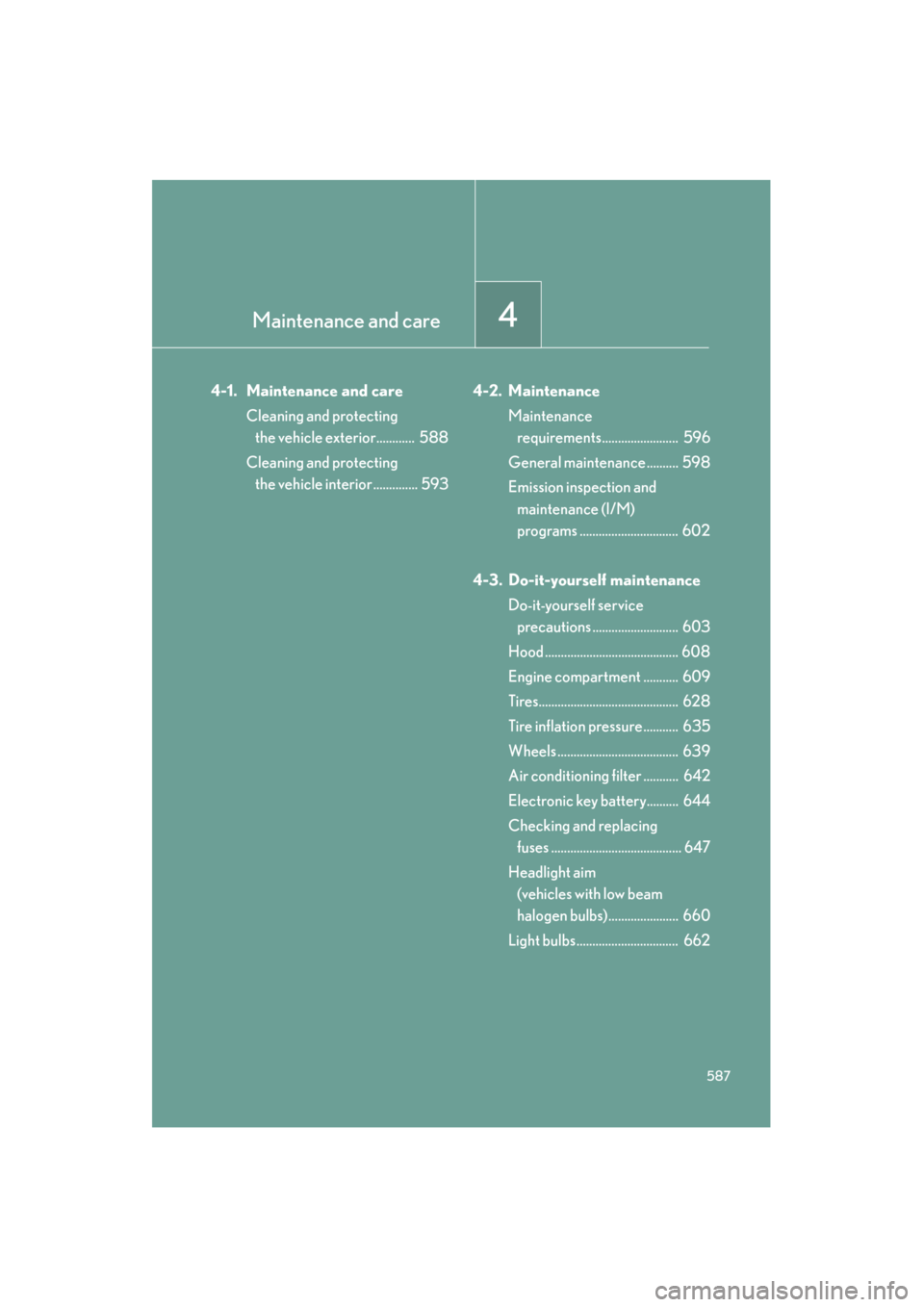

Maintenance and care4
587
GX460_U.S.A. (OM60J00U)
4-1. Maintenance and careCleaning and protecting the vehicle exterior............ 588
Cleaning and protecting the vehicle interior .............. 593 4-2. Maintenance
Maintenance requirements........................ 596
General maintenance .......... 598
Emission inspection and maintenance (I/M)
programs ............................... 602
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ........................... 603
Hood .......................................... 608
Engine compartment ........... 609
Tires............................................ 628
Tire inflation pressure........... 635
Wheels ...................................... 639
Air conditioning filter ........... 642
Electronic key battery.......... 644
Checking and replacing fuses ......................................... 647
Headlight aim (vehicles with low beam
halogen bulbs)...................... 660
Light bulbs................................ 662

598
4-2. Maintenance
GX460_U.S.A. (OM60J00U)
General maintenance
Engine compartment
ItemsCheck points
BatteryCheck the indicator and
connections. (→P. 6 2 3 )
Brake fluidIs the brake fluid at the correct level?
(→ P. 6 1 9 )
Engine coolantIs the engine coolant at the correct
level? ( →P. 6 1 6 )
Engine oilIs the engine oil at the correct level?
(→ P. 611)
Exhaust systemThere should not be any fumes or
strange sounds.
Power steering fluidIs the power steering fluid at the
correct level? ( →P. 6 2 1 )
Radiator/condenser
The radiator and condenser should
be free from foreign objects.
( →P. 6 1 8 )
Wa s h e r f l u i dIs there sufficient washer fluid?
(→ P. 6 2 7 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Service Guide” or “Owner’s
Manual Supplement”. It is recommended that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.

601
4-2. Maintenance
4
Maintenance and care
GX460_U.S.A. (OM60J00U)
Vehicle exterior
ItemsCheck points
Doors• Do the doors operate smoothly?
Engine hood• Does the engine hood lock system work properly?
Fluid leaks
• There should not be any signs of fluid leakage after the vehicle has
been parked.
Ti r e
• Is the tire inflation pressure cor-rect?
• The tires should not be damaged or
excessively worn.
• Have the tires been rotated according to the maintenance
schedule?
• The wheel nuts should not be loose.
CAUTION
■If the engine is running
Turn off the engine and ensure that there is adequate ventilation before performing
maintenance checks.

611
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60J00U)
Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than five minutes for the oil to drain
back into the bottom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
Wipe the dipstick and reinsert it fully. Low
Full
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

612
4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60J00U)■
Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection→P. 7 5 5
Oil quantity (Low → Full)1.6 qt. (1.5 L, 1.3 Imp.qt.)
ItemsClean funnel
STEP1
STEP2
STEP3
