2012 Lexus GX460 light

591
4-1. Maintenance and care
4
Maintenance and care
GX460_U.S.A. (OM60J00U)
NOTICE
■To prevent paint deterioration and corrosion on the body and components (alu-
minum wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If you see dead insects, insect droppings or bird droppings on the paint
• After driving in an area contaminated with soot, oily smoke, mine dust, ironpowder or chemical substances
• If the vehicle becomes heavily soiled in dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
●To prevent the wheels from corroding, remove any dirt and store in a place with
low humidity when storing wheels.
■Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
●Do not apply wax on the surfaces of the lights.
Wax may cause damage to the lenses.

595
4-1. Maintenance and care
4
Maintenance and care
GX460_U.S.A. (OM60J00U)
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces.
• Non-seat portions: Organic substances such as benzene or gasoline, alkalineor acidic solutions, dye, or bleach.
• Seats: Acidic solutions, such as thinner, benzene, or alcohol.
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior
part’s painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into
contact with electrical components such as the audio system above or under the
floor of the vehicle. Water may also cause the body to rust.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to
the rear window defogger heater wires or antenna. Use a cloth dampened with
lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

600
4-2. Maintenance
GX460_U.S.A. (OM60J00U)
ItemsCheck points
Head restraints• Do the head restraints move smoothly and lock securely?
Indicators/buzzers• Do the indicators and buzzers
function properly?
Lights• Do all the lights come on?
Parking brake
• Does the parking brake lever or pedal move smoothly?
• When parked on a slope and the parking brake is on, is the vehicle
securely stopped?
Seat belts
• Do the seat belts operate
smoothly?
• The seat belts should not be dam- aged.
Seats• Do the seat controls operate prop-erly?
Steering wheel
• Does the steering wheel rotate smoothly?
• Does the steering wheel have the correct amount of free play?
• There should not be any strange
sounds coming from the steering
wheel.

605
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60J00U)
ItemsParts and tools
Fuses(→ P. 6 4 7 )• Fuse with same amperage rating as
original
Headlight aim ( →P. 660)• Phillips-head screwdriver
Light bulbs (→ P. 6 6 2 )
• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
•Flathead screwdriver
•Wrench
Power steering fluid level (→ P. 6 2 1 )
• Automatic transmission fluid
DEXRON® II or III
•Rag or paper towel
• Clean funnel
Radiator and condenser ( →P. 6 1 8 )
Tire inflation pressure ( →P. 6 3 5 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( →P. 6 2 7 )
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

608
4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60J00U)
Hood
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.
Release the lock from the inside of the vehicle to open the hood.
Pull the hood lock release lever.
The hood will pop up slightly.
Move the auxiliary catch lever
to side direction and lift the
hood.
STEP1
STEP2

620
4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60J00U)
■Brake fluid can absorb moisture from the air
Excess moisture in the fluid can cause a dangerous loss of braking efficiency. Use
only newly opened brake fluid.
CAUTION
■When filling the reservoir
Take care because brake fluid can harm your hands or eyes and damage painted
surfaces.
If fluid gets on your eyes, flush the affected area with clean water immediately.
If you still experience discomfort, see a doctor.
NOTICE
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear or
when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

621
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60J00U)
Power steering fluid■ Fluid level
The fluid level should be within the appropriate range.
Full (when cold)
Add fluid (when cold)
Full (when hot)
Add fluid (when hot)
Hot: The vehicles has been driven around 50 mph (80 km/h) for 20 minutes, or slightly longer in frig id temperatures. (Fluid temper-
ature, 140 °F - 175 ° F [60 °C - 80 ° C]).
Cold: The engine has not been run for about 5 hours. (Room tempera- ture, 50 °F - 85 °F [10 ° C - 30 °C]).

625
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60J00U)

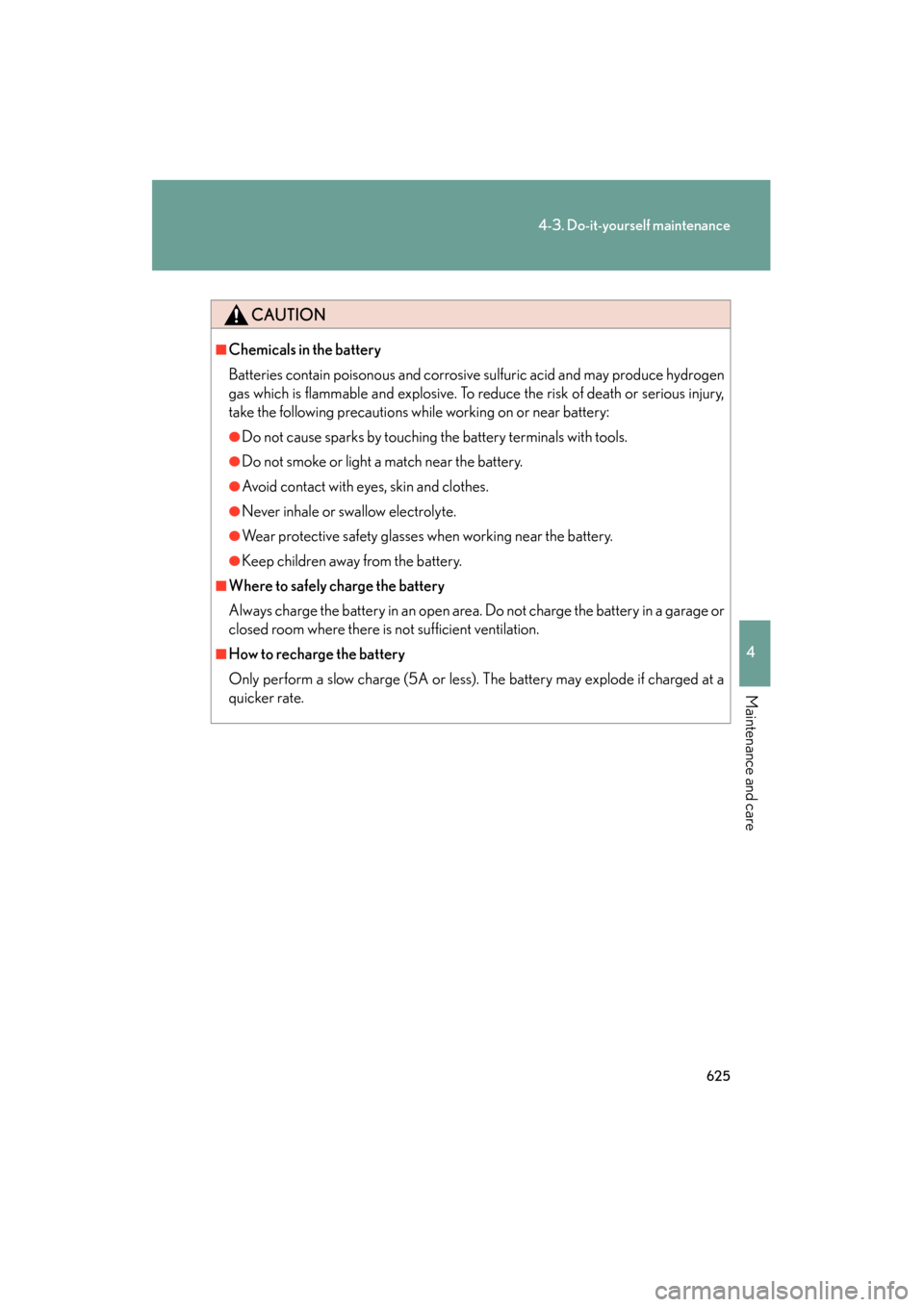

CAUTION
■Chemicals in the battery
Batteries contain poisonous and corrosive sulfuric acid and may produce hydrogen
gas which is flammable and explosive. To reduce the risk of death or serious injury,
take the following precautions while working on or near battery:
●Do not cause sparks by touching the battery terminals with tools.
●Do not smoke or light a match near the battery.
●Avoid contact with eyes, skin and clothes.
●Never inhale or swallow electrolyte.
●Wear protective safety glasses when working near the battery.
●Keep children away from the battery.
■Where to safely charge the battery
Always charge the battery in an open area. Do not charge the battery in a garage or
closed room where there is not sufficient ventilation.
■How to recharge the battery
Only perform a slow charge (5A or less). The battery may explode if charged at a
quicker rate.
