2012 Lexus GX460 relay

651
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60J00U)
6SUB BATT30 ATo w i n g
7IG220 AInjector, ignition, meter
8HORN10 AHorn
9EFI25 AEFI ECU, A/F heater relay, fuel pump
relay, EFI NO.2
10A/F20 AA/F SSR
11FUEL OPN 10 AFuel lid opener
12S/HTR RR20 ARear seat heater
13FOLD SEAT LH30 AFolding seat (left)
14FOLD SEAT RH30 AFolding seat (right)
15TOW I N G TA I L30 ATo w i n g
16A/C COMP10 AAir conditioning system
17STRG HTR 10 ASteering heater
18CDS FAN20 ACondenser fan
19STOP10 A
Stop lights, high mount stop light, stop
light switch, VSC ECU, towing, Smart
access system with push button start
20AIR SUS NO.27. 5 AAIR SUS ECU
21H-LP RH-HI15 AHeadlight high beam (right)
22H-LP LH-HI15 AHeadlight high beam (left)
FuseAmpereCircuit

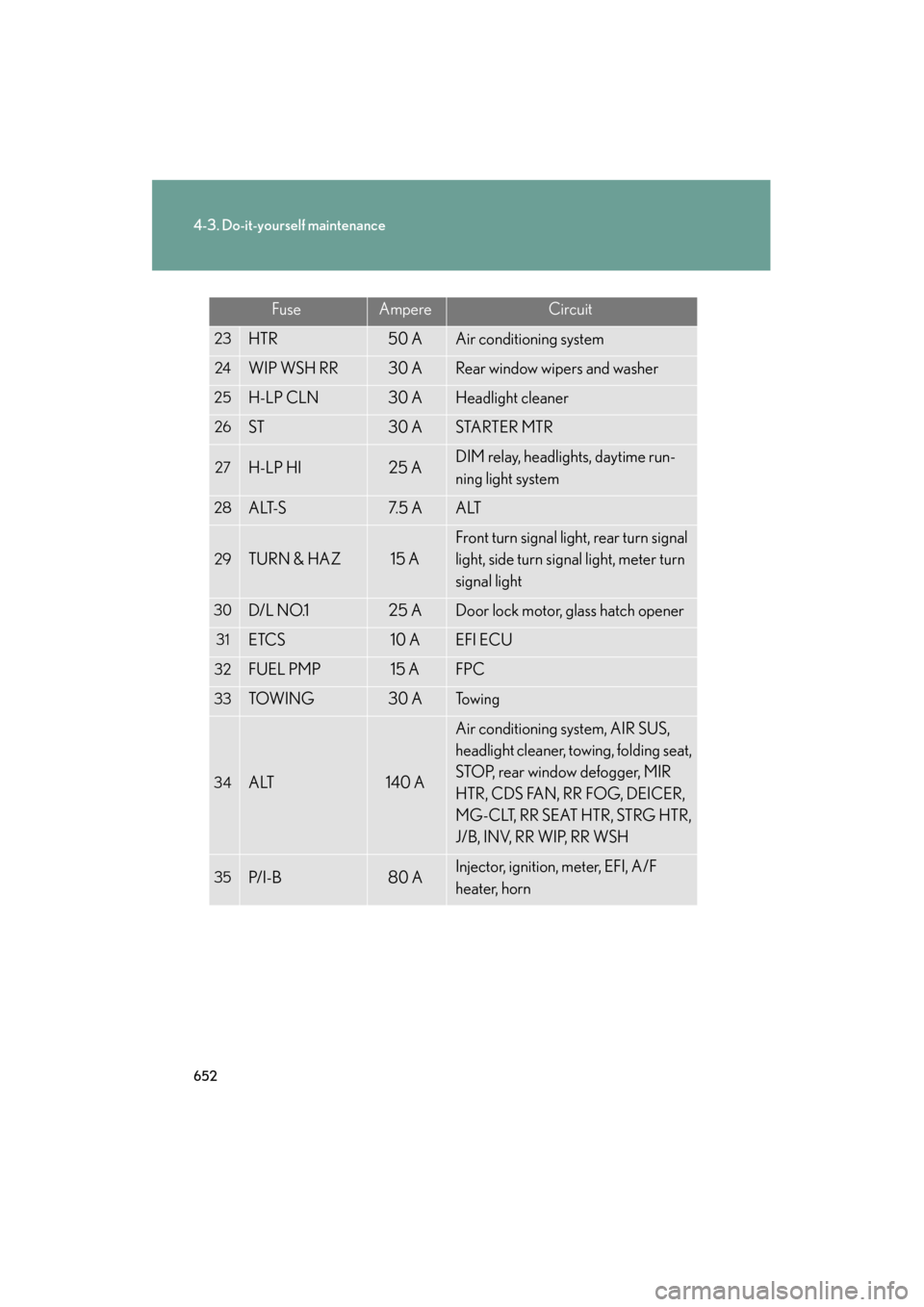

652
4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60J00U)
23HTR50 AAir conditioning system
24WIP WSH RR30 ARear window wipers and washer
25H-LP CLN30 AHeadlight cleaner
26ST30 ASTARTER MTR
27H-LP HI25 ADIM relay, headlights, daytime run-
ning light system
28ALT-S7. 5 AALT
29TURN & HAZ15 A
Front turn signal light, rear turn signal
light, side turn signal light, meter turn
signal light
30D/ L N O.125 ADoor lock motor, glass hatch opener
31ETCS10 AEFI ECU
32FUEL PMP15 AFPC
33TOW I N G30 ATo w i n g
34ALT140 A
Air conditioning system, AIR SUS,
headlight cleaner, towing, folding seat,
STOP, rear window defogger, MIR
HTR, CDS FAN, RR FOG, DEICER,
MG-CLT, RR SEAT HTR, STRG HTR,
J/B, INV, RR WIP, RR WSH
35P/ I - B80 AInjector, ignition, meter, EFI, A/F
heater, horn
FuseAmpereCircuit

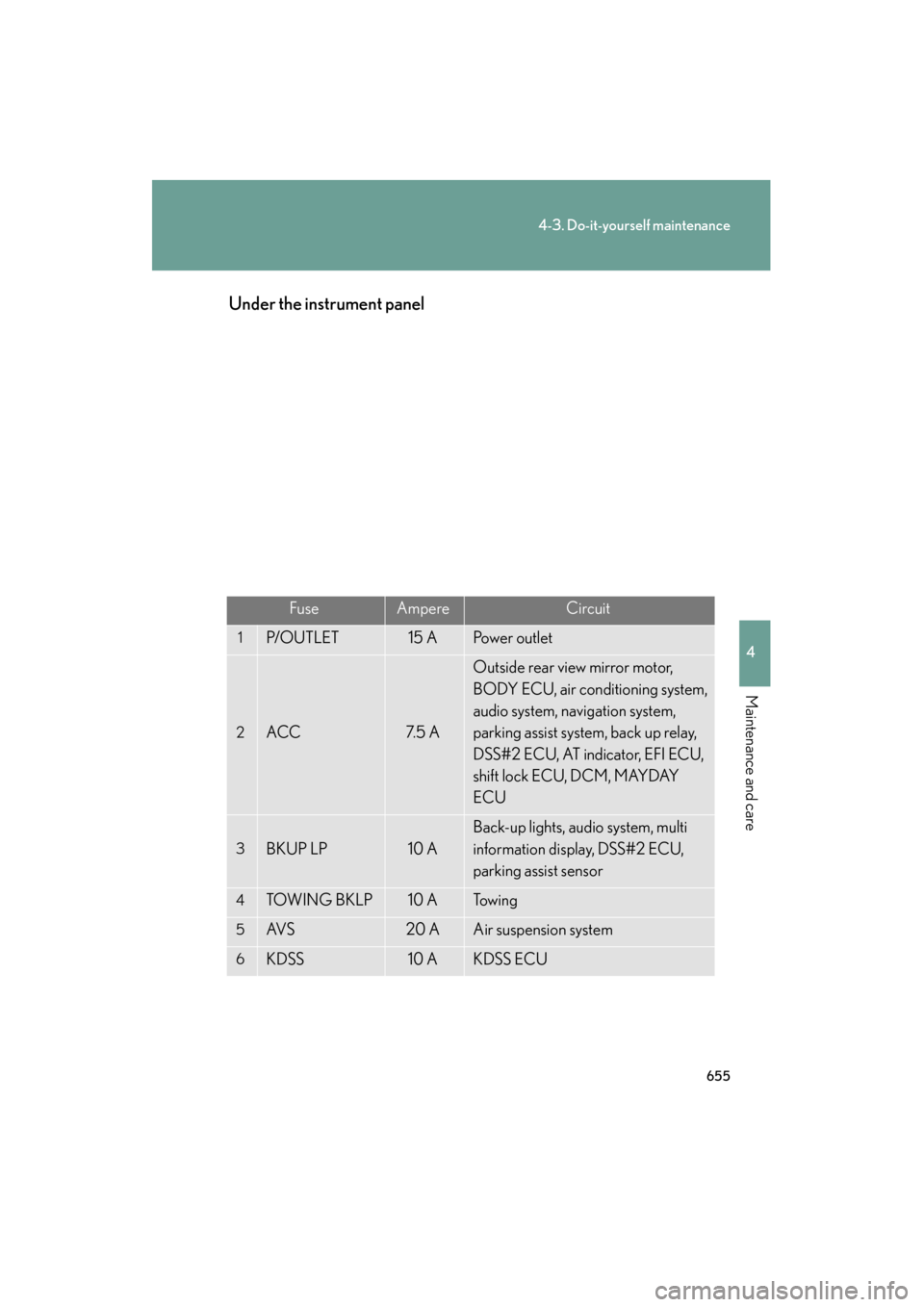

655
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60J00U)Under the instrument panel
FuseAmpereCircuit
1P/O U T L E T15 APo w e r o u t l e t
2ACC7. 5 A
Outside rear view mirror motor,
BODY ECU, air conditioning system,
audio system, navigation system,
parking assist system, back up relay,
DSS#2 ECU, AT indicator, EFI ECU,
shift lock ECU, DCM, MAYDAY
ECU
3BKUP LP10 A
Back-up lights, audio system, multi
information display, DSS#2 ECU,
parking assist sensor
4TOW I N G B K L P10 ATo w i n g
5AV S20 AAir suspension system
6KDSS10 AKDSS ECU

656
4-3. Do-it-yourself maintenance
GX460_U.S.A. (OM60J00U)
74WD20 A4WD system, rear differential lock
8P/ S E AT F L30 AFront power seat (left)
9D/ L N O. 225 ADoor lock motor, glass hatch
opener, BODY ECU
10PSB30 APSB ECU
11TI & TE15 ATilt and telescopic steering
12FOG FR15 AFront fog lights
13OBD7. 5 ADLC 3
14A/C7. 5 AAir conditioning system
15AM17. 5 AStarting system
16DOOR RL25 ARear power window (left)
17ECU-IG NO.110 A
Shift lock ECU, VSC ECU, steering
sensor, yaw rate sensor, sequential
switch, auto wiper ECU, back up
relay, tilt & telescopic steering, PSB
ECU, DSS#1 ECU, front radar sensor,
AFS ECU, TIRE PRESS ECU,
DRIVER MON ECU
18IG17. 5 A
Front turn signal light, rear turn signal
light, side turn signal light, meter turn
signal light, trailer light, ALT, VSC, C/
C switch
FuseAmpereCircuit

657
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_U.S.A. (OM60J00U)
19ECU-IG NO.210 A
Rear window defogger, outside rear
view mirror memory, seat heater/ven-
tilator switch, inverter relay, air condi-
tioning system, EC mirror, BODY
ECU, exhaust gas sensor, parking
assist sensor, navigation system,
DSS#2 ECU, meter switch, accessory
meter, folding seat ECU, O/H IG,
head light cleaner, rear air condition-
ing system, deicer, D-module, rain
sensor, air suspension, RR VLV ECU,
steering heater, LKA, P/SEAT IND
20S/HTR FR20 ASeat heater and ventilator
21P/ S E AT F R30 AFront power seat (right)
22DOOR P30 A
Front power window (passenger’s
side), outside rear view mirror mem-
ory
23DOOR10 APo w e r w i n d o w
24DOOR D25 AFront power window (driver’s side)
25DOOR RR25 ARear power window (right)
26S/ROOF25 AMoon roof
27WIP30 AWindshield wipers and washer
28WA S H E R20 AWindshield wipers and washer, rear
window wipers and washer
29COOLING10 ACool box
FuseAmpereCircuit
