STOPPING THE ENGINE
Turn the ignition key to STOP while the engine is
idling.
IMPORTANT After a taxing drive, before turning
the engine off you should allow it to idle to allow
the temperature in the engine compartment to fall.
A quick burst on the accelerator before
turning off the engine serves absolutely
no practical purpose, it wastes fuel
and is damaging especially to turbocharged
engines.
PARKINGSwitch off the engine and engage the handbrake.
Engage a gear (first gear if parked uphill or
reverse if facing downhill) and leave the wheels
turned. If the car is parked on a steep slope block
the wheels with a wedge or stone. Always remove
the ignition key when leaving the car.
HANDBRAKE
To engage the handbrake pull lever A fig. 112
upwards until the car is secured. To release the
handbrake, raise the lever A slightly, press and
hold the button B and lower the lever.
If the car is parked on a steep slope, it is also
advisable to block the wheels with a wedge or
stone.
fig. 112
L0F0074
146
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

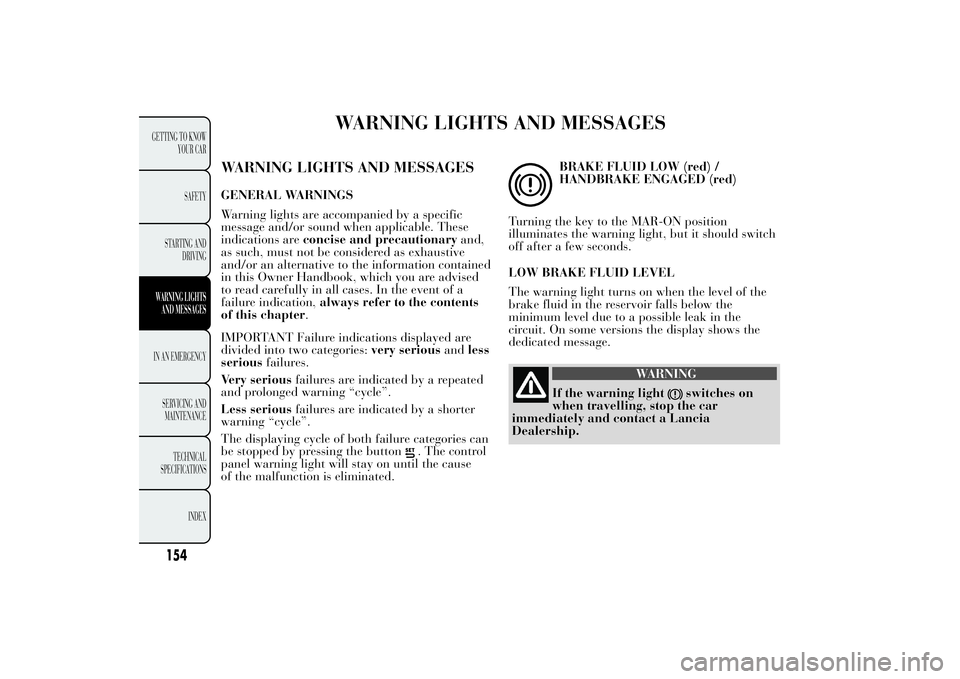

WARNING LIGHTS AND MESSAGES
WARNING LIGHTS AND MESSAGESGENERAL WARNINGS
Warning lights are accompanied by a specific
message and/or sound when applicable. These
indications areconcise and precautionaryand,
as such, must not be considered as exhaustive
and/or an alternative to the information contained
in this Owner Handbook, which you are advised
to read carefully in all cases. In the event of a
failure indication,always refer to the contents
of this chapter.
IMPORTANT Failure indications displayed are
divided into two categories:very seriousandless
seriousfailures.
Very seriousfailures are indicated by a repeated
and prolonged warning “cycle”.
Less seriousfailures are indicated by a shorter
warning “cycle”.
The displaying cycle of both failure categories can
be stopped by pressing the button
. The control
panel warning light will stay on until the cause
of the malfunction is eliminated.
BRAKE FLUID LOW (red) /
HANDBRAKE ENGAGED (red)
Turning the key to the MAR-ON position
illuminates the warning light, but it should switch
off after a few seconds.
LOW BRAKE FLUID LEVEL
The warning light turns on when the level of the
brake fluid in the reservoir falls below the
minimum level due to a possible leak in the
circuit. On some versions the display shows the
dedicated message.
WARNING
If the warning light
switches on
when travelling, stop the car
immediately and contact a Lancia
Dealership.
154
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

DOORS/BONNET/LUGGAGE
COMPARTMENT OPEN
The warning light switches on (on some versions
together with a message and a symbol in the
display) when one or more doors, the boot or the
bonnet or the tailgate are not properly closed.
An acoustic signal is activated with the doors open
and the car moving.
START&STOP SYSTEM ACTIVATION/
DEACTIVATION
START&STOP SYSTEM FAILURE
Start&Stop system activation
A message will be displayed when the Start&Stop
system is on. In this condition the LED on the
button on the dashboard control panel (see
“Start&Stop” in the chapter "Knowing your car")
is off.
Turning the Start&Stop off
❒Versions with reconfigurable multifunction
display:a message appears on the display when
the Start&Stop system is deactivated.
❒Versions with reconfigurable multifunction
display:the
symbol and a message appear on
the display when the Start&Stop system is
deactivated.
The LED on the
button is on when the system
is deactivated.START&STOP SYSTEM FAILURE
Versions with multifunction display: the
warning light on the instrument panel switches
on and a message appears on the display in the
event of Start&Stop system failure.
Versions with reconfigurable multifunction
display:the
icon switches on and a message
appears on the display in the event of a
Start&Stop system failure.
In the event of a Start&Stop system failure,
contact a Lancia Dealership.
POSSIBLE ICE ON ROAD
(for versions/markets where provided)
On the versions equipped with reconfigurable
multifunction display, a message + symbol appear
on the display when the outdoor temperature
falls to or below 3°C.
IMPORTANT In the event of outdoor temperature
sensor failure, dashes are shown on the display
instead of the value.
166
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

BATTERY RECHARGINGIMPORTANT The battery recharging procedure is
given as information only. You are advised to go
to a Lancia Dealership to have this operation
performed.
Low amperage slow recharging for approximately
24 hours is advised. Charging for a longer time
may damage the battery.
VERSIONS WITHOUT Start&Stop SYSTEM
(for versions/markets, where provided)
Charge the battery as follows:
❒disconnect the negative battery terminal;
❒connect the charger cables to the battery
terminals, observing the polarity;
❒turn on the charger;
❒when finished, turn the charger off before
disconnecting the battery;
❒reconnect the negative battery terminal.
VERSIONS WITH Start&Stop SYSTEM
(for versions/markets, where provided)
Charge the battery as follows:
❒disconnect the connector A fig. 159 (pressing
the button B) from the sensor C monitoring
the battery conditions, on the negative pole D of
the battery;
fig. 159
L0F0229
199GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

STEERING WHEEL CONTROLS(for versions/markets, where provided)Button Functions Method
AudioMute on/off (Radio mode) or Pause
function (MP3 or Media Player mode only
withBlue&Me
™
)Short button press
+Increasing volume Button press
-Decreasing volume Button press
SRCSelection of Radio frequency range (FM1,
FM2, FMT, FMA, MW1, MW2) and listening
sources; Radio, MP3 or Media Player (only
withBlue&Me
™
) /AUX (only with
Blue&Me
™
, for versions/markets, where
provided)Button press
NOTE: Starting from the FM or AM source set
on the radio (e.g. FM1 or MW1), if you cycle
through the audio sources using the SRC
button (stopping on a source other than radio)
when the radio source is selected (FM or AM)
using the commands on the radio panel, the
radio always switches to the last radio source
(FMA or MW2).
SRC
fig. 2
L0F0049
265
SOUND-SYSTEM

PRESET BUTTONS
The buttons numbered from 1 to 6 are used to set
the following preset stations:
❒18 in the FM band (6 in FM1, 6 in FM2, 6 in
FMT or "FMA" (on some versions);
❒12 in the MW band (6 in MW1, 6 in MW2).
To listen to a preset station, select the desired
frequency band and then briefly press the
corresponding preset button (from 1 to 6).
By pressing the preset button for more than 2
seconds, the tuned station will be stored. The
storing phase is confirmed by a beep.
STORING THE LAST STATION LISTENED TO
The radio automatically stores the last station that
was selected for each reception band, which is
then tuned into when the radio is turned on or
when the reception band is changed.AUTOMATIC TUNING
Briefly press the
or
button to start the
automatic tuning search for the next station that
can be received in the selected direction.
If the
or
button is pressed down longer, the
fast search starts. When the button is released, the
tuner will stop on the next station that can be
received.
If the TA function (traffic alerts) is on, the tuner
will only search for stations that broadcast traffic
news and alerts.
MANUAL TUNING
This is used to manually search for stations in the
preselected band.
Select the desired frequency band and then press
the or
button briefly and repeatedly to start to
the search in the desired direction.
If the or
buttons are pressed longer, the fast
search will start and then stop when the button is
released.
287
SOUND-SYSTEM

TRACK SELECTION (forward/back)
Briefly press the
button to play the previous CD
track and the
button to play the next track.
The tracks are selected cyclically: the first track is
selected after the last track and vice versa.
If the track has been played for more than 3
seconds, pressing the
button will cause the track
to be started again from the beginning.
In this case, if you want to play the previous track,
press the button twice consecutively.
TRACK FAST FORWARD/REWIND
Keep the
button pressed down to fast forward
the selected track and keep the
button pressed
down to fast rewind the track.
The fast forward/rewind will stop once the button
is released.PAUSE FUNCTION
To pause the CD player, press the
button. The
text “CD Pause” appears on the display.
To resume listening to the track, press the
button again. If another audio source is selected,
the pause function is turned off.
292
SOUND-SYSTEM

– scheduled servicing
plan................................ 205
Setup for "Isofix" child
seat ................................... 134
Side airbags (side bag -
window bag) ..................... 139
Side air diffusers .................. 40
Side bag) ............................ 139
Side Bag ............................. 139
Side lights/brake lights ....... 184
Side lights/day lights
(DRL)
– bulb replacement............ 180
Snow chains........................ 152
Sound system (wiring) ......... 99
Speedometer ........................ 8
Speedometer (speed
indicator) ........................... 7
Starting the engine ...... 144-168
Starting up and driving....... 144
Start&Stop system ............... 93
Start&Stop (system)............. 93
Steering .............................. 235
Steering lock ........................ 33
Steering Wheel ..................... 37
Steering wheel stalks
– left stalk .......................... 53Storing the car .................... 153
Sun roof ............................... 72
Sun visors ............................ 72
Suspension.......................... 234
Technical data.................... 228
The keys .............................. 29
Third brake light ................ 184
Top speed ........................... 243
Towing the car .................... 201
Towing trailers .................... 150
Transmission ...................... 232
TRIP button ......................... 26
Trip Computer
– TRIP button .................... 26
– Trip Computer ................. 24
– Trip Computer
parameters ...................... 24
Ty r e s
– correct tyre reading ........ 236
– Fix&Go Automatic (kit) . 175
– inflation pressures .......... 240
– Rim Protector tyres ........ 241
– snow tyres ...................... 237
– tyres provided ................ 237
Tyres - maintenance............ 219
"Universal" child seat
fitting................................ 136Universal Isofix (child
seat).................................. 134
Using the gearbox ............... 147W
arning lights on panel ..... 154
Weights and loads ............... 244
Welcome movement ............. 11
Wheel rims
– correct reading of the
wheel rim ....................... 237
– dimensions ..................... 237
– rims and tyres ................ 236
– wheels and tyres ............. 219
Wheels and tyres
– changing a wheel ............ 169
– Fix&Go Automatic (kit) . 175
– spare wheel .................... 236
– tyre inflation pressure..... 240
– Wheels and tyres ............ 219
Window bag........................ 140
Window cleaning .................. 57
Windows (cleaning) ............ 225
Windscreen washer............... 57
– windscreen washer fluid
level ............................... 215
303GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONSINDEX
