OPERATION – 3.0L DIESEL
ENGINE
When the shift lever is in the DRIVE
position, the transmission will operate
automatically, shifting between the
five available gears. To engage
AutoStick®, simply move the shift le-
ver to the right or left (+/-) while in
the DRIVE position, or tap one of the
steering wheel-mounted shift paddles
(+/-), for versions/markets, where
provided. When AutoStick® is active,
the current transmission gear is dis-
played in the instrument cluster. In
AutoStick® mode, the transmission
will shift up or down when (+/-) is
manually selected by the driver (using
the shift lever, or the shift paddles [for
versions/markets, where provided]),
unless an engine lugging or overspeed
condition would result. It will remain
in the selected gear until another up-
shift or downshift is chosen, except as
described below.
 If AutoStick® is engaged while inDRIVE mode, the transmission will
automatically shift up when maxi-
mum engine speed is reached.  If AutoStick® is engaged while in
SPORT mode, the transmission will
remain in the selected gear even
when maximum engine speed is
reached. The transmission will up-
shift only when commanded by the
driver.
 The transmission will automati- cally downshift as the vehicle slows
down (to prevent engine lugging)
and will display the current gear.
 The transmission will automati- cally downshift to first gear when
coming to a stop. After a stop, the
driver should manually upshift (+)
the transmission as the vehicle is
accelerated.
 Heavily pressing the accelerator pedal will generate an automatic
downshift (for improved accelera-
tion) when reasonable.
 You can start out in first or second gear. Tapping (+) (at a stop) will
allow starting in second gear. Start-
ing out in second gear is helpful in
snowy or icy conditions.  The system will ignore attempts to
upshift at too low of a vehicle speed.
 Avoid using speed control when AutoStick® is engaged.
 Transmission shifting will be more crisp/abrupt when AutoStick® is
engaged.
To disengage AutoStick® mode, hold
the shift lever to the right or press and
hold the (+) shift paddle (for
versions/markets, where provided)
until “D” is once again displayed in
the instrument cluster. You can shift
in or out of the AutoStick® mode at
any time without taking your foot off
the accelerator pedal.
WARNING!
Do not downshift for additional en-
gine braking on a slippery surface.
The drive wheels could lose their
grip and the vehicle could skid,
causing a collision or personal in-
jury.
203

ANTI-LOCK BRAKE
SYSTEM
The Anti-Lock Brake System (ABS)
provides increased vehicle stability
and brake performance under most
braking conditions. The system auto-
matically “pumps” the brakes during
severe braking conditions to prevent
wheel lock-up.
The Electronic Brake Force Distribu-
tion (EBD) prevents the rear wheels
from over-braking and provides
greater control of available braking
forces applied to the rear axle.
When the vehicle is driven over
11 km/h, you may also hear a slight
clicking sound as well as some related
motor noises. These noises are the sys-
tem performing its self check cycle to
ensure that the ABS is working prop-
erly. This self check occurs each time
the vehicle is started and accelerated
past 11 km/h.ABS is activated during braking un-
der certain road or stopping condi-
tions. ABS-inducing conditions can
include ice, snow, gravel, bumps, rail-
road tracks, loose debris, or panic
stops.
You also may experience the following
when the brake system goes into Anti-
Lock:
 The ABS motor running (it may
continue to run for a short time
after the stop),
 The clicking sound of solenoid valves,
 Brake pedal pulsations, and
 A slight drop or fall away of the brake pedal at the end of the stop.
These are all normal characteristics of
ABS.
WARNING!
 The ABS contains sophisticated electronic equipment that may be
susceptible to interference caused
by improperly installed or high
output radio transmitting equip-
ment. This interference can cause
possible loss of anti-lock braking
capability. Installation of such
equipment should be performed
by qualified professionals.
 Pumping of the Anti-Lock Brakes
will diminish their effectiveness
and may lead to a collision.
Pumping makes the stopping dis-
tance longer. Just press firmly on
your brake pedal when you need
to slow down or stop.
 The ABS cannot prevent the natu-
ral laws of physics from acting on
the vehicle, nor can it increase
braking or steering efficiency be-
yond that afforded by the condi-
tion of the vehicle brakes and tires
or the traction afforded.
(Continued)
208

WARNING!(Continued)
 The ABS cannot prevent colli-
sions, including those resulting
from excessive speed in turns, fol-
lowing another vehicle too closely,
or hydroplaning.
The capabilities of an ABS
equipped vehicle must never be ex-
ploited in a reckless or dangerous
manner that could jeopardize the
user's safety or the safety of others.
All vehicle wheels and tires must be
the same size and type and tires must
be properly inflated to produce accu-
rate signals for the computer.
ELECTRONIC BRAKE
CONTROL SYSTEM
Your vehicle is equipped with an ad-
vanced electronic brake control sys-
tem that include Anti-Lock Brake
System (ABS), Traction Control Sys-
tem (TCS), Brake Assist System
(BAS), and the Electronic Stability
Control (ESC). All four of these sys-
tems work together to enhance vehicle
stability and control in various driv-
ing conditions. Also, your vehicle is equipped with
Hill Start Assist (HSA), Ready Alert
Braking, and Rain Brake Support.
ANTI-LOCK BRAKE
SYSTEM (ABS)
This system aids the driver in main-
taining vehicle control under adverse
braking conditions by controlling hy-
draulic brake pressure. This prevents
wheel lock-up to help avoid skidding
on slippery surfaces during braking.
Refer to “Anti-Lock Brake System” in
“Starting and Operating” for further
information.
WARNING!
The ABS cannot prevent the natural
laws of physics from acting on the
vehicle, nor can it increase the trac-
tion afforded by prevailing road
conditions. The ABS cannot prevent
collisions, including those resulting
from excessive speed in turns, driv-
ing on very slippery surfaces, or hy-
droplaning. The capabilities of an
ABS-equipped vehicle must never be
exploited in a reckless or dangerous
manner that could jeopardize the us-
er's safety or the safety of others.
TRACTION CONTROL
SYSTEM (TCS)
This system monitors the amount of
wheel spin of each driven wheel. If
wheel spin is detected, brake pressure
is applied to the slipping wheel(s) and
engine power is reduced to provide
enhanced acceleration and stability.
BRAKE ASSIST SYSTEM
(BAS)
This system complements the ABS by
optimizing the vehicle braking
capa-
bility during emergency brake ma-
neuvers. This system detects an emer-
gency braking situation by sensing
the rate and amount of brake applica-
tion and then applies optimum pres-
sure to the brakes. This can help re-
duce braking distances.
Applying the brakes very quickly re-
sults in the best BAS assistance. To
receive the benefits of this system, you
must apply continuous brake pedal
pressure during the stopping se-
quence. Do not reduce brake pedal
pressure unless braking is no longer
desired. Once the brake pedal is re-
leased, the BAS is deactivated.
209

ESC Operating Modes
The ESC system has two available
operating modes:
ESC On
This is the normal operating mode for
the ESC. Whenever the vehicle is
started, the ESC system will be in this
mode. This mode should be used for
most driving conditions. The ESC
should only be turned OFF for spe-
cific reasons as noted in the following
paragraphs.
Partial Off
The “Partial Off” mode is intended
for times when a more spirited driving
experience is desired. It is also in-
tended for driving in deep snow, sand,
or gravel. This mode disables the TCS
portion of the ESC and raises the
threshold for ESC activation, which
allows for more wheel spin than what
ESC normally allows.
The “ESC Off” switch is located on
the switch bank in the center of the
instrument panel. To enter the “Par-tial Off” mode, momentarily press the
“ESC Off” switch and the “ESC
Activation/Malfunction Indicator
Light” will illuminate. To turn the
ESC on again, momentarily press the
“ESC Off” switch and the “ESC
Activation/Malfunction Indicator
Light” will turn off.
NOTE:
 When in “Partial Off” mode, the
TCS functionality of ESC, (ex-
cept for the limited slip feature
described in the TCS section),
has been disabled and the “ESC
Off Indicator Light” will be illu-
minated. All other stability fea-
tures of ESC function normally.
When in “Partial Off” mode, the
engine power reduction feature
of TCS is disabled, and the en-
hanced vehicle stability offered
by the ESC system is reduced.
 To improve the vehicle's traction when driving with snow chains,
or when starting off in deep
snow, sand, or gravel, it may be desirable to switch to the “Par-
tial Off” mode by momentarily
pressing the “ESC Off” switch.
Once the situation requiring
“Partial Off” mode is overcome,
turn the ESC on again by mo-
mentarily pressing the “ESC Off”
switch. This may be done while
the vehicle is in motion.
HILL START ASSIST (HSA)
The HSA system is designed to assist
the driver when starting a vehicle
from a stop on a hill. HSA will main-
tain the level of brake pressure the
driver applied for a short period of
time after the driver takes their foot
off of the brake pedal. If the driver
does not apply the throttle during this
short period of time, the system will
release brake pressure and the vehicle
will roll down the hill. The system will
release brake pressure in proportion
to the amount of throttle applied as
the vehicle starts to move in the in-
tended direction of travel.
211

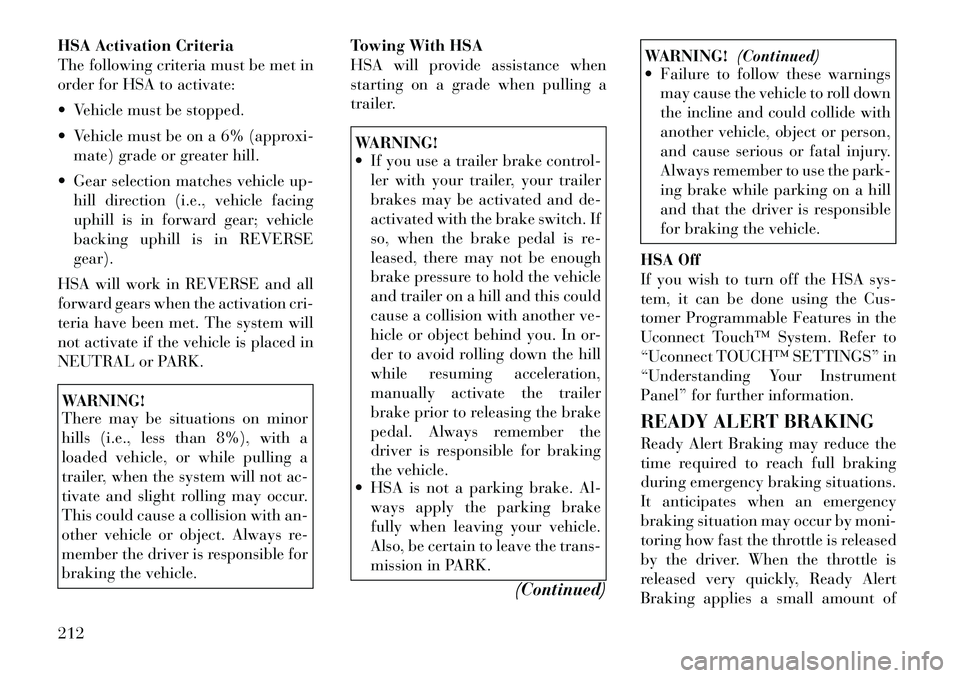

HSA Activation Criteria
The following criteria must be met in
order for HSA to activate:
 Vehicle must be stopped.
 Vehicle must be on a 6% (approxi-mate) grade or greater hill.
 Gear selection matches vehicle up- hill direction (i.e., vehicle facing
uphill is in forward gear; vehicle
backing uphill is in REVERSE
gear).
HSA will work in REVERSE and all
forward gears when the activation cri-
teria have been met. The system will
not activate if the vehicle is placed in
NEUTRAL or PARK.WARNING!
There may be situations on minor
hills (i.e., less than 8%), with a
loaded vehicle, or while pulling a
trailer, when the system will not ac-
tivate and slight rolling may occur.
This could cause a collision with an-
other vehicle or object. Always re-
member the driver is responsible for
braking the vehicle. Towing With HSA
HSA will provide assistance when
starting on a grade when pulling a
trailer.
WARNING!
 If you use a trailer brake control-
ler with your trailer, your trailer
brakes may be activated and de-
activated with the brake switch. If
so, when the brake pedal is re-
leased, there may not be enough
brake pressure to hold the vehicle
and trailer on a hill and this could
cause a collision with another ve-
hicle or object behind you. In or-
der to avoid rolling down the hill
while resuming acceleration,
manually activate the trailer
brake prior to releasing the brake
pedal. Always remember the
driver is responsible for braking
the vehicle.
 HSA is not a parking brake. Al-
ways apply the parking brake
fully when leaving your vehicle.
Also, be certain to leave the trans-
mission in PARK.
(Continued)
WARNING!(Continued)
 Failure to follow these warnings
may cause the vehicle to roll down
the incline and could collide with
another vehicle, object or person,
and cause serious or fatal injury.
Always remember to use the park-
ing brake while parking on a hill
and that the driver is responsible
for braking the vehicle.
HSA Off
If you wish to turn off the HSA sys-
tem, it can be done using the Cus-
tomer Programmable Features in the
Uconnect Touch™ System. Refer to
“Uconnect TOUCH™ SETTINGS” in
“Understanding Your Instrument
Panel” for further information.
READY ALERT BRAKING
Ready Alert Braking may reduce the
time required to reach full braking
during emergency braking situations.
It anticipates when an emergency
braking situation may occur by moni-
toring how fast the throttle is released
by the driver. When the throttle is
released very quickly, Ready Alert
Braking applies a small amount of
212

brake pressure. This brake pressure
will not be noticed by the driver. The
brake system uses this brake pressure
to allow a fast brake response if the
driver applies the brakes.
RAIN BRAKE SUPPORT
Rain Brake Support may improve
braking performance in wet condi-
tions. It will periodically apply a small
amount of brake pressure to remove
any water buildup on the front brake
rotors. It only functions when the
windshield wipers are in the LO or HI
mode, it does not function in the in-
termittent mode. When Rain Brake
Support is active, there is no notifica-
tion to the driver and no driver inter-
action is required.
ESC ACTIVATION/
MALFUNCTION
INDICATOR LIGHT AND
ESC OFF INDICATOR
LIGHTThe “ESC Activation/
Malfunction Indicator
Light” in the instrument
cluster will come on when the ignition switch is turned to the ON
position. It should go out with the
engine running. If the “ESC
Activation/Malfunction Indicator
Light” comes on continuously with
the engine running, a malfunction has
been detected in the ESC system. If
this light remains on after several ig-
nition cycles, and the vehicle has been
driven several kilometers at speeds
greater than 48 km/h, see your autho-
rized dealer as soon as possible to
have the problem diagnosed and cor-
rected.
The “ESC Activation/Malfunction In-
dicator Light” (located in the instru-
ment cluster) starts to flash as soon as
the tires lose traction and the ESC
system becomes active. The “ESC
Activation/Malfunction Indicator
Light” also flashes when TCS is ac-
tive. If the “ESC Activation/
Malfunction Indicator Light” begins
to flash during acceleration, ease up
on the accelerator and apply as little
throttle as possible. Be sure to adapt
your speed and driving to the prevail-
ing road conditions.
NOTE:
 The “ESC Activation/
Malfunction Indicator Light”
and the “ESC OFF Indicator
Light” come on momentarily
each time the ignition switch is
turned ON.
 Each time the ignition is turned ON, the ESC system will be ON
even if it was turned off previ-
ously.
 The ESC system will make buzz- ing or clicking sounds when it is
active. This is normal; the
sounds will stop when ESC be-
comes inactive following the
maneuver that caused the ESC
activation.
The “ESC OFF Indicator
Light” indicates the Elec-
tronic Stability Control
(ESC) is off.
SYNCHRONIZING ESC
If the power supply is inter-
rupted (battery disconnected
or discharged), the “ESC
Activation/Malfunction Indi-
cator Light” may illuminate with the
213

Many of these materials intended for
gum and varnish removal may con-
tain active solvents or similar ingredi-
ents. These can harm fuel system gas-
ket and diaphragm materials.WARNING!
Carbon monoxide (CO) in exhaust
gases is deadly. Follow the precau-
tions below to prevent carbon mon-
oxide poisoning:
 Do not inhale exhaust gases. Theycontain carbon monoxide, a color-
less and odorless gas which can
kill. Never run the engine in a
closed area, such as a garage, and
never sit in a parked vehicle with
the engine running for an ex-
tended period. If the vehicle is
stopped in an open area with the
engine running for more than a
short period, adjust the ventila-
tion system to force fresh, outside
air into the vehicle.
(Continued)
WARNING!(Continued)
 Guard against carbon monoxide
with proper maintenance. Have
the exhaust system inspected ev-
ery time the vehicle is raised.
Have any abnormal conditions re-
paired promptly. Until repaired,
drive with all side windows fully
open.
 Keep the trunk closed when driv-
ing your vehicle to prevent carbon
monoxide and other poisonous ex-
haust gases from entering the ve-
hicle.
FUEL REQUIREMENTS
— DIESEL ENGINES
This vehicle must only use pre-
mium diesel fuel that meets the
requirements of EN 590. Biodiesel
blends that meet EN 590 may also
be used.
CAUTION!
The manufacturer requires that you
must fuel this vehicle with Ultra
Low Sulfur Highway Diesel fuel
(15 ppm Sulfur maximum) and pro-
hibits the use of Low Sulfur High-
way Diesel fuel (500 ppm Sulfur
maximum) to avoid damage to the
emissions control system.WARNING!
Do not use alcohol or gasoline as a
fuel blending agent. They can be
unstable under certain conditions
and hazardous or explosive when
mixed with diesel fuel.Diesel fuel is seldom completely free of
water. To prevent fuel system trouble,
drain the accumulated water from the
fuel/water separator using the fuel/
water separator drain provided. If you
buy good quality fuel and follow the
cold weather advice above, fuel condi-
tioners should not be required in your
vehicle. If available in your area, a high
cetane “premium” diesel fuel may offer
improved cold-starting and warm-up
performance.
225

Proper tire inflation pressures areessential to the safe and satisfac-
tory operation of your vehicle. Re-
fer to “Tires – General Informa-
tion” in “Starting and Operating”
for information on tire pressures
and for proper tire inflation proce-
dures.
Check the trailer tires for proper tire inflation pressures before
trailer usage.
Check for signs of tire wear or vis-
ible tire damage before towing a
trailer. Refer to “Tires – General
Information” in “Starting and Op-
erating” for information on tread
wear indicators and for the proper
inspection procedure.
When replacing tires, refer to “Tires – General Information” in
“Starting and Operating” for infor -
mation on replacement tires and
for the proper tire replacement pro-
cedures. Replacing tires with a
higher load carrying capacity will
not increase the vehicle's GVWR
and GAWR limits. Towing Requirements – Trailer
Brakes
Do
notinterconnect the hydraulic
brake system or vacuum system of
your vehicle with that of the trailer.
This could cause inadequate brak-
ing and possible personal injury.
An electronically actuated trailer brake controller is required when
towing a trailer with electronically
actuated brakes. When towing a
trailer equipped with a hydraulic
surge actuated brake system, an
electronic brake controller is not
required.
Trailer brakes are recommended for trailers over 454 kg and r e-
quired for trailers in excess of
907 kg.
CAUTION!
If the trailer weighs more than
454 kg loaded, it should have its
own brakes, and they should be of
adequate capacity. Failure to do this
could lead to accelerated brake lin-
ing wear, higher brake pedal effort,
and longer stopping distances.
WARNING!
 Do not connect trailer brakes to your vehicle's hydraulic brake
lines. It can overload your brake
system and cause it to fail. You
might not have brakes when you
need them and could have an col-
lision.
 Towing any trailer will increase
your stopping distance. When
towing, you should allow for ad-
ditional space between your ve-
hicle and the vehicle in front of
you. Failure to do so could result
in a collision.
Towing Requirements – Trailer
Lights And Wiring
Whenever you pull a trailer, regard-
less of the trailer size, stoplights and
turn signals on the trailer are required
for motoring safety.
The Trailer Tow Package may include
a 7-pin or a 13-pin wiring harness.
Use a factory approved trailer harness
and connector.
NOTE:
Do not cut or splice wiring into the
vehicles wiring harness. 233
