2012 Lancia Musa technical specifications

FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND SPECIFICATIONS
Use
Engine
lubricants
petrol
Lubricants for
diesel engines
For diesel engines, in the event of an emergency in which the original products are not available, lubricants with at least ACEA C2 per-
formance are acceptable; however, in this case optimum engine performance is not guaranteed and the lubricant should be replaced as
soon as possible at a Lancia Dealership.
The use of products with features lower than ACEA A3 and ACEA C2 could cause engine damage not covered by warranty.Fluid and lubricant features
for correct car operation
Synthetic base lubricants SAE 5W-40 ACEA C3 grade.
Qualification FIAT 9.55535-S2.
Synthetic base lubricants SAE 5W- 30 grade.
Qualification FIAT 9.55535-S1.Genuine fluids and
lubricants
SELENIA K P.E.
Contractual Technical
Reference No. F603.C07
SELENIA WR P.E.
Contractual Technical
Reference No. F510.D07Replacement
procedures
According to
Service Schedule
According to
Service Schedule
202
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS

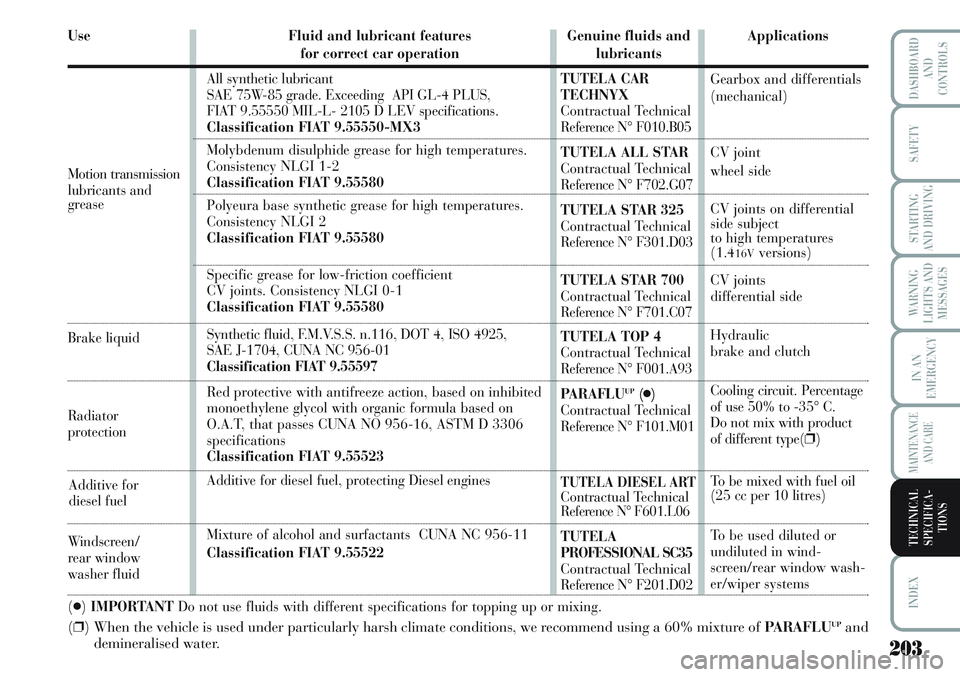

Use
(●)IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(❐) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60% mixture of PARAFLUUPand
demineralised water.
Fluid and lubricant features
for correct car operation
All synthetic lubricant
SAE 75W-85 grade. Exceeding API GL-4 PLUS,
FIAT 9.55550 MIL-L- 2105 D LEV specifications.
Classification FIAT 9.55550-MX3
Molybdenum disulphide grease for high temperatures.
Consistency NLGI 1-2
Classification FIAT 9.55580
Polyeura base synthetic grease for high temperatures.
Consistency NLGI 2
Classification FIAT 9.55580
Specific grease for low-friction coefficient
CV joints. Consistency NLGI 0-1
Classification FIAT 9.55580
Synthetic fluid, F.M.V.S.S. n.116, DOT 4, ISO 4925,
SAE J-1704, CUNA NC 956-01
Classification FIAT 9.55597
Red protective with antifreeze action, based on inhibited
monoethylene glycol with organic formula based on
O.A.T, that passes CUNA NO 956-16, ASTM D 3306
specifications
Classification FIAT 9.55523
Additive for diesel fuel, protecting Diesel engines
Mixture of alcohol and surfactants CUNA NC 956-11
Classification FIAT 9.55522Genuine fluids and
lubricants
TUTELA CAR
TECHNYX
Contractual Technical
Reference N° F010.B05
TUTELA ALL STAR
Contractual Technical
Reference N° F702.G07
TUTELA STAR 325
Contractual Technical
Reference N° F301.D03
TUTELA STAR 700
Contractual Technical
Reference N° F701.C07
TUTELA TOP 4
Contractual Technical
Reference N° F001.A93
PA R A F L U
UP(●)
Contractual Technical
Reference N° F101.M01
TUTELA DIESEL ARTContractual Technical
Reference N° F601.L06
TUTELA
PROFESSIONAL SC35
Contractual Technical
Reference N° F201.D02Applications
Gearbox and differentials
(mechanical)
CV joint
wheel side
CV joints on differential
side subject
to high temperatures
(1.4
16Vversions)
CV joints
differential side
Hydraulic
brake and clutch
Cooling circuit. Percentage
of use 50% to -35° C.
Do not mix with product
of different type
(❐)
To be mixed with fuel oil
(25 cc per 10 litres)
To be used diluted or
undiluted in wind-
screen/rear window wash-
er/wiper systems Motion transmission
lubricants and
grease
Brake liquid
Radiator
protection
Windscreen/
rear window
washer fluid
203
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
Additive for
diesel fuel

The engine of your car is factory filled with Selenia.
Oil change? The experts recommend Selenia
This is an engine oil range which satisfies the most advanced
international specifications. Its superior technical characteristics
allowSelenia to guarantee the highest performance
and protection of your engine.
The Selenia range includes a number of technologically advanced products:
SELENIA K PURE ENERGY
Synthetic lubricant designed for latest generation, low
emission, petrol engines. Its specific formulation warrants
the utmost protection also for high performance
turbocharged engines with high thermal stress.
Its low ash content helps to maintain the total cleanliness
of modern catalysts.
SELENIA WR PURE ENERGY
Fully synthetic lubricant that can meet the requirements of
the latest diesel engines. Low ash content to protect the
particulate filter from the residual products of combustion.
High Fuel Economy System that allows
considerable fuel saving.
It reduces the danger of dirtying the turbine to ensure the
protection of increasingly high performance diesel
enginesSELENIA MULTIPOWER
Particularly ideal for the protection of new generation petrol
engines, very effective even in the most severe weather
conditions. It guarantees a reduction in fuel consumption
(Energy conserving) and it is also ideal for alternative
engines.
SELENIA SPORT
Fully synthetic lubricant capable of meeting the needs of
high performance engines.
Studied to protect the engine also in high thermal stress
conditions, it prevents deposits on the turbine to achieve
the utmost performance in total safety.
The range also includes Selenia StAR Pure Energy, Selenia
Racing, Selenia K, Selenia WR, Selenia 20K, Selenia 20K AR.
For further information on Selenia products visit the web site
www.selenia.com.

212
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
ABS (System) ........................ 85
Accessories purchased by the
owner .................................. 88
Air vents ............................... 48
Ashtray (smoker's kit) .......... 75
Automatic dual-zone climate
system.................................. 52
Battery
. - checking battery charge and
liquid level (electrolyte) ..... 177
- jump starting ..................... 137
- replacement ...................... 178
Bodywork
- maintenance ..................... 182
- version codes .................... 190
Bonnet .................................. 82
Boot ...................................... 80
Boot extension ....................... 80
Brake fluid level .................... 176
Brake lights
- bulb replacement ............. 153Brakes
- fluid level ......................... 176
- handbrake ........................ 116
- technical data ................. 193
Bulb (replacement) ............... 147
Capacities ............................. 201
Car maintenance and care ..... 165
- scheduled maintenance plan 167
Car parked ............................ 116
Car radio
- setup ................................ 87
Carrying children safely ........ 101
Ceiling light ........................... 69
Changing a wheel .................. 142
Checking fluid levels ............. 171
Child lock ............................ 19
Cigar lighter (smoker's kit) .... 75
Clutch ................................... 192
CO
2emissions ....................... 205
Control buttons display .........22-25
Cruise Control ....................... 67Dashboard ........................... 8
Dashboard and controls ........ 7
Dimensions .......................... 198
Dipped beam headlights
- bulb replacement ............. 151
- controls ............................ 62
Direction indicators ............... 63
Direction indicators
- bulb replacement ............. 152
- controls ............................ 63
Dualdrive
(electric power steering) ...... 89
Engine compartment ............. 171
Engine coolant gauge ............ 22
Engine cooling system fluid
level ................................... 174
Engine oil level ..................... 173
Engine oil
- level check ........................ 173
- technical specifications ..... 202
