2012 KIA Soul key

413
Features of your vehicle
Door lock/unlock in an emer-
gency situation
If the smart key does not operate
normally, you can lock or unlock the
doors by using the mechanical key.
1.Press and hold the release button(1) and remove the mechanical key
(2).
2.Insert the key into the hole of the outside door handle. Turn the key
toward the rear of the vehicle to
lock and toward the front of the
vehicle to unlock.
3. To reinstall the mechanical key, put the key into the hole and push
it until a click sound is heard.
Smart key immobilizer system
Your vehicle is equipped with an elec-
tronic engine immobilizer system to
reduce the risk of unauthorized vehi-
cle use.
Your immobilizer system is com-
prised of a small transponder in the
smart key and electronic devices
inside the vehicle.
With the immobilizer system, when-
ever you turn the engine start/stop
button to the ON position by pressing
the button while carrying the smart
key, it checks and determines and
verifies if the smart key is valid or
not.
If the key is determined to be valid,
the engine will start.
If the key is determined to be invalid,
the engine will not start.
To deactivate the immobilizer
system:
Turn the engine start/stop button to
the ON position by pressing the but-
ton while carrying the smart key.
To activate the immobilizer sys-tem:
Turn the engine start/stop button to
the OFF position. The immobilizer
system activates automatically.
Without a valid smart key for your
vehicle, the engine will not start.
OEN040002K

Features of your vehicle
14
4
✽
✽
NOTICE
When starting the engine, do not use
the key with other immobilizer keys
around. Otherwise the engine may
not start or may stop soon after it
starts. Keep each key separate in
order to avoid a starting malfunc-
tion.
If you need additional keys or lose
your keys, consult an authorized Kia
dealer.
Battery replacement
A smart key battery should last for
several years, but if the smart key is
not working properly, try replacing
the battery with a new one. If you are
unsure how to use your smart key or
replace the battery, contact an
authorized Kia dealer.
1. Pry open the rear cover of the
smart key.
2. Replace the battery with a new battery (CR2032). When replacing
the battery, make sure the battery
positive “+” symbol faces down as
indicated in the illustration. 3. Install the battery in the reverse
order of removal.
The smart key is designed to give
you years of trouble-free use, howev-
er it can malfunction if exposed to
moisture or static electricity. If you
are unsure how to use or replace the
battery, contact an authorized Kia
dealer.
OEN040208
CAUTION
Do not put metal accessories near the smart key.
The engine may not startbecause the metal accessoriesmay interrupt the transpondersignal from transmitting normal-ly.

415
Features of your vehicle

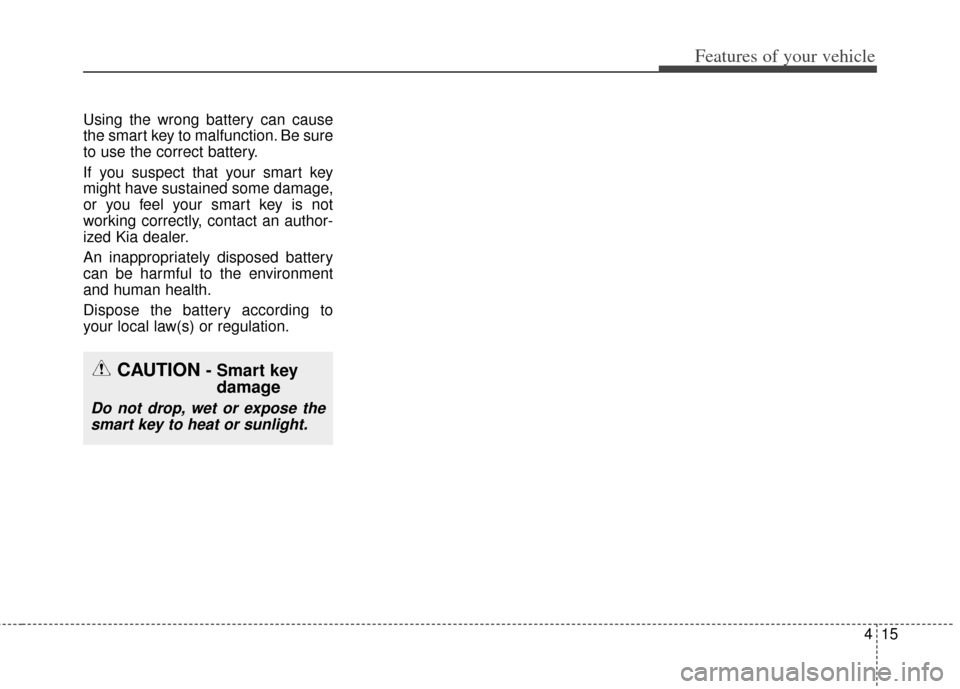

Using the wrong battery can cause
the smart key to malfunction. Be sure
to use the correct battery.
If you suspect that your smart key
might have sustained some damage,
or you feel your smart key is not
working correctly, contact an author-
ized Kia dealer.
An inappropriately disposed battery
can be harmful to the environment
and human health.
Dispose the battery according to
your local law(s) or regulation.
CAUTION - Smart keydamage
Do not drop, wet or expose the
smart key to heat or sunlight.

Features of your vehicle
16
4
Operating door locks from
outside the vehicle
Turn the key toward the front of the
vehicle to unlock and toward the
rear of the vehicle to lock.
If you lock the driver’s door with a key, all vehicle doors will lock auto-
matically. From the driver’s door, turn the key
to the left once to unlock the door
and once more within 4 seconds to
unlock all doors.
Doors can also be locked and unlocked with the transmitter.
Once the doors are unlocked, they may be opened by pulling the door
handle.
When closing the door, push the door by hand. Make sure the doors
are closed securely.
✽ ✽ NOTICE
• In cold and wet climates, door lock
and door mechanisms may not
work properly due to freezing con-
ditions.
• If the door is locked/unlocked multiple times in rapid succession
with either the vehicle key or door
lock switch, the system may stop
operating temporarily in order to
protect the circuit and prevent
damage to system components.
To lock a door without the key,
push the inside door lock button (1)
or central door lock switch (2 ) to
the “Lock” position and close the
door (3).
If you lock the door with the central door lock switch (2), all vehicle
doors will lock automatically.
Always remove the ignition key, firm-
ly engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
DOOR LOCKS
OAM049004
OCM040007
■ Type BOAM049003
■Type A
Unlock
Lock

417
Features of your vehicle
Operating door locks from
inside the vehicle
With the door lock button
To unlock a door, push the doorlock button (1) to the “Unlock” posi-
tion. The red mark (2) on the button
will be visible.
To lock a door, push the door lock button (1) to the “Lock” position. If
the door is locked properly, the red
mark (2) on the door lock button
will not be visible.
To open a door, pull the door han- dle (3) outward. If the inner door handle of the dri-
ver’s or front passenger’s door is
pulled when the door lock button is
in the lock position, the button will
unlock and the door will open.
Front doors cannot be locked if the ignition key is in the ignition switch
and any front door is opened. If a power door lock ever fails to func-
tion while you are in the vehicle, try
one or more of the following tech-
niques to exit:
Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously
pulling on the door handle.
Operate the other door locks and handles, front and rear.
Lower a front window and use the key to unlock the door from out-
side.
Move to the cargo area and open the tailgate.
OAM049005
Lock Unlock

Features of your vehicle
18
4
With central door lock switch
Operate by pressing the central door
lock switch.
When pressing the front portion (1)
of the switch, all vehicle doors will
lock.
When pressing the rear portion (2) of the switch, all vehicle doors will
unlock.
If the key is in the ignition switch and any front door is opened, the
doors will not lock even though the
front portion (1) of the central door
lock switch is pressed.
Door lock/unlock features
Impact sensing door unlock sys-
tem
All doors will be automatically
unlocked when the impact is deliv-
ered to impact sensors while the igni-
tion switch is ON.
However, the doors may not be
unlocked if mechanical problems
occur with the door lock system or
battery.
Speed sensing door lock system (if equipped)
All doors will automatically lock after
the vehicle speed exceeds 15 km/h
(9.3 MPH).
Shift lever door lock/unlock sys-tem (if equipped)
All doors will automatically unlock
when the shift lever is moved into P
(Park).
OAM049006/OAM042007N
Passenger’s doorDriver’s door
WARNING - Doors
The doors should always be
fully closed and locked while
the vehicle is in motion to pre-
vent accidental opening of the
door.
WARNING - Unattended children/
animals
Never leave children or animals
unattended in your vehicle. An
enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended
children or animals who cannot
escape the vehicle.

Features of your vehicle
20
4
Opening the tailgate
The tailgate is locked or unlocked
when all doors are locked or
unlocked with the key or central
door lock switch.
If unlocked, the tailgate can be opened by pressing the handle
switch and then pulling the handle
up. The tailgate swings upward. Make
sure no objects or people are near
the rear of the vehicle when opening
the tailgate.
Closing the tailgate
To close the tailgate, lower and push
down the tailgate firmly. Make sure
that the tailgate is securely latched.
Make sure your hands, feet and
other parts of your body are safely
out of the way before closing the tail-
gate.
TAILGATE
OAM049009
CAUTION - Tailgate lift
cylinders
Make certain that you close the
tailgate before driving yourvehicle. Possible damage mayoccur to the tailgate lift cylin-ders and attached hardware ifthe tailgate is not closed prior todriving.
WARNING - Exhaust fumes
Driving with the tailgate open is
not advisable. Dangerous
exhaust fumes can enter the
passenger compartment.
If you must drive with the tail-
gate opened, keep the air vents
and all windows open so that
additional outside air can enter.
CAUTION - Closing tailgate
Make sure nothing is near the
tailgate latch and striker whileclosing the tailgate. It may dam-age the tailgate's latch.

423
Features of your vehicle
Power windows
The ignition switch must be in the ON
position for power windows to oper-
ate.
Each door has a power window
switch that controls the door's win-
dow. The driver has a power window
lock button which can block the oper-
ation of passenger windows. The
power windows can be operated for
approximately 30 seconds after the
ignition key is removed or turned to
the ACC or LOCK position. However,
if the front doors are opened, the
power windows cannot be operated
even within the 30 second period.
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
✽ ✽NOTICE
While driving with the rear windows
down or with the sunroof (if
equipped) in an open (or partially
open) position, your vehicle may
demonstrate a wind buffeting or
pulsation noise. This noise is a nor-
mal occurrence and can be reduced
or eliminated by taking the follow-
ing actions. If the noise occurs with
one or both of the rear windows
down, partially lower both front
windows approximately one inch. If
you experience the noise with the
sunroof open, slightly reduce the
size of the sunroof opening.
Window opening and closing
The driver’s door has a master power
window switch that controls all the
windows in the vehicle.
To open or close a window, press
down or pull up the front portion of
the corresponding switch to the first
detent position (5).
OAM049013
