Description Fuse rating Protected component
MULTI FUSE B+ 1
50AI/P Junction Box (Power Window Relay, Fuse - P/WDW LH 25A, P/WDW RH 25A, PDM 2 10A,
HAZARD 15A)
INVERTER 50A Oil Pump Invertor
ALT 125AAlternator, Fuse (ABS 2 40A, ABS 1 40A, RR HTD 40A, BLOWER1 40A, MDPS 80A,
A/CON 10A)
ABS 1 40A ESC Module
ABS 2 40A ESC Module
RR HTD 40A I/P Junction Box (Rear Defogger Relay)
BLOWER 1 40A Blower Relay
MDPS 1 80A EPS Control Module
FUSE IG 2
40A Ignition Switch, PDM Relay Box(IG 1 Realy), Start Relay
IG 1 40A Ignition Switch, PDM Relay Box(IG 2 Realy)
ECU 1 30A Engine Control Relay
H/LP 20A H/LP Relay
C/FAN 30A C/Fan HI Relay, C/Fan Low Relay
B+2 50AI/P Junction Box (Tail Lamp Relay, Fuse - TAIL LP LH 10A, TAIL LP RH 10A, SUNROOF 20A,
AMP 25A, DR LOCK 20A, STOP LP 15A, T/GATE OPEN 15A, (FOG LP FRT) 15A,
Power Connector - ROOM LP 10A, MODULE 15A)
F/PUMP 15A F/Pump Relay
PDM 25A PDM, Smart Key Control Module
SEAT HEATER 20A Driver Seat Warmer, Passenger Seat Warmer
ECU 2 15A PCM/ECM
TCU 20A PCM
H/LP HI 20A H/LP HI Relay
HORN 10A Horn Relay

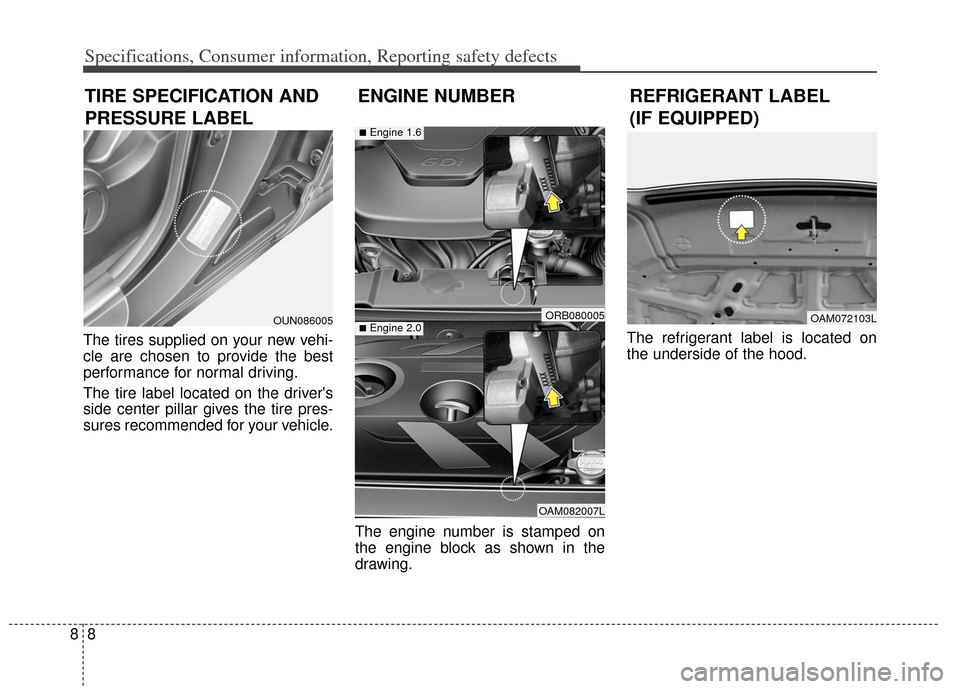

Specifications, Consumer information, Reporting safety defects
88
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.The engine number is stamped on
the engine block as shown in the
drawing.The refrigerant label is located on
the underside of the hood.
ENGINE NUMBER
OUN086005OAM072103L
TIRE SPECIFICATION AND
PRESSURE LABEL
OAM082007L
■Engine 2.0
■Engine 1.6
ORB080005
REFRIGERANT LABEL
(IF EQUIPPED)
