Front passenger air bag status light
Front passenger air bag and status
light
WARNING
The front passenger air bag is designed to
automatically turn OFF under some condi-
tions. Read this section carefully to learn
how it operates. Proper use of the seat, seat
belt and child restraints is necessary for
most effective protection. Failure to follow
all instructions in this manual concerning
the use of seats, seat belts and childrestraints can increase the risk or severity
of injury in an accident.
Status light:
The front passenger air bag status light
is located above the ashtray. After the
ignition switch is placed in the ON posi-
tion, the front passenger air bag status
light on the instrument panel illuminates
for about 7 seconds and then turns off or
operates depending on the front passenger
occupied status. The light operates as
follows:
. Unoccupied passenger seat: The
is
OFF and the front passenger air bag is
OFF and will not inflate in a crash.
. Passenger seat occupied by a small
adult, child or child restraint as out-
lined in this section: The
illumi-
nates to indicate that the front
passenger air bag is OFF and will not
inflate in a crash.
. Occupied passenger seat and the pas-
senger meets the conditions outlined in
this section: The light
is OFF to
indicate that the front passenger air
bag is operational. Front passenger air bag:
The front passenger air bag is designed to
automatically turn OFF when the vehicle is
operated under some conditions as de-
scribed below as permitted by U.S. regula-
tions. If the front passenger air bag is OFF,
it will not inflate in a crash. The driver air
bag and other air bags in your vehicle are
not part of this system.
The purpose of the regulation is to help
reduce the risk of injury or death from an
inflating air bag to certain front passenger
seat occupants, such as children, by
requiring the air bag to be automatically
turned OFF.
The occupant classification sensor (pattern
sensor) is in the front passenger seat
cushion and is designed to detect an
occupant and objects on the seat. For
example, if a child is in the front passenger
seat, the Advanced Air Bag System is
designed to turn the passenger air bag
OFF in accordance with the regulations.
Also, if a child restraint of the type
specified in the regulations is on the seat,
the occupant classification sensor can
detect it and cause the air bag to turn OFF.
Front passenger seat adult occupants who
are properly seated and using the seat belt
Safety
—Seats, seat belts and supplemental restraint system1-45
SSS1085
Front passenger air bag status light
Front passenger air bag and status
light
WARNING
The front passenger air bag is designed to
automatically turn OFF under some condi-
tions. Read this section carefully to learn
how it operates. Proper use of the seat, seat
belt and child restraints is necessary for
most effective protection. Failure to follow
all instructions in this manual concerning
the use of seats, seat belts and child restraints can increase the risk or severity
of injury in an accident.
Status light:
The front passenger air bag status light
is located above the ashtray. After the
ignition switch is placed in the ON posi-
tion, the front passenger air bag status
light on the instrument panel illuminates
for about 7 seconds and then turns off or
operates depending on the front passenger
occupied status. The light operates as
follows:
. Unoccupied passenger seat: The
is
OFF and the front passenger air bag is
OFF and will not inflate in a crash.
. Passenger seat occupied by a small
adult, child or child restraint as out-
lined in this section: The
illumi-
nates to indicate that the front
passenger air bag is OFF and will not
inflate in a crash.
. Occupied passenger seat and the pas-
senger meets the conditions outlined in
this section: The light
is OFF to
indicate that the front passenger air
bag is operational. Front passenger air bag:
The front passenger air bag is designed to
automatically turn OFF when the vehicle is
operated under some conditions as de-
scribed below as permitted by U.S. regula-
tions. If the front passenger air bag is OFF,
it will not inflate in a crash. The driver air
bag and other air bags in your vehicle are
not part of this system.
The purpose of the regulation is to help
reduce the risk of injury or death from an
inflating air bag to certain front passenger
seat occupants, such as children, by
requiring the air bag to be automatically
turned OFF.
The occupant classification sensor (pattern
sensor) is in the front passenger seat
cushion and is designed to detect an
occupant and objects on the seat. For
example, if a child is in the front passenger
seat, the Advanced Air Bag System is
designed to turn the passenger air bag
OFF in accordance with the regulations.
Also, if a child restraint of the type
specified in the regulations is on the seat,
the occupant classification sensor can
detect it and cause the air bag to turn OFF.
Front passenger seat adult occupants who
are properly seated and using the seat belt
Safety
—Seats, seat belts and supplemental restraint system1-45

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 40 A
If a malfunction occurs in the front
passenger air bag system, the supplemen-
tal air bag warning light
, located in the
meter and gauges area will blink. Have the
system checked by an INFINITI retailer.
Other supplemental front-impact
air bag precautions
WARNING
. Do not place any objects on the steering
wheel pad or on the instrument panel.
Also, do not place any objects between
any occupant and the steering wheel or
instrument panel. Such objects may
become dangerous projectiles and cause
injury if the front air bags inflate.
. Do not place objects with sharp edges
on the seat. Also, do not place heavy
objects on the seat that will leave
permanent impressions in the seat. Such
objects can damage the seat or occupant
classification sensor (pattern sensor).
This can affect the operation of the air
bag system and result in serious perso-
nal injury.
. Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can damage the seat or occupant classifica-
tion sensor. This can also affect the
operation of the air bag system and
result in serious personal injury.
. Immediately after inflation, several front
air bag system components will be hot.
Do not touch them; you may severely
burn yourself.
. No unauthorized changes should be
made to any components or wiring of
the air bag system. This is to prevent
accidental inflation of the supplemental
air bag or damage to the supplemental
air bag system.
. Do not make unauthorized changes to
your vehicle ’s electrical system, suspen-
sion system or front end structure. This
could affect proper operation of the front
air bag system.
. Tampering with the air bag system may
result in serious personal injury. Tamper-
ing includes changes to the steering
wheel and the instrument panel assem-
bly by placing material over the steering
wheel pad and above the instrument
panel or by installing additional trim
material around the air bag system. .
Modifying or tampering with the front
passenger seat may result in serious
personal injury. For example, do not
change the front seats by placing
material on the seat cushion or by
installing additional trim material, such
as seat covers, on the seat that is not
specifically designed to assure proper
air bag operation. Additionally, do not
stow any objects under the front pas-
senger seat or the seat cushion and
seatback. Such objects may interfere
with the proper operation of the occu-
pant classification sensor.
. No unauthorized changes should be
made to any components or wiring of
the seat belt system. This may affect the
front air bag system. Tampering with the
seat belt system may result in serious
personal injury.
. Work on and around the front air bag
system should be done by an INFINITI
retailer. Installation of electrical equip-
ment should also be done by an INFINITI
retailer. The Supplemental Restraint
System (SRS) wiring harnesses* should
not be modified or disconnected. Un-
authorized electrical test equipment and
probing devices should not be used on
Safety —Seats, seat belts and supplemental restraint system1-47
If a malfunction occurs in the front
passenger air bag system, the supplemen-
tal air bag warning light
, located in the
meter and gauges area will blink. Have the
system checked by an INFINITI retailer.
Other supplemental front-impact
air bag precautions
WARNING
. Do not place any objects on the steering
wheel pad or on the instrument panel.
Also, do not place any objects between
any occupant and the steering wheel or
instrument panel. Such objects may
become dangerous projectiles and cause
injury if the front air bags inflate.
. Do not place objects with sharp edges
on the seat. Also, do not place heavy
objects on the seat that will leave
permanent impressions in the seat. Such
objects can damage the seat or occupant
classification sensor (pattern sensor).
This can affect the operation of the air
bag system and result in serious perso-
nal injury.
. Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can damage the seat or occupant classifica-
tion sensor. This can also affect the
operation of the air bag system and
result in serious personal injury.
. Immediately after inflation, several front
air bag system components will be hot.
Do not touch them; you may severely
burn yourself.
. No unauthorized changes should be
made to any components or wiring of
the air bag system. This is to prevent
accidental inflation of the supplemental
air bag or damage to the supplemental
air bag system.
. Do not make unauthorized changes to
your vehicle ’s electrical system, suspen-
sion system or front end structure. This
could affect proper operation of the front
air bag system.
. Tampering with the air bag system may
result in serious personal injury. Tamper-
ing includes changes to the steering
wheel and the instrument panel assem-
bly by placing material over the steering
wheel pad and above the instrument
panel or by installing additional trim
material around the air bag system. .
Modifying or tampering with the front
passenger seat may result in serious
personal injury. For example, do not
change the front seats by placing
material on the seat cushion or by
installing additional trim material, such
as seat covers, on the seat that is not
specifically designed to assure proper
air bag operation. Additionally, do not
stow any objects under the front pas-
senger seat or the seat cushion and
seatback. Such objects may interfere
with the proper operation of the occu-
pant classification sensor.
. No unauthorized changes should be
made to any components or wiring of
the seat belt system. This may affect the
front air bag system. Tampering with the
seat belt system may result in serious
personal injury.
. Work on and around the front air bag
system should be done by an INFINITI
retailer. Installation of electrical equip-
ment should also be done by an INFINITI
retailer. The Supplemental Restraint
System (SRS) wiring harnesses* should
not be modified or disconnected. Un-
authorized electrical test equipment and
probing devices should not be used on
Safety —Seats, seat belts and supplemental restraint system1-47

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 41 A
and curtain air bags may cause abrasions
or other injuries. Side air bags and curtain
air bags do not provide restraint to the
lower body.
The seat belts should be correctly worn
and the driver and passenger seated
upright as far as practical away from the
side air bag. Rear seat passengers should
be seated as far away as practical from the
door finishers and side roof rails. The side
air bags and curtain air bags inflate quickly
in order to help protect the occupants.
Because of this, the force of the side air
bags and curtain air bags inflating can
increase the risk of injury if the occupant is
too close to, or is against, these air bag
modules during inflation. The side air bags
and curtain air bags will deflate quickly
after the collision is over.
The side air bags and curtain air bags
operate only when the ignition switch is in
the ON position.
After pushing the ignition switch to the ON
position, the supplemental air bag warn-
ing light illuminates. The air bag warning
light will turn off after about 7 seconds if
the systems are operational.
WARNING
.Do not place any objects near the
seatback of the front seats. Also, do
not place any objects (an umbrella, bag,
etc.) between the front door finisher and
the front seat. Such objects may become
dangerous projectiles and cause injury if
side air bag inflates.
. Right after inflation, several side air
bags and curtain air bag system compo-
nents will be hot. Do not touch them;
you may severely burn yourself.
. No unauthorized changes should be
made to any components or wiring of
side air bag and curtain air bags. This is
to prevent damage to or accidental
inflation of the side air bag and curtain
air bag systems.
. Do not make unauthorized changes to
your vehicle ’s electrical system, suspen-
sion system or side panel. This could
affect proper operation of the side air
bag and curtain air bag systems.
. Tampering with the air bag system may
result in serious personal injury. For
example, do not change the front seats
by placing material near the seatback or by installing additional trim material,
such as seat covers, around the side air
bags.
. Work around and on the side air bag and
curtain air bag systems should be done
by an INFINITI retailer. Installation of
electrical equipment should also be
done by an INFINITI retailer. The Supple-
mental Restraint System (SRS) wiring
harnesses* should not be modified or
disconnected. Unauthorized electrical
test equipment and probing devices
should not be used on the side-impact
air bag system.
* The SRS wiring harness connectors
are yellow and orange for easy
identification.
When selling your vehicle, we request that
you inform the buyer about the side air bag
and curtain air bag systems and guide the
buyer to the appropriate sections in this
Owner ’s Manual.
Safety —Seats, seat belts and supplemental restraint system1-49
and curtain air bags may cause abrasions
or other injuries. Side air bags and curtain
air bags do not provide restraint to the
lower body.
The seat belts should be correctly worn
and the driver and passenger seated
upright as far as practical away from the
side air bag. Rear seat passengers should
be seated as far away as practical from the
door finishers and side roof rails. The side
air bags and curtain air bags inflate quickly
in order to help protect the occupants.
Because of this, the force of the side air
bags and curtain air bags inflating can
increase the risk of injury if the occupant is
too close to, or is against, these air bag
modules during inflation. The side air bags
and curtain air bags will deflate quickly
after the collision is over.
The side air bags and curtain air bags
operate only when the ignition switch is in
the ON position.
After pushing the ignition switch to the ON
position, the supplemental air bag warn-
ing light illuminates. The air bag warning
light will turn off after about 7 seconds if
the systems are operational.
WARNING
. Do not place any objects near the
seatback of the front seats. Also, do
not place any objects (an umbrella, bag,
etc.) between the front door finisher and
the front seat. Such objects may become
dangerous projectiles and cause injury if
side air bag inflates.
. Right after inflation, several side air
bags and curtain air bag system compo-
nents will be hot. Do not touch them;
you may severely burn yourself.
. No unauthorized changes should be
made to any components or wiring of
side air bag and curtain air bags. This is
to prevent damage to or accidental
inflation of the side air bag and curtain
air bag systems.
. Do not make unauthorized changes to
your vehicle ’s electrical system, suspen-
sion system or side panel. This could
affect proper operation of the side air
bag and curtain air bag systems.
. Tampering with the air bag system may
result in serious personal injury. For
example, do not change the front seats
by placing material near the seatback or by installing additional trim material,
such as seat covers, around the side air
bags.
. Work around and on the side air bag and
curtain air bag systems should be done
by an INFINITI retailer. Installation of
electrical equipment should also be
done by an INFINITI retailer. The Supple-
mental Restraint System (SRS) wiring
harnesses* should not be modified or
disconnected. Unauthorized electrical
test equipment and probing devices
should not be used on the side-impact
air bag system.
* The SRS wiring harness connectors
are yellow and orange for easy
identification.
When selling your vehicle, we request that
you inform the buyer about the side air bag
and curtain air bag systems and guide the
buyer to the appropriate sections in this
Owner ’s Manual.
Safety —Seats, seat belts and supplemental restraint system1-49

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 41 B

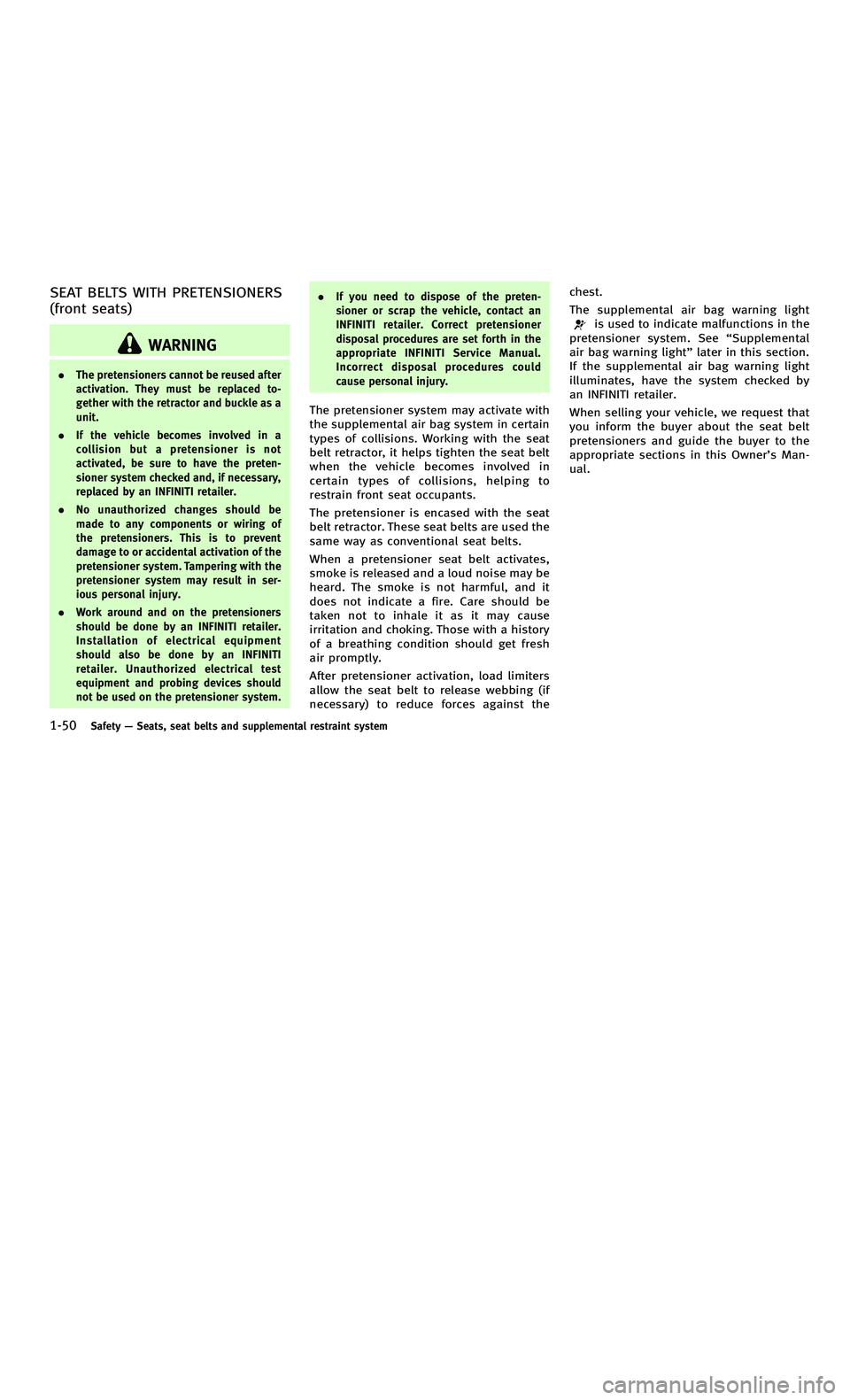

1-50Safety—Seats, seat belts and supplemental restraint system
SEAT BELTS WITH PRETENSIONERS
(front seats)
WARNING
. The pretensioners cannot be reused after
activation. They must be replaced to-
gether with the retractor and buckle as a
unit.
. If the vehicle becomes involved in a
collision but a pretensioner is not
activated, be sure to have the preten-
sioner system checked and, if necessary,
replaced by an INFINITI retailer.
. No unauthorized changes should be
made to any components or wiring of
the pretensioners. This is to prevent
damage to or accidental activation of the
pretensioner system. Tampering with the
pretensioner system may result in ser-
ious personal injury.
. Work around and on the pretensioners
should be done by an INFINITI retailer.
Installation of electrical equipment
should also be done by an INFINITI
retailer. Unauthorized electrical test
equipment and probing devices should
not be used on the pretensioner system. .
If you need to dispose of the preten-
sioner or scrap the vehicle, contact an
INFINITI retailer. Correct pretensioner
disposal procedures are set forth in the
appropriate INFINITI Service Manual.
Incorrect disposal procedures could
cause personal injury.
The pretensioner system may activate with
the supplemental air bag system in certain
types of collisions. Working with the seat
belt retractor, it helps tighten the seat belt
when the vehicle becomes involved in
certain types of collisions, helping to
restrain front seat occupants.
The pretensioner is encased with the seat
belt retractor. These seat belts are used the
same way as conventional seat belts.
When a pretensioner seat belt activates,
smoke is released and a loud noise may be
heard. The smoke is not harmful, and it
does not indicate a fire. Care should be
taken not to inhale it as it may cause
irritation and choking. Those with a history
of a breathing condition should get fresh
air promptly.
After pretensioner activation, load limiters
allow the seat belt to release webbing (if
necessary) to reduce forces against the chest.
The supplemental air bag warning light
is used to indicate malfunctions in the
pretensioner system. See “Supplemental
air bag warning light ”later in this section.
If the supplemental air bag warning light
illuminates, have the system checked by
an INFINITI retailer.
When selling your vehicle, we request that
you inform the buyer about the seat belt
pretensioners and guide the buyer to the
appropriate sections in this Owner ’s Man-
ual.
1-50Safety —Seats, seat belts and supplemental restraint system
SEAT BELTS WITH PRETENSIONERS
(front seats)
WARNING
. The pretensioners cannot be reused after
activation. They must be replaced to-
gether with the retractor and buckle as a
unit.
. If the vehicle becomes involved in a
collision but a pretensioner is not
activated, be sure to have the preten-
sioner system checked and, if necessary,
replaced by an INFINITI retailer.
. No unauthorized changes should be
made to any components or wiring of
the pretensioners. This is to prevent
damage to or accidental activation of the
pretensioner system. Tampering with the
pretensioner system may result in ser-
ious personal injury.
. Work around and on the pretensioners
should be done by an INFINITI retailer.
Installation of electrical equipment
should also be done by an INFINITI
retailer. Unauthorized electrical test
equipment and probing devices should
not be used on the pretensioner system. .
If you need to dispose of the preten-
sioner or scrap the vehicle, contact an
INFINITI retailer. Correct pretensioner
disposal procedures are set forth in the
appropriate INFINITI Service Manual.
Incorrect disposal procedures could
cause personal injury.
The pretensioner system may activate with
the supplemental air bag system in certain
types of collisions. Working with the seat
belt retractor, it helps tighten the seat belt
when the vehicle becomes involved in
certain types of collisions, helping to
restrain front seat occupants.
The pretensioner is encased with the seat
belt retractor. These seat belts are used the
same way as conventional seat belts.
When a pretensioner seat belt activates,
smoke is released and a loud noise may be
heard. The smoke is not harmful, and it
does not indicate a fire. Care should be
taken not to inhale it as it may cause
irritation and choking. Those with a history
of a breathing condition should get fresh
air promptly.
After pretensioner activation, load limiters
allow the seat belt to release webbing (if
necessary) to reduce forces against the chest.
The supplemental air bag warning light
is used to indicate malfunctions in the
pretensioner system. See “Supplemental
air bag warning light ”later in this section.
If the supplemental air bag warning light
illuminates, have the system checked by
an INFINITI retailer.
When selling your vehicle, we request that
you inform the buyer about the seat belt
pretensioners and guide the buyer to the
appropriate sections in this Owner ’s Man-
ual.

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 42 A
SSS1016
SUPPLEMENTAL AIR BAG WARNING
LABELS
Warning labels about the supplemental
front-impact air bag systems are placed in
the vehicle as shown in the illustration.
SRS air bag
The warning labels*1are located on the
surface of the sun visors.
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel,
monitors the circuits for the air bag
systems, pretensioners and all related
wiring.
When the ignition switch is in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the SRS air bag
systems are operational.
If any of the following conditions occur, the
air bags and/or pretensioner systems need servicing:
.
The supplemental air bag warning light
remains on approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light
does not come on at all.
Under these conditions, the air bags and/
or pretensioner systems may not operate
properly. They must be checked and
repaired. Take your vehicle to the nearest
INFINITI retailer.
WARNING
If the supplemental air bag warning light is
on, it could mean that the air bags and/or
pretensioner systems will not operate in an
accident. To help avoid injury to yourself or
others, have your vehicle checked by an
INFINITI retailer as soon as possible.
Safety —Seats, seat belts and supplemental restraint system1-51
SSS1016
SUPPLEMENTAL AIR BAG WARNING
LABELS
Warning labels about the supplemental
front-impact air bag systems are placed in
the vehicle as shown in the illustration.
SRS air bag
The warning labels*1are located on the
surface of the sun visors.
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel,
monitors the circuits for the air bag
systems, pretensioners and all related
wiring.
When the ignition switch is in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the SRS air bag
systems are operational.
If any of the following conditions occur, the
air bags and/or pretensioner systems need servicing:
.
The supplemental air bag warning light
remains on approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light
does not come on at all.
Under these conditions, the air bags and/
or pretensioner systems may not operate
properly. They must be checked and
repaired. Take your vehicle to the nearest
INFINITI retailer.
WARNING
If the supplemental air bag warning light is
on, it could mean that the air bags and/or
pretensioner systems will not operate in an
accident. To help avoid injury to yourself or
others, have your vehicle checked by an
INFINITI retailer as soon as possible.
Safety —Seats, seat belts and supplemental restraint system1-51

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 42 B
1-52Safety—Seats, seat belts and supplemental restraint system
REPAIR AND REPLACEMENT PROCE-
DURE
The front air bags, side air bags, curtain air
bags and pretensioners are designed to
activate on a one-time-only basis. As a
reminder, unless it is damaged, the sup-
plemental air bag warning light will remain
illuminated after inflation has occurred.
Repair and replacement of these systems
should be done only by an INFINITI retailer.
When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, pretensioners and related
parts should be pointed out to the person
conducting the maintenance. The ignition
switch should always be in the LOCK
position when working under the hood or
inside the vehicle.
WARNING
. Once a front air bag, side air bag, or
curtain air bag has inflated, the air bag
module will not function again and must
be replaced. Additionally, the activated
pretensioner must also be replaced. The
air bag module and pretensioner should
be replaced by an INFINITI retailer. The air bag module and pretensioner system
cannot be repaired.
. The front air bag, side air bag, curtain air
bag and the pretensioner system should
be inspected by an INFINITI retailer if
there is any damage to the front end or
side portion of the vehicle.
. If you need to dispose of the supple-
mental air bag or pretensioner or scrap
the vehicle, contact an INFINITI retailer.
Correct supplemental air bag and seat
belt pretensioner system disposal pro-
cedures are set forth in the appropriate
INFINITI Service Manual. Incorrect dis-
posal procedures could cause personal
injury.
1-52Safety —Seats, seat belts and supplemental restraint system
REPAIR AND REPLACEMENT PROCE-
DURE
The front air bags, side air bags, curtain air
bags and pretensioners are designed to
activate on a one-time-only basis. As a
reminder, unless it is damaged, the sup-
plemental air bag warning light will remain
illuminated after inflation has occurred.
Repair and replacement of these systems
should be done only by an INFINITI retailer.
When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, pretensioners and related
parts should be pointed out to the person
conducting the maintenance. The ignition
switch should always be in the LOCK
position when working under the hood or
inside the vehicle.
WARNING
. Once a front air bag, side air bag, or
curtain air bag has inflated, the air bag
module will not function again and must
be replaced. Additionally, the activated
pretensioner must also be replaced. The
air bag module and pretensioner should
be replaced by an INFINITI retailer. The air bag module and pretensioner system
cannot be repaired.
. The front air bag, side air bag, curtain air
bag and the pretensioner system should
be inspected by an INFINITI retailer if
there is any damage to the front end or
side portion of the vehicle.
. If you need to dispose of the supple-
mental air bag or pretensioner or scrap
the vehicle, contact an INFINITI retailer.
Correct supplemental air bag and seat
belt pretensioner system disposal pro-
cedures are set forth in the appropriate
INFINITI Service Manual. Incorrect dis-
posal procedures could cause personal
injury.

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 43 A
2 Instruments and controls
Cockpit ................................................................ 2-3
Instrument panel ................................................. 2-5
Meters and gauges .............................................. 2-6Speedometer and odometer ............................ 2-6
Tachometer...................................................... 2-7
Assist charge gauge ........................................ 2-8
Fuel gauge ...................................................... 2-8
Warning/indicator lights and audible reminders.... 2-9 Checking bulbs.............................................. 2-10
Warning lights ............................................... 2-10
Indicator lights .............................................. 2-16
Audible reminders ......................................... 2-19
Dot matrix liquid crystal display ........................ 2-20
Operational indicators ................................... 2-22
Maintenance indicators ................................. 2-25
Trip computer ................................................ 2-27
Security systems ............................................... 2-31 Vehicle Security System ................................ 2-31
INFINITI Vehicle Immobilizer System .............. 2-33
Windshield wiper and washer switch ................. 2-34
Rain-sensing auto wiper system .................... 2-35
Rear window and outside mirror
defroster switch................................................. 2-36
Headlight and turn signal switch ....................... 2-36 Xenon headlights .......................................... 2-36 Headlight switch .......................................... 2-37
Turn signal switch........................................ 2-41
Fog light switch ........................................... 2-42
Hazard warning flasher switch .......................... 2-42
Heated steering wheel (if so equipped) ............. 2-43
Horn ................................................................. 2-43
Heated seats (if so equipped) ........................... 2-44
Climate controlled seats (if so equipped) .......... 2-45
Warning systems switch (if so equipped) .......... 2-46
Intelligent Brake Assist (IBA) OFF switch (if
so equipped)..................................................... 2-47
Vehicle Dynamic Control (VDC) OFF switch ......... 2-47
Clock................................................................. 2-48 Adjusting the time ....................................... 2-48
Power outlet ..................................................... 2-49
Cigarette lighter and ashtrays ........................... 2-49
Front............................................................ 2-49
Rear............................................................. 2-50
Storage ............................................................. 2-50 Cup holders ................................................. 2-50
Sunglasses holder ...................................... 2-51
Glove box .................................................... 2-52
Console box................................................. 2-53
Card holder.................................................. 2-53
Rear pocket ................................................. 2-54
2 Instruments and controls
Cockpit ................................................................ 2-3
Instrument panel ................................................. 2-5
Meters and gauges .............................................. 2-6
Speedometer and odometer ............................ 2-6
Tachometer...................................................... 2-7
Assist charge gauge ........................................ 2-8
Fuel gauge ...................................................... 2-8
Warning/indicator lights and audible reminders.... 2-9 Checking bulbs.............................................. 2-10
Warning lights ............................................... 2-10
Indicator lights .............................................. 2-16
Audible reminders ......................................... 2-19
Dot matrix liquid crystal display ........................ 2-20
Operational indicators ................................... 2-22
Maintenance indicators ................................. 2-25
Trip computer ................................................ 2-27
Security systems ............................................... 2-31 Vehicle Security System ................................ 2-31
INFINITI Vehicle Immobilizer System .............. 2-33
Windshield wiper and washer switch ................. 2-34
Rain-sensing auto wiper system .................... 2-35
Rear window and outside mirror
defroster switch................................................. 2-36
Headlight and turn signal switch ....................... 2-36 Xenon headlights .......................................... 2-36 Headlight switch .......................................... 2-37
Turn signal switch........................................ 2-41
Fog light switch ........................................... 2-42
Hazard warning flasher switch .......................... 2-42
Heated steering wheel (if so equipped) ............. 2-43
Horn ................................................................. 2-43
Heated seats (if so equipped) ........................... 2-44
Climate controlled seats (if so equipped) .......... 2-45
Warning systems switch (if so equipped) .......... 2-46
Intelligent Brake Assist (IBA) OFF switch (if
so equipped)..................................................... 2-47
Vehicle Dynamic Control (VDC) OFF switch ......... 2-47
Clock................................................................. 2-48 Adjusting the time ....................................... 2-48
Power outlet ..................................................... 2-49
Cigarette lighter and ashtrays ........................... 2-49
Front............................................................ 2-49
Rear............................................................. 2-50
Storage ............................................................. 2-50 Cup holders ................................................. 2-50
Sunglasses holder ...................................... 2-51
Glove box .................................................... 2-52
Console box................................................. 2-53
Card holder.................................................. 2-53
Rear pocket ................................................. 2-54

858763.psp Nissan Infiniti OM OM2E HY51U0 Hybrid 1" gutter 12/21/2010 14\
:36:44 44 A
SSI0689
1. Instrument brightness control switch(P.2-41)
2. AFS switch (if so equipped) (P.2-39)
3. Headlight, fog light and turn signal switch (P.2-36)
4. Trip computer switch (P.2-27) 5. TRIP/RESET switch for twin trip od-
ometer (P.2-7)
6. Windshield wiper and washer switch (P.2-34)
7. Vehicle Dynamic Control (VDC) OFF switch (P.5-95) 8. Rear sunshade switch (if so equipped)
(P.2-59)
9. Steering heater switch (if so equipped) (P.2-43)
10. Trunk lid release switch (P.3-19)
11. Warning systems switch (if so equipped) (P.5-20, P.5-30, P.5-80)
12. Intelligent Brake Assist (IBA) OFF switch (if so equipped) (P.5-84)
13. Electric tilting/telescopic steering wheel lever (P.3-23)
14. Steering-wheel-mounted controls (left side)
—Menu control switch (models with
navigation system)/Audio tuning
switch (models without navigation
system) (P.4-86)
— BACK switch (models with naviga-
tion system) (P.4-86)
— TALK switch (if so equipped)
(P.4-113)/Phone switch (if so
equipped) (P.4-89)
— Volume control switch (P.4-86)
— Audio source switch (P.4-48)
15. Steering wheel —Horn (P.2-43)
— Driver supplemental air bag
(P.1-38)
Instruments and controls2-3
COCKPIT
SSI0689
1. Instrument brightness control switch
(P.2-41)
2. AFS switch (if so equipped) (P.2-39)
3. Headlight, fog light and turn signal switch (P.2-36)
4. Trip computer switch (P.2-27) 5. TRIP/RESET switch for twin trip od-
ometer (P.2-7)
6. Windshield wiper and washer switch (P.2-34)
7. Vehicle Dynamic Control (VDC) OFF switch (P.5-95) 8. Rear sunshade switch (if so equipped)
(P.2-59)
9. Steering heater switch (if so equipped) (P.2-43)
10. Trunk lid release switch (P.3-19)
11. Warning systems switch (if so equipped) (P.5-20, P.5-30, P.5-80)
12. Intelligent Brake Assist (IBA) OFF switch (if so equipped) (P.5-84)
13. Electric tilting/telescopic steering wheel lever (P.3-23)
14. Steering-wheel-mounted controls (left side)
—Menu control switch (models with
navigation system)/Audio tuning
switch (models without navigation
system) (P.4-86)
— BACK switch (models with naviga-
tion system) (P.4-86)
— TALK switch (if so equipped)
(P.4-113)/Phone switch (if so
equipped) (P.4-89)
— Volume control switch (P.4-86)
— Audio source switch (P.4-48)
15. Steering wheel —Horn (P.2-43)
— Driver supplemental air bag
(P.1-38)
Instruments and controls2-3
COCKPIT
