2012 INFINITI G-COUPE Owners Manual

2-42Instruments and controls
JVS0022X
The vehicle should be driven with the
Vehicle Dynamic Control (VDC) system on
for most driving conditions.
If the vehicle is stuck in mud or snow, the
VDC system reduces the engine output to
reduce wheel spin. The engine speed will
be reduced even if the accelerator is
depressed to the floor. If maximum engine
power is needed to free a stuck vehicle,
turn the VDC system off.
To turn off the VDC system, push the VDC
OFF switch. The
indicator will illumi-
nate.
Push the VDC OFF switch again or restart
the engine to turn on the system. (See “Vehicle Dynamic Control (VDC) system”
(P.5-55).)
SIC3325
If the power supply is disconnected, the
clock will not indicate the correct time.
Readjust the time.
ADJUSTING THE TIME
1. To set the clock forward, push the
button
*1.
2. To set the clock backward, push the button
*2.
3. To move forward or backward faster, push and hold the button more than 5
seconds.
For details about display clock adjustment
(if so equipped), see “How to use SETTING
button” (P.4-14).
VEHICLE DYNAMIC CONTROL (VDC) OFF
SWITCH CLOCK

JVI0329X
Automatic transmission models
SIC4684
Manual transmission models
SIC4316
Automatic transmission models
The power outlet is located in the center
console and storage box (if so equipped).
CAUTION
. The outlet and plug may be hot during or
immediately after use.
. Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw. Do
not use double adapters or more than
one electrical accessory.
. Use power outlet with the engine run-
ning to avoid discharging the vehicle
battery. .
Avoid using power outlet when the air
conditioner, headlights or rear window
defroster is on.
. This power outlet is not designed for use
with a cigarette lighter unit.
. Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may blow.
. Before inserting or disconnecting a plug,
be sure the electrical accessory being
used is turned OFF.
. When not in use, be sure to close the
cap. Do not allow water to contact the
outlet.
Instruments and controls2-43
POWER OUTLET

2-44Instruments and controls
SIC3219
FRONT
To open the ashtray lid, push the lid down
and release it
*1.
To empty the ashtray, pull out
*2.
The cigarette lighter operates when the
ignition switch is in the ON position.
Push the lighter in all the way
*3, then
release it. When the lighter is heated, it will
spring out. Return the lighter to its original
position after use.
CAUTION
. The cigarette lighter socket is a power
source for the cigarette lighter element
only. The use of the cigarette lighter
socket as a power source for any other
accessory is not recommended.
. Do not use any other power outlet for an
accessory lighter.
SIC2570
Manual transmission models
REAR
To open the ashtray, pull the lid down*1.
To empty the ashtray, push down
*2, and
pull out.
CIGARETTE LIGHTER AND ASHTRAYS (if so
equipped)

CUP HOLDERS
CAUTION
.Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it
can scald you or your passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
SIC4689
Automatic transmission models —Front
To open the cup holder, push the lid
*1.
The flap
*Awill be folded down when
inserting a large container.
SIC3925
Manual transmission models —Front
To open the cup holder, slide the lid
*1.
Install the partition plate into the slit
*2.
Instruments and controls2-45
STORAGE

2-46Instruments and controls
SIC1846B
Rear
To open the cup holder, pull the lid.
SIC3276
Sedan
SIC3462
Coupe
Soft bottle holder
CAUTION
. Do not use bottle holder for any other
objects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
. Do not use bottle holder for open liquid
containers.

SIC3246
SUNGLASSES HOLDER
WARNING
Keep the sunglasses holder closed while
driving to prevent an accident.
To open the sunglasses holder, push*1.
CAUTION
.Do not use for anything other than
glasses. .
Do not leave glasses in the sunglasses
holder while parking in direct sunlight.
The heat may damage the glasses.
SIC3469
GLOVE BOX
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle*1.
To close, push the lid in until the lock
latches.
To lock
*2/unlock*3the glove box, use
the mechanical key. For the mechanical key
usage, see “Keys”(P.3-2).
Instruments and controls2-47

2-48Instruments and controls

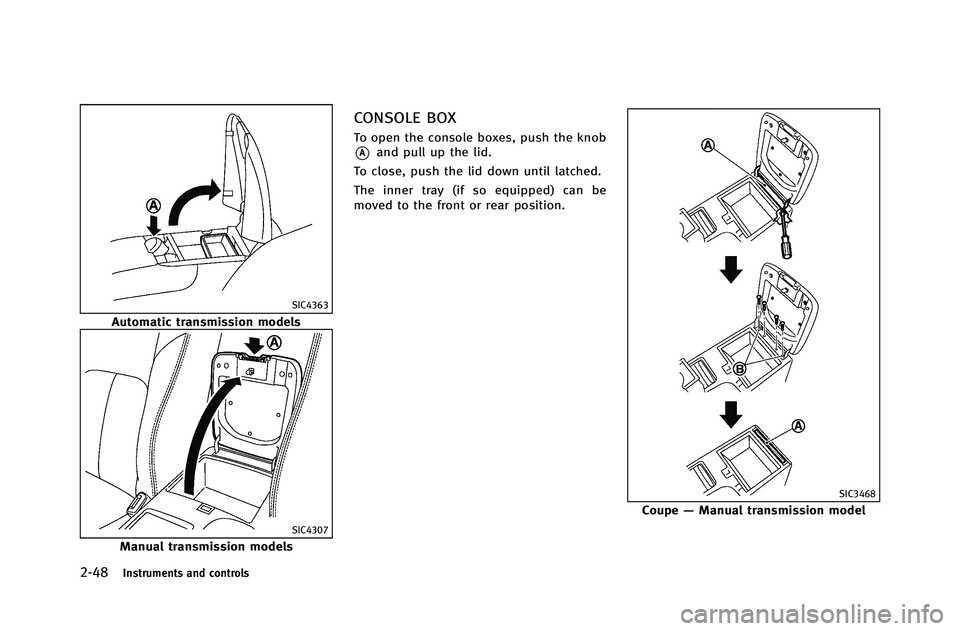

SIC4363
Automatic transmission models
SIC4307
Manual transmission models
CONSOLE BOX
To open the console boxes, push the knob
*Aand pull up the lid.
To close, push the lid down until latched.
The inner tray (if so equipped) can be
moved to the front or rear position.
SIC3468
Coupe —Manual transmission model

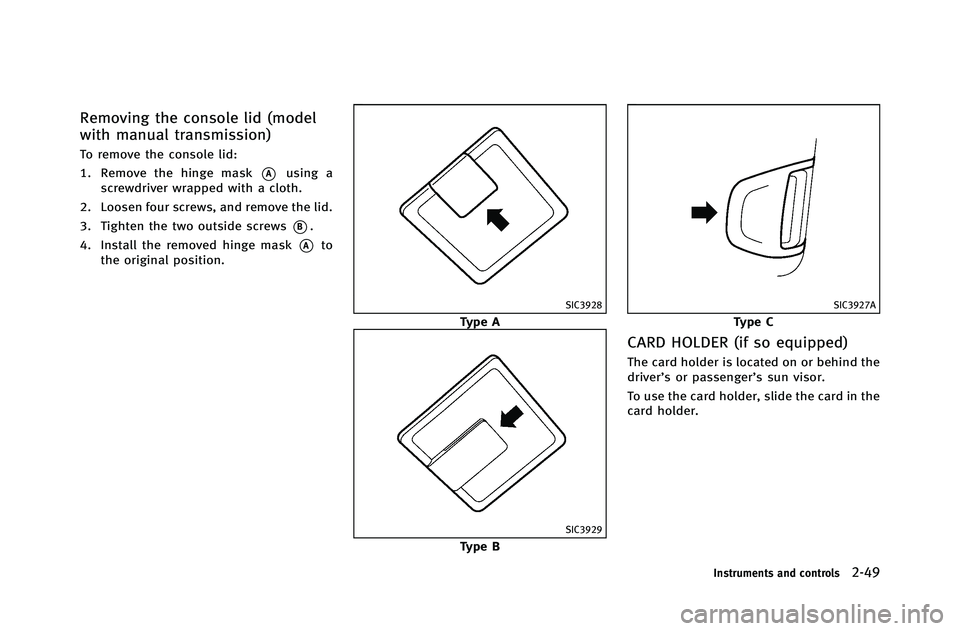

Removing the console lid (model
with manual transmission)
To remove the console lid:
1. Remove the hinge mask
*Ausing a
screwdriver wrapped with a cloth.
2. Loosen four screws, and remove the lid.
3. Tighten the two outside screws
*B.
4. Install the removed hinge mask
*Ato
the original position.
SIC3928
Type A
SIC3929
Type B
SIC3927A
Type C
CARD HOLDER (if so equipped)
The card holder is located on or behind the
driver’s or passenger’s sun visor.
To use the card holder, slide the card in the
card holder.
Instruments and controls2-49
