2012 Hyundai Sonata Owner's Manual

4 111
Features of your vehicle

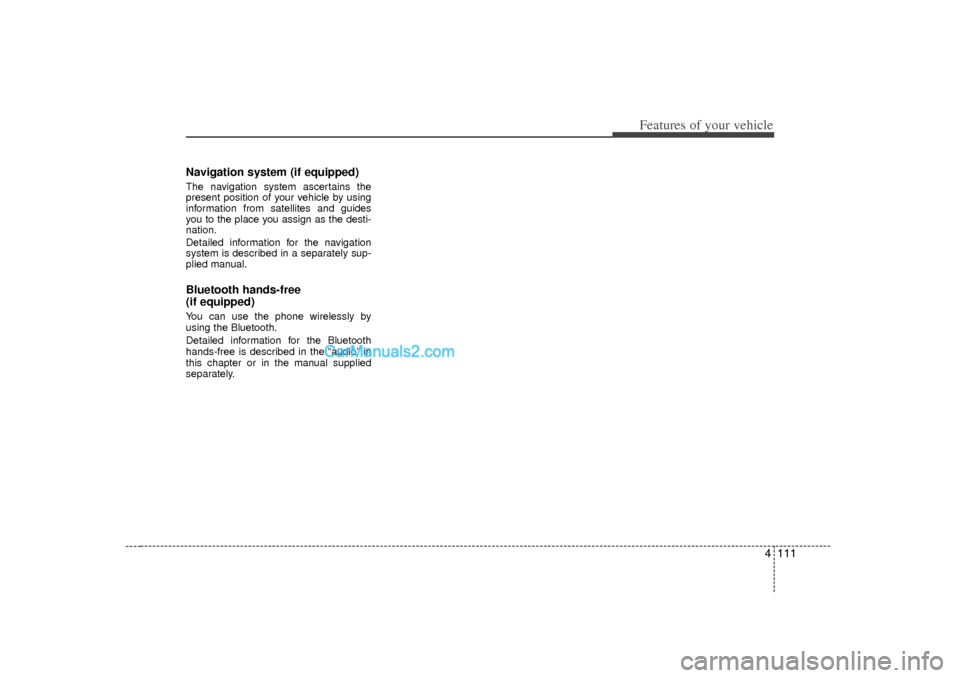

Navigation system (if equipped)The navigation system ascertains the
present position of your vehicle by using
information from satellites and guides
you to the place you assign as the desti-
nation.
Detailed information for the navigation
system is described in a separately sup-
plied manual.Bluetooth hands-free
(if equipped)You can use the phone wirelessly by
using the Bluetooth.
Detailed information for the Bluetooth
hands-free is described in the “audio” in
this chapter or in the manual supplied
separately.

Features of your vehicle112
4
■
■

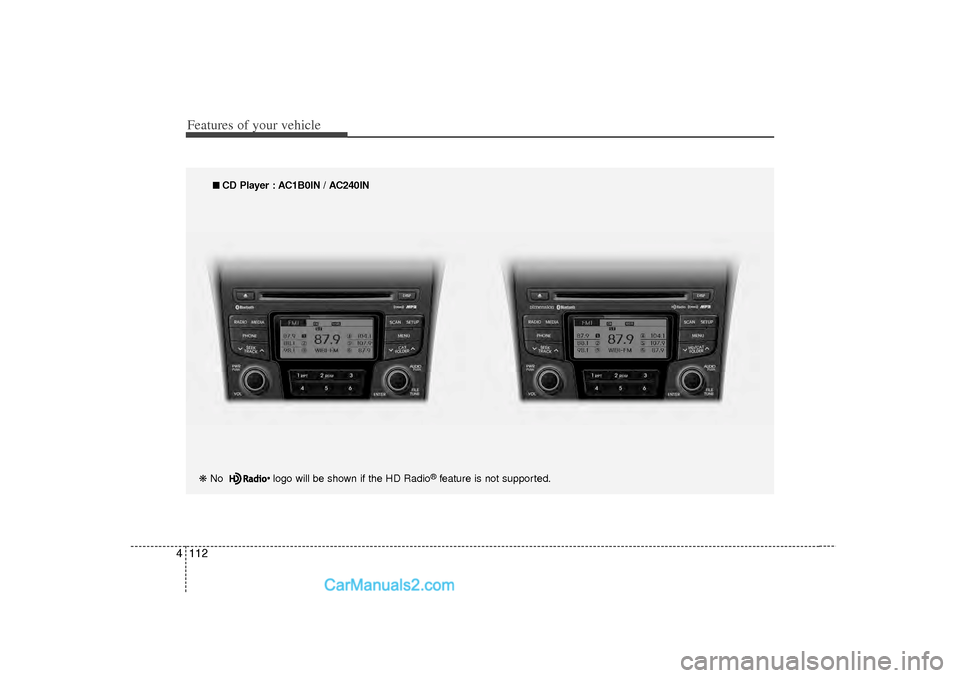

CD Player : AC1B0IN / AC240IN
❋ No logo will be shown if the HD Radio
®feature is not supported.
Features of your vehicle

4 113
Features of your vehicle

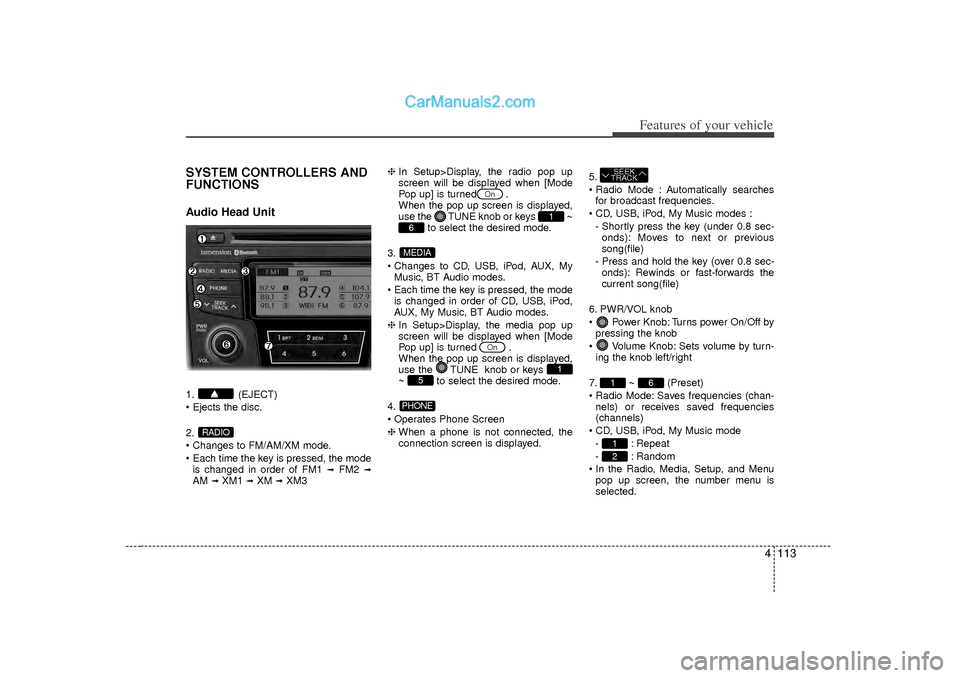

SYSTEM CONTROLLERS AND
FUNCTIONSAudio Head Unit1. (EJECT)
 Ejects the disc.
2.
 Changes to FM/AM/XM mode.
 Each time the key is pressed, the modeis changed in order of FM1
➟
FM2
➟
AM
➟XM1
➟XM
➟XM3 ❈
In Setup>Display, the radio pop up
screen will be displayed when [Mode
Pop up] is turned .
When the pop up screen is displayed,
use the TUNE knob or keys
~
to select the desired mode.
3.
 Changes to CD, USB, iPod, AUX, My Music, BT Audio modes.
 Each time the key is pressed, the mode is changed in order of CD, USB, iPod,
AUX, My Music, BT Audio modes.
❈ In Setup>Display, the media pop up
screen will be displayed when [Mode
Pop up] is turned .
When the pop up screen is displayed,
use the TUNE knob or keys
~ to select the desired mode.
4.
 Operates Phone Screen
❈ When a phone is not connected, the
connection screen is displayed. 5.
 Radio Mode : Automatically searches
for broadcast frequencies.
 CD, USB, iPod, My Music modes : - Shortly press the key (under 0.8 sec-onds): Moves to next or previous
song(file)
- Press and hold the key (over 0.8 sec- onds): Rewinds or fast-forwards the
current song(file)
6. PWR/VOL knob
 Power Knob: Turns power On/Off by pressing the knob
 Volume Knob: Sets volume by turn- ing the knob left/right
7. ~ (Preset)
 Radio Mode: Saves frequencies (chan- nels) or receives saved frequencies
(channels)
 CD, USB, iPod, My Music mode - : Repeat
- : Random
 In the Radio, Media, Setup, and Menu pop up screen, the number menu is
selected.
21
6
1SEEK
TRACK
PHONE
5
1
On
MEDIA6
1
On
RADIO

Features of your vehicle114

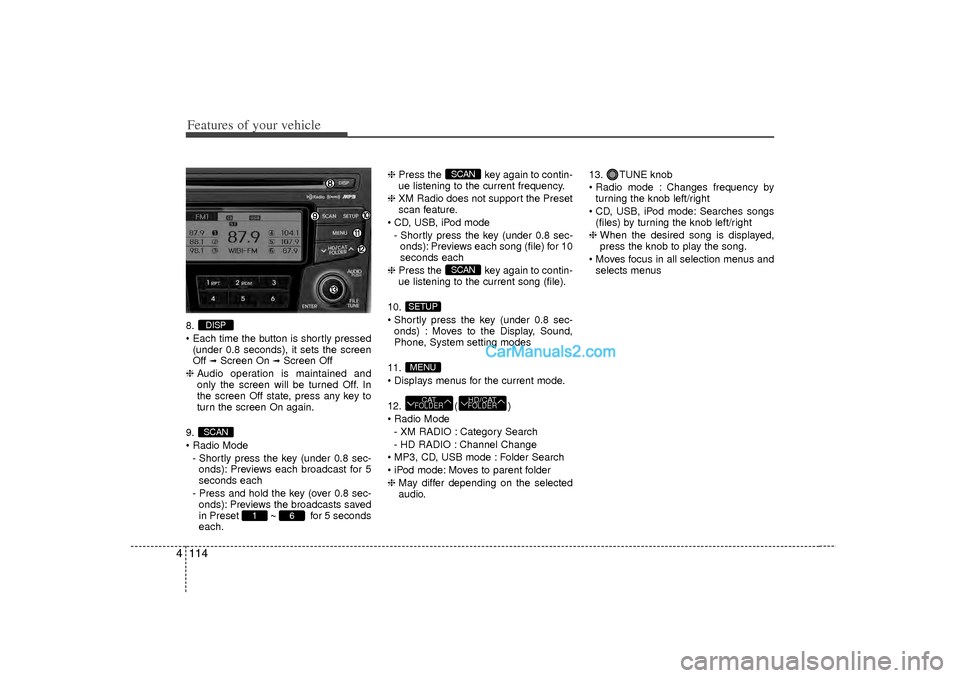

48.
 Each time the button is shortly pressed
(under 0.8 seconds), it sets the screen
Off
➟Screen On
➟Screen Off
❈ Audio operation is maintained and
only the screen will be turned Off. In
the screen Off state, press any key to
turn the screen On again.
9.
 Radio Mode - Shortly press the key (under 0.8 sec-onds): Previews each broadcast for 5
seconds each
- Press and hold the key (over 0.8 sec- onds): Previews the broadcasts saved
in Preset ~ for 5 seconds
each. ❈
Press the key again to contin-
ue listening to the current frequency.
❈ XM Radio does not support the Preset
scan feature.
 CD, USB, iPod mode - Shortly press the key (under 0.8 sec-onds): Previews each song (file) for 10
seconds each
❈ Press the key again to contin-
ue listening to the current song (file).
10.
 Shortly press the key (under 0.8 sec- onds) : Moves to the Display, Sound,
Phone, System setting modes
11.
 Displays menus for the current mode.
12. ( )
 Radio Mode - XM RADIO : Category Search
- HD RADIO : Channel Change
 MP3, CD, USB mode : Folder Search
 iPod mode: Moves to parent folder
❈ May differ depending on the selected
audio. 13. TUNE knob
 Radio mode : Changes frequency by
turning the knob left/right
 CD, USB, iPod mode: Searches songs (files) by turning the knob left/right
❈ When the desired song is displayed,
press the knob to play the song.
 Moves focus in all selection menus and selects menus
HD/CATFOLDER
CATFOLDERMENUSETUP
SCANSCAN
6
1
SCANDISP

4 115
Features of your vehicle

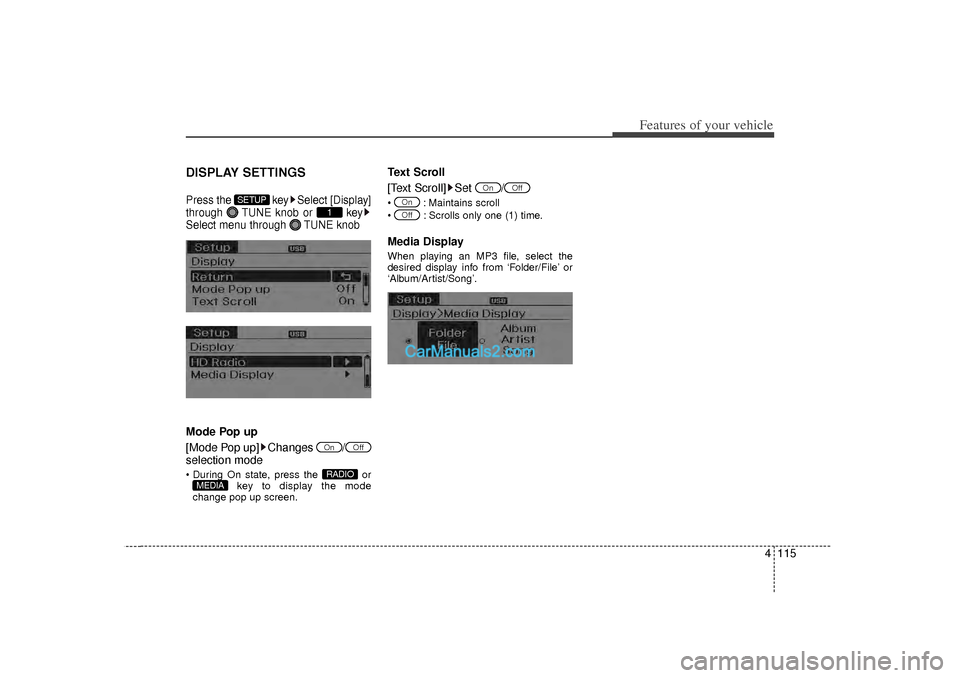

DISPLAY SETTINGSPress the key Select [Display]
through TUNE knob or key
Select menu through TUNE knobMode Pop up
[Mode Pop up] Changes /
selection mode During On state, press the orkey to display the mode
change pop up screen.
Text Scroll
[Text Scroll] Set / : Maintains scroll
 : Scrolls only one (1) time.Media DisplayWhen playing an MP3 file, select the
desired display info from ‘Folder/File’ or
‘Album/Artist/Song’.
OffOn
Off
On
MEDIA
RADIO
Off
On1
SETUP

Features of your vehicle116

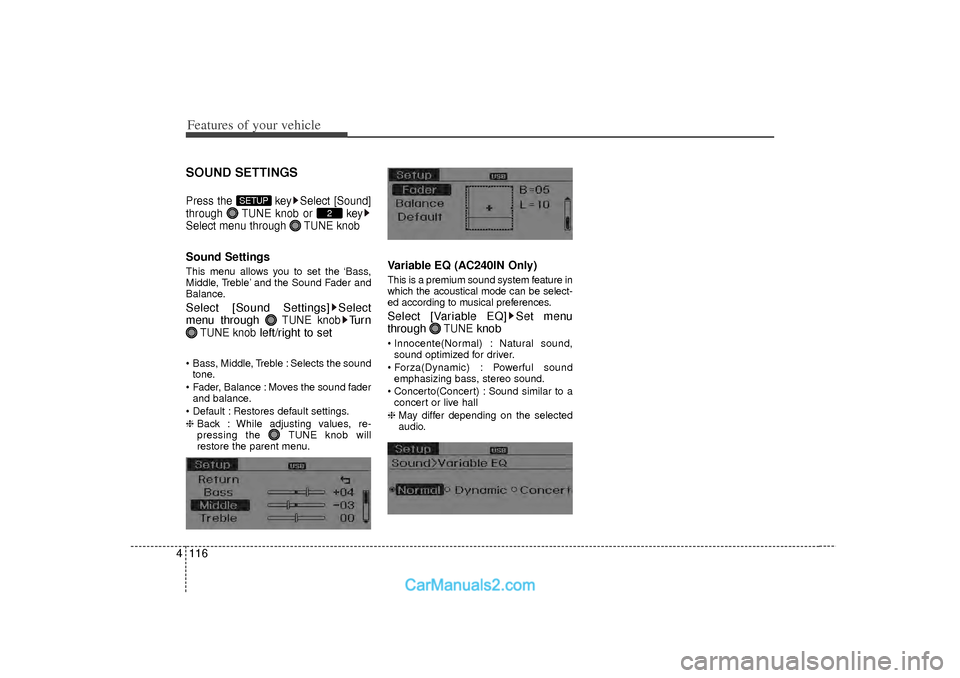

4SOUND SETTINGSPress the key Select [Sound]
through TUNE knob or key
Select menu through TUNE knobSound SettingsThis menu allows you to set the ‘Bass,
Middle, Treble’ and the Sound Fader and
Balance.Select [Sound Settings] Select
menu through
TUNE knob
Tu r n
TUNE knob
left/right to set
 Bass, Middle, Treble : Selects the sound
tone.
 Fader, Balance : Moves the sound fader and balance.
 Default : Restores default settings.
❈ Back : While adjusting values, re-
pressing the TUNE knob will
restore the parent menu.
Variable EQ (AC240IN Only)This is a premium sound system feature in
which the acoustical mode can be select-
ed according to musical preferences.Select [Variable EQ] Set menu
through
TUNE
knob
 Innocente(Normal) : Natural sound,
sound optimized for driver.
 Forza(Dynamic) : Powerful sound emphasizing bass, stereo sound.
 Concerto(Concert) : Sound similar to a concert or live hall
❈ May differ depending on the selected
audio.
2
SETUP

4 117
Features of your vehicle

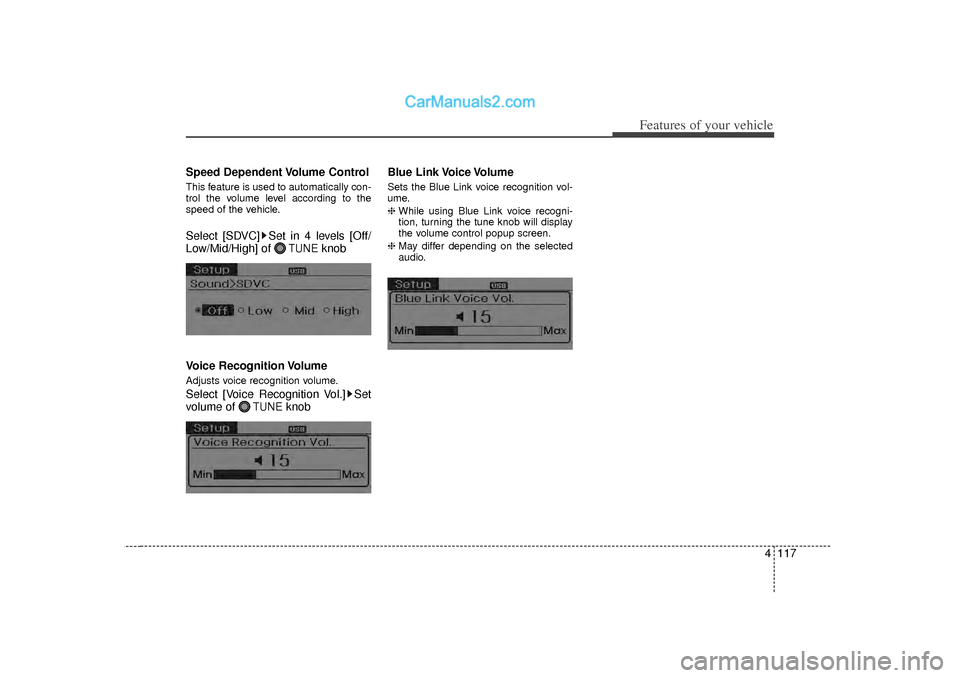

Speed Dependent Volume ControlThis feature is used to automatically con-
trol the volume level according to the
speed of the vehicle.Select [SDVC] Set in 4 levels [Off/
Low/Mid/High] of
TUNE
knob
Voice Recognition Volume
Adjusts voice recognition volume.Select [Voice Recognition Vol.] Set
volume of
TUNE
knob Blue Link Voice Volume
Sets the Blue Link voice recognition vol-
ume.
❈
While using Blue Link voice recogni-
tion, turning the tune knob will display
the volume control popup screen.
❈ May differ depending on the selected
audio.

Features of your vehicle118

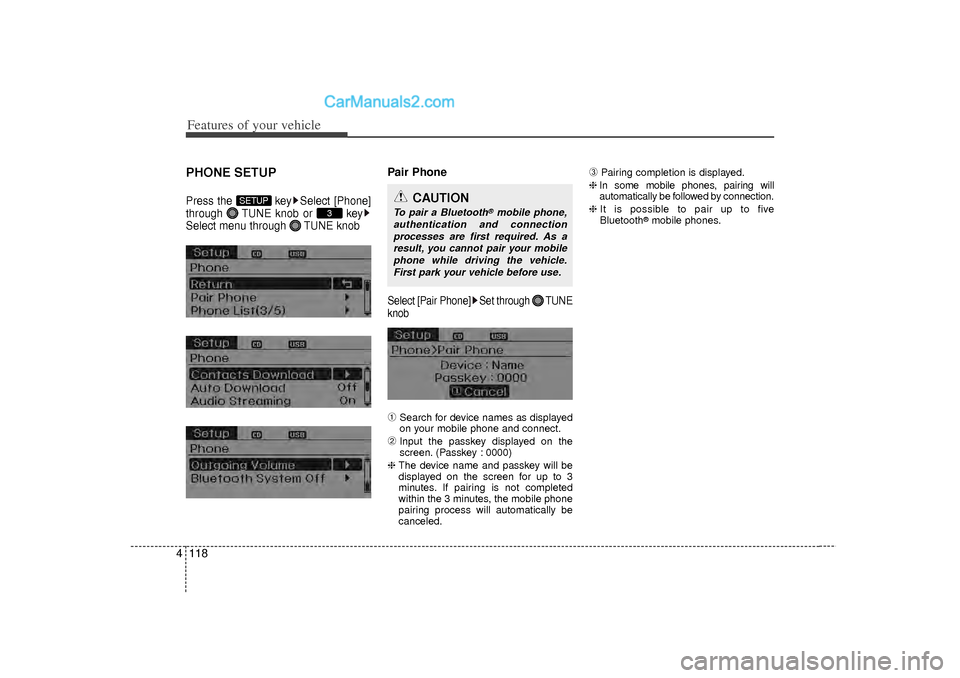

4PHONE SETUPPress the key Select [Phone]
through TUNE knob or key
Select menu through TUNE knob
Pair PhoneSelect [Pair Phone] Set through TUNE
knob➀
Search for device names as displayed
on your mobile phone and connect.
➁
Input the passkey displayed on the
screen. (Passkey : 0000)
❈ The device name and passkey will be
displayed on the screen for up to 3
minutes. If pairing is not completed
within the 3 minutes, the mobile phone
pairing process will automatically be
canceled.
➂
Pairing completion is displayed.
❈ In some mobile phones, pairing will
automatically be followed by connection.
❈ It is possible to pair up to five
Bluetooth
®mobile phones.
3
SETUP
CAUTION
To pair a Bluetooth
®mobile phone,
authentication and connection processes are first required. As aresult, you cannot pair your mobilephone while driving the vehicle.First park your vehicle before use.
