2012 Hyundai Accent Owner's Manual

8
Engine / 8-2
Dimensions / 8-2
Bulb wattage / 8-2
Tires and wheels / 8-3
Capacity/weight / 8-3
Recommended lubricants and capacities / 8-4
Vehicle identification number (VIN) / 8-6
Vehicle certification label / 8-6
Tire specification and pressure label / 8-7
Engine number / 8-7
Refrigerant label / 8-7
Consumer information / 8-8
Reporting safety defects / 8-9
Binding arbitration / 8-9
Specifications, Consumer information,
Reporting safety defects

Specifications, Consumer information, Reporting safety defeccts
28
ENGINEBULB WATTAGE
* : If equipped
Item4 Door5 Door
Overall length 172 (4370)
162 (4115)
Overall width 66.9 (1700)
66.9 (1700)
Overall height 57.1 (1450)
57.1 (1450)
Front tread P175/70 R14 59.3 (1507)
59.3 (1507)
P195/50 R16 58.6 (1489)
58.6 (1489)
Rear tread P175/70 R14 59.5 (1511)
59.5 (1511)
P195/50 R16 58.8 (1493)
58.8 (1493)
Wheelbase 101.2 (2570)
101.2 (2570)
ItemGasoline 1.6
Displacement cu. in (cc) 97.09 (1591)
Bore x Stroke in. (mm)3.03x3.36 (77x85.44)
Firing order 1-3-4-2
No. of cylinders 4, In-line
DIMENSIONS
Light BulbWattageBulb type
Headlights (Low/High)55/60HB2 L/L
Front turn signal lights28/8PY28/8W
Side marker lamp (Fr/Rr)5W5W L/L
Side repeater lights* 5WY5W
Front fog lights*27GE881
Stop and tail light* 28/8P28/8W
Rear turn signal lights 4 Door27PY27W
5 Door27PY27W
Back-up lights16W16W
High mounted stop
light*4 Door16W16W
5 Door5W5W L/L
License plate lights5W5W L/L
Map lamps8FESTOON
Room lamp8FESTOON
Luggage lamp*5W5W
in (mm)

83
Specifications, Consumer information, Reporting safety defeccts

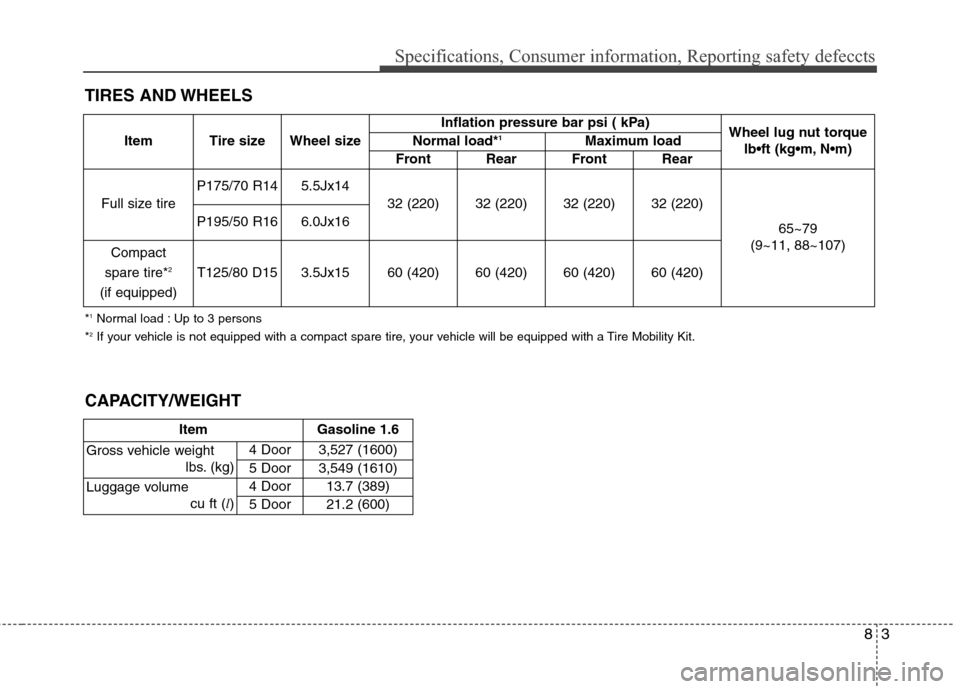

TIRES AND WHEELS
Item Tire size Wheel sizeInflation pressure bar psi ( kPa)
Wheel lug nut torque
lb•ft (kg N
Normal load*1Maximum load
Front Rear Front Rear
Full size tire P175/70 R14 5.5Jx14
32 (220) 32 (220) 32 (220) 32 (220)
65~79
(9~11, 88~107)
P195/50 R16 6.0Jx16
Compact
spare tire*
2
(if equipped) T125/80 D15 3.5Jx15 60 (420) 60 (420) 60 (420) 60 (420)
CAPACITY/WEIGHT
Item
Gasoline 1.6
Gross vehicle weight lbs. (kg)4 Door 3,527 (1600)
5 Door 3,549 (1610)
Luggage volume cu ft (l)4 Door 13.7 (389)
5 Door21.2 (600)
*1Normal load : Up to 3 persons
*2If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.

Specifications, Consumer information, Reporting safety defeccts
48
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo my by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.
LubricantVolumeClassification
Engine oil *1 *2 (drain and refill)
Recommends
3.49 US qt. (3.3 l)API Service SM*3,
ILSAC GF-4 or above
Manual transaxle fluid1.9 US qt. (1.8 l)API GL-4, SAE 75W/85
Automatic transaxle fluid7.71 US qt. (7.3 l)
MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, HYUNDAI genuine ATF SP-IV or other brands meeting the above specification approved by Hyundai Motor Co.,
Coolant Mixture of antifreeze and water (Ethylene glycol basecoolant for aluminum radiator)
Brake/clutch fluid0.7~0.8 US qt.
(0.7~0.8 l)FMVSS116 DOT-3 or DOT-4
Fuel11.4 US gal. (43 l)Unleaded gasoline
4.7 US qt. (5.3 l)

85
Specifications, Consumer information, Reporting safety defeccts
Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain- ing any lubricant. This is especiallyimportant in dusty or sandy areasand when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirtand grit from entering the engineand other mechanisms that couldbe damaged.
*1. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4). However, if
the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil
(1.6 GDI) *1
10W-30
5W-20, 5W-30
°C
(°F)

Specifications, Consumer information, Reporting safety defeccts
68
VEHICLE IDENTIFICATION
NUMBER (VIN)
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on the floor
under the front passenger’s seat. To
check the number, open the cover.The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.
VEHICLE CERTIFICATION
LABEL
The vehicle certification label attached
on the driver’s side center pillar contains
the vehicle identification number (VIN).
ORBC080001ORBC080002
VIN label
ORB080003

87
Specifications, Consumer information, Reporting safety defeccts
TIRE SPECIFICATION AND
PRESSURE LABEL
The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car.
ENGINE NUMBER
The engine number is stamped on the
engine block as shown in the drawing.
REFRIGERANT LABEL
The refrigerant label is located on the
underside of the hood.
ORB071070NORB070017ORBC080004

Specifications, Consumer information, Reporting safety defeccts
88

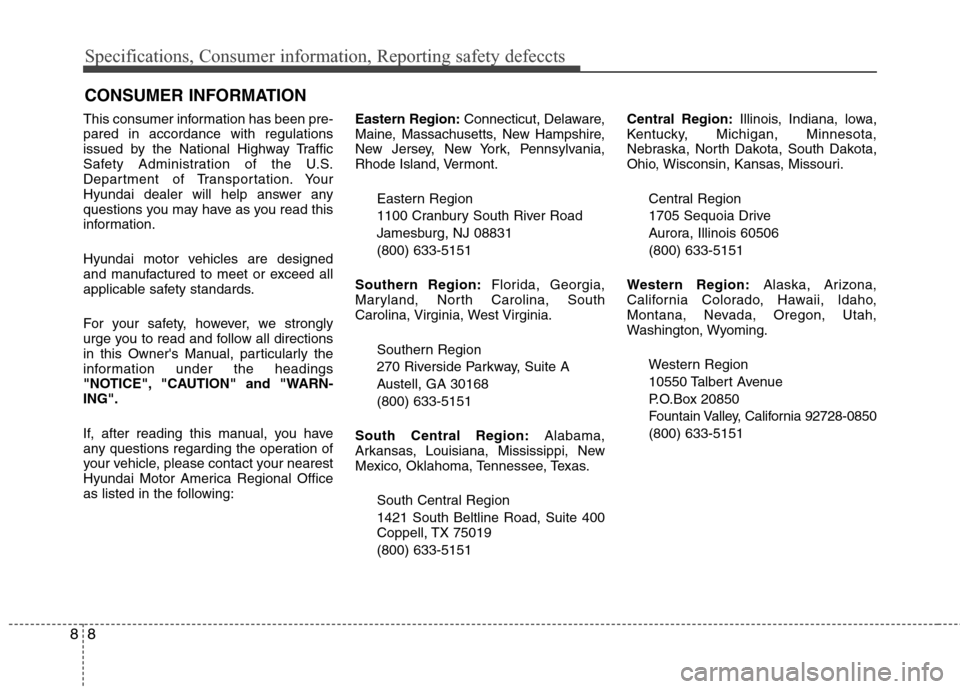

This consumer information has been pre-
pared in accordance with regulations
issued by the National Highway Traffic
Safety Administration of the U.S.
Department of Transportation. Your
Hyundai dealer will help answer any
questions you may have as you read this
information.
Hyundai motor vehicles are designed
and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly
urge you to read and follow all directions
in this Owner's Manual, particularly the
information under the headings
"NOTICE", "CAUTION" and "WARN-
ING".
If, after reading this manual, you have
any questions regarding the operation of
your vehicle, please contact your nearest
Hyundai Motor America Regional Office
as listed in the following:Eastern Region:
Connecticut, Delaware,
Maine, Massachusetts, New Hampshire,
New Jersey, New York, Pennsylvania,
Rhode Island, Vermont.
Eastern Region
1100 Cranbury South River Road
Jamesburg, NJ 08831
(800) 633-5151
Southern Region: Florida, Georgia,
Maryland, North Carolina, South
Carolina, Virginia, West Virginia.
Southern Region
270 Riverside Parkway, Suite A
Austell, GA 30168
(800) 633-5151
South Central Region: Alabama,
Arkansas, Louisiana, Mississippi, New
Mexico, Oklahoma, Tennessee, Texas.
South Central Region
1421 South Beltline Road, Suite 400
Coppell, TX 75019
(800) 633-5151 Central Region:
Illinois, Indiana, lowa,
Kentucky, Michigan, Minnesota,
Nebraska, North Dakota, South Dakota,
Ohio, Wisconsin, Kansas, Missouri.
Central Region
1705 Sequoia Drive
Aurora, Illinois 60506
(800) 633-5151
Western Region: Alaska, Arizona,
California Colorado, Hawaii, ldaho,
Montana, Nevada, Oregon, Utah,
Washington, Wyoming.
Western Region
10550 Talbert Avenue
P.O.Box 20850
Fountain Valley, California 92728-0850
(800) 633-5151
CONSUMER INFORMATION
