Visual Index
4Quick Reference Guide
❙Parking Brake
(P181)
❙Hood Release Handle
(P200)
❙Power Window Switches
(P92)
❙Passenger’s Front Airbag (P37)❙Glove Box
(P113)
❙Rearview Mirror
(P102)
❙Shift Lever
Automatic Transmission (P164)Manual Transmission (P171)❙Interior Fuse Box
(P261)
❙Driver’s Front Airbag
(P37)
❙Power Door Lock Master Switch
* (P82)
❙Accessory Power Socket (P115)❙Auxiliary Input Jack
(P123)

160
uuTowing a TraileruTowing Your Vehicle
Driving
■
Extended Towing
If you tow more than 8 hours in one day, you should repeat the “before towing your
vehicle procedure” at least every 8 hours.
You also need to perform the following procedure to prevent the battery from
running down.
1.Remove the 30 A accessory radio fuse. This
fuse is located in the interior fuse box.
2Interior Fuse Box P. 261
2.Store the fuse in a safe place so you do not
lose it.
uMake sure to reinstall the fuse before
you start driving your vehicle.

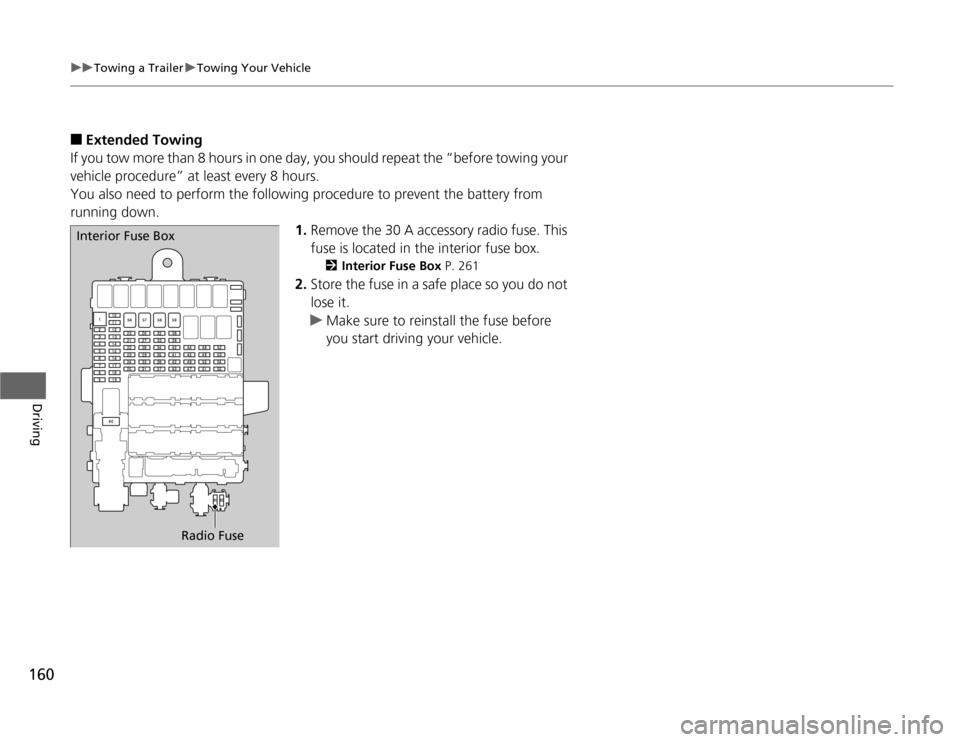

Interior Fuse Box
Radio Fuse

251
Continued
Handling the Unexpected
Jump StartingTurn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.
1.Connect the first jumper cable to your
vehicle’s battery + terminal.
uRemove the cover from the under-hood
fuse box.
2Engine Compartment Fuse Box P. 260
2.Connect the other end of the first jumper
cable to the assisting vehicle’s + terminal.
uUse a 12-volt booster battery only.
3.Connect the second jumper cable to the
assisting vehicle’s - terminal.
4.Connect the other end of the second
jumper cable to the grounding strap as
shown.
Do not connect this jumper cable to any
other part.
5.If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
6.Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
■
Jump Starting Procedure
1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Also be
careful not to tangle the jumper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engine from starting.
3
WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery

260Handling the Unexpected
FusesFuse LocationsIf any electrical devices are not working, turn the ignition switch to LOCK
(0
and
check to see if any applicable fuse is blown.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.
Pull up the cover by pushing the three tabs as
shown.
Replacement of engine compartment fuses
should be done by a dealer.
■
Circuit protected and fuse rating
■
Engine Compartment Fuse Box
Fuse BoxTab
TabTab
Circuit Protected
Amps
1
Battery
100 A
2
EPS
70 A
3
Horn/Hazard
20 A

261
uuFusesuFuse Locations
Handling the Unexpected
Located behind the fuse lid. Pull the fuse lid
toward you.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.■
Interior Fuse Box
Fuse Lid
Fuse Label
■
Circuit protected and fuse rating
Circuit Protected
Amps
1
Back Up
10 A
2
TPMS
*
(7.5 A)
3
Driver’s Power Window
20 A
4
−
−
5
Back Up Light
10 A
6
SRS
10 A
7
Transmission SOL
*
(10 A)
8
SRS
7.5 A
9
Fog Light
*
(20 A)
10
A/C
*
7.5 A
11
ABS/VSA
7.5 A
12
ACG
10 A
13
ACC Socket
20 A
14
Key Lock/Radio
7.5 A
15
Daytime Running Light
7.5 A
16
Rear Wiper
10 A
17
Front Passenger’s Power
Window
20 A
18
Rear Passenger’s Side
Power Window
20 A
19
Rear Driver’s Side Power
Window
20 A
20
Fuel Pump
15 A
21
Washer
15 A
22
Meter
7.5 A
23
Hazard
10 A
24
Stop/Horn
10 A
25
−
−
26
LAF
10 A
27
Door Lock Main
*
(30 A)
28
Headlight Main
20 A
29
Small Light
10 A
30
Main Fan Motor
30 A
31
−
−
32
Passenger’s Side Headlight
Low Beam
10 A
33
IG Coil
15 A
34
Driver’s Side Headlight Low
Beam
10 A
35
Door Lock
*
(15 A)
36
Door Lock
*
(15 A)
37
ABS/VSA FSR
30 A
38
Door Lock
*
(15 A)
39
IGP
15 A
40
−
−
41
−
−
42
−
−
Circuit Protected
Amps
* Not available on all models

263
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Turn the ignition switch to LOCK
(0
. Turn
headlights and all accessories off.
2.Check the fuses in the engine
compartment.
uIf the fuse is blown, have it replaced by a
dealer.
3.Inspect the small fuses in the engine
compartment and the vehicle interior.
uIf there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
1Inspecting and Changing Fuses
NOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 260 and P. 261.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Fuse
BlownFuse Puller

281
Index
High Temperature Indicator ...................... 67
Low Temperature Indicator ....................... 67
Overheating ............................................ 254
Engine Oil................................................. 201
Adding ................................................... 203
Checking ................................................ 202
Displaying Oil Life ................................... 195
Low Oil Pressure Indicator ................. 64, 256
Recommended Engine Oil ....................... 201
EPS (Electric Power Steering
System).............................................. 68, 258
Exhaust Gas Hazard (Carbon Monoxide).. 61
Exterior Care (Cleaning).......................... 235
Exterior Mirrors........................................ 102
FFeatures.................................................... 121
Filters
Dust and Pollen....................................... 233
Oil .......................................................... 204
Flat Tire..................................................... 239
Floor Mats................................................ 234
Fluids
Automatic Transmission .......................... 208
Brake/Clutch ........................................... 210
Engine Coolant ....................................... 206
Manual Transmission .............................. 209
Windshield Washer ................................. 211
FM/AM Radio........................................... 127
Fog Light Indicator.................................... 70Folding Down the Rear Seats.................. 108
Foot Brake................................................. 182
Front Airbags (SRS)..................................... 37
Front Seats................................................ 103
Adjusting ................................................. 103
Fuel...................................................... 14, 186
Economy ................................................. 189
Gauge ....................................................... 72
Low Fuel Indicator ..................................... 66
Recommendation .................................... 186
Refueling ................................................. 186
Fuel Economy............................................ 189
Fuel Fill Cap................................................. 14
Message .................................................. 257
Fuel Fill Door............................................... 14
Fuses.......................................................... 260
Inspecting and Changing ......................... 263
Locations ................................................. 260
GGasoline (Fuel)
Economy ................................................. 189
Gauge ....................................................... 72
Information ............................................. 186
Low Fuel Indicator ..................................... 66
Refueling ................................................. 186
Gauges........................................................ 72
Gear Shift Lever Positions
Automatic Transmission ................... 165, 167
Manual Transmission ............................... 172Glass (care)................................................ 236
Glove Box.................................................. 113
HHalogen Bulbs.................................. 212, 214
Handling the Unexpected........................ 237
HandsFreeLink® (HFL)............................... 140
Change Language ................................... 151
Help Features .......................................... 141
Making a Call .......................................... 146
Menus..................................................... 142
Muting a Call .......................................... 147
Phone Setup............................................ 144
Phonebook.............................................. 148
Receiving a Call ....................................... 147
Sending Numbers or Names During a
Call ....................................................... 147
Transferring a Call ................................... 147
Hazard Warning Button.............................. 2
Head Restraints........................................ 105
Headlights................................................... 95
Aiming .................................................... 212
Dimming ............................................. 95, 96
Operating.................................................. 95
Heated Door Mirrors................................ 100
Heating and Cooling System................... 118
Cooling ................................................... 120
Defrosting the Windshield and
Windows ............................................... 120
Dust and Pollen Filter............................... 233
