2012 HONDA CROSSTOUR Navigation Manual

Navigation System145
2NX_Accord Crosstour 31TP6800
Voice Command Index
XM channel # (#: 1-255)
XM channel up
XM channel down
XM category up
XM category down
XM preset # (#: 1-6)
XM1 preset # (#: 1-6)
XM2 preset # (#: 1-6)
XM scan*
XM category scan*
XM channel scan*
XM category mode
XM channel mode
NOTE:
Radio volume levels cannot be
controlled using voice control. Use the
buttons on your steering wheel. See your
Owner’s Manual for more information.
CD Voice CommandsThe system accepts these commands on
most screens. CD play
CD play disc # (#: 1-6)
CD play track # (#: 1-30)
CD play disc #1 track #2 (#1: 1-6,
#2: 1-30)
CD skip forward
CD skip back
CD play next disc
CD play previous disc
CD track random*
CD track repeat *
CD disc repeat*
CD track scan *
CD disc scan *
CD normal play
CD track list CD folder random*
CD folder repeat*
CD folder scan*
CD folder list
* Repeating these commands switches (toggles) the function between On
and Off, so the action that occurs
may not match the command you
speak.
00 2NX_Accord Crosstour_ KA.book 145 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
Radio auto select*
Radio scan*
Radio select XM1
Radio select XM2
2012 Crosstour

146
Navigation System
2NX_Accord Crosstour 31TP6800
Voice Command IndexAUX Voice CommandsThe system accepts these commands on
most screens.AUX play (or Auxiliary play)
NOTE:
For more information on USB features,
see your Owner’s Manual.
Information Screen Voice
CommandsThese are additional commands not
found on the Voice Command Help
screen available when viewing the
Information screen. Follow the voice
prompts.
Cellular phone
Trip computer
Calendar
Calculator
Voice command help (the system
reads and lists all of the
commands, starting with
Navigation General Commands)
Map legend
Key to Zagat ratings
SETUP Screen (Main Setup)
CommandsThe system accepts these commands on
the SETUP screen ( Main Setup ). (For
the SETUP screen ( Other), simply say
what is written on the screen, and follow
the voice prompts.)
Brightness up
Brightness down
Brightness minimum/min.
Brightness maximum/max.
Contrast up
Contrast down
Contrast minimum/min.
Contrast maximum/max.
Black level up
Black level down
Black level minimum/min.
Black level maximum/max.
Volume up
Volume down
Volume minimum/min.
Volume maximum/max.
Volume off
00 2NX_Accord Crosstour_ KA.book 146 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour

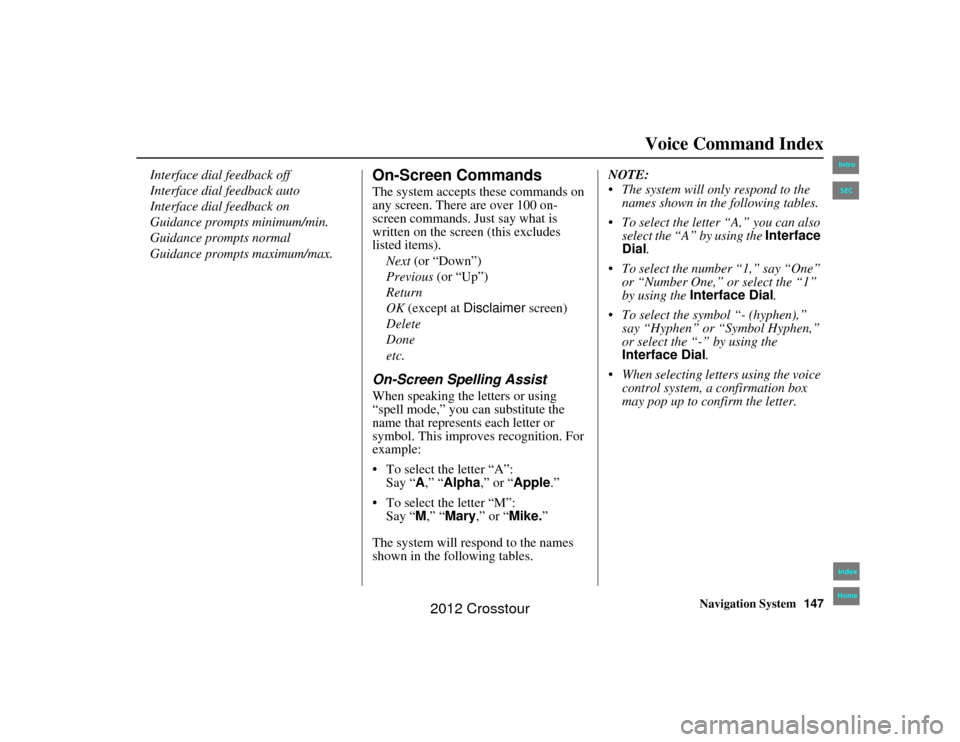

Navigation System147
2NX_Accord Crosstour 31TP6800
Voice Command Index
Interface dial feedback off
Interface dial feedback auto
Interface dial feedback on
Guidance prompts minimum/min.
Guidance prompts normal
Guidance prompts maximum/max.
On-Screen CommandsThe system accepts these commands on
any screen. There are over 100 on-
screen commands. Just say what is
written on the screen (this excludes
listed items).
Next (or “Down”)
Previous (or “Up”)
Return
OK (except at Disclaimer screen)
Delete
Done
etc.On-Screen Spelling AssistWhen speaking the letters or using
“spell mode,” you can substitute the
name that represents each letter or
symbol. This improv es recognition. For
example:
 To select the letter “A”:
Say “ A,” “ Alpha ,” or “Apple.”
 To select the letter “M”: Say “ M,” “ Mary ,” or “ Mike.”
The system will respond to the names
shown in the following tables. NOTE:
 The system will only respond to the
names shown in the following tables.
 To select the letter “A,” you can also select the “A” by using the Interface
Dial.
 To select the number “1,” say “One” or “Number One,” or select the “1”
by using the Interface Dial.
 To select the symbol “- (hyphen),” say “Hyphen” or “Symbol Hyphen,”
or select the “-” by using the
Interface Dial .
 When selecting letters using the voice control system, a confirmation box
may pop up to confirm the letter.
00 2NX_Accord Crosstour_ KA.book 147 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour

148
Navigation System
2NX_Accord Crosstour 31TP6800
Voice Command IndexLetters Assist Definitions:
Say Or say “...” Say Or say “...” Say Or say “...” Say Or say “...”A Alpha/Apple
H
Hotel/Henry OOscar VVictor
B Bravo/Boy IIndia/Igloo PPapa/Paul WWhiskey/William
C Charlie JJuliet/John QQuebec/Queen XX-ray
D Delta/Dog KKilo/King RRomeo/Robert YYankee/Yellow
E Echo/Edward LLima/Larry SSierra/Sam ZZulu/Zebra
F Foxtrot/Frank MMike/Mary TTango/Tom
G Golf/George NNovember/Nancy UUniform/Uncle
00 2NX_Accord Crosstour_ KA.book 148 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour

Navigation System149
2NX_Accord Crosstour 31TP6800
Voice Command Index
Symbol Assist Definitions:NOTE:
The term “grave” (used for symbols À, È, Ì, and Ù) is pronounced like “save.”
Symbols Say “...” or “Symbol ...” S ymbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...”
À A grave îI circumflex _Underscore
 A circumflex ïI umlaut `Back quote
Ä A umlaut ÔO circumflex ,Comma
Ç C cedilla ÙU grave .Dot
È E grave ÛU circumflex ?Question mark
É E acute ÜU umlaut :Colon
Ê E circumflex @At sign ;Semicolon
Ë
E umlaut ^Caret +Plus
ì I grave *Asterisk
00 2NX_Accord Crosstour_ KA.book 149 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour

150
Navigation System
2NX_Accord Crosstour 31TP6800
Voice Command IndexNumbers and Additional Symbol Assist Definitions:
Numbers Say “...” or “Number ...” Symbols Say “...” or “Symbol ...” Symbols Say “...” or “Symbol ...”
1
One
-
Hyphen
~
Tilde
2
Two
!
Exclamation point
/
Slash
3
Three
”
Double quote
<
Less than
4
Four
#
Pound
>
Greater than
5
Five
$
Dollar
{
Open brace
6
Six
%
Percent
}
Close brace
7
Seven
&
Ampersand Enter
8
Eight
’
Apostrophe
9
Nine
(
Open parenthesis
0
Zero
)
Close parenthesis
00 2NX_Accord Crosstour_KA.book 150 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroIndex
HomeSEC
2012 Crosstour

Navigation System151
2NX_Accord Crosstour 31TP6800
Index
A
Accessing the Address Book List
..... 80
ADD TO Today’s
Destinations
........................... 44, 46
Adding Destinatio ns to the List
........44
Address
.............................. 22, 23, 81
Address Book
.....................22, 27, 79
Address Book PIN
.......................... 83
Advanced
....................................... 30
Alaska (Operation)
........................126
Auto Daylight
................................. 95
Auto Service
................................... 30
Auto Time Zone
..............................95
Auto Volume for Speed
...................85
AUX Voice Commands
.................146
Avoid Street
................................... 67
B
Back to Route
................................. 67
Banking
.......................................... 30
Basic Settings
.................................85
Black Level
.................................... 77
Bluetooth® HandsFreeLink®
...........18
Breadcrumbs
............................. 19, 62
Brightness
......................................77
By Address
..................................... 23
By Address Book
............................27
By Go Home
.................................. 45
By Intersection
...............................35
By Map Input
................................. 40
By Places
....................................... 28
By Previous Destinations
................39
By Today’s Destinations
................. 43
C
Calculator
...................................... 73
Calendar
..................................17, 71
CALL
...................................... 18, 46
CANCEL button
............................10
Cancel Route
................................. 65
Category
............................28, 29, 82
CD Voice Commands
...................145
Cellular Phone
............................... 70
Change Method
..............................65
Change State
............................23, 35
Changing Routing Method
..............47
Changing the DVD
....................... 111
Changing the Route
........................ 65
Changing Your Destination
.............68
City
................................... 23, 35, 41
City Vicinity
..................................33
Climate Control Commands
..........143
Clock Adjustment
.......................... 94
Color
............................................. 98
Community
....................................30
Continental USA
............................43
Contrast
......................................... 77
Convert (Unit)
................................73
Correct Vehicle Position
.................97
Coverage Areas
............................ 112
Current Location
......................20, 63
Current Position
....................... 40, 81
Current Street
................................... 6
Customer Assistance
....................109
D
Database Limitations
.................... 107
Daylight Saving Time (DST)
Selection
..................................... 96
Delete Previous Destinations
...........84
Delete Waypoints
........................... 67
Destination
........................22, 46, 68
Destination Icon
............................. 57
Destination Map
.............................49
Detailed Coverage Areas
..............112
Detour
........................................... 67
Direct Route
..................................47
Direction List
.................................54
Display Mode button
......................11
Driving to Your Destination
............46
00 2NX_Accord Crosstour_ KA.book 151 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroHomeSEC
2012 Crosstour

152
Navigation System
Index
2NX_Accord Crosstour 31TP6800
E
Easy Route
..................................... 47
Edit Avoid Area
..............................91
Edit Waypoint Search Area
..............93
Edit/Delete Address
........................ 82
Editing Today’s De stinations List
....44
Emergency
..................................... 30
Entering a Destination
.....................22
Entering Address
............................. 80
Entering Schedule
...........................72
Entering Security Code
..................103
Entering the Street Number
..............27
Entering Your Schedule
................... 72
Error Message
............................... 135
Exit Info
......................................... 54
F
Find Place Commands
................... 142
Frequently Asked Questions
..........128
G
Getting Started
................................ 10
Global Commands
........................140
Glossary
....................................... 137
Go Home
..................................22, 45
Go Home PIN
.................................84
Going Off the Route
.......................62
GPS Initialization
......................... 104
Guidance Mode
........................55, 94
Guidance Prompts
....................50, 78
Guidance Screen
............................ 52
H
Hawaii (Operation)
....................... 126
Home Address
............................... 83
Honda Automobile Customer
Service
..................................... 109
Hotel/Motel (Lodging)
...................30
I
Icon Bar
........................................ 60
INFO button
............................10, 70
Information Screen
.........................70
Information Screen Voice
Commands
................................ 146
Interface Dial
................................. 11
Interface Dial Feedback
..................78
Interface Dial knob
......................... 11
Intersection
.............................. 22, 35
K
Key to Zagat Ratings
...................... 75
L
Landmark Icons
............................. 58
Leisure
.......................................... 30
Lodging (Hotel/Motel)
....................30
Lower Display
............................... 12
M
Map Color
..................................... 98
Map Coverage
..............................112
Map Input
................................ 22, 40
Map Legend
.......................19, 51, 75
Map Matching
.............................. 104
Map Menu
..................................... 53
Map Orientation
.............................57
Map Scale
...................................... 56
Map Screen
..............................19, 51
MAP/GUIDE button
.................10, 52
Maximize Freeways
....................... 47
MENU button
................................ 10
Menu Color
................................... 99
Message
........................................ 72
Microphone
...................................13
Minimize Freeways
........................47
Minimize Toll Roads
......................47
00 2NX_Accord Crosstour_ KA.book 152 ページ ２０１１年６月２３ 日　木曜日　午後５時２分
IntroHomeSEC
2012 Crosstour
