2012 HONDA CIVIC Owners Manual

8

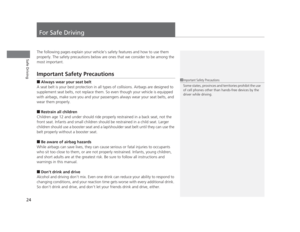

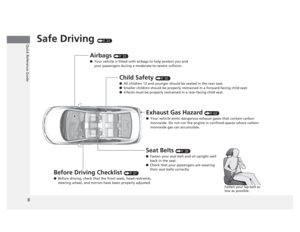

Quick Reference GuideSafe Driving (P 23)

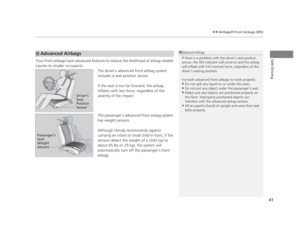

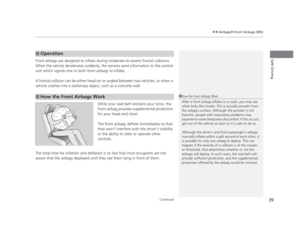

Airbags (P 35)
● Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.

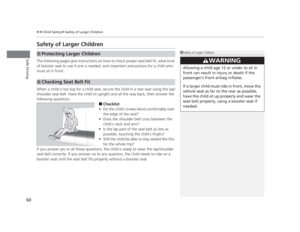

Child Safety (P 50)
● All children 12 and younger should be seated in the rear seat.

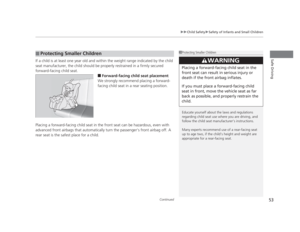

● Smaller children should be properly restrained in a forward-facing child seat.
● Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P 62)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.

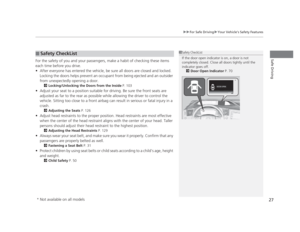

Before Driving Checklist (P 27)

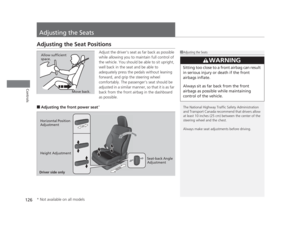

● Before driving, check that the front seats, head restraints,

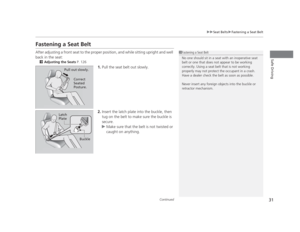

steering wheel, and mirrors have been properly adjusted. Seat Belts
(P 28)

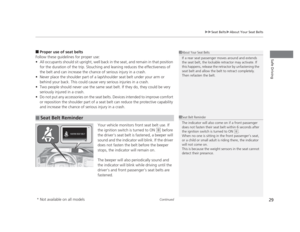

● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.

9

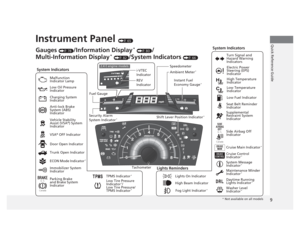

Quick Reference GuideInstrument Panel (P 65)
U. S.
Canada
U. S.
Canada

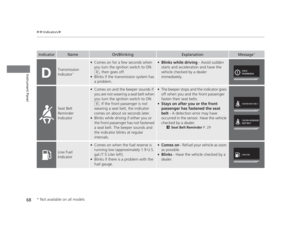

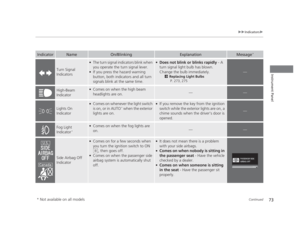

System Indicators
Malfunction
Indicator Lamp Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System (ABS)
Indicator
Vehicle Stability
Assist (VSA ®
) System
Indicator
VSA ®
OFF Indicator

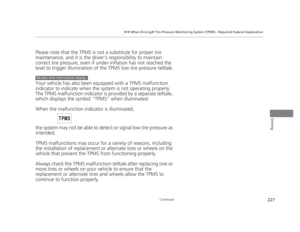

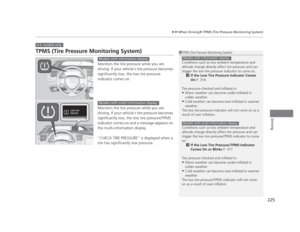

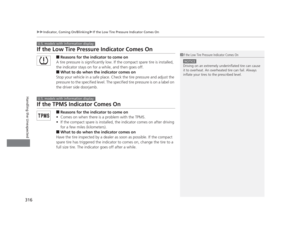

Low Tire Pressure
Indicator*
/
Low Tire Pressure/
TPMS Indicator * Electric Power
Steering (EPS)
Indicator
Lights Reminders Lights On Indicator
High Beam IndicatorFog Light Indicator *

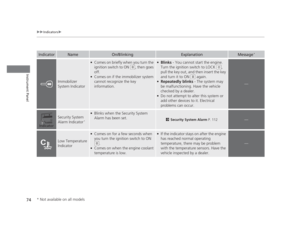

Immobilizer System
Indicator Seat Belt Reminder
Indicator
System Indicators

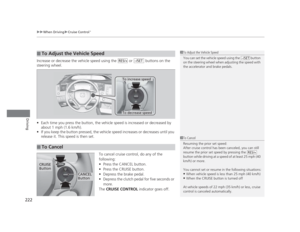

Cruise Control
Indicator *
System Message
Indicator *

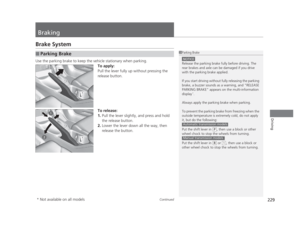

Parking Brake
and Brake System

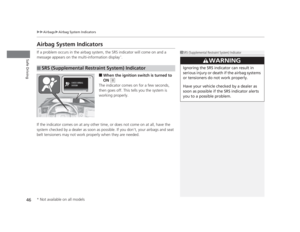

Indicator Supplemental
Restraint System
Indicator

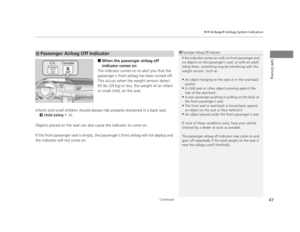

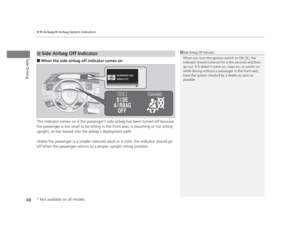

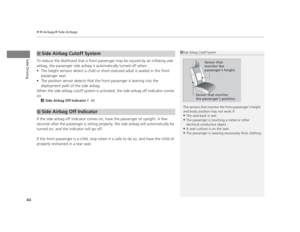

Side Airbag Off
Indicator
Door Open Indicator Cruise Main Indicator*
Tachometer Instant Fuel
Economy Gauge
*
Speedometer
Fuel Gauge
Security Alarm
System Indicator * Shift Lever Position Indicator
*Low Fuel Indicator

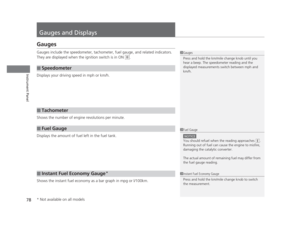

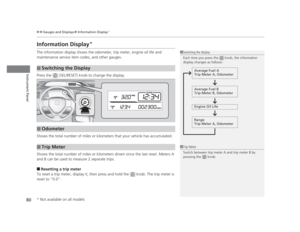

Gauges
(P 78)/Information Display *
(P 80) /
Multi-Information Display *
(P 82) /System Indicators (P 66)

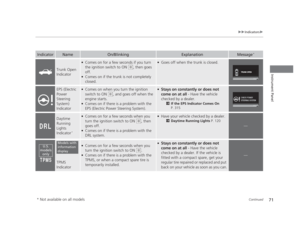

Trunk Open Indicator
ECON Mode Indicator *
TPMS Indicator * Turn Signal and
Hazard Warning
Indicators

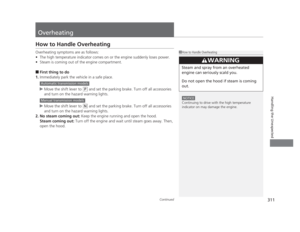

High Temperature
Indicator
Low Temperature
Indicator

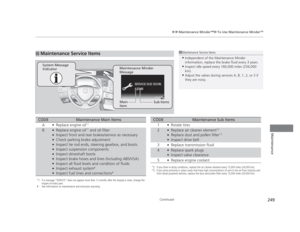

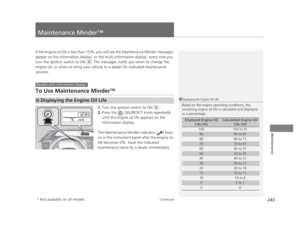

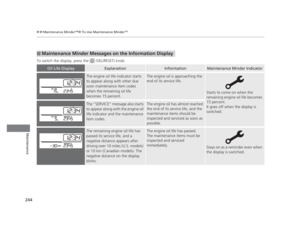

Maintenance Minder
Indicator *
Daytime Running
Lights Indicator *
Washer Level
Indicator *
i-VTEC
Indicator
REV
Indicator2.4  engine models
Ambient Meter
*
*
Not available on all models

10
Quick Reference GuideControls (P 97)
Turn Signals (P 118)
Turn Signal Control Lever
Right
Left Lights
(P 118)Light Control Switches
Low Beam High Beam
Flashing

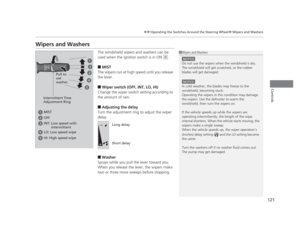

Wipers and Washers
(P 121)
Wiper/Washer Control Lever Adjustment Ring: Long Delay
: Short Delay
MIST OFF
INT: Low speed with intermittent
LO: Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.

11
Quick Reference Guide

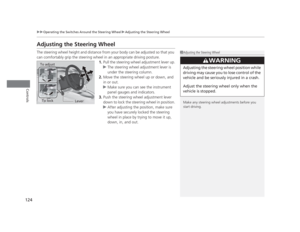

Steering Wheel (P 124)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front Doors from the Inside
(P 103) ● Pull either front door inner handle to

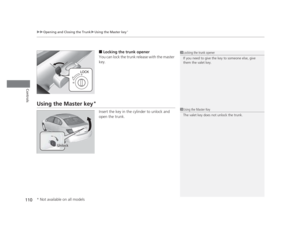

unlock and open it at the same time.Trunk (P 109)
● To unlock and open the trunk:
• Pull the trunk release.
• Press the trunk release button *
.
• Turn the key in the cylinder on the trunk *
.
Power Door Mirrors *

(P 125) ● With the ignition switch in ON
(w, move
the selector switch to L or R.
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Release
Selector Switch
Adjustment Switch

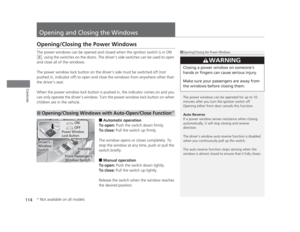

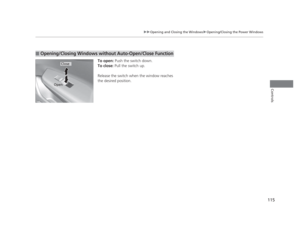

Power Windows (P 114)
● With the ignition switch in ON
(w, open
and close the power windows.
● If the power window lock button is in the
OFF position, each passenger's window
can be opened and closed with its own
switch.
● If the power window lock button is in the
ON position (indicator is on), each
passenger's window switch is disabled.
Power Window Lock Button
Window
Switch Indicator
*
Not available on all models

12
Quick Reference Guide

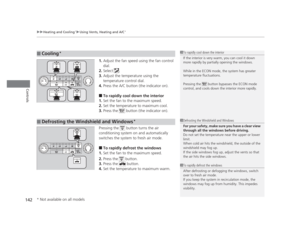

Heating and Cooling*
System (P 140)
● Rotate the fan control dial to adjust the fan speed and airflow.
● Press the Mode buttons ( / / / ) to select the vents air flows from.
● Rotate the temperature control dial to adjust the temperature.
● Use the button for maximum cool setting.
● Rotate the fan control dial to OFF to turn the system off.
● Press the button to defrost the windshield.
Fan Control Dial

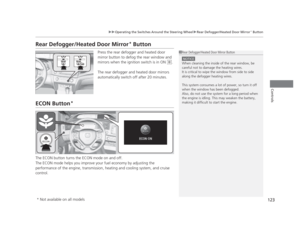

(Rear Window Defogger/ Heated Mirror *
) Button
(Windshield
Defroster) Button
A/C (Air Conditioning) Button *
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
Button
Button
Button
*
(Recirculation) Button
Temperature
Control Dial Button
Button

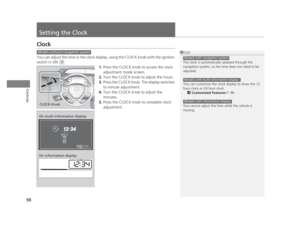

Clock
(P 98)
a Press the CLOCK knob to access the
clock adjustment mode screen.
b Turn the CLOCK knob to adjust the
hours.
c Press the CLOCK knob. The display
switches to minute adjustment.
d Turn the CLOCK knob to adjust the
minutes.
e Press the CLOCK knob to complete clock adjustment.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Models without navigation system
Models with navigation system

13

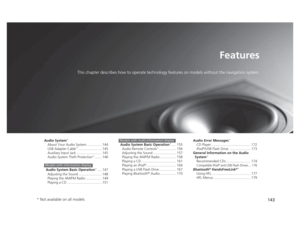

Quick Reference GuideFeatures (P 143)

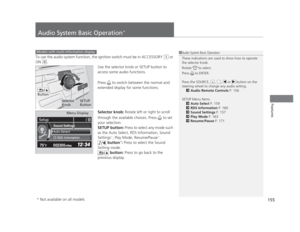

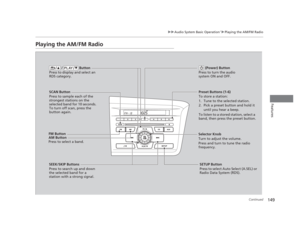

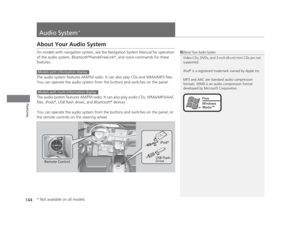

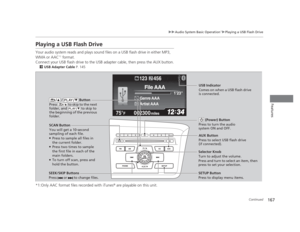

Audio system *
(P 144) For navigation system operation () See Navigation System Manual
Audio Display
AM Button FM Button (Power) Button
CD Button
AUX Button CD Slot
(CD Eject) Button
SCAN Button Preset Buttons (1-6)
SKIP/SEEK Button
Button
SETUP Button
Selector Knob
Button (Sound) Button
SKIP/SEEK Button

(P 147)On models with information display
* Not available on all models

14
Quick Reference Guide
002300
75°F miles

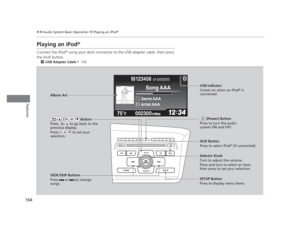

(P 155)On models with multi-information display

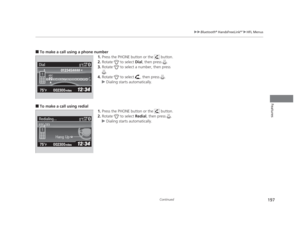

Multi-Information Display
AM Button FM Button
SCAN Button
SKIP/SEEK Button
Selector Knob
Button
(Sound)
Button *
(Power)
Button
CD Button
AUX Button CD Slot
(CD Eject)
Button
Preset Buttons (1-6)
Button
SETUP ButtonSKIP/SEEK ButtonPHONE Button
*
●

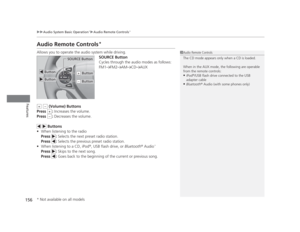

Audio Remote Controls *
(P 156)
● / Button
Press and release to adjust the volume up/
down.
● SOURCE Button
Press and release to change the audio
mode: FM1/FM2/AM/CD/AUX.
● / Button
Radio: Press and release to change the preset station.
Press and hold to select the next or
previous strong station.
CD/USB device:
Press and release to skip to the
beginning of the next song or
return to the beginning of the
current song.
Press and hold to change a folder.
/ / / Button+–
SOURCE
Button
+–

15

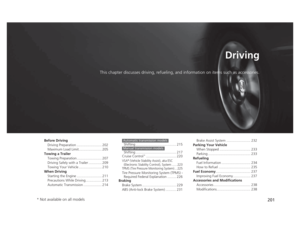

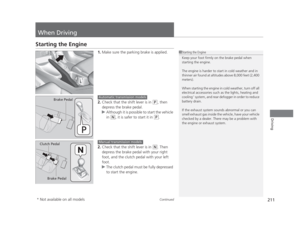

Quick Reference GuideDriving (P 201)
2 1
D3
P
R
N DRelease Button Shift Lever
Depress the brake pedal and press the
release button to move out of
(P.
Move the shift lever without
pressing the release button.
Press the release button to
move the shift lever.

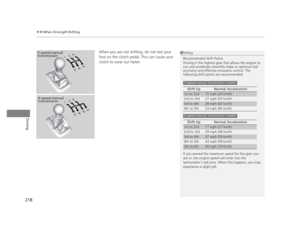

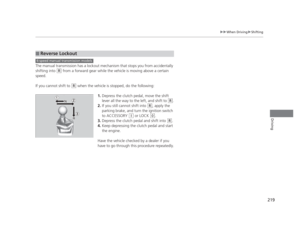

Manual Transmission
(P 217)
Automatic Transmission (P 215)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
Park
Turn off or start the engine. Transmission is locked.
Reverse
Neutral
Transmission is not locked.
Drive
Normal driving.

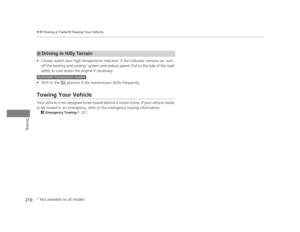

Drive (D3) Used when:
•Going up or down hills
•Towing a trailer in hilly terrain
Second
Used to increase engine braking
(the transmission is locked in 2nd gear)
First
Used to further increase engine braking
(the transmission is locked in 1st gear)
* Not available on all models
