2012 FORD TAURUS Owners Manual

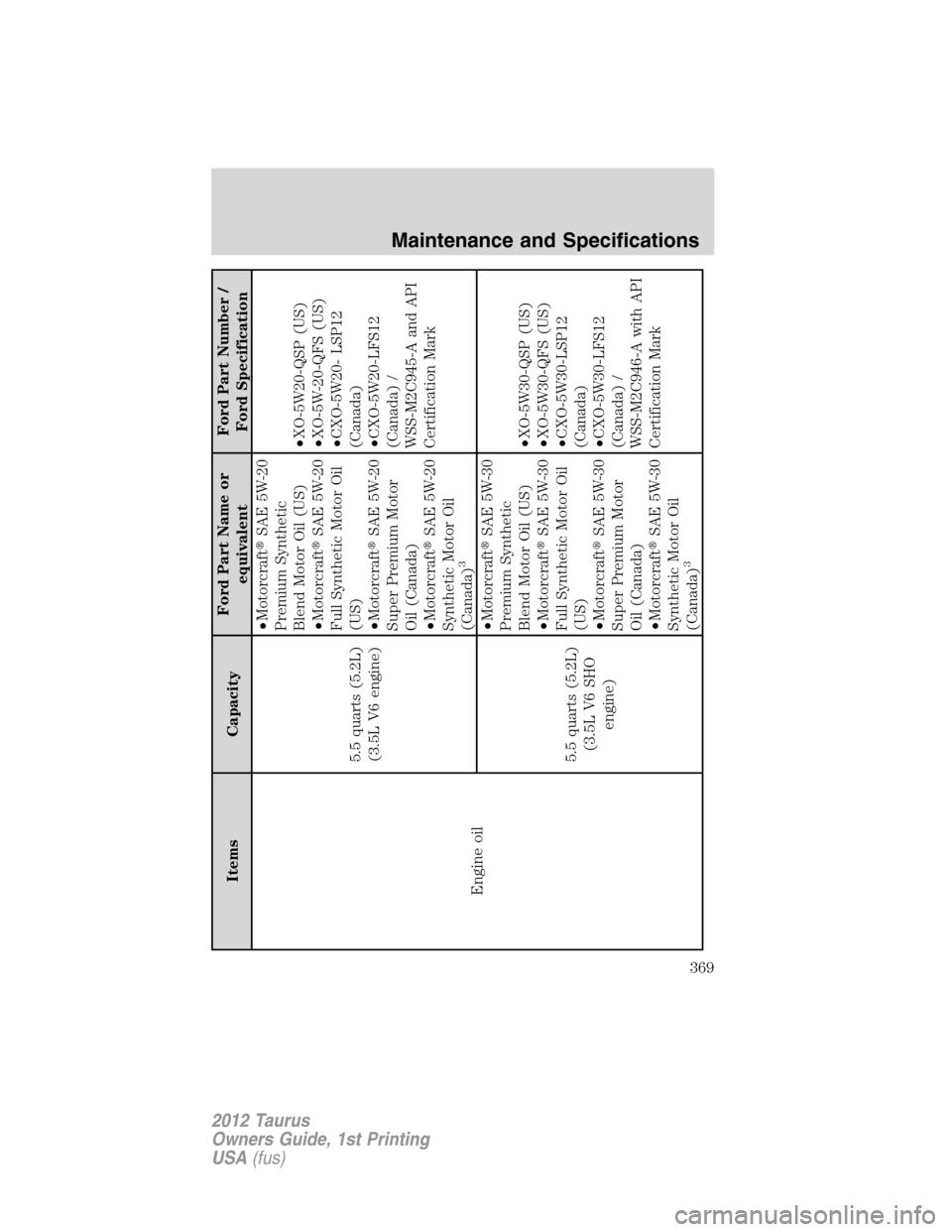

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine oil5.5 quarts (5.2L)
(3.5L V6 engine)•MotorcraftSAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
•MotorcraftSAE 5W-20
Full Synthetic Motor Oil
(US)
•MotorcraftSAE 5W-20
Super Premium Motor
Oil (Canada)
•MotorcraftSAE 5W-20
Synthetic Motor Oil
(Canada)
3
•XO-5W20-QSP (US)
•XO-5W-20-QFS (US)
•CXO-5W20- LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C945-A and API
Certification Mark
5.5 quarts (5.2L)
(3.5L V6 SHO
engine)•MotorcraftSAE 5W-30
Premium Synthetic
Blend Motor Oil (US)
•MotorcraftSAE 5W-30
Full Synthetic Motor Oil
(US)
•MotorcraftSAE 5W-30
Super Premium Motor
Oil (Canada)
•MotorcraftSAE 5W-30
Synthetic Motor Oil
(Canada)
3
•XO-5W30-QSP (US)
•XO-5W30-QFS (US)
•CXO-5W30-LSP12
(Canada)
•CXO-5W30-LFS12
(Canada) /
WSS-M2C946-A with API
Certification Mark
Maintenance and Specifications
369
2012 Taurus
Owners Guide, 1st Printing
USA(fus)

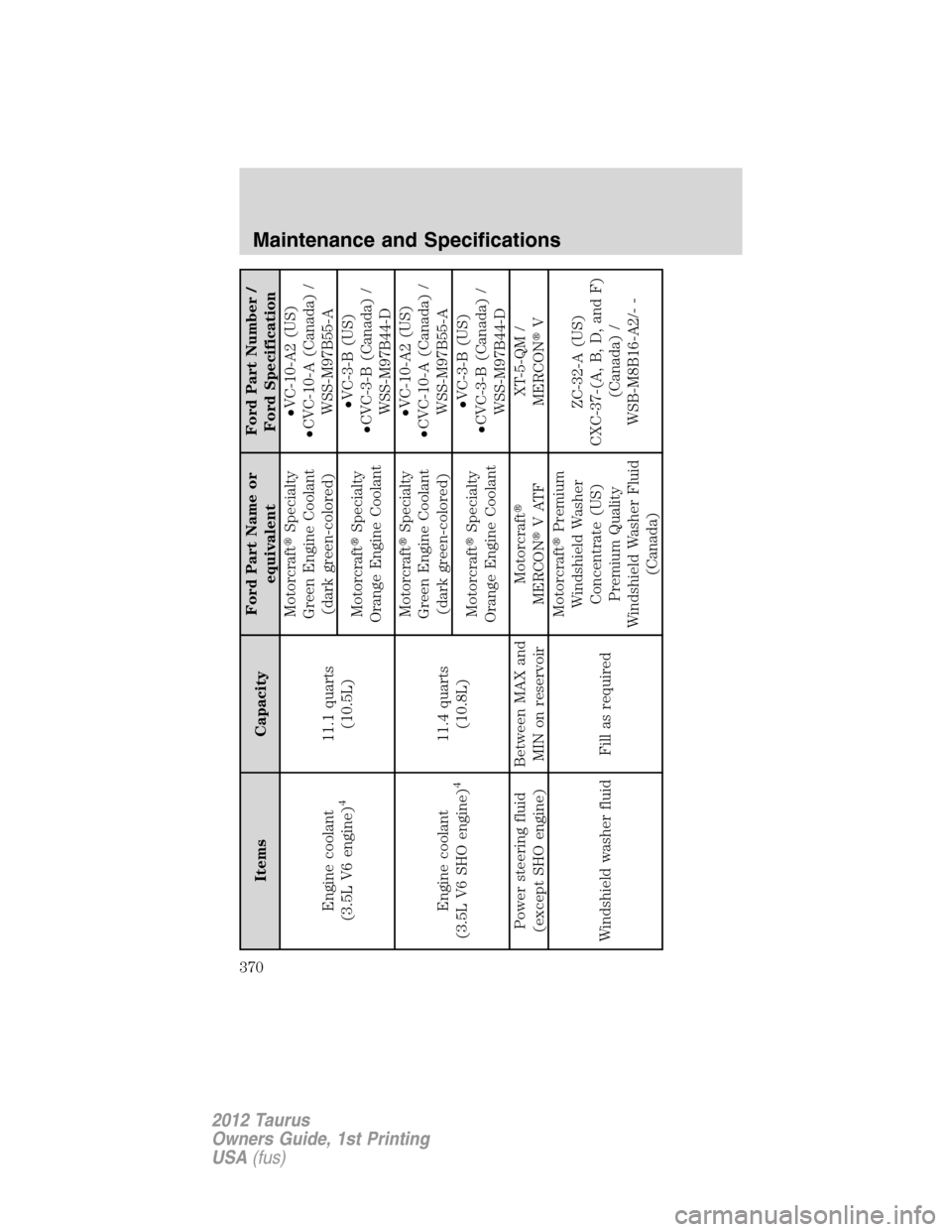

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine coolant
(3.5L V6 engine)
4
11.1 quarts
(10.5L)MotorcraftSpecialty
Green Engine Coolant
(dark green-colored)•VC-10-A2 (US)
•CVC-10-A (Canada) /
WSS-M97B55-A
MotorcraftSpecialty
Orange Engine Coolant•VC-3-B (US)
•CVC-3-B (Canada) /
WSS-M97B44-D
Engine coolant
(3.5L V6 SHO engine)
4
11.4 quarts
(10.8L)MotorcraftSpecialty
Green Engine Coolant
(dark green-colored)•VC-10-A2 (US)
•CVC-10-A (Canada) /
WSS-M97B55-A
MotorcraftSpecialty
Orange Engine Coolant•VC-3-B (US)
•CVC-3-B (Canada) /
WSS-M97B44-D
Power steering fluid
(except SHO engine)Between MAX and
MIN on reservoirMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Windshield washer fluid Fill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Maintenance and Specifications
370
2012 Taurus
Owners Guide, 1st Printing
USA(fus)

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Fuel tank19.0 gallons
(71.9 L)——
1Approximate dry fill capacity. Actual amount may vary during fluid changes.2Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.3Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C946-A (3.5L V6 SHO engine) or WSS-M2C945 -A (3.5L
V6 engine) and the API Certification mark.4Add the coolant type originally equipped in your vehicle.5See your authorized dealer for fluid level checking or filling.
Maintenance and Specifications
371
2012 Taurus
Owners Guide, 1st Printing
USA(fus)

ENGINE DATA
Engine 3.5L V6 engine 3.5L V6 SHO engine
Cubic inches 214 214
FuelSeeOctane
recommendations
earlier in this chapter.SeeOctane
recommendationsearlier
in this chapter.
Firing order 1–4–2–5–3–6 1–4–2–5–3–6
Ignition system Coil on plug Coil on plug
Spark plug gap0.052–0.056 inch
(1.32–1.42 mm)0.033–0.037 inch
(.84–.94 mm)
Compression
ratio10.3:1 10.0:1
Engine drivebelt routing
3.5L V6 engine
1. Short drivebelt is on first pulley groove closest to engine (except
vehicles with electric power assisted steering).
2. Long drivebelt is on second pulley groove farthest from engine.
Maintenance and Specifications
372
2012 Taurus
Owners Guide, 1st Printing
USA(fus)

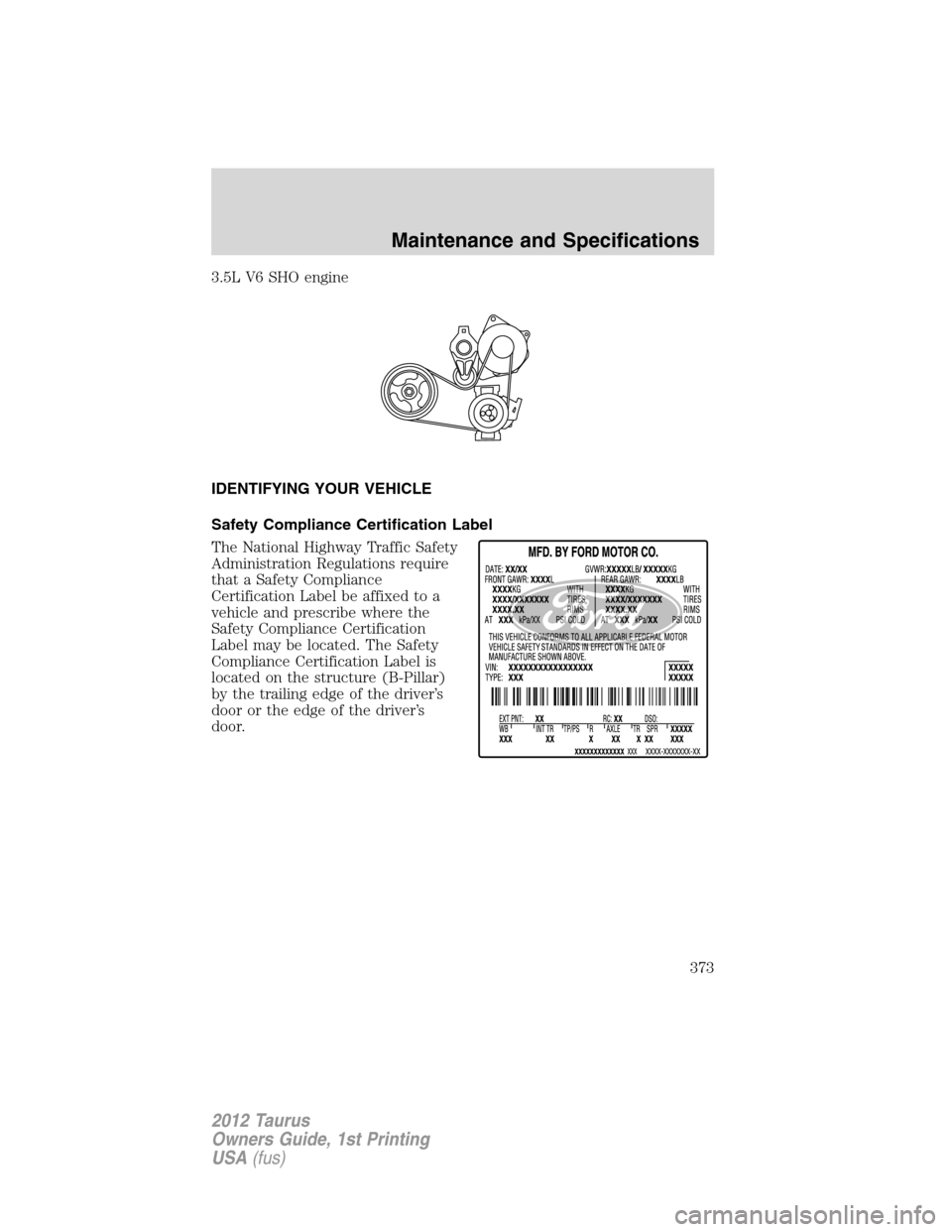

3.5L V6 SHO engine
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Maintenance and Specifications
373
2012 Taurus
Owners Guide, 1st Printing
USA(fus)

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
374
2012 Taurus
Owners Guide, 1st Printing
USA(fus)

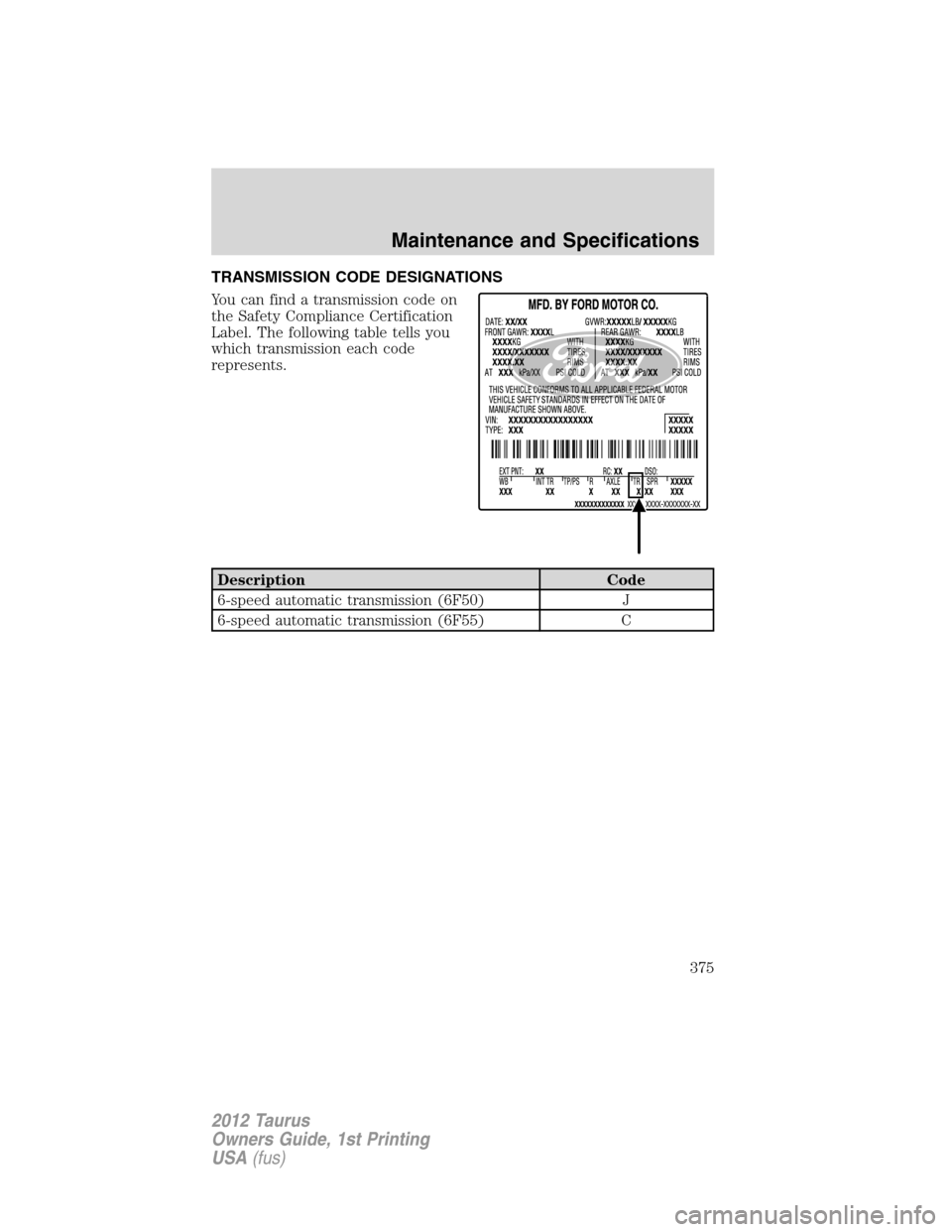

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6-speed automatic transmission (6F50) J
6-speed automatic transmission (6F55) C
Maintenance and Specifications
375
2012 Taurus
Owners Guide, 1st Printing
USA(fus)

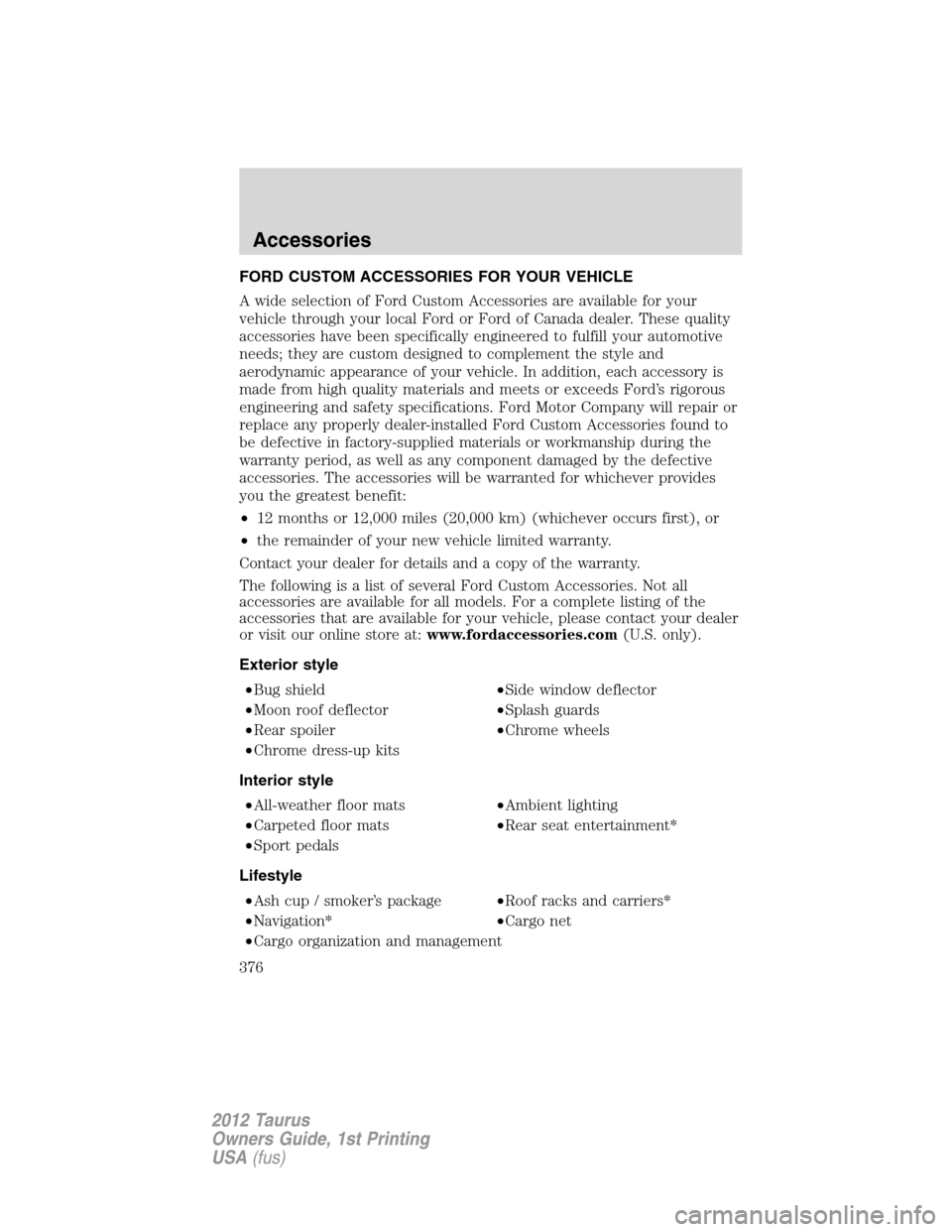

FORD CUSTOM ACCESSORIES FOR YOUR VEHICLE
A wide selection of Ford Custom Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford Custom Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Ford Custom Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at:www.fordaccessories.com(U.S. only).
Exterior style
•Bug shield•Side window deflector
•Moon roof deflector•Splash guards
•Rear spoiler•Chrome wheels
•Chrome dress-up kits
Interior style
•All-weather floor mats•Ambient lighting
•Carpeted floor mats•Rear seat entertainment*
•Sport pedals
Lifestyle
•Ash cup / smoker’s package•Roof racks and carriers*
•Navigation*•Cargo net
•Cargo organization and management
