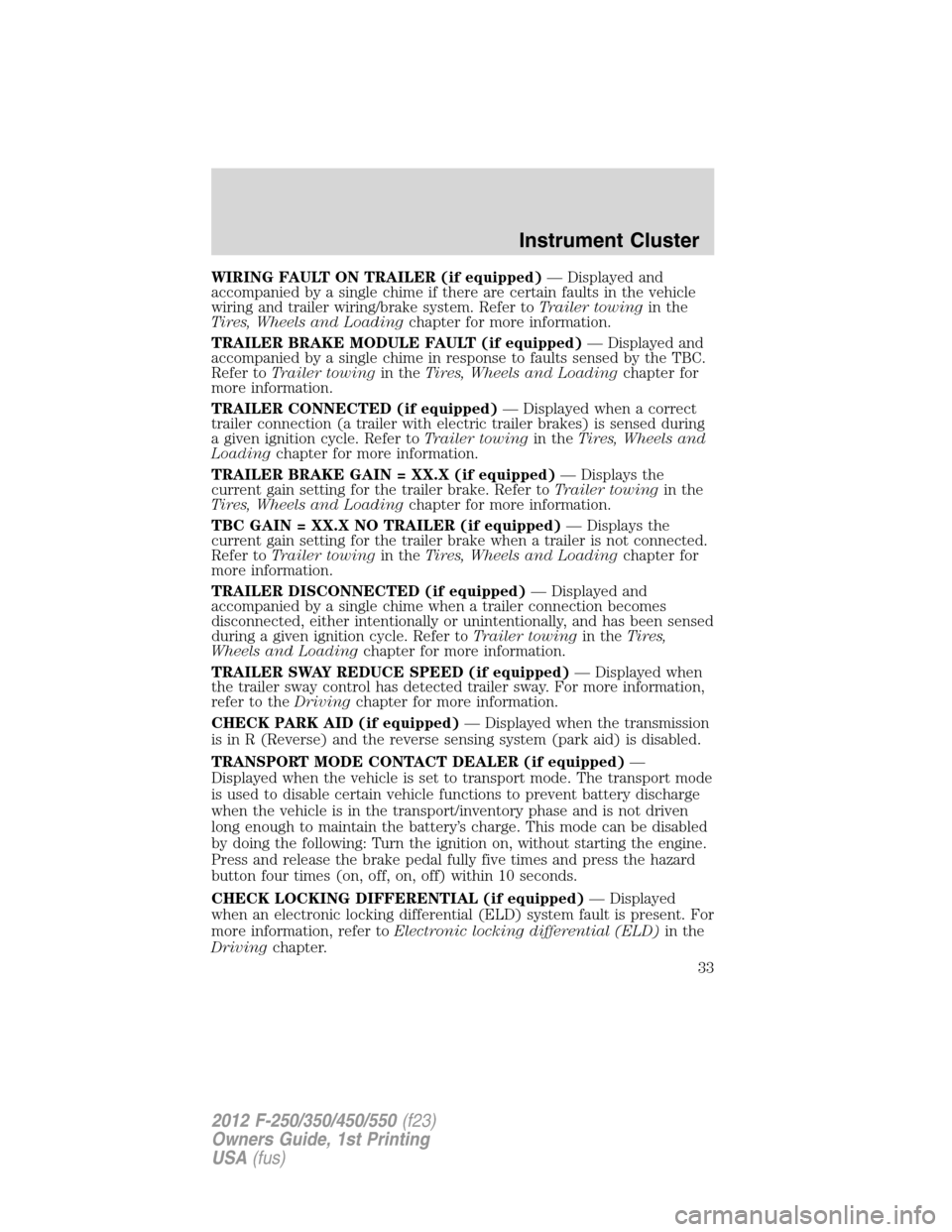

WIRING FAULT ON TRAILER (if equipped)— Displayed and
accompanied by a single chime if there are certain faults in the vehicle
wiring and trailer wiring/brake system. Refer toTrailer towingin the
Tires, Wheels and Loadingchapter for more information.
TRAILER BRAKE MODULE FAULT (if equipped)— Displayed and
accompanied by a single chime in response to faults sensed by the TBC.
Refer toTrailer towingin theTires, Wheels and Loadingchapter for
more information.
TRAILER CONNECTED (if equipped)— Displayed when a correct
trailer connection (a trailer with electric trailer brakes) is sensed during
a given ignition cycle. Refer toTrailer towingin theTires, Wheels and
Loadingchapter for more information.
TRAILER BRAKE GAIN = XX.X (if equipped)— Displays the
current gain setting for the trailer brake. Refer toTrailer towingin the
Tires, Wheels and Loadingchapter for more information.
TBC GAIN = XX.X NO TRAILER (if equipped)— Displays the
current gain setting for the trailer brake when a trailer is not connected.
Refer toTrailer towingin theTires, Wheels and Loadingchapter for
more information.
TRAILER DISCONNECTED (if equipped)— Displayed and
accompanied by a single chime when a trailer connection becomes
disconnected, either intentionally or unintentionally, and has been sensed
during a given ignition cycle. Refer toTrailer towingin theTires,
Wheels and Loadingchapter for more information.
TRAILER SWAY REDUCE SPEED (if equipped)— Displayed when
the trailer sway control has detected trailer sway. For more information,
refer to theDrivingchapter for more information.
CHECK PARK AID (if equipped)— Displayed when the transmission
is in R (Reverse) and the reverse sensing system (park aid) is disabled.
TRANSPORT MODE CONTACT DEALER (if equipped)—
Displayed when the vehicle is set to transport mode. The transport mode
is used to disable certain vehicle functions to prevent battery discharge
when the vehicle is in the transport/inventory phase and is not driven
long enough to maintain the battery’s charge. This mode can be disabled
by doing the following: Turn the ignition on, without starting the engine.
Press and release the brake pedal fully five times and press the hazard
button four times (on, off, on, off) within 10 seconds.
CHECK LOCKING DIFFERENTIAL (if equipped)— Displayed
when an electronic locking differential (ELD) system fault is present. For
more information, refer toElectronic locking differential (ELD)in the
Drivingchapter.
Instrument Cluster
33
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

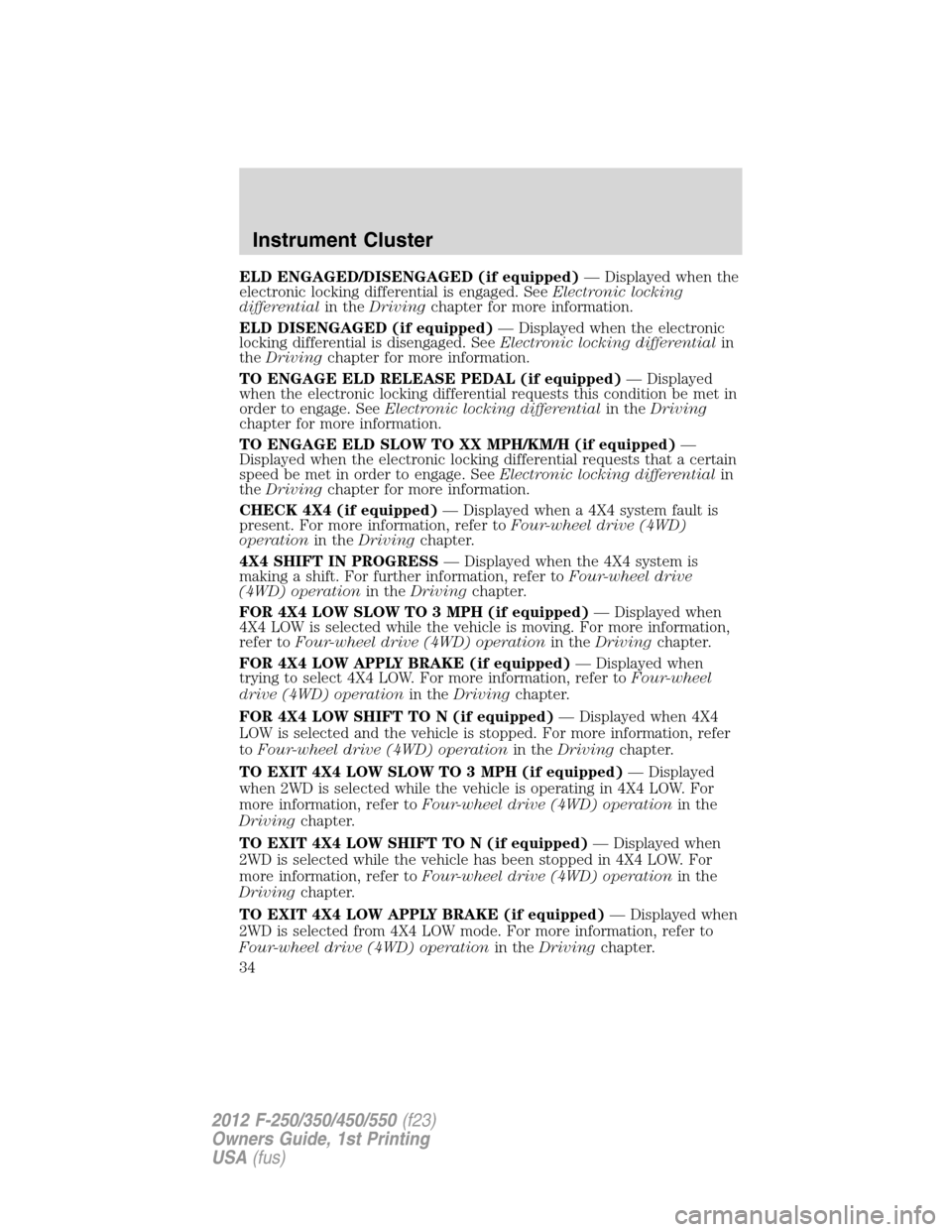

ELD ENGAGED/DISENGAGED (if equipped)— Displayed when the
electronic locking differential is engaged. SeeElectronic locking
differentialin theDrivingchapter for more information.
ELD DISENGAGED (if equipped)— Displayed when the electronic
locking differential is disengaged. SeeElectronic locking differentialin
theDrivingchapter for more information.
TO ENGAGE ELD RELEASE PEDAL (if equipped)— Displayed
when the electronic locking differential requests this condition be met in
order to engage. SeeElectronic locking differentialin theDriving
chapter for more information.
TO ENGAGE ELD SLOW TO XX MPH/KM/H (if equipped)—
Displayed when the electronic locking differential requests that a certain
speed be met in order to engage. SeeElectronic locking differentialin
theDrivingchapter for more information.
CHECK 4X4 (if equipped)— Displayed when a 4X4 system fault is
present. For more information, refer toFour-wheel drive (4WD)
operationin theDrivingchapter.
4X4 SHIFT IN PROGRESS— Displayed when the 4X4 system is
making a shift. For further information, refer toFour-wheel drive
(4WD) operationin theDrivingchapter.
FOR 4X4 LOW SLOW TO 3 MPH (if equipped)— Displayed when
4X4 LOW is selected while the vehicle is moving. For more information,
refer toFour-wheel drive (4WD) operationin theDrivingchapter.
FOR 4X4 LOW APPLY BRAKE (if equipped)— Displayed when
trying to select 4X4 LOW. For more information, refer toFour-wheel
drive (4WD) operationin theDrivingchapter.
FOR 4X4 LOW SHIFT TO N (if equipped)— Displayed when 4X4
LOW is selected and the vehicle is stopped. For more information, refer
toFour-wheel drive (4WD) operationin theDrivingchapter.
TO EXIT 4X4 LOW SLOW TO 3 MPH (if equipped)— Displayed
when 2WD is selected while the vehicle is operating in 4X4 LOW. For
more information, refer toFour-wheel drive (4WD) operationin the
Drivingchapter.
TO EXIT 4X4 LOW SHIFT TO N (if equipped)— Displayed when
2WD is selected while the vehicle has been stopped in 4X4 LOW. For
more information, refer toFour-wheel drive (4WD) operationin the
Drivingchapter.
TO EXIT 4X4 LOW APPLY BRAKE (if equipped)— Displayed when
2WD is selected from 4X4 LOW mode. For more information, refer to
Four-wheel drive (4WD) operationin theDrivingchapter.
Instrument Cluster
34
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

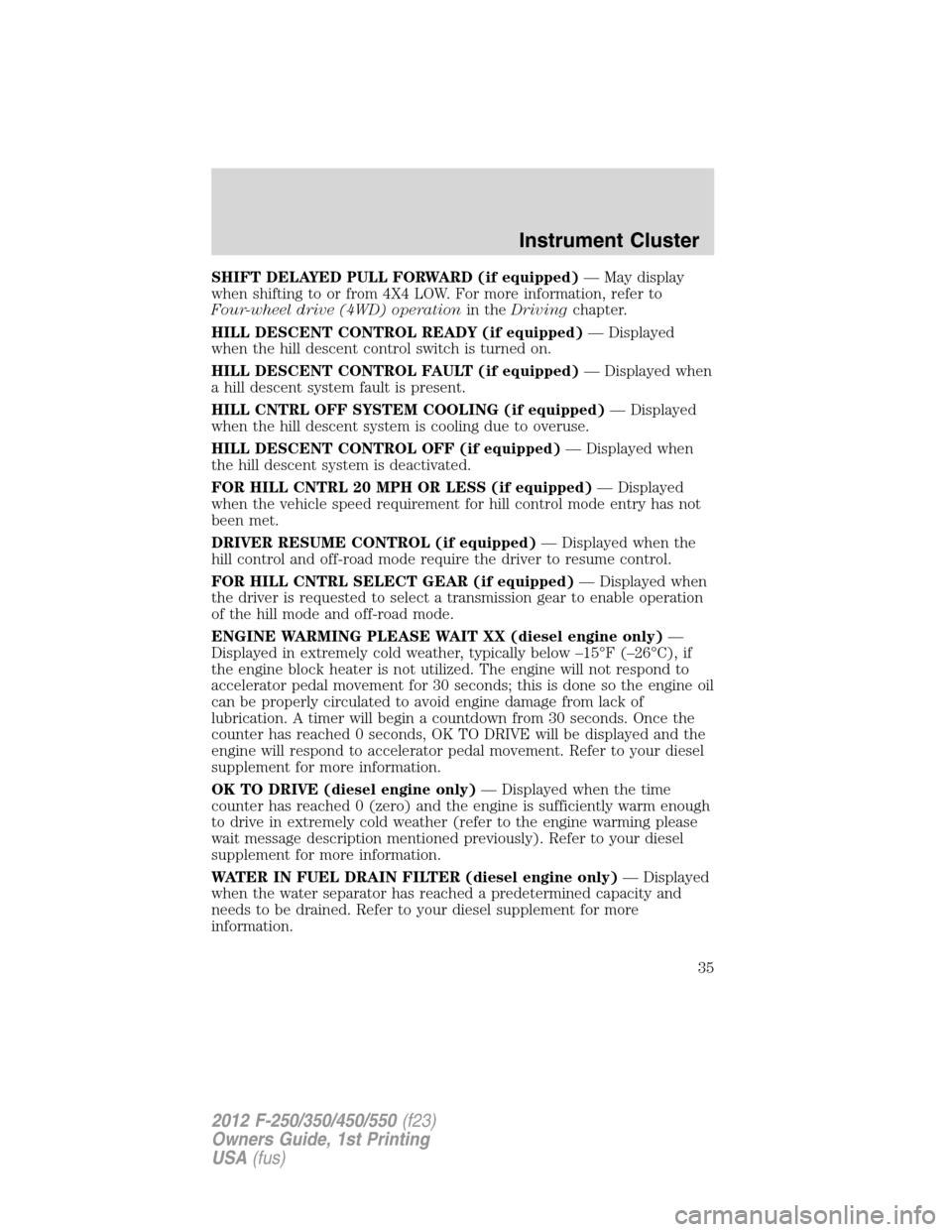

SHIFT DELAYED PULL FORWARD (if equipped)— May display
when shifting to or from 4X4 LOW. For more information, refer to
Four-wheel drive (4WD) operationin theDrivingchapter.
HILL DESCENT CONTROL READY (if equipped)— Displayed
when the hill descent control switch is turned on.
HILL DESCENT CONTROL FAULT (if equipped)— Displayed when
a hill descent system fault is present.
HILL CNTRL OFF SYSTEM COOLING (if equipped)— Displayed
when the hill descent system is cooling due to overuse.
HILL DESCENT CONTROL OFF (if equipped)— Displayed when
the hill descent system is deactivated.
FOR HILL CNTRL 20 MPH OR LESS (if equipped)— Displayed
when the vehicle speed requirement for hill control mode entry has not
been met.
DRIVER RESUME CONTROL (if equipped)— Displayed when the
hill control and off-road mode require the driver to resume control.
FOR HILL CNTRL SELECT GEAR (if equipped)— Displayed when
the driver is requested to select a transmission gear to enable operation
of the hill mode and off-road mode.
ENGINE WARMING PLEASE WAIT XX (diesel engine only)—
Displayed in extremely cold weather, typically below –15°F (–26°C), if
the engine block heater is not utilized. The engine will not respond to
accelerator pedal movement for 30 seconds; this is done so the engine oil
can be properly circulated to avoid engine damage from lack of
lubrication. A timer will begin a countdown from 30 seconds. Once the
counter has reached 0 seconds, OK TO DRIVE will be displayed and the
engine will respond to accelerator pedal movement. Refer to your diesel
supplement for more information.
OK TO DRIVE (diesel engine only)— Displayed when the time
counter has reached 0 (zero) and the engine is sufficiently warm enough
to drive in extremely cold weather (refer to the engine warming please
wait message description mentioned previously). Refer to your diesel
supplement for more information.
WATER IN FUEL DRAIN FILTER (diesel engine only)— Displayed
when the water separator has reached a predetermined capacity and
needs to be drained. Refer to your diesel supplement for more
information.
Instrument Cluster
35
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

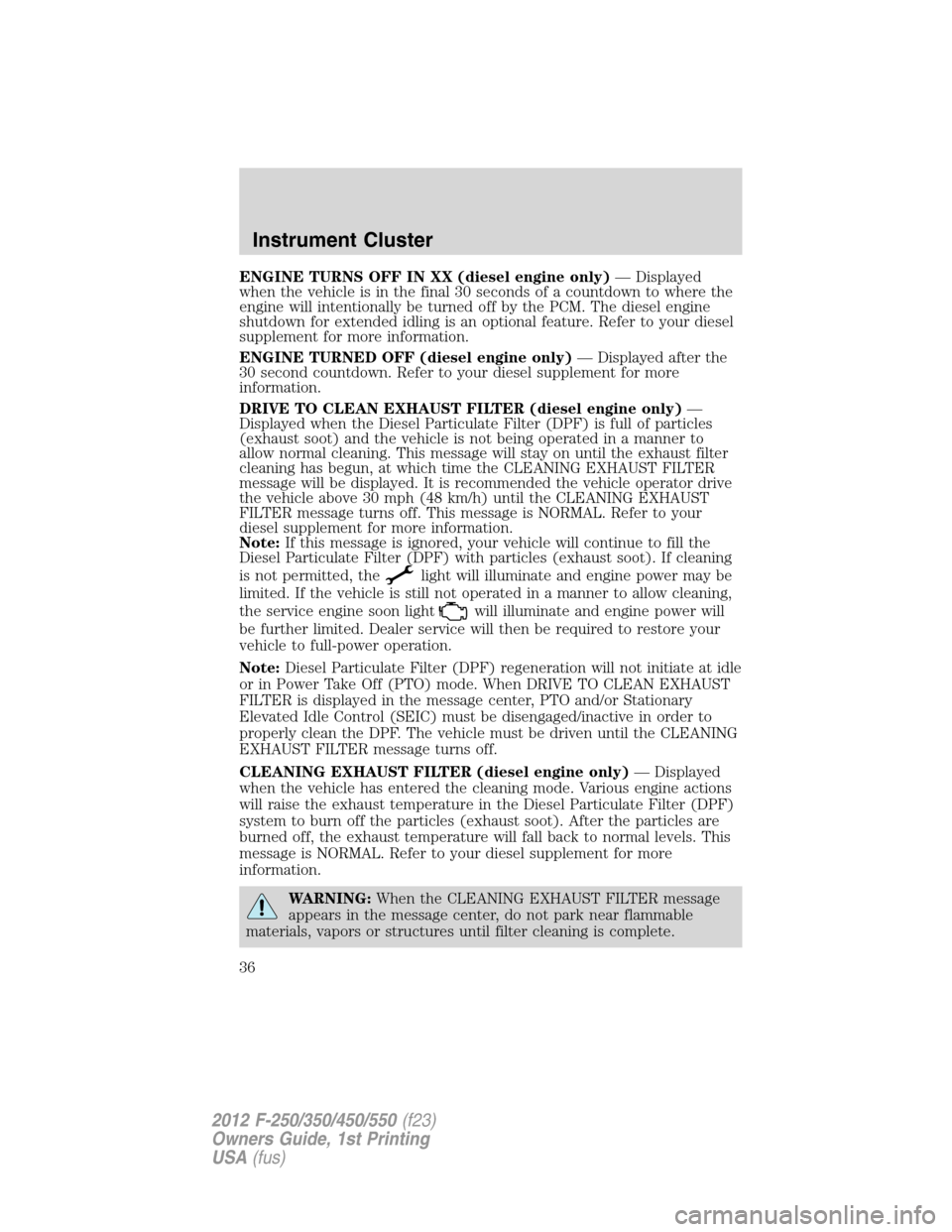

ENGINE TURNS OFF IN XX (diesel engine only)— Displayed
when the vehicle is in the final 30 seconds of a countdown to where the
engine will intentionally be turned off by the PCM. The diesel engine
shutdown for extended idling is an optional feature. Refer to your diesel
supplement for more information.
ENGINE TURNED OFF (diesel engine only)— Displayed after the
30 second countdown. Refer to your diesel supplement for more
information.
DRIVE TO CLEAN EXHAUST FILTER (diesel engine only)—
Displayed when the Diesel Particulate Filter (DPF) is full of particles
(exhaust soot) and the vehicle is not being operated in a manner to
allow normal cleaning. This message will stay on until the exhaust filter
cleaning has begun, at which time the CLEANING EXHAUST FILTER
message will be displayed. It is recommended the vehicle operator drive
the vehicle above 30 mph (48 km/h) until the CLEANING EXHAUST
FILTER message turns off. This message is NORMAL. Refer to your
diesel supplement for more information.
Note:If this message is ignored, your vehicle will continue to fill the
Diesel Particulate Filter (DPF) with particles (exhaust soot). If cleaning
is not permitted, the
light will illuminate and engine power may be
limited. If the vehicle is still not operated in a manner to allow cleaning,
the service engine soon light
will illuminate and engine power will
be further limited. Dealer service will then be required to restore your
vehicle to full-power operation.
Note:Diesel Particulate Filter (DPF) regeneration will not initiate at idle
or in Power Take Off (PTO) mode. When DRIVE TO CLEAN EXHAUST
FILTER is displayed in the message center, PTO and/or Stationary
Elevated Idle Control (SEIC) must be disengaged/inactive in order to
properly clean the DPF. The vehicle must be driven until the CLEANING
EXHAUST FILTER message turns off.
CLEANING EXHAUST FILTER (diesel engine only)— Displayed
when the vehicle has entered the cleaning mode. Various engine actions
will raise the exhaust temperature in the Diesel Particulate Filter (DPF)
system to burn off the particles (exhaust soot). After the particles are
burned off, the exhaust temperature will fall back to normal levels. This
message is NORMAL. Refer to your diesel supplement for more
information.
WARNING:When the CLEANING EXHAUST FILTER message
appears in the message center, do not park near flammable
materials, vapors or structures until filter cleaning is complete.
Instrument Cluster
36
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

EXHAUST FILTER DRIVE COMPLETE (diesel engine only)—
Displayed when the Diesel Particulate Filter (DPF) has been adequately
cleaned after the DRIVE TO CLEAN EXHAUST FILTER followed by
CLEANING EXHAUST FILTER messages have been displayed. This
message is NORMAL. Refer to your diesel supplement for more
information.
EXHAUST FILTER CLEANED (diesel engine only)— Displayed
when the Diesel Particulate Filter (DPF) has been adequately cleaned by
the manual regeneration process (OCR). Refer to your diesel supplement
for more information.
EXHAUST CLEAN STOPPED (diesel engine only)— Displayed
when the Diesel Particulate Filter (DPF) manual regeneration process
(OCR) has been stopped. Refer to your diesel supplement for more
information.
STOP SAFELY NOW (diesel engine only)— Displayed and a chime
sounds when the vehicle exhaust system temperature exceeds intended
operating range. If this warning occurs, engine power is reduced and the
engine will shut down when the vehicle speed is below 3 mph (5 km/h).
Stop the vehicle as soon as safely possibleand contact your
authorized dealer. Depending on the severity of the over-temperature
condition, the vehicle may not restart after cycling the ignition off. If the
vehicle restarts, there may be limited power. If the exhaust
over-temperature condition reoccurs, the message center will display
STOP SAFELY NOW, the chime will sound, and engine power will be
reduced again and shut down below 3 mph (5 km/h). Refer to your
diesel supplement for more information.
REDUCED ENGINE POWER (diesel engine only)— Displayed
approximately two hours after the DRIVE TO CLEAN EXHAUST
SYSTEM message has displayed and the vehicle operator has not driven
the vehicle above 30 mph (48 km/h) for at least 20 minutes to clean the
DPF. At this point the vehicle must be serviced by an authorized dealer.
This message is normal. Refer to your diesel supplement for more
information.
EXHAUST FLUID RANGE XXX MI (diesel engine only)— Displays
the distance you can travel before depleting the remaining diesel exhaust
fluid. Refer to your diesel supplement for more information.
SPEED LIMITED XXMPH IN XX MI EXHAUST FLUID EMPTY
(diesel engine only)— Displayed when the diesel exhaust fluid is
nearing empty. The vehicle’s top speed will become limited in the
displayed distance. The diesel exhaust fluid must be replenished to
resume normal operation of the vehicle. Refer to your diesel supplement
for more information.
Instrument Cluster
37
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

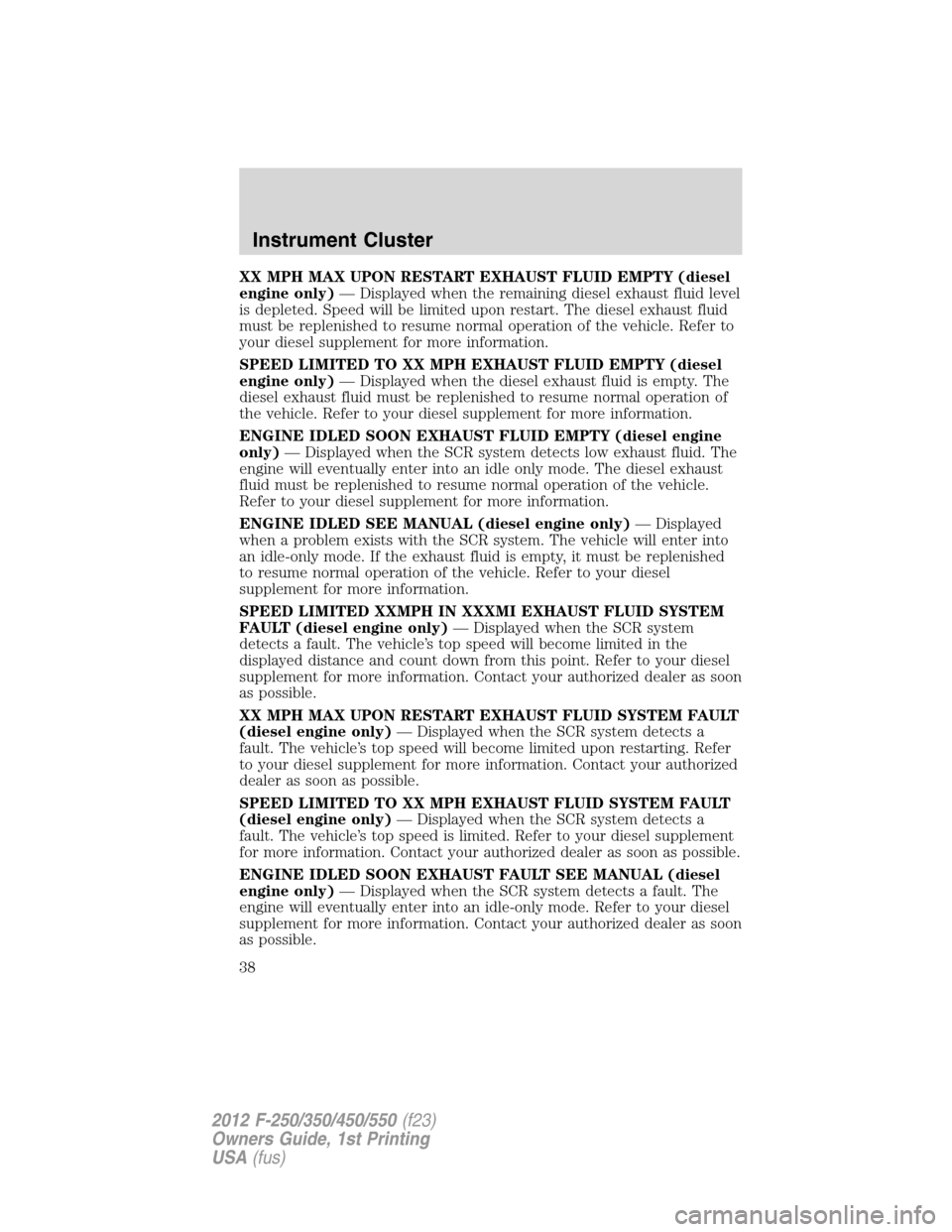

XX MPH MAX UPON RESTART EXHAUST FLUID EMPTY (diesel
engine only)— Displayed when the remaining diesel exhaust fluid level
is depleted. Speed will be limited upon restart. The diesel exhaust fluid
must be replenished to resume normal operation of the vehicle. Refer to
your diesel supplement for more information.
SPEED LIMITED TO XX MPH EXHAUST FLUID EMPTY (diesel
engine only)— Displayed when the diesel exhaust fluid is empty. The
diesel exhaust fluid must be replenished to resume normal operation of
the vehicle. Refer to your diesel supplement for more information.
ENGINE IDLED SOON EXHAUST FLUID EMPTY (diesel engine
only)— Displayed when the SCR system detects low exhaust fluid. The
engine will eventually enter into an idle only mode. The diesel exhaust
fluid must be replenished to resume normal operation of the vehicle.
Refer to your diesel supplement for more information.
ENGINE IDLED SEE MANUAL (diesel engine only)— Displayed
when a problem exists with the SCR system. The vehicle will enter into
an idle-only mode. If the exhaust fluid is empty, it must be replenished
to resume normal operation of the vehicle. Refer to your diesel
supplement for more information.
SPEED LIMITED XXMPH IN XXXMI EXHAUST FLUID SYSTEM
FAULT (diesel engine only)— Displayed when the SCR system
detects a fault. The vehicle’s top speed will become limited in the
displayed distance and count down from this point. Refer to your diesel
supplement for more information. Contact your authorized dealer as soon
as possible.
XX MPH MAX UPON RESTART EXHAUST FLUID SYSTEM FAULT
(diesel engine only)— Displayed when the SCR system detects a
fault. The vehicle’s top speed will become limited upon restarting. Refer
to your diesel supplement for more information. Contact your authorized
dealer as soon as possible.
SPEED LIMITED TO XX MPH EXHAUST FLUID SYSTEM FAULT
(diesel engine only)— Displayed when the SCR system detects a
fault. The vehicle’s top speed is limited. Refer to your diesel supplement
for more information. Contact your authorized dealer as soon as possible.
ENGINE IDLED SOON EXHAUST FAULT SEE MANUAL (diesel
engine only)— Displayed when the SCR system detects a fault. The
engine will eventually enter into an idle-only mode. Refer to your diesel
supplement for more information. Contact your authorized dealer as soon
as possible.
Instrument Cluster
38
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

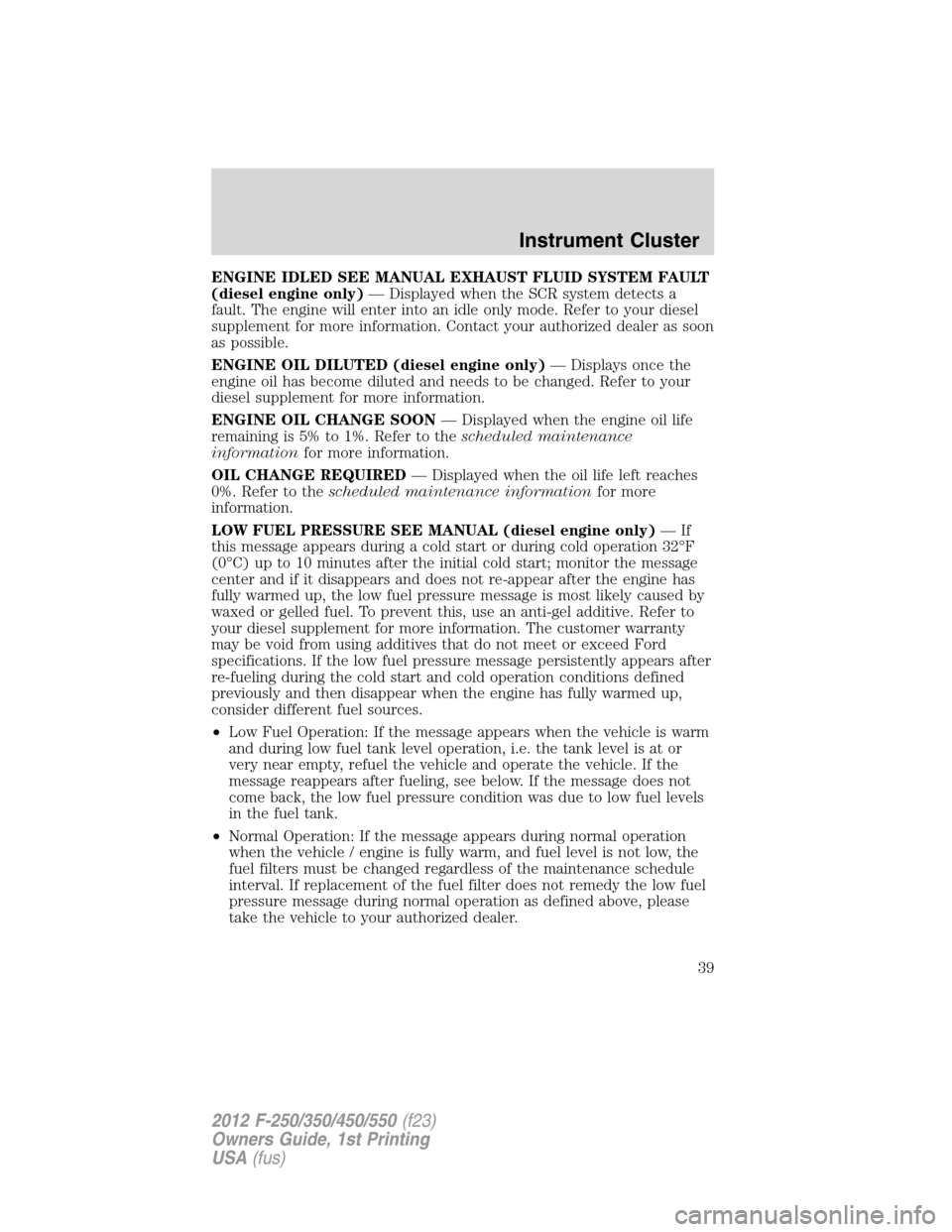

ENGINE IDLED SEE MANUAL EXHAUST FLUID SYSTEM FAULT
(diesel engine only)— Displayed when the SCR system detects a
fault. The engine will enter into an idle only mode. Refer to your diesel
supplement for more information. Contact your authorized dealer as soon
as possible.
ENGINE OIL DILUTED (diesel engine only)— Displays once the
engine oil has become diluted and needs to be changed. Refer to your
diesel supplement for more information.
ENGINE OIL CHANGE SOON— Displayed when the engine oil life
remaining is 5% to 1%. Refer to thescheduled maintenance
informationfor more information.
OIL CHANGE REQUIRED— Displayed when the oil life left reaches
0%. Refer to thescheduled maintenance informationfor more
information.
LOW FUEL PRESSURE SEE MANUAL (diesel engine only)—If
this message appears during a cold start or during cold operation 32°F
(0°C) up to 10 minutes after the initial cold start; monitor the message
center and if it disappears and does not re-appear after the engine has
fully warmed up, the low fuel pressure message is most likely caused by
waxed or gelled fuel. To prevent this, use an anti-gel additive. Refer to
your diesel supplement for more information. The customer warranty
may be void from using additives that do not meet or exceed Ford
specifications. If the low fuel pressure message persistently appears after
re-fueling during the cold start and cold operation conditions defined
previously and then disappear when the engine has fully warmed up,
consider different fuel sources.
•Low Fuel Operation: If the message appears when the vehicle is warm
and during low fuel tank level operation, i.e. the tank level is at or
very near empty, refuel the vehicle and operate the vehicle. If the
message reappears after fueling, see below. If the message does not
come back, the low fuel pressure condition was due to low fuel levels
in the fuel tank.
•Normal Operation: If the message appears during normal operation
when the vehicle / engine is fully warm, and fuel level is not low, the
fuel filters must be changed regardless of the maintenance schedule
interval. If replacement of the fuel filter does not remedy the low fuel
pressure message during normal operation as defined above, please
take the vehicle to your authorized dealer.
Instrument Cluster
39
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

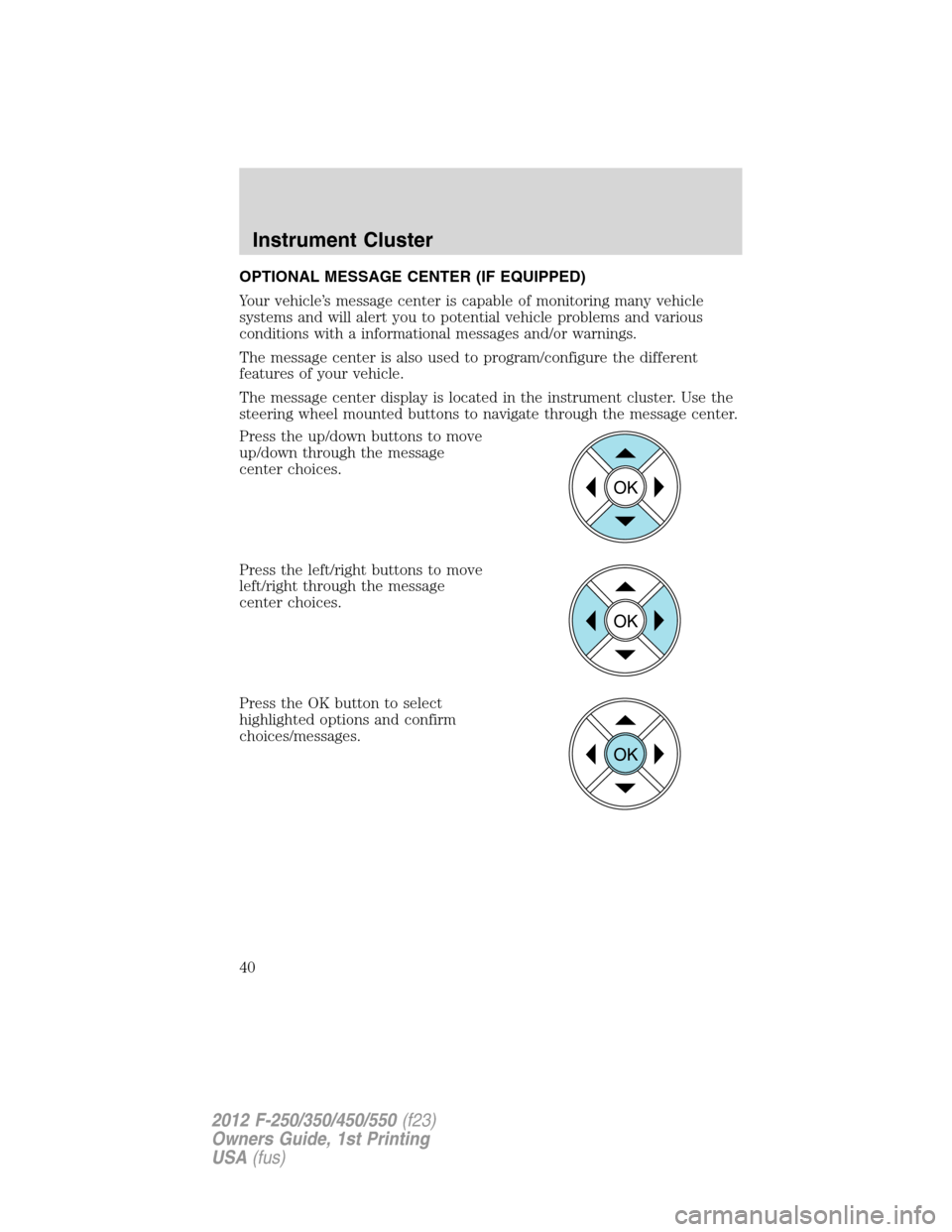

OPTIONAL MESSAGE CENTER (IF EQUIPPED)
Your vehicle’s message center is capable of monitoring many vehicle
systems and will alert you to potential vehicle problems and various
conditions with a informational messages and/or warnings.
The message center is also used to program/configure the different
features of your vehicle.
The message center display is located in the instrument cluster. Use the
steering wheel mounted buttons to navigate through the message center.
Press the up/down buttons to move
up/down through the message
center choices.
Press the left/right buttons to move
left/right through the message
center choices.
Press the OK button to select
highlighted options and confirm
choices/messages.
OK
OK
OK
Instrument Cluster
40
2012 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
