Introduction 5
Instrument Cluster 14Warning lights and chimes 14
Gauges 21
Message center 22
Entertainment Systems 60AM/FM stereo 60
AM/FM stereo with CD 62
Auxiliary input jack 69
USB port 71
Satellite radio information 74
Navigation system 77
SYNC  77
Climate Controls 78Manual heating and air conditioning 78
Dual electronic automatic temperature control 81
Rear window defroster 85
Lights 87Headlamps 87
Turn signal control 91
Interior lamps 92
Bulb replacement 92
Driver Controls 98Windshield wiper/washer control 98
Steering wheel adjustment 99
Power windows 103
Mirrors 105
Speed control 110
Upfitter controls 114Table of Contents
1
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Using your vehicle as an ambulance
If your light truck is equipped with the Ford Ambulance Preparation
Package, it may be utilized as an ambulance. Ford urges ambulance
manufacturers to follow the recommendations of the Ford Incomplete
Vehicle Manual, Ford Truck Body Builder’s Layout Book and the
Qualified Vehicle Modifiers (QVM) Guidelines as well as pertinent
supplements. For additional information, please contact the Truck Body
Builders Advisory Service at http://www.fleet.ford.com/truckbbas/ and
then by selecting “Contact Us” or by phone at 1–877–840–4338.
Use of your Ford light truck as an ambulance, without the Ford Ambulance
Preparation Package voids the Ford New Vehicle Limited Warranty and
may void the Emissions Warranties. In addition, ambulance usage without
the preparation package could cause high underbody temperatures,
overpressurized fuel and a risk of spraying fuel which could lead to fires.
If your vehicle is equipped with the Ford Ambulance Preparation
Package, it will be indicated on the Safety Compliance Certification
Label. The label is located on the driver’s side door pillar or on the rear
edge of the driver’s door. You can determine whether the ambulance
manufacturer followed Ford’s recommendations by directly contacting
that manufacturer. Ford Ambulance Preparation Package is only available
on certain Diesel engine equipped vehicles.
Using your vehicle as a stationary power source (PTO)
Refer to the Driving chapter for more information and guidelines for
operating a vehicle equipped with an aftermarket power take-off system.
DATA RECORDING
Service Data Recording
Service data recorders in your vehicle are capable of collecting and
storing diagnostic information about your vehicle. This potentially
includes information about the performance or status of various systems
and modules in the vehicle, such as engine, throttle, steering or brake
systems. In order to properly diagnose and service your vehicle, Ford
Motor Company, Ford of Canada, and service and repair facilities may
access or share among them vehicle diagnostic information received
through a direct connection to your vehicle when diagnosing or servicing
your vehicle. For U.S. only (if equipped), if you choose to use the SYNC
Vehicle Health Report, you consent that certain diagnostic information
may also be accessed electronically by Ford Motor Company and Ford
authorized service facilities, and that the diagnostic information may be
used for any purpose. See your SYNC  supplement for more information.Introduction
8
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

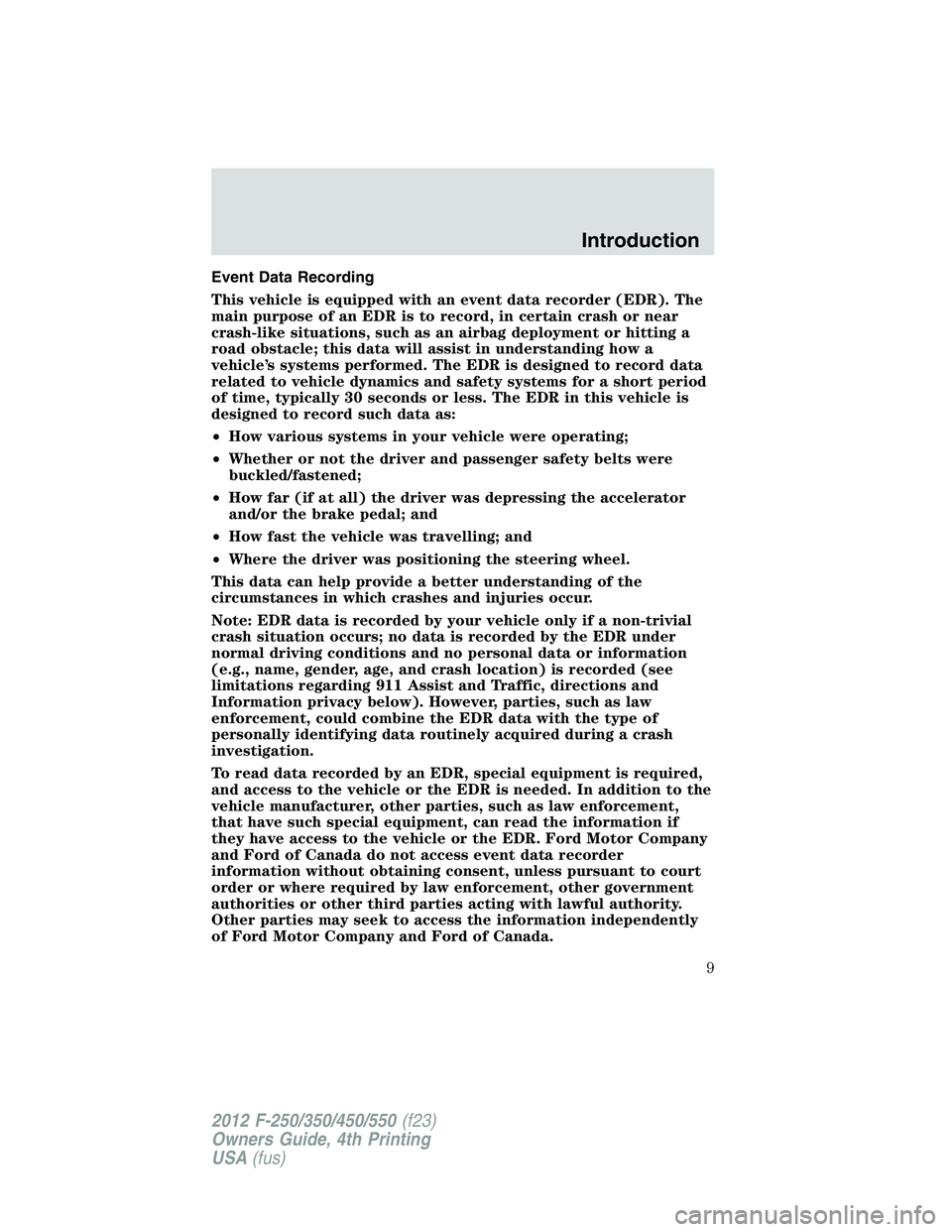

Event Data Recording
This vehicle is equipped with an event data recorder (EDR). The
main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an airbag deployment or hitting a
road obstacle; this data will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data
related to vehicle dynamics and safety systems for a short period
of time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator
and/or the brake pedal; and
• How fast the vehicle was travelling; and
• Where the driver was positioning the steering wheel.
This data can help provide a better understanding of the
circumstances in which crashes and injuries occur.
Note: EDR data is recorded by your vehicle only if a non-trivial
crash situation occurs; no data is recorded by the EDR under
normal driving conditions and no personal data or information
(e.g., name, gender, age, and crash location) is recorded (see
limitations regarding 911 Assist and Traffic, directions and
Information privacy below). However, parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement,
that have such special equipment, can read the information if
they have access to the vehicle or the EDR. Ford Motor Company
and Ford of Canada do not access event data recorder
information without obtaining consent, unless pursuant to court
order or where required by law enforcement, other government
authorities or other third parties acting with lawful authority.
Other parties may seek to access the information independently
of Ford Motor Company and Ford of Canada. Introduction
9
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear Power Window Lockout
Child Safety Door
Lock/Unlock Interior Luggage
Compartment Release
Panic Alarm Engine Oil
Engine Coolant Engine Coolant
Temperature
Do Not Open When Hot Battery
Avoid Smoking, Flames,
or Sparks Battery Acid
Explosive Gas Fan Warning
Power Steering Fluid Maintain Correct Fluid
Level MAX
MIN
Service Engine Soon Engine Air Filter
Passenger Compartment
Air Filter Jack
Check Fuel Cap Low Tire Pressure
WarningIntroduction
13
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Yellow area The transmission fluid is higher than normal operating
temperature. This can be caused by special operation conditions (i.e.
snowplowing, towing or off road use). Refer to Special operating
conditions in the scheduled maintenance information for instructions.
Operating the transmission for extended periods of time with the gauge
in the yellow area may cause internal transmission damage.
Altering the severity of the driving conditions is recommended to lower
the transmission temperature into the normal range.
Red area The transmission fluid is overheating. Stop the vehicle to allow
the temperature to return to normal range.
If the gauge is operating in the yellow or red area, stop the vehicle and
verify the airflow is not restricted such as snow or debris blocking airflow
through the grill. If the gauge continues to show high temperatures, see
your authorized dealer.
4. Fuel gauge: Indicates approximately how much fuel is left in the fuel
tank (when the ignition is in the on position). The fuel gauge may vary
slightly when the vehicle is in motion or on a grade. The fuel icon and
arrow indicates which side of the vehicle the fuel filler door is located.
Refer to Filling the tank in the Maintenance and Specifications
chapter for more information.
5. Speedometer: Indicates the current vehicle speed.
6. Tachometer: Indicates the engine speed in revolutions per minute.
Driving with your tachometer pointer continuously at the top of the scale
may damage the engine.
Odometer and trip odometer: The odometer is displayed on the lower
line in the message center and registers the total accumulated distance
the vehicle has traveled. For trip odometer, refer to Standard message
center or Optional message center in this chapter.
STANDARD MESSAGE CENTER
Your vehicle’s message center is capable of monitoring many vehicle
systems and will alert you to potential vehicle problems and various
conditions with an informational message followed by a long indicator
chime.
The message center display is located in the instrument cluster and the
controls are located on the steering wheel.Instrument Cluster
22
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

• Low Fuel Operation: If the message appears when the vehicle is warm
and during low fuel tank level operation, i.e. the tank level is at or
very near empty, refuel the vehicle and operate the vehicle. If the
message reappears after fueling, see below. If the message does not
come back, the low fuel pressure condition was due to low fuel levels
in the fuel tank.
• Normal Operation: If the message appears during normal operation
when the vehicle / engine is fully warm, and fuel level is not low, the
fuel filters must be changed regardless of the maintenance schedule
interval. If replacement of the fuel filter does not remedy the low fuel
pressure message during normal operation as defined above, please
take the vehicle to your authorized dealer.
OPTIONAL MESSAGE CENTER (IF EQUIPPED)
Your vehicle’s message center is capable of monitoring many vehicle
systems and will alert you to potential vehicle problems and various
conditions with a informational messages and/or warnings.
The message center is also used to program/configure the different
features of your vehicle.
The message center display is located in the instrument cluster. Use the
steering wheel mounted buttons to navigate through the message center.
Press the up/down buttons to move
up/down through the message
center choices.
Press the left/right buttons to move
left/right through the message
center choices. OK
OKInstrument Cluster
39
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

It is important to press RESET in order to reset the function after
setting the speed control to get accurate highway fuel economy readings.
For more information refer to Essentials of good fuel economy in the
Maintenance and Specifications chapter.
Fuel Hist.: Press the right arrow key (when in the Fuel Econ. menu) to
reach Fuel Hist. Fuel history shows fuel usage (AVG MPG or L/100km) as a
bar graph based on time. The duration time can be changed as follows:
Duration– Press the right arrow key (when in the Fuel Hist. menu) to
reach the following duration choices.
• 5 Minutes
• 10 Minutes
• 30 Minutes
• Last 5 Resets
Use the up/down arrows keys to highlight one of the choices; press and
hold OK to set your choice.
The graph is updated each minute with the fuel economy that was
achieved during the prior 5, 10, 30 minutes or last 5 resets of driving.
Truck Apps (if equipped)
In this mode, off-road and trailer towing application options are available.
Off Road*
Pitch and bank angle (in degrees). Displays the pitch angle (front to
rear) and bank angle (side to side) of the road surface.
Steering angle (in degrees). Displays the steering angle of the front
wheels after the vehicle has been driven for a period of time.
Differential lock/unlock. Displays the state (locked or unlocked) of the
electronic locking differential.
Energy flow. Displays the operating mode of the transfer case: 4X2,
4X4 Low or 4X4 High.
* If equipped—your vehicle may be equipped with some or all of these
options.
When “Press OK for info” is displayed, pressing OK will give you
information on the following options if equipped ( Note: Information is
only available when traveling less than 3 mph [5 km/h]):
• ELD (electronic locking differential)
• Hill Descent ControlInstrument Cluster
42
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

TRAIN SPARE TIRE (if equipped) — Displayed when training the
TPMS. Refer to TPMS reset procedure in the Tires, Wheels and
Loading chapter for more information.
TRAINING COMPLETE — Displayed when training of the TPMS
system is complete. Refer to TPMS reset procedure in the Tires, Wheels
and Loading chapter for more information.
POWER STEERING ASSIST FAULT — The power steering system
has disabled power steering assist due to a system error; service is
required.
SERVICE POWER STEERING — The power steering system has
detected a condition that requires service.
SERVICE POWER STEERING NOW — The power steering system
has detected a condition that requires service immediately.
BUCKLE UP TO UNMUTE AUDIO — Displayed when a MyKey  is in
use and Belt-Minder  is activated. Refer to MyKey  in the Locks and
Security chapter for more information.
TRACTION CONTROL OFF (if equipped) — Displayed when the
traction control has been disabled by the driver. Refer to the Driving
chapter for more information.
CHECK 4X4 (if equipped) — Displayed when a 4X4 system fault is
present. For more information, refer to Four-wheel drive (4WD)
operation in the Driving chapter.
4X4 SHIFT IN PROGRESS (if equipped) — Displayed when the 4X4
system is making a shift. For further information, refer to Four-wheel
drive (4WD) operation in the Driving chapter.
FOR 4X4 LOW APPLY BRAKE (if equipped) — Displayed when
trying to select 4X4 LOW. For more information, refer to Four-wheel
drive (4WD) operation in the Driving chapter.
FOR 4X4 LOW SHIFT TO N (if equipped) — Displayed when 4X4
LOW is selected and the vehicle is stopped. For more information, refer
to Four-wheel drive (4WD) operation in the Driving chapter.
FOR 4X4 LOW SLOW TO 3 MPH (if equipped) — Displayed when
4X4 LOW is selected while the vehicle is moving. For more information,
refer to Four-wheel drive (4WD) operation in the Driving chapter.
TO EXIT 4X4 LOW APPLY BRAKE (if equipped) — Displayed when
2WD is selected from 4X4 LOW mode. For more information, refer to
Four-wheel drive (4WD) operation in the Driving chapter.Instrument Cluster
55
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
