2012 FORD F150 air filter

6.2L V8 ENGINE
1. Auxiliary switch circuit pass through circuits
2. Windshield washer fluid reservoir
3. Engine oil dipstick
4. Brake fluid reservoir
5. Engine coolant reservoir
6. Auxiliary power distribution box
7. Air filter assembly
8. Power steering fluid reservoir
9. Power distribution box
10. Engine oil filler cap
11. Battery
21
11
345
10987
6
Engine/Transmission
7
2012 F-150(f12)
Supplement, 1st Printing
USA(fus)

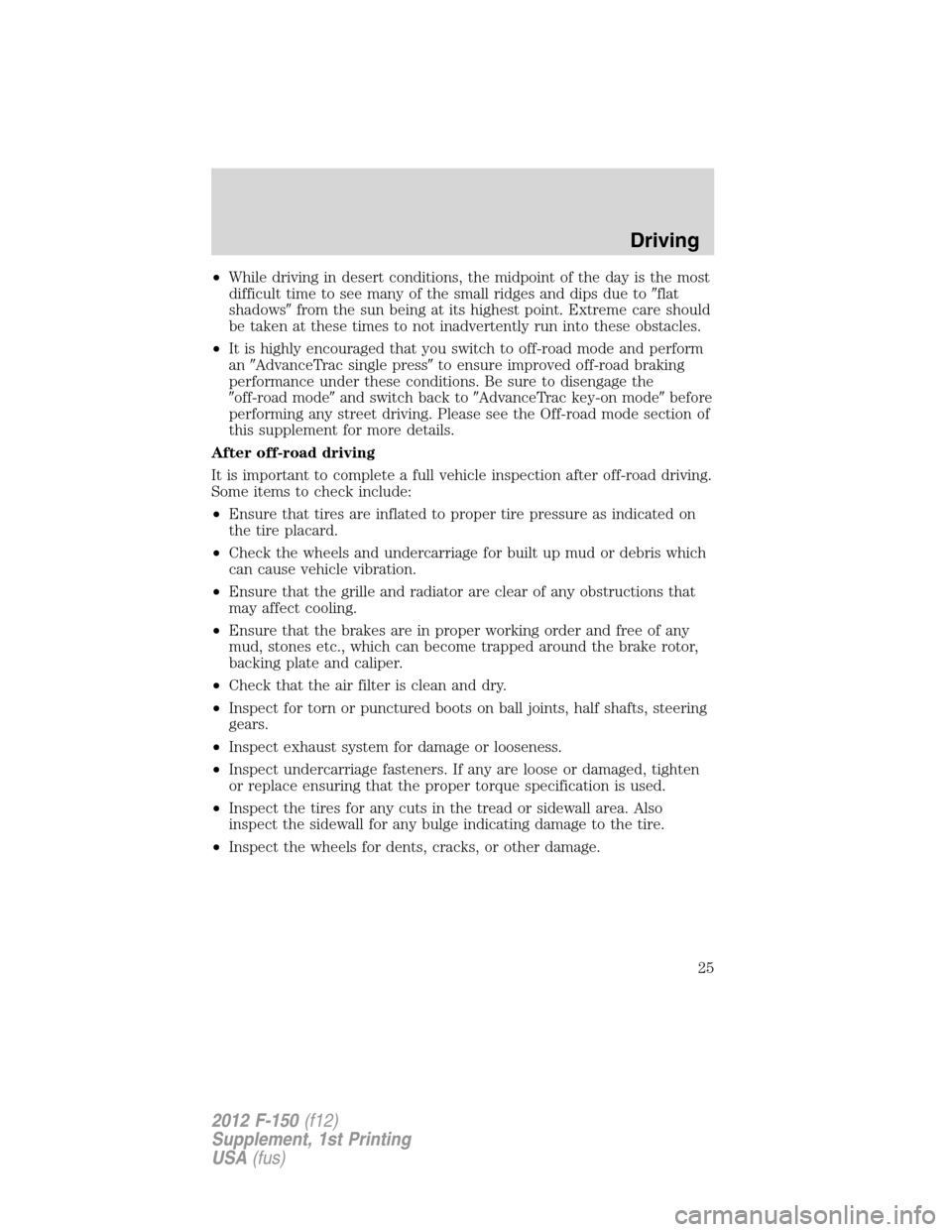

•While driving in desert conditions, the midpoint of the day is the most
difficult time to see many of the small ridges and dips due toflat
shadowsfrom the sun being at its highest point. Extreme care should
be taken at these times to not inadvertently run into these obstacles.
•It is highly encouraged that you switch to off-road mode and perform
anAdvanceTrac single pressto ensure improved off-road braking
performance under these conditions. Be sure to disengage the
off-road modeand switch back toAdvanceTrac key-on modebefore
performing any street driving. Please see the Off-road mode section of
this supplement for more details.
After off-road driving
It is important to complete a full vehicle inspection after off-road driving.
Some items to check include:
•Ensure that tires are inflated to proper tire pressure as indicated on
the tire placard.
•Check the wheels and undercarriage for built up mud or debris which
can cause vehicle vibration.
•Ensure that the grille and radiator are clear of any obstructions that
may affect cooling.
•Ensure that the brakes are in proper working order and free of any
mud, stones etc., which can become trapped around the brake rotor,
backing plate and caliper.
•Check that the air filter is clean and dry.
•Inspect for torn or punctured boots on ball joints, half shafts, steering
gears.
•Inspect exhaust system for damage or looseness.
•Inspect undercarriage fasteners. If any are loose or damaged, tighten
or replace ensuring that the proper torque specification is used.
•Inspect the tires for any cuts in the tread or sidewall area. Also
inspect the sidewall for any bulge indicating damage to the tire.
•Inspect the wheels for dents, cracks, or other damage.
Driving
25
2012 F-150(f12)
Supplement, 1st Printing
USA(fus)

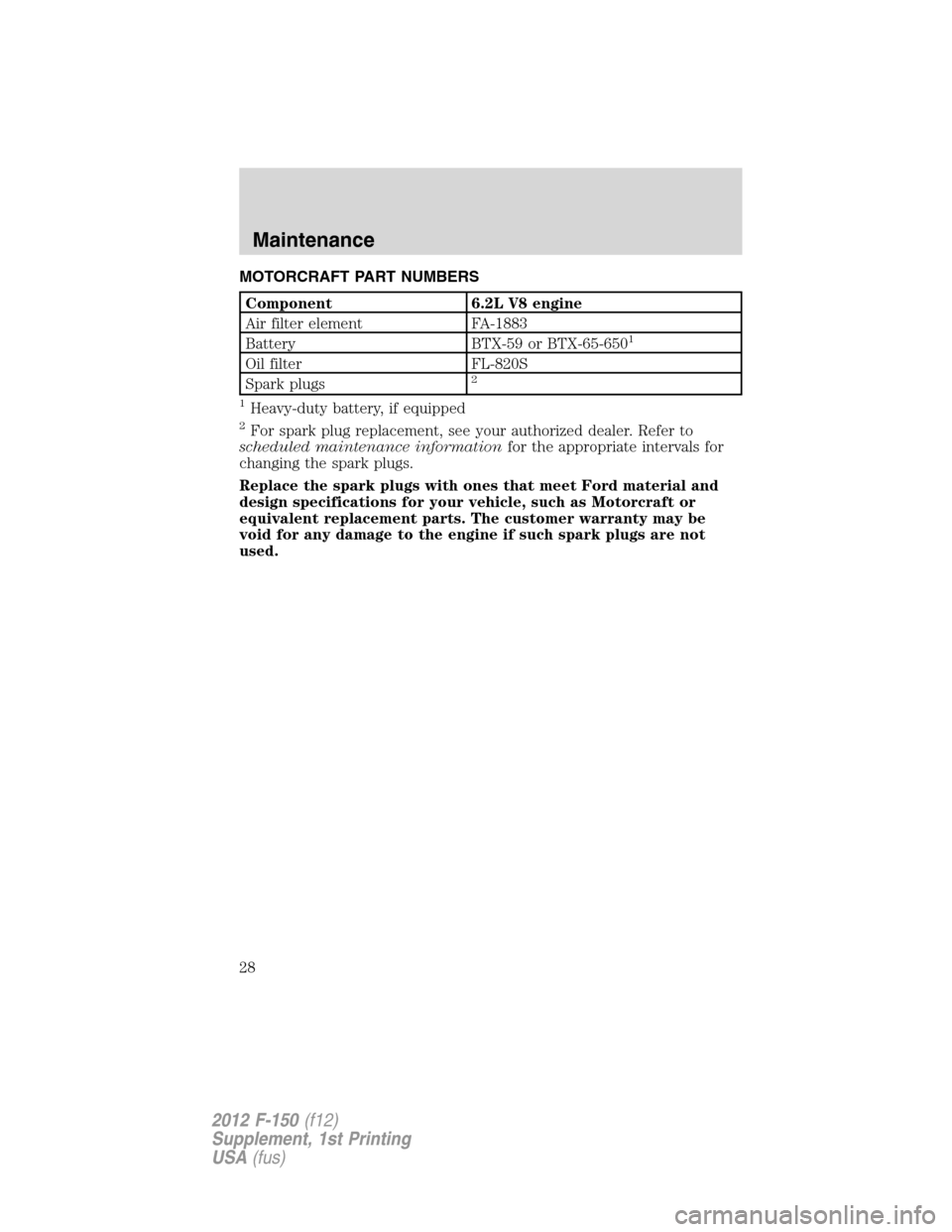

MOTORCRAFT PART NUMBERS
Component 6.2L V8 engine
Air filter element FA-1883
Battery BTX-59 or BTX-65-650
1
Oil filter FL-820S
Spark plugs2
1
Heavy-duty battery, if equipped
2For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance
28
2012 F-150(f12)
Supplement, 1st Printing
USA(fus)

A
Air cleaner filter .........................28
Automatic transmission
fluid, refill capacities ................29
Axle
refill capacities ..........................29
B
Battery
replacement, specifications .....28
C
Capacities for refilling fluids ......29
Coolant
refill capacities ..........................29
E
Engine ............................................8
refill capacities ..........................29
service points ..............................7
Engine oil
filter, specifications ..................28
refill capacities ..........................29
F
Fluid capacities ...........................29
Fuel
capacity .....................................29
filter, specifications ..................28
octane rating .........................8, 31I
Ignition ...........................................8
M
Motorcraftparts ........................28
O
Octane rating ..............................31
P
Parts (see Motorcraftparts) ...28
S
Spark plugs, specifications .....8, 28
T
Tires
changing ....................................31
rotating ......................................31
Towing
wrecker ......................................26
Transmission
fluid, refill capacities ................29
U
Upfitter controls .........................14
W
Wrecker towing ...........................26
Index
36
2012 F-150(f12)
Supplement, 1st Printing
USA(fus)
