•Never use the front or rear
differential as a jacking point.
WARNING:To lessen the risk of personal injury, do not put any
part of your body under the vehicle while changing a tire. Do not
start the engine when your vehicle is on the jack. The jack is only
meant for changing the tire.
7. Remove the lug nuts with the lug wrench.
8. Replace the flat tire with the spare tire, making sure the valve stem is
facing outward. Reinstall the lug nuts until the wheel is snug against the
hub. Do not fully tighten the lug nuts until the wheel has been lowered.
9. Lower the wheel by turning the jack handle counterclockwise.
10. Remove the jack and fully
tighten the lug nuts in the order
shown and reinstall the wheel cover.
Refer toWheel lug nut torque
specificationslater in this chapter
for the proper lug nut torque
specification.
11. Unblock the wheels.
12. Put flat tire, jack, lug wrench
and tools away. Make sure the jack
bag is properly reinstalled around the jack and tools assembly tray with
the strap securely fastened. Be sure to tighten the wing nut sufficiently
so it does not rattle when you drive.
13. Turn on the air suspension system (if equipped). Refer toMessage
centerin theInstrument Clusterchapter for instructions on turning the
air suspension system on.
Roadside Emergencies
297
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

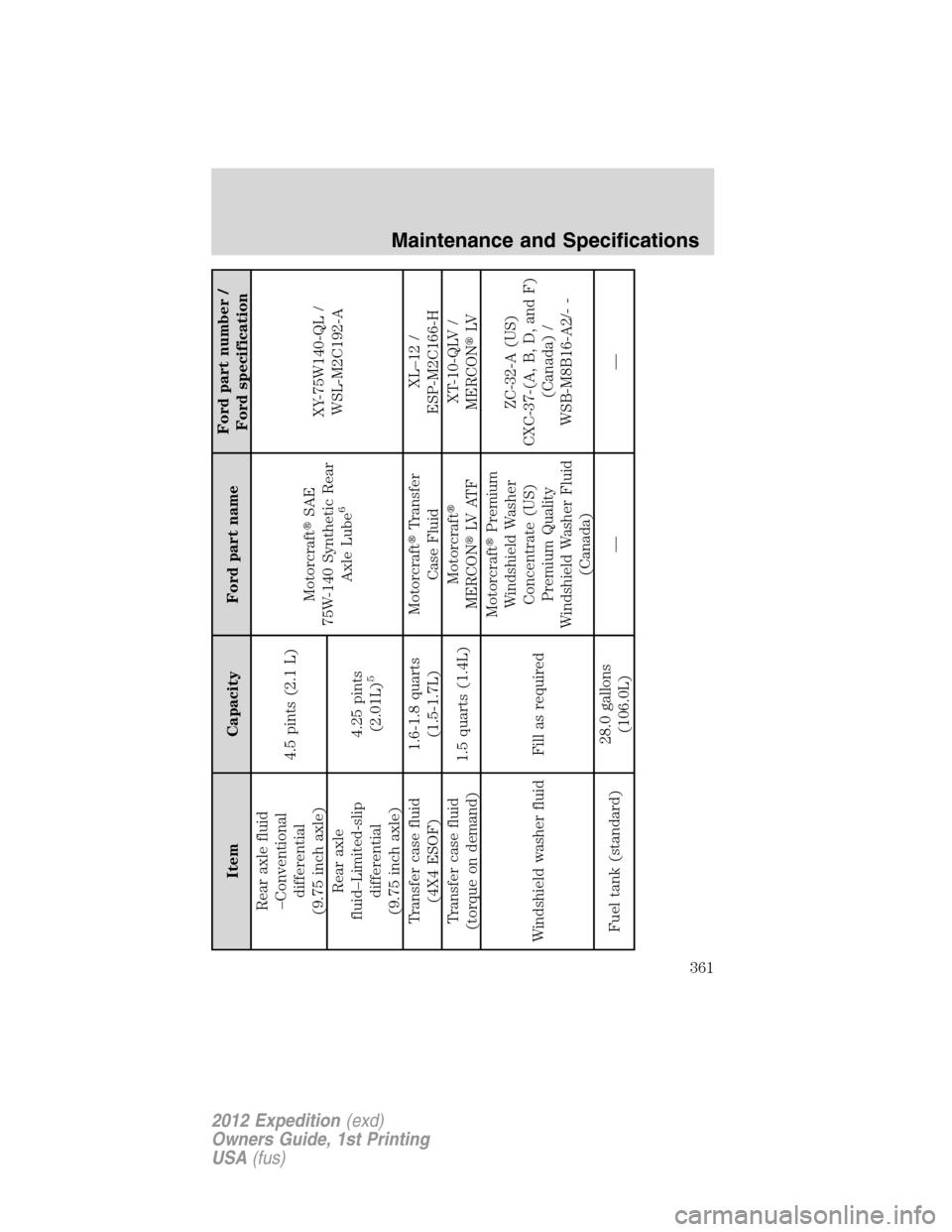

Item Capacity Ford part nameFord part number /
Ford specification
Rear axle fluid
–Conventional
differential
(9.75 inch axle)4.5 pints (2.1 L)
MotorcraftSAE
75W-140 Synthetic Rear
Axle Lube
6
XY-75W140-QL /
WSL-M2C192-A
Rear axle
fluid–Limited-slip
differential
(9.75 inch axle)4.25 pints
(2.01L)
5
Transfer case fluid
(4X4 ESOF)1.6-1.8 quarts
(1.5-1.7L)MotorcraftTransfer
Case FluidXL–12 /
ESP-M2C166-H
Transfer case fluid
(torque on demand)1.5 quarts (1.4L)Motorcraft
MERCONLV AT FXT-10-QLV /
MERCONLV
Windshield washer fluid Fill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank (standard)28.0 gallons
(106.0L)——
Maintenance and Specifications
361
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
