2012 FORD EXPEDITION Locks and security

Locks and Security 112
Keys 112
Locks 118
Anti-theft system 129
Seating and Safety Restraints 136
Seating 136
Airbags 170
Child restraints 180
Tires, Wheels and Loading 199
Tire information 202
Tire inflation 204
Tire Pressure Monitoring System (TPMS) 217
Vehicle loading 222
Trailer towing 229
Recreational towing 235
Driving 236
Starting 236
Brakes 243
AdvanceTrac246
Air suspension 252
Transmission operation 256
Forward and reverse sensing system 260
Rear-view camera system 263
Roadside Emergencies 279
Getting roadside assistance 279
Hazard flasher control 280
Fuel pump shut-off switch 281
Fuses and relays 282
Changing tires 290
Wheel lug nut torque 298
Jump starting 300
Wrecker towing 304
Table of Contents
2
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
6.Fuel gauge:Indicates approximately how much fuel is left in the fuel
tank (when the ignition is in the on position). The fuel gauge may vary
slightly when the vehicle is in motion or on a grade. The fuel icon and
arrow indicates which side of the vehicle the fuel filler door is located.
Refer toFilling the tankin theMaintenance and Specifications
chapter for more information.
Odometer and trip odometer:The odometer is displayed in the
message center and registers the total accumulated distance the vehicle
has traveled. For trip odometer, refer toStandard message centeror
Optional message centerin this chapter.
STANDARD MESSAGE CENTER (IF EQUIPPED)
Your vehicle’s message center is capable of monitoring many vehicle systems
and will alert you to potential vehicle problems and various conditions with
an informational message followed by a long indicator chime.
The message center display is located in the instrument cluster.
Selectable features (information menu)
Press and release the SELECT/RESET stem to scroll and reset the
following functions. Reset the function by a single press of the
SELECT/RESET stem for more than two seconds.
TRIP
Registers the distance of individual journeys. Press and release the
SELECT/RESET stem on the cluster to toggle between odometer and
trip odometer display. To reset, press and hold for less than two seconds.
MYKEY MILES (km) (if programmed)
For more information, refer toMyKeyin theLocks and Securitychapter.
MILES (km) TO E
This displays an estimate of approximately how far you can drive with
the fuel remaining in your tank under normal driving conditions.
Remember to turn the ignition off when refueling to allow this feature to
correctly detect the added fuel.
LOW FUEL LEVEL will display when you have approximately 50 miles
(80 km), to empty. Press RESET to clear this warning message. It will
return at approximately 25 miles (40 km), 10 miles (16 km) and 0 miles
(0 km) miles to empty.
Instrument Cluster
19
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

AUTOLOCK
This feature automatically locks all vehicle doors when the vehicle is
shifted into any gear, putting the vehicle in motion.
Press the RESET control to turn autolock on or off.
AUTOUNLOCK
This feature automatically unlocks all vehicle doors when the driver’s
door is opened within 10 minutes of the ignition being turned off.
Press the RESET control to turn autounlock on or off.
TRAILER SWAY (if equipped)
This feature uses the electronic stability control to mitigate trailer sway,
Press the RESET control to turn trailer sway on or off.
CREATE MYKEY / MYKEY SETUP / CLEAR MYKEY
For more information refer toMyKeyin theLocks and Security
chapter.
LANGUAGE = ENGLISH / SPANISH / FRENCH
Allows you to choose which language the message center will display in.
Selectable languages are English, Spanish, or French.
Note:When entering the SETUP MENU and a non-English language has
been selected, “PRESS RESET FOR ENGLISH” will be displayed to
change back to English.
Press and hold the SELECT/RESET stem to select a new language.
Selectable languages are English, Spanish and French
Press and hold the RESET button for two seconds to set the language
choice.
Press the SELECT/RESET stem for the next SETUP MENU item or wait
for more than four seconds to return to the INFO MENU.
System warnings
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for four
seconds.
The message center will display the last selected feature if there are no
more warning messages.
Instrument Cluster
24
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

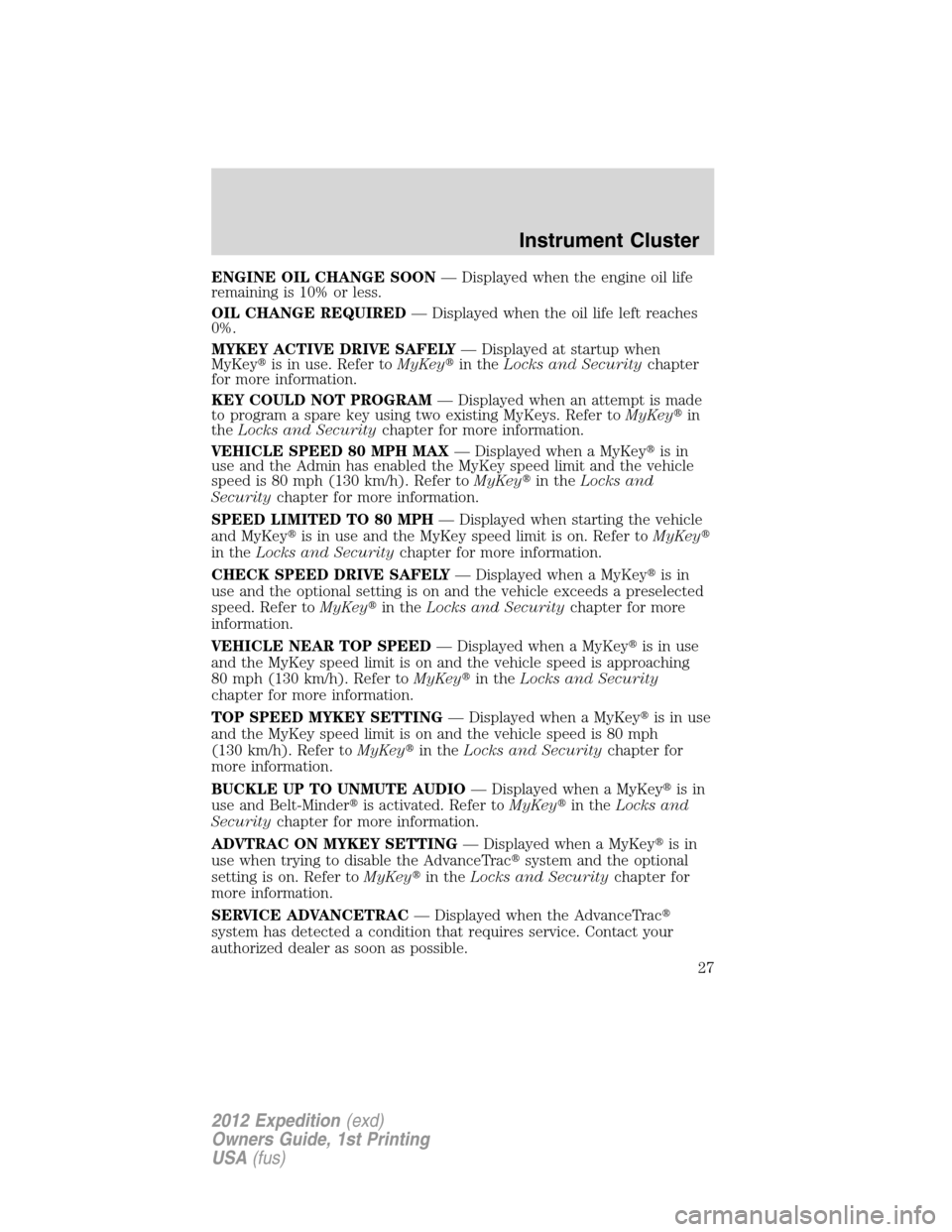

ENGINE OIL CHANGE SOON— Displayed when the engine oil life
remaining is 10% or less.
OIL CHANGE REQUIRED— Displayed when the oil life left reaches
0%.
MYKEY ACTIVE DRIVE SAFELY— Displayed at startup when
MyKeyis in use. Refer toMyKeyin theLocks and Securitychapter
for more information.
KEY COULD NOT PROGRAM— Displayed when an attempt is made
to program a spare key using two existing MyKeys. Refer toMyKeyin
theLocks and Securitychapter for more information.
VEHICLE SPEED 80 MPH MAX— Displayed when a MyKeyis in
use and the Admin has enabled the MyKey speed limit and the vehicle
speed is 80 mph (130 km/h). Refer toMyKeyin theLocks and
Securitychapter for more information.
SPEED LIMITED TO 80 MPH— Displayed when starting the vehicle
and MyKeyis in use and the MyKey speed limit is on. Refer toMyKey
in theLocks and Securitychapter for more information.
CHECK SPEED DRIVE SAFELY— Displayed when a MyKeyis in
use and the optional setting is on and the vehicle exceeds a preselected
speed. Refer toMyKeyin theLocks and Securitychapter for more
information.
VEHICLE NEAR TOP SPEED— Displayed when a MyKeyis in use
and the MyKey speed limit is on and the vehicle speed is approaching
80 mph (130 km/h). Refer toMyKeyin theLocks and Security
chapter for more information.
TOP SPEED MYKEY SETTING— Displayed when a MyKeyis in use
and the MyKey speed limit is on and the vehicle speed is 80 mph
(130 km/h). Refer toMyKeyin theLocks and Securitychapter for
more information.
BUCKLE UP TO UNMUTE AUDIO— Displayed when a MyKeyis in
use and Belt-Minderis activated. Refer toMyKeyin theLocks and
Securitychapter for more information.
ADVTRAC ON MYKEY SETTING— Displayed when a MyKeyis in
use when trying to disable the AdvanceTracsystem and the optional
setting is on. Refer toMyKey
in theLocks and Securitychapter for
more information.
SERVICE ADVANCETRAC— Displayed when the AdvanceTrac
system has detected a condition that requires service. Contact your
authorized dealer as soon as possible.
Instrument Cluster
27
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

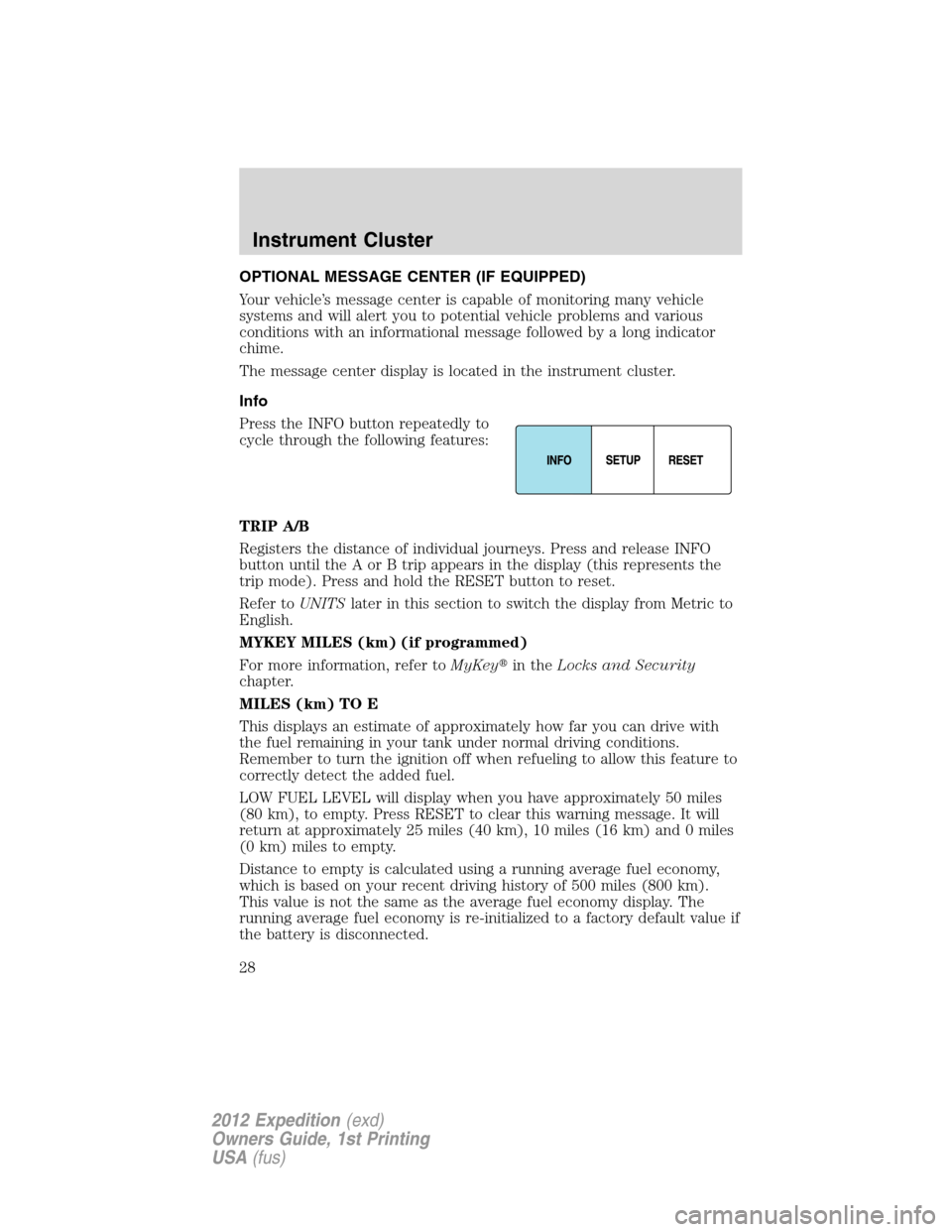

OPTIONAL MESSAGE CENTER (IF EQUIPPED)
Your vehicle’s message center is capable of monitoring many vehicle
systems and will alert you to potential vehicle problems and various
conditions with an informational message followed by a long indicator
chime.
The message center display is located in the instrument cluster.
Info
Press the INFO button repeatedly to
cycle through the following features:
TRIP A/B
Registers the distance of individual journeys. Press and release INFO
button until the A or B trip appears in the display (this represents the
trip mode). Press and hold the RESET button to reset.
Refer toUNITSlater in this section to switch the display from Metric to
English.
MYKEY MILES (km) (if programmed)
For more information, refer toMyKeyin theLocks and Security
chapter.
MILES (km) TO E
This displays an estimate of approximately how far you can drive with
the fuel remaining in your tank under normal driving conditions.
Remember to turn the ignition off when refueling to allow this feature to
correctly detect the added fuel.
LOW FUEL LEVEL will display when you have approximately 50 miles
(80 km), to empty. Press RESET to clear this warning message. It will
return at approximately 25 miles (40 km), 10 miles (16 km) and 0 miles
(0 km) miles to empty.
Distance to empty is calculated using a running average fuel economy,
which is based on your recent driving history of 500 miles (800 km).
This value is not the same as the average fuel economy display. The
running average fuel economy is re-initialized to a factory default value if
the battery is disconnected.
Instrument Cluster
28
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

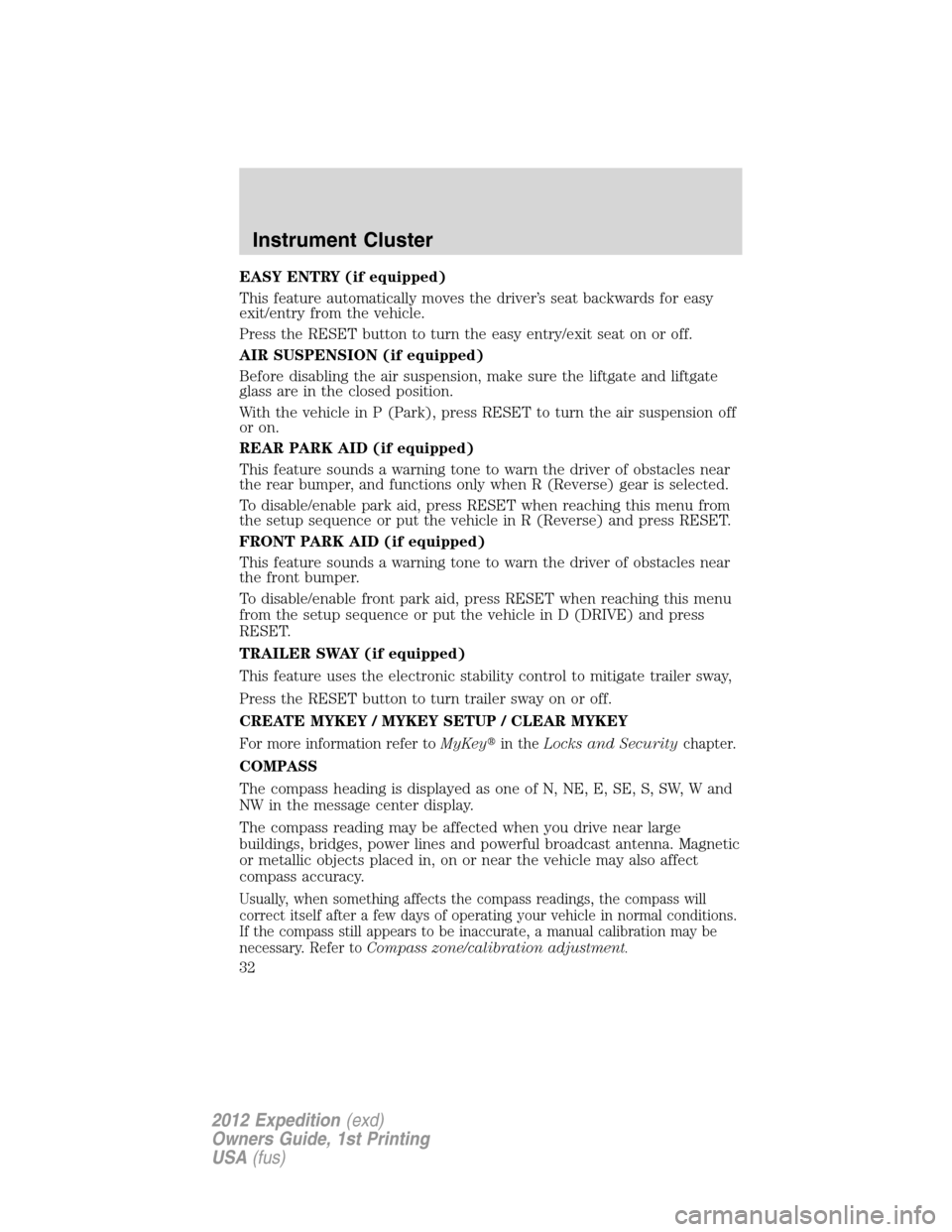

EASY ENTRY (if equipped)
This feature automatically moves the driver’s seat backwards for easy
exit/entry from the vehicle.
Press the RESET button to turn the easy entry/exit seat on or off.
AIR SUSPENSION (if equipped)
Before disabling the air suspension, make sure the liftgate and liftgate
glass are in the closed position.
With the vehicle in P (Park), press RESET to turn the air suspension off
or on.
REAR PARK AID (if equipped)
This feature sounds a warning tone to warn the driver of obstacles near
the rear bumper, and functions only when R (Reverse) gear is selected.
To disable/enable park aid, press RESET when reaching this menu from
the setup sequence or put the vehicle in R (Reverse) and press RESET.
FRONT PARK AID (if equipped)
This feature sounds a warning tone to warn the driver of obstacles near
the front bumper.
To disable/enable front park aid, press RESET when reaching this menu
from the setup sequence or put the vehicle in D (DRIVE) and press
RESET.
TRAILER SWAY (if equipped)
This feature uses the electronic stability control to mitigate trailer sway,
Press the RESET button to turn trailer sway on or off.
CREATE MYKEY / MYKEY SETUP / CLEAR MYKEY
For more information refer toMyKeyin theLocks and Securitychapter.
COMPASS
The compass heading is displayed as one of N, NE, E, SE, S, SW, W and
NW in the message center display.
The compass reading may be affected when you drive near large
buildings, bridges, power lines and powerful broadcast antenna. Magnetic
or metallic objects placed in, on or near the vehicle may also affect
compass accuracy.
Usually, when something affects the compass readings, the compass will
correct itself after a few days of operating your vehicle in normal conditions.
If the compass still appears to be inaccurate, a manual calibration may be
necessary. Refer toCompass zone/calibration adjustment.
Instrument Cluster
32
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

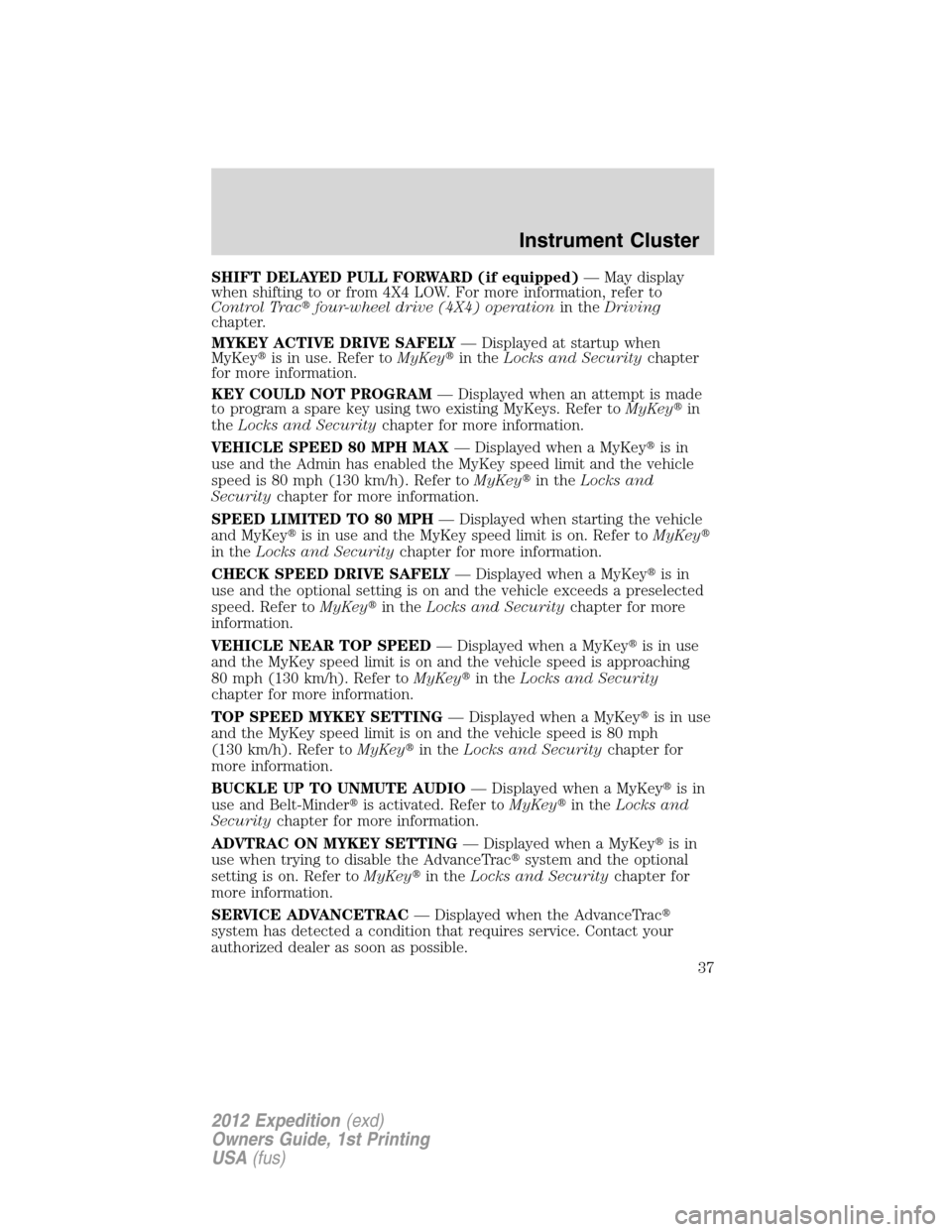

SHIFT DELAYED PULL FORWARD (if equipped)— May display
when shifting to or from 4X4 LOW. For more information, refer to
Control Tracfour-wheel drive (4X4) operationin theDriving
chapter.
MYKEY ACTIVE DRIVE SAFELY— Displayed at startup when
MyKeyis in use. Refer toMyKeyin theLocks and Securitychapter
for more information.
KEY COULD NOT PROGRAM— Displayed when an attempt is made
to program a spare key using two existing MyKeys. Refer toMyKeyin
theLocks and Securitychapter for more information.
VEHICLE SPEED 80 MPH MAX— Displayed when a MyKeyis in
use and the Admin has enabled the MyKey speed limit and the vehicle
speed is 80 mph (130 km/h). Refer toMyKeyin theLocks and
Securitychapter for more information.
SPEED LIMITED TO 80 MPH— Displayed when starting the vehicle
and MyKeyis in use and the MyKey speed limit is on. Refer toMyKey
in theLocks and Securitychapter for more information.
CHECK SPEED DRIVE SAFELY— Displayed when a MyKeyis in
use and the optional setting is on and the vehicle exceeds a preselected
speed. Refer toMyKeyin theLocks and Securitychapter for more
information.
VEHICLE NEAR TOP SPEED— Displayed when a MyKeyis in use
and the MyKey speed limit is on and the vehicle speed is approaching
80 mph (130 km/h). Refer toMyKeyin theLocks and Security
chapter for more information.
TOP SPEED MYKEY SETTING— Displayed when a MyKeyis in use
and the MyKey speed limit is on and the vehicle speed is 80 mph
(130 km/h). Refer toMyKeyin theLocks and Securitychapter for
more information.
BUCKLE UP TO UNMUTE AUDIO— Displayed when a MyKeyis in
use and Belt-Minderis activated. Refer toMyKeyin theLocks and
Securitychapter for more information.
ADVTRAC ON MYKEY SETTING— Displayed when a MyKeyis in
use when trying to disable the AdvanceTracsystem and the optional
setting is on. Refer toMyKeyin theLocks and Securitychapter for
more information.
SERVICE ADVANCETRAC— Displayed when the AdvanceTrac
system has detected a condition that requires service. Contact your
authorized dealer as soon as possible.
Instrument Cluster
37
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

If the liftgate reverses and starts to close after a open request, a fast
continuous chime indicates excessive load on the gate or a possible strut
failure. If any excessive load is removed and you still have a faster
chime, have the system serviced immediately by your authorized dealer.
Do not attempt to manually force the liftgate to travel faster than the
power system will permit. This will activate the obstacle detection
feature.
Note:Cycling the ignition prior to completely latching the liftgate could
result in damage to the liftgate and/or its power components. Make sure
the liftgate is fully latched before operating the vehicle.
Care should be exercised in starting the engine before the liftgate is fully
closed (latched). If the ignition is cycled during a liftgate power close
cycle and the liftgate is 6-10 in. (15–24 cm) from being latched, the
liftgate may reverse to the full open position. Verify that the gate is
closed before operating or moving the vehicle, especially in an enclosure,
like a garage or a parking structure. The liftgate or it components could
be damaged in an enclosure, if the liftgate is open.
When power operating the liftgate at temperatures below 32° F (0° C),
the liftgate may stop about 5 in. (13 cm) from the full open position. The
liftgate can be fully opened by pushing it upward to the maximum open
position.
To open the liftgate from the
instrument panel:
Press the button once to open the
liftgate, press it again to close.
To open the liftgate with the remote entry transmitter:
Refer toRemote entry systemin theLocks and Securitychapter.
To open the liftgate with outside
liftgate control button (manual
actuation):
1. Unlock the liftgate with the
remote entry transmitter or power
door unlock control.
2. Press the control button located
on the inside of the liftgate handle.
Driver Controls
106
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
