2012 FORD EXPEDITION Locks and security

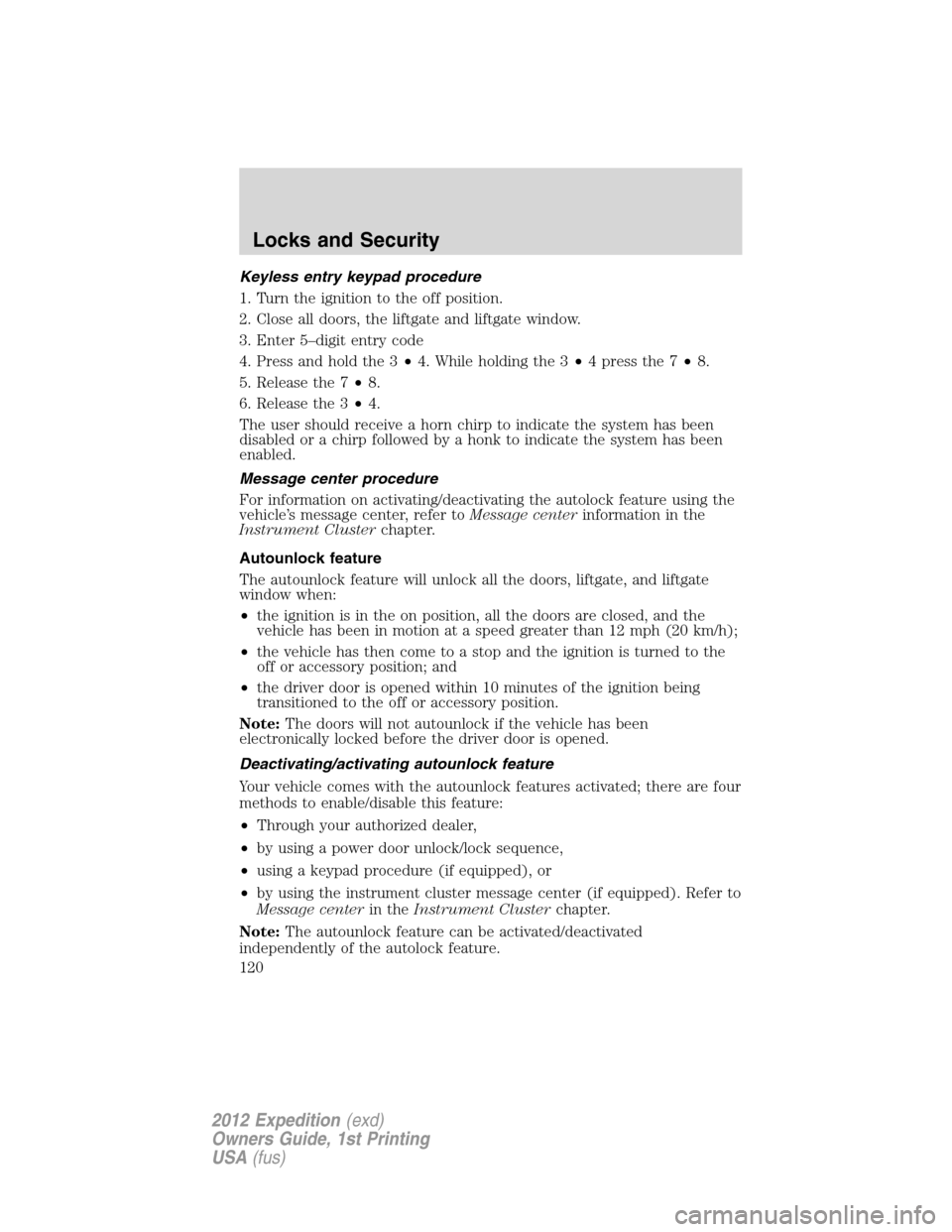

Keyless entry keypad procedure
1. Turn the ignition to the off position.
2. Close all doors, the liftgate and liftgate window.
3. Enter 5–digit entry code
4. Press and hold the 3•4. While holding the 3•4pressthe7•8.
5. Release the 7•8.
6. Release the 3•4.
The user should receive a horn chirp to indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
Message center procedure
For information on activating/deactivating the autolock feature using the
vehicle’s message center, refer toMessage centerinformation in the
Instrument Clusterchapter.
Autounlock feature
The autounlock feature will unlock all the doors, liftgate, and liftgate
window when:
•the ignition is in the on position, all the doors are closed, and the
vehicle has been in motion at a speed greater than 12 mph (20 km/h);
•the vehicle has then come to a stop and the ignition is turned to the
off or accessory position; and
•the driver door is opened within 10 minutes of the ignition being
transitioned to the off or accessory position.
Note:The doors will not autounlock if the vehicle has been
electronically locked before the driver door is opened.
Deactivating/activating autounlock feature
Your vehicle comes with the autounlock features activated; there are four
methods to enable/disable this feature:
•Through your authorized dealer,
•by using a power door unlock/lock sequence,
•using a keypad procedure (if equipped), or
•by using the instrument cluster message center (if equipped). Refer to
Message centerin theInstrument Clusterchapter.
Note:The autounlock feature can be activated/deactivated
independently of the autolock feature.
Locks and Security
120
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

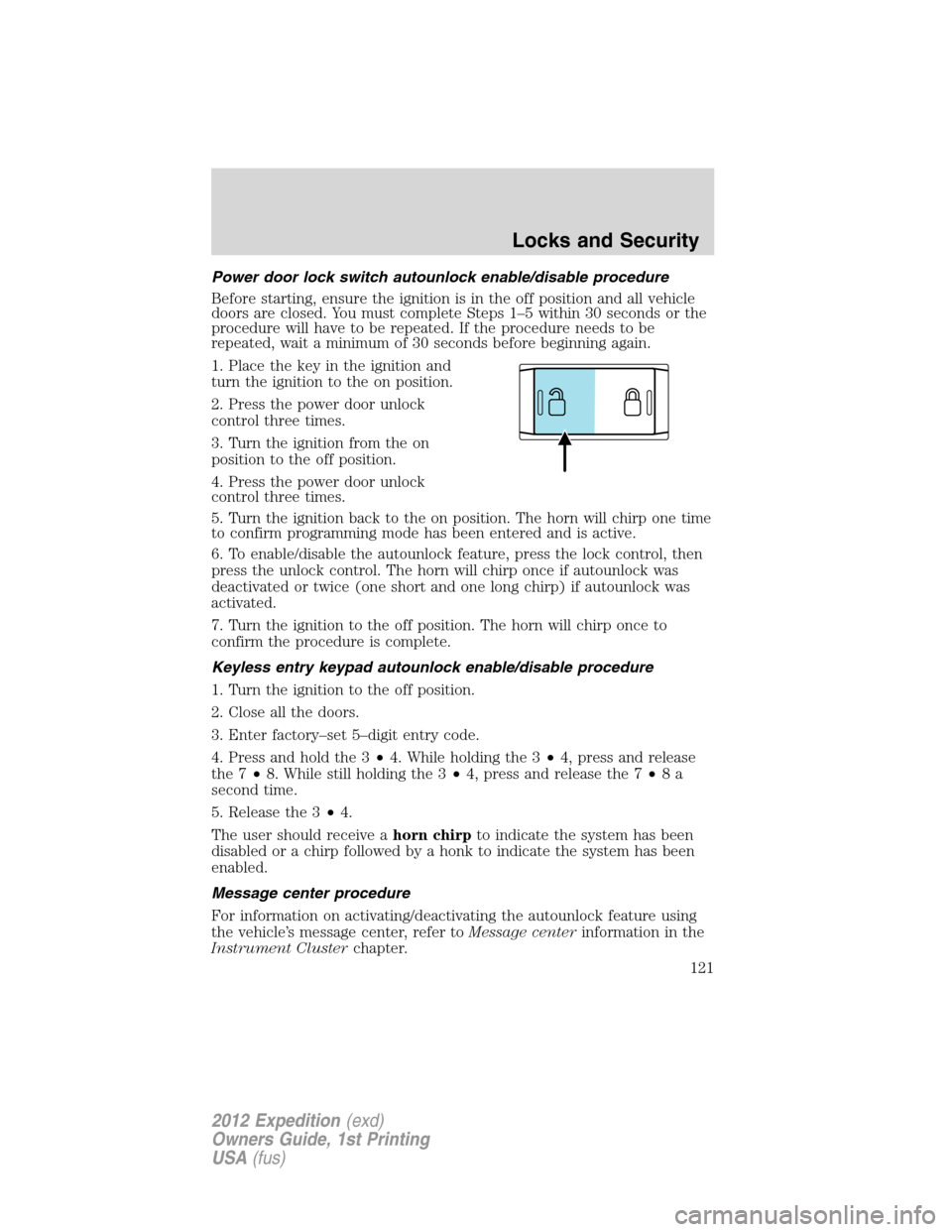

Power door lock switch autounlock enable/disable procedure
Before starting, ensure the ignition is in the off position and all vehicle
doors are closed. You must complete Steps 1–5 within 30 seconds or the
procedure will have to be repeated. If the procedure needs to be
repeated, wait a minimum of 30 seconds before beginning again.
1. Place the key in the ignition and
turn the ignition to the on position.
2. Press the power door unlock
control three times.
3. Turn the ignition from the on
position to the off position.
4. Press the power door unlock
control three times.
5. Turn the ignition back to the on position. The horn will chirp one time
to confirm programming mode has been entered and is active.
6. To enable/disable the autounlock feature, press the lock control, then
press the unlock control. The horn will chirp once if autounlock was
deactivated or twice (one short and one long chirp) if autounlock was
activated.
7. Turn the ignition to the off position. The horn will chirp once to
confirm the procedure is complete.
Keyless entry keypad autounlock enable/disable procedure
1. Turn the ignition to the off position.
2. Close all the doors.
3. Enter factory–set 5–digit entry code.
4. Press and hold the 3•4. While holding the 3•4, press and release
the 7•8. While still holding the 3•4, press and release the 7•8a
second time.
5. Release the 3•4.
The user should receive ahorn chirpto indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
Message center procedure
For information on activating/deactivating the autounlock feature using
the vehicle’s message center, refer toMessage centerinformation in the
Instrument Clusterchapter.
Locks and Security
121
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

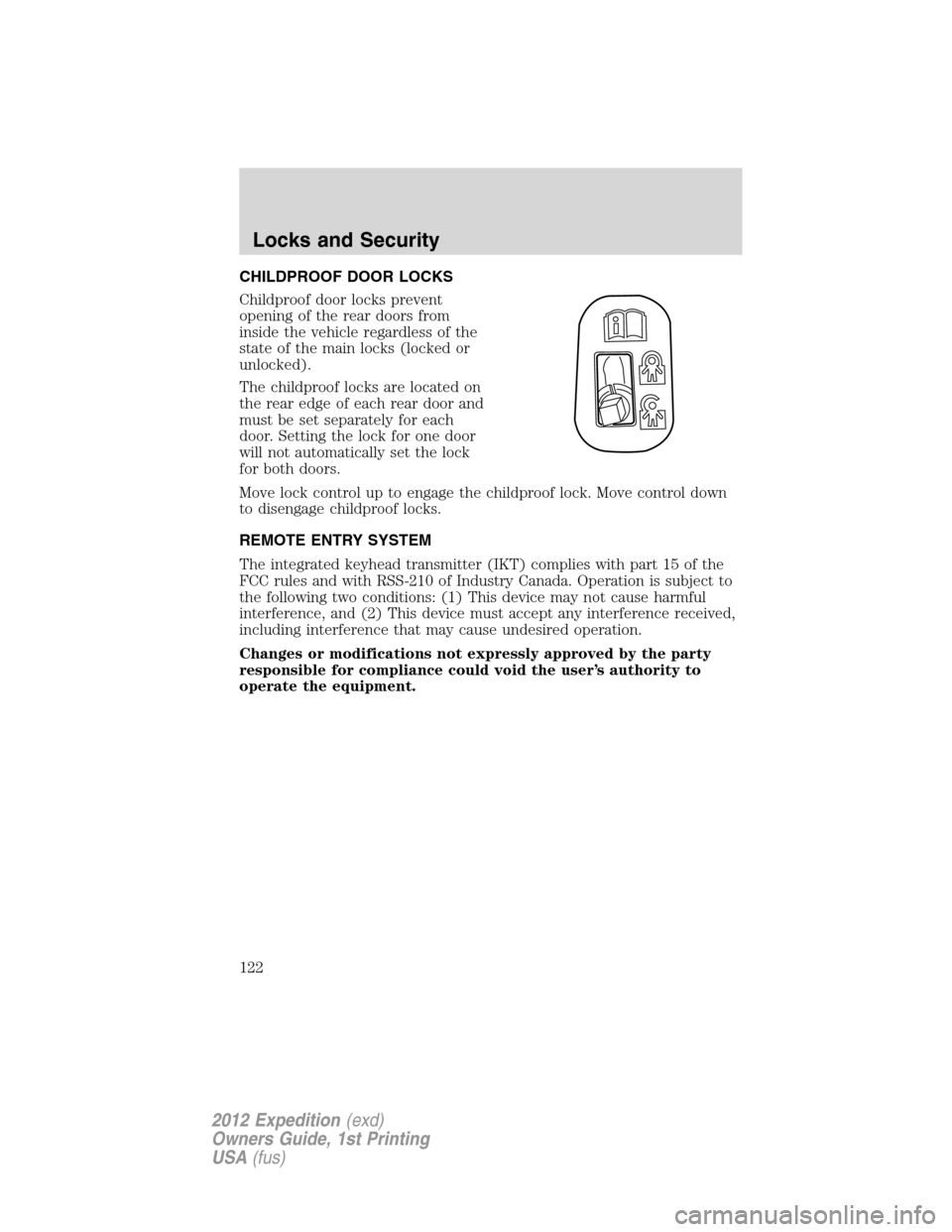

CHILDPROOF DOOR LOCKS
Childproof door locks prevent
opening of the rear doors from
inside the vehicle regardless of the
state of the main locks (locked or
unlocked).
The childproof locks are located on
the rear edge of each rear door and
must be set separately for each
door. Setting the lock for one door
will not automatically set the lock
for both doors.
Move lock control up to engage the childproof lock. Move control down
to disengage childproof locks.
REMOTE ENTRY SYSTEM
The integrated keyhead transmitter (IKT) complies with part 15 of the
FCC rules and with RSS-210 of Industry Canada. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
Locks and Security
122
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

The typical operating range for your IKT is approximately 33 feet
(10 meters). A decrease in operating range could be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle, or
•other vehicles parked next to your vehicle.
The IKT allows you to:
•remotely unlock the vehicle
doors.
•remotely lock all the vehicle
doors.
•remotely open the power liftgate
or manual liftgate window (if
equipped).
•activate the personal alarm.
•arm and disarm the perimeter
anti-theft system.
•operate the illuminated entry
feature.
The remote entry lock/unlock feature operates in any ignition position
except while the key is held in the start position. The panic feature
operates with the key in the off position.
If there are problems with the remote entry system, make sure to take
ALL integrated keyhead transmitterswith you to the authorized
dealer in order to aid in troubleshooting the problem.
Unlocking the doors/two stage unlock
1. Pressand release to unlock the driver’s door.Note:The interior
lamps and parking lamps will illuminate.
2. Pressand release again within three seconds to unlock all the doors.
The remote entry system activates the illuminated entry feature; this
feature turns on the lamps for 25 seconds or until the ignition is turned
to the on position.
Locks and Security
123
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

The battery saver feature will turn off the lamps 10 minutes after the
ignition is turned to the off position.
Two stage unlocking may be disabled or re-enabled by simultaneously
pressing the
andcontrols on the IKT for four seconds (disabling
two stage unlock allows all vehicle doors to unlock simultaneously). The
parking lamps will flash twice to indicate that two-stage unlock was
enabled or disabled.
Locking the doors
1. Press
and release to lock all the doors. The parking lamps will
illuminate.
2. Pressand release again within three seconds to confirm that all the
doors are closed.Note:The doors will lock again, the horn will chirp and
the turn lamps will illuminate once if all the doors and liftgate are closed.
Note:If any door or the liftgate is not closed, or if the hood is not
closed in vehicles equipped with the perimeter alarm feature, the horn
will chirp twice and the turn lamps will not flash.
Opening the power liftgate or liftgate window (if equipped)
If equipped with a power liftgate, this control will not operate the liftgate
window.
•Press
twice within three seconds to open the power liftgate (if
equipped) or
•Press
twice within three seconds to unlatch the liftgate window
(if not equipped with a power liftgate).
WARNING:Make sure all persons are clear of the power liftgate
area before using the control.
To close the power liftgate, press the control twice.
If the power liftgate stops mid travel, it may have detected an obstacle,
Check to ensure the power liftgate swing zone is free from obstruction
and reset the power assist by manually closing the power liftgate. Normal
operation can then be resumed.
WARNING:Make sure the power liftgate is closed to prevent
exhaust fumes from being drawn into the vehicle. This will also
prevent passengers and cargo from falling out. If you must drive with the
liftgate open, keep the vents open so outside air comes into the vehicle.
Locks and Security
124
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

Car finder
Press
twice within three seconds. The horn will chirp and the turn
lamps will flash. It is recommended that this method be used to locate
your vehicle, rather than using the panic alarm.
Sounding a panic alarm
Press
to activate the alarm. The horn will sound and the turn lamps
will flash for a maximum of three minutes. Press again or turn the
ignition to the on position to deactivate, or wait for the alarm to time out
in three minutes.
Note:The panic alarm will only operate when the ignition is in the off
position.
Memory feature (seat, mirrors and adjustable pedals)
The integrated keyhead transmitter (IKT) allows you to recall the
memory seat/power mirrors/adjustable pedals feature.
Press
to automatically move the driver seat, power mirrors and
adjustable pedals to the desired memory position. The mirrors will move
to the programmed position and the seat will move to the easy entry
position. The seat will move to the final position when the key is in the
ignition (if easy entry feature is enabled).
Programming memory feature to the transmitter
To activate this feature:
1. Move the driver seat, power mirrors, and adjustable pedals to the
desired positions using the associated controls.
2. Press and hold button 1 for five
seconds. A tone will be heard after
two seconds confirming memory
position has been set. Continue to
hold until a second tone is heard
after five seconds.
3. Within three seconds press the
.
4. A tone will be heard when the transmitter programming is complete.
5. Press the
.
6. Repeat this procedure for memory 2 and another transmitter if
desired.
Locks and Security
125
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

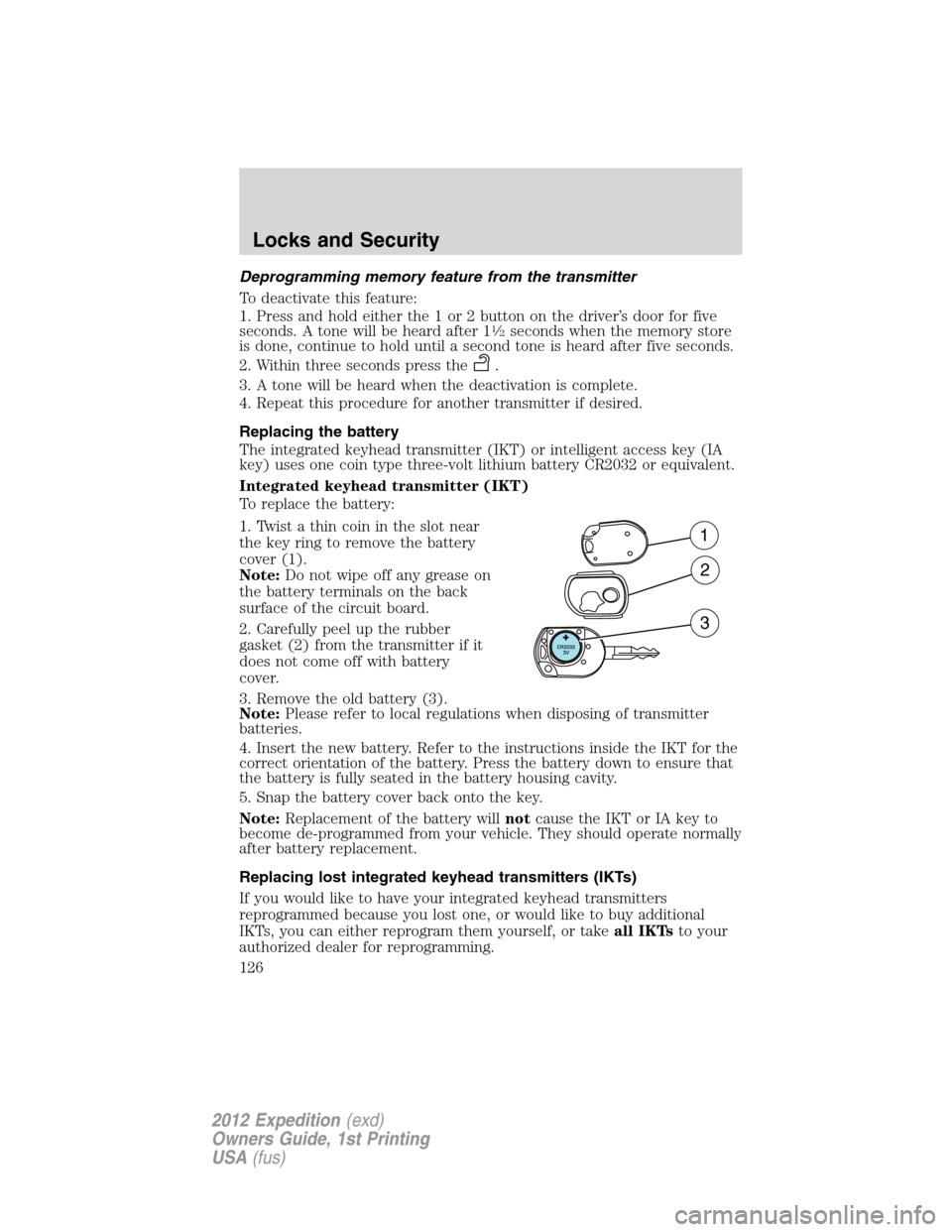

Deprogramming memory feature from the transmitter
To deactivate this feature:
1. Press and hold either the 1 or 2 button on the driver’s door for five
seconds. A tone will be heard after 1
12seconds when the memory store
is done, continue to hold until a second tone is heard after five seconds.
2. Within three seconds press the
.
3. A tone will be heard when the deactivation is complete.
4. Repeat this procedure for another transmitter if desired.
Replacing the battery
The integrated keyhead transmitter (IKT) or intelligent access key (IA
key) uses one coin type three-volt lithium battery CR2032 or equivalent.
Integrated keyhead transmitter (IKT)
To replace the battery:
1. Twist a thin coin in the slot near
the key ring to remove the battery
cover (1).
Note:Do not wipe off any grease on
the battery terminals on the back
surface of the circuit board.
2. Carefully peel up the rubber
gasket (2) from the transmitter if it
does not come off with battery
cover.
3. Remove the old battery (3).
Note:Please refer to local regulations when disposing of transmitter
batteries.
4. Insert the new battery. Refer to the instructions inside the IKT for the
correct orientation of the battery. Press the battery down to ensure that
the battery is fully seated in the battery housing cavity.
5. Snap the battery cover back onto the key.
Note:Replacement of the battery willnotcause the IKT or IA key to
become de-programmed from your vehicle. They should operate normally
after battery replacement.
Replacing lost integrated keyhead transmitters (IKTs)
If you would like to have your integrated keyhead transmitters
reprogrammed because you lost one, or would like to buy additional
IKTs, you can either reprogram them yourself, or takeall IKTsto your
authorized dealer for reprogramming.
1
2
3
Locks and Security
126
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

How to reprogram your integrated keyhead transmitters (IKTs)
To program a new integrated keyhead transmitter yourself, refer to
Programming spare keysin theSecuriLockpassive anti-theft system
section of this chapter.Note:At least two IKTs are required to perform
this procedure yourself.
Illuminated entry
The interior lamps, parking lamps and puddle lamps (if equipped)
illuminate when the integrated keyhead transmitter or the keyless entry
system keypad is used to unlock the door(s).
The illuminated entry system will turn off the lights if:
•the ignition is turned to the on position, or
•the integrated keyhead transmitter lock control is pressed, or
•the vehicle is locked using the keyless entry keypad, or
•after 25 seconds of illumination.
The inside will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
Illuminated exit
•When all vehicle doors are closed and the key is removed from the
ignition, the interior dome lamps, parking lamps and the puddle lamps
(if equipped) will illuminate.
The lamps will turn off if all the doors remain closed and
•25 seconds elapse, or
•the key is inserted in the ignition.
Battery saver
The battery saver will shut off the lamps 10 minutes after the ignition
has been turned to the off position.
•If the dome lamps were turned on using the panel dimmer control, the
battery saver will shut them off 10 minutes after the ignition has been
turned to the off position.
•If the courtesy lamps were turned on because one of the vehicle doors
or the liftgate was opened, the battery saver will shut them off
10 minutes after the ignition has been turned to the off position.
•The battery saver will shut off the headlamps 10 minutes after the
ignition has been turned to the off position.
Locks and Security
127
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
