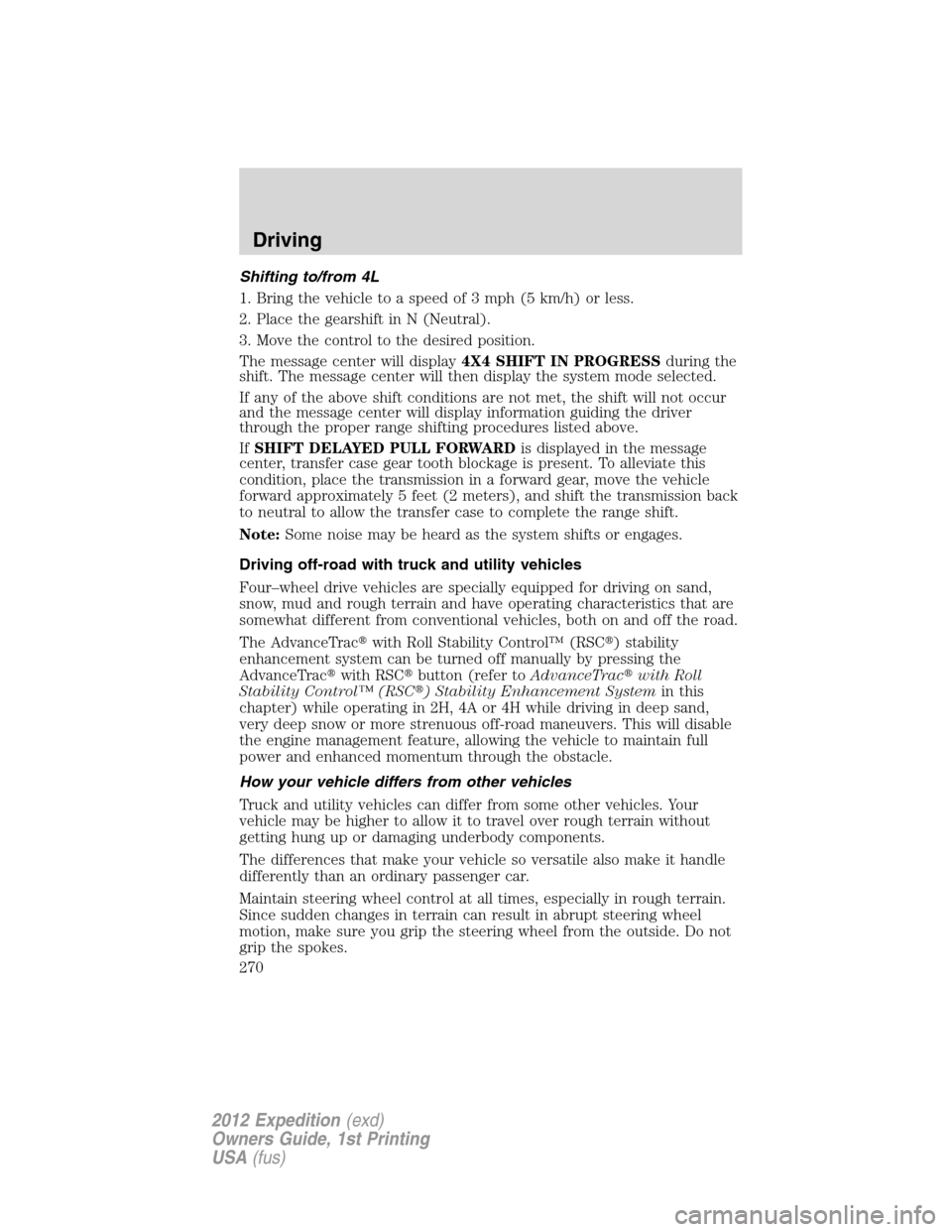

Shifting to/from 4L
1. Bring the vehicle to a speed of 3 mph (5 km/h) or less.
2. Place the gearshift in N (Neutral).
3. Move the control to the desired position.
The message center will display4X4 SHIFT IN PROGRESSduring the
shift. The message center will then display the system mode selected.
If any of the above shift conditions are not met, the shift will not occur
and the message center will display information guiding the driver
through the proper range shifting procedures listed above.
IfSHIFT DELAYED PULL FORWARDis displayed in the message
center, transfer case gear tooth blockage is present. To alleviate this
condition, place the transmission in a forward gear, move the vehicle
forward approximately 5 feet (2 meters), and shift the transmission back
to neutral to allow the transfer case to complete the range shift.
Note:Some noise may be heard as the system shifts or engages.
Driving off-road with truck and utility vehicles
Four–wheel drive vehicles are specially equipped for driving on sand,
snow, mud and rough terrain and have operating characteristics that are
somewhat different from conventional vehicles, both on and off the road.
The AdvanceTracwith Roll Stability Control™ (RSC) stability
enhancement system can be turned off manually by pressing the
AdvanceTracwith RSCbutton (refer toAdvanceTracwith Roll
Stability Control™ (RSC) Stability Enhancement Systemin this
chapter) while operating in 2H, 4A or 4H while driving in deep sand,
very deep snow or more strenuous off-road maneuvers. This will disable
the engine management feature, allowing the vehicle to maintain full
power and enhanced momentum through the obstacle.
How your vehicle differs from other vehicles
Truck and utility vehicles can differ from some other vehicles. Your
vehicle may be higher to allow it to travel over rough terrain without
getting hung up or damaging underbody components.
The differences that make your vehicle so versatile also make it handle
differently than an ordinary passenger car.
Maintain steering wheel control at all times, especially in rough terrain.
Since sudden changes in terrain can result in abrupt steering wheel
motion, make sure you grip the steering wheel from the outside. Do not
grip the spokes.
Driving
270
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
climate control ........................145
heated ......................................154
memory seat ...................125, 143
SecuriCode keyless entry
system ........................................128
SecuriLock passive
anti-theft system ...............129, 131
Servicing your vehicle ..............322
Setting the clock .........................40
Snowplowing .................................6
SOS Post Crash Alert ...............179
Spark plugs,
specifications .............357, 363–364
Special notice
utility-type vehicles ....................6
Specification chart,
lubricants ...................................358
Speed control ..............................94
Stability system .........................246
Starting a flex fuel vehicle .......239
Starting your
vehicle ........................236–237, 239
jump starting ..........................300
Steering wheel
controls ......................................96
tilting .........................................82
SYNC..........................................57
T
Third-row power fold seat .......156
Tilt steering wheel ......................82
Tire Pressure Monitoring
System (TPMS)
Driving .....................................274
Tires, Wheels and Loading ....217Warning Displays ..........12, 24, 34
Tires ...........................202–203, 290
alignment ................................210
care ..........................................206
changing ..........................290, 294
checking the pressure ............206
inflating ...................................204
label .........................................216
replacing ..................................208
rotating ....................................211
safety practices .......................210
sidewall information ...............212
snow tires and chains ............221
spare tire .................................290
terminology .............................203
tire grades ...............................203
treadwear ........................202, 207
Towing .......................................229
recreational towing .................235
trailer towing ..........................229
wrecker ....................................304
Transmission .............................256
brake-shift interlock
(BSI) ................................253, 255
fluid, checking and adding
(automatic) .............................352
fluid, refill capacities ..............358
lubricant specifications ..........358
Turn signal ..................................72
U
Universal garage door opener ....98
USB port ......................................48
V
Vehicle Identification Number
(VIN) ..........................................365
Vehicle loading ..........................222
Index
399
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
