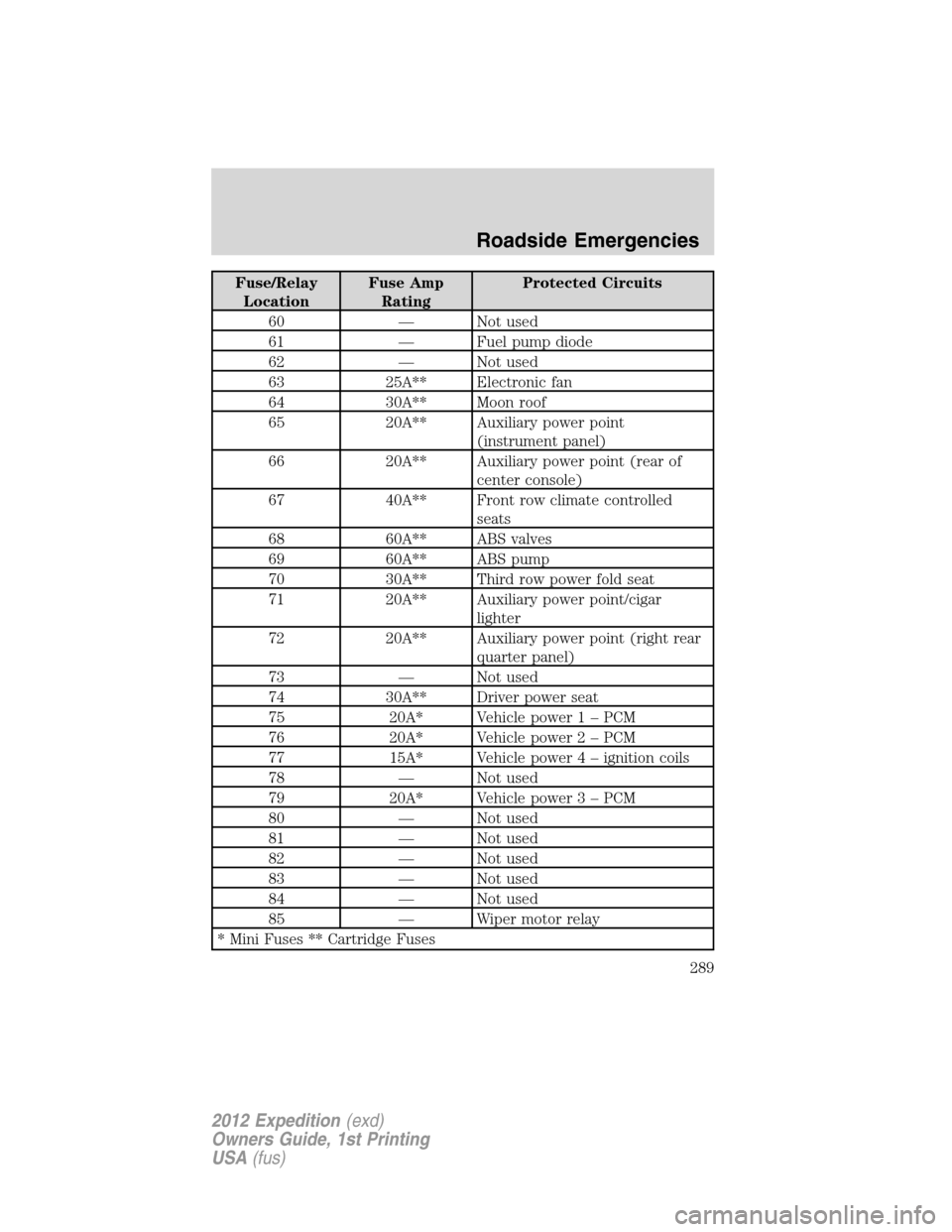

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
60 — Not used
61 — Fuel pump diode
62 — Not used
63 25A** Electronic fan
64 30A** Moon roof
65 20A** Auxiliary power point
(instrument panel)
66 20A** Auxiliary power point (rear of
center console)
67 40A** Front row climate controlled
seats
68 60A** ABS valves
69 60A** ABS pump
70 30A** Third row power fold seat
71 20A** Auxiliary power point/cigar
lighter
72 20A** Auxiliary power point (right rear
quarter panel)
73 — Not used
74 30A** Driver power seat
75 20A* Vehicle power1–PCM
76 20A* Vehicle power2–PCM
77 15A* Vehicle power4–ignition coils
78 — Not used
79 20A* Vehicle power3–PCM
80 — Not used
81 — Not used
82 — Not used
83 — Not used
84 — Not used
85 — Wiper motor relay
* Mini Fuses ** Cartridge Fuses
Roadside Emergencies
289
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

filter, specifications ........329, 357
recommendations ...................329
refill capacities ........................358
specifications ..........................358
Event data recording ....................7
Exhaust fumes ..........................240
F
Fail safe cooling ........................336
Fleet MyKey programming ......113
Flexible Fuel Vehicle (FFV) ....338
Floor mats .........................104–105
Fluid capacities .........................358
Fog lamps ....................................69
Four-Wheel Drive vehicles .......267
control trac .............................267
description ..............................268
driving off road .......................270
indicator light .........................267
preparing to drive your
vehicle .....................................253
Fuel ............................................338
calculating fuel
economy ......................22, 30, 345
cap ...........................................340
capacity ...................................358
choosing the right fuel ...........342
detergent in fuel .....................343
filler funnel .............................343
filling your vehicle
with fuel ..................338, 340, 345
filter, specifications ........337, 357
fuel pump shut-off switch .....281
improving fuel economy ........345
octane rating ...........342, 363–364
quality ......................................343
running out of fuel .........299, 343safety information relating to
automotive fuels .....................338
Fuel - flex fuel vehicle
(FFV) .................................338, 342
Fuses ..................................282–283
G
Garage door opener ....................98
Gas cap (see Fuel cap) ............340
Gas mileage
(see Fuel economy) .................345
Gauges .........................................18
H
Hazard flashers .........................280
Headlamps ...................................69
aiming ........................................71
autolamp system .......................69
bulb specifications ....................75
daytime running lights .............70
flash to pass ..............................70
high beam .................................70
replacing bulbs .........................76
turning on and off ....................69
Heating
heating and air conditioning
system .................................58–59
Hood ..........................................323
I
Ignition .......................236, 363–364
Illuminated visor mirror .............82
Infant seats
(see Safety seats) .....................184
Index
396
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

P
Parental MyKey
programming .............................113
Parking brake ............................244
Parts
(see Motorcraftparts) ...........357
Pedals (see Power adjustable
foot pedals) .................................92
Power adjustable foot pedals .....92
Power deployable running
boards ..........................................92
Power distribution box
(see Fuses) .......................283, 286
Power door locks ......................118
Power liftgate ............................105
Power mirrors .............................90
Power point .................................85
Power steering ..........................251
fluid, checking and adding ....351
fluid, refill capacity ................358
fluid, specifications .................358
Power Windows ...........................87
Preparing to drive your
vehicle ........................................253
R
Radio ............................................38
Rear heated seats .....................154
Rear-view camera system .........263
Recommendations for
attaching safety restraints for
children ......................................182
Relays ........................................282
Remote entry system .......122–123illuminated entry ....................127
locking/unlocking
doors ................................123–124
opening the trunk ...................124
panic alarm .............................125
replacement/additional
transmitters .............................126
replacing the batteries ...........126
Reverse sensing system ...........260
Roadside assistance ..................279
Roll stability control .................246
S
Safety belts (see Safety
restraints) ..................161–162, 164
Safety Canopy ...........................176
Safety defects, reporting ..........313
Safety restraints ........161–162, 164
Belt-Minder...........................166
Belt-Minder,
deactivating/activating ...........169
extension assembly ................166
for adults .........................161–162
for children .............................180
warning light and chime ........166
Safety restraints - LATCH
anchors ......................................188
Safety seats for children ..........184
Safety Compliance
Certification Label ....................364
Satellite Radio Information ........55
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............378
Seats ..........................................136
child safety seats ....................184
cleaning ...................................320
Index
398
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
