2012 FORD EDGE fuse box

Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 — Not used
2 — Not used
3 — Not used
4 30A** Wipers
9798 77
96
95
94 93 92 91 90 89 88 66 44
78 5639 26 18 16 173 12 456789
19 20 21 22 23 24
27 28 29 30 31
40 41 42 43
5557 58 59 60 61 62 63 64 65
79 80 81 82 83 84 85 86 8767 45 32 10 11
1213
33 34 35
46 47 48 49 50 51
68 69 70 71 72
74 73
76 7553 37 36
54 38 25 15
14
52
Roadside Emergencies
287
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
5 40A** Anti-lock brake system (ABS)
pump
6 — Not used
7 30A** Power liftgate
8 20A** Moon roof
9 20A** Power point #2 (console rear)
10 — Not used
11 — Rear window defroster/heated
mirror relay
12 — Not used
13 — Starter relay
14 — Not used
15 — Fuel pump relay
16 — Not used
17 — Not used
18 40A** Blower motor
19 30A** Starter motor
20 20A** Power point #1 (console bin)
21 20A** Cargo area power point
22 — Not used
23 30A** Driver seat module
24 — Not used
25 — Not used
26 40A** Rear window defroster
27 20A** Front power point/lighter
28 30A** Climate controlled seats
29 — Not used
30 — Not used
31 — Not used
32 — Not used
33 — Not used
Roadside Emergencies
288
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
34 — Blower motor relay
35 — Not used
36 — Rear seat relay
37 — Right trailer tow (TT) stop/turn
lamps relay
38 — Not used
39 40A** Cooling fan (vehicles with TT)
60A** Cooling fan (vehicles without TT)
40 40A** Cooling fan (TT only)
41 — Not used
42 30A** Passenger seat
43 25A** ABS valves
44 — Rear washer relay
45 5A* Rain sensor
46 — Not used
47 — Not used
48 — Not used
49 — Not used
50 15A* Heated mirror
51 — Not used
52 — Stop lamp relay
53 — Left TT stop/turn lamps relay
54 — Not used
55 — Wiper relay
56 15A* Transmission control module
(TCM) (2.0L engine)
57 20A* Left high-intensity discharge
(HID) headlamps
58 10A* Alternator sensor
59 10A* Brake on/off switch
60 15A* Stop lamps
Roadside Emergencies
289
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
61 10A* Rear seat release
62 10A* A/C clutch
63 15A* TT stop/turn lamps relay
64 20A* Rear wiper motor
65 15A* Fuel pump
66 — Powertrain control module
(PCM) relay
67 20A* Vehicle power (VPWR) #2
68 15A* VPWR #4
69 15A* VPWR #1 (3.5/3.7L engines)
20A* VPWR #1 (2.0L engine)
70 10A* A/C relay, VPWR #3, All-wheel
drive module (3.5/3.7L engines),
Active grille shutter (AGS) (2.0L
engine)
71 — Not used
72 — Not used
73 — Not used
74 — Not used
75 — A/C clutch diode (3.5/3.7L
engines)
76 — Not used
77 — TT park lamps relay
78 20A* Right HID headlamps
79 5A* Adaptive cruise control
80 — Not used
81 — Not used
82 15A* Rear washer
83 — Not used
84 20A* TT park lamps
85 — Not used
Roadside Emergencies
290
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

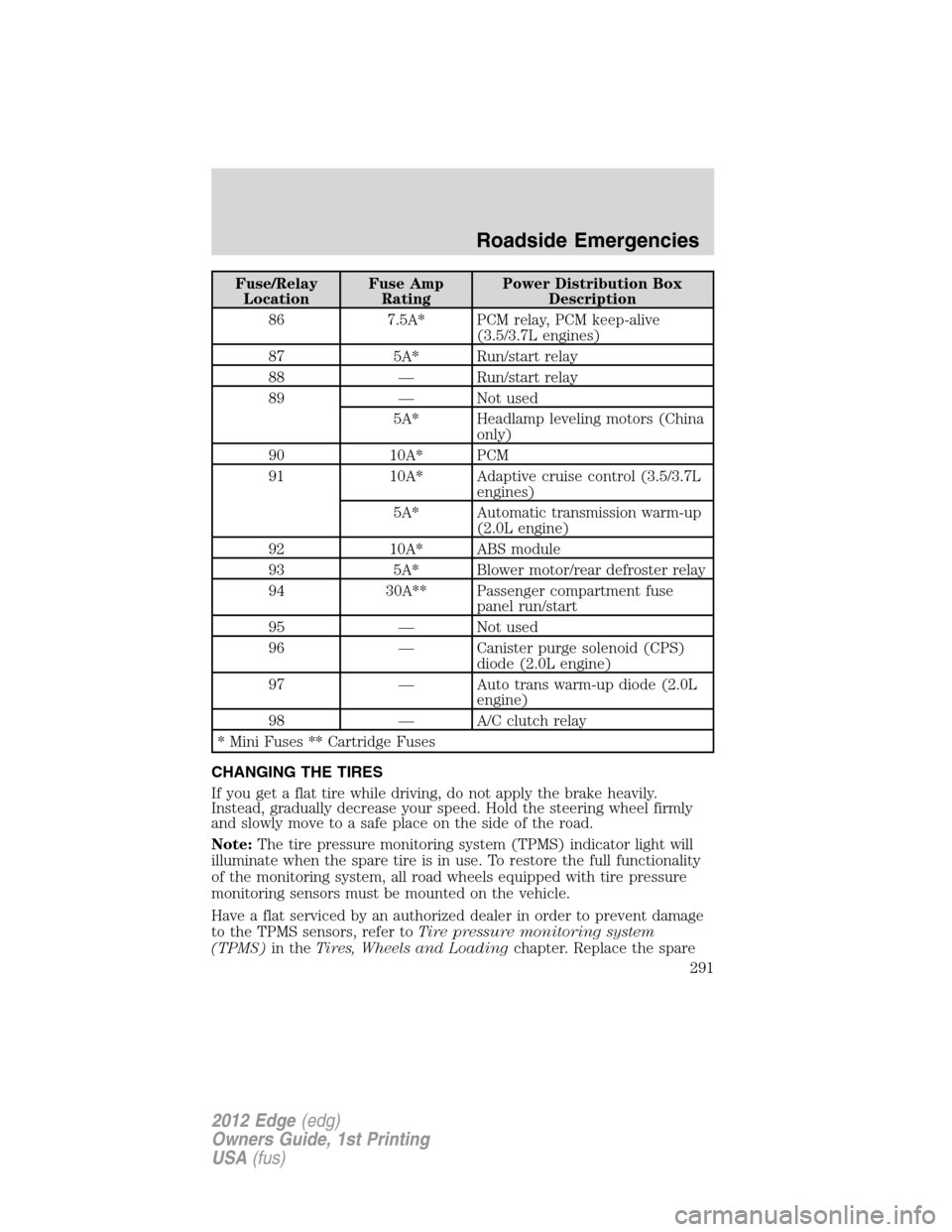

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
86 7.5A* PCM relay, PCM keep-alive
(3.5/3.7L engines)
87 5A* Run/start relay
88 — Run/start relay
89 — Not used
5A* Headlamp leveling motors (China
only)
90 10A* PCM
91 10A* Adaptive cruise control (3.5/3.7L
engines)
5A* Automatic transmission warm-up
(2.0L engine)
92 10A* ABS module
93 5A* Blower motor/rear defroster relay
94 30A** Passenger compartment fuse
panel run/start
95 — Not used
96 — Canister purge solenoid (CPS)
diode (2.0L engine)
97 — Auto trans warm-up diode (2.0L
engine)
98 — A/C clutch relay
* Mini Fuses ** Cartridge Fuses
