•CD compression:Brings soft and loud CD passages together for a
more consistent listening level.
Audio settings
Press MENU > Audio Settings to access:
•Spd. Comp. Vol:Scroll to select Speed Compensated Volume and
press OK to enter the menu. This feature automatically adjusts the
system’s volume to compensate for speed and wind noise. You can set
the system between off and +7. Press OK to confirm and close.
•Sound:Press OK to enter and scroll using the center control to select
from Treble, Bass, Middle, Balance, Fade. Use the center controls to
make adjustments and press OK to confirm and close.
CD tips
•Handle discs by their edges only.(Never touch the playing surface).
•Inspect discs before playing.
•Clean only with an approved CD cleaner.
•Wipe discs from the center out.
•Do notexpose discs to direct sunlight or heat sources for extended
periods of time.
•Do notclean using a circular motion.
Note:CD units are designed to play commercially pressed 4.75 in (12 cm)
audio compact discs only. Due to technical incompatibility, certain
recordable and re-recordable compact discs may not function correctly
when used in Ford CD players. Do not use any irregular shaped CDs or
discs with a scratch protection film attached.CDs with homemade paper
(adhesive) labels should not be inserted into the CD player as the
label may peel and cause the CD to become jammed.It is
recommended that homemade CDs be identified with permanent felt tip
marker rather than adhesive labels. Ballpoint pens may damage CDs. Please
contact your authorized dealer for further information.
Auxiliary input jack (line in)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Entertainment Systems
53
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

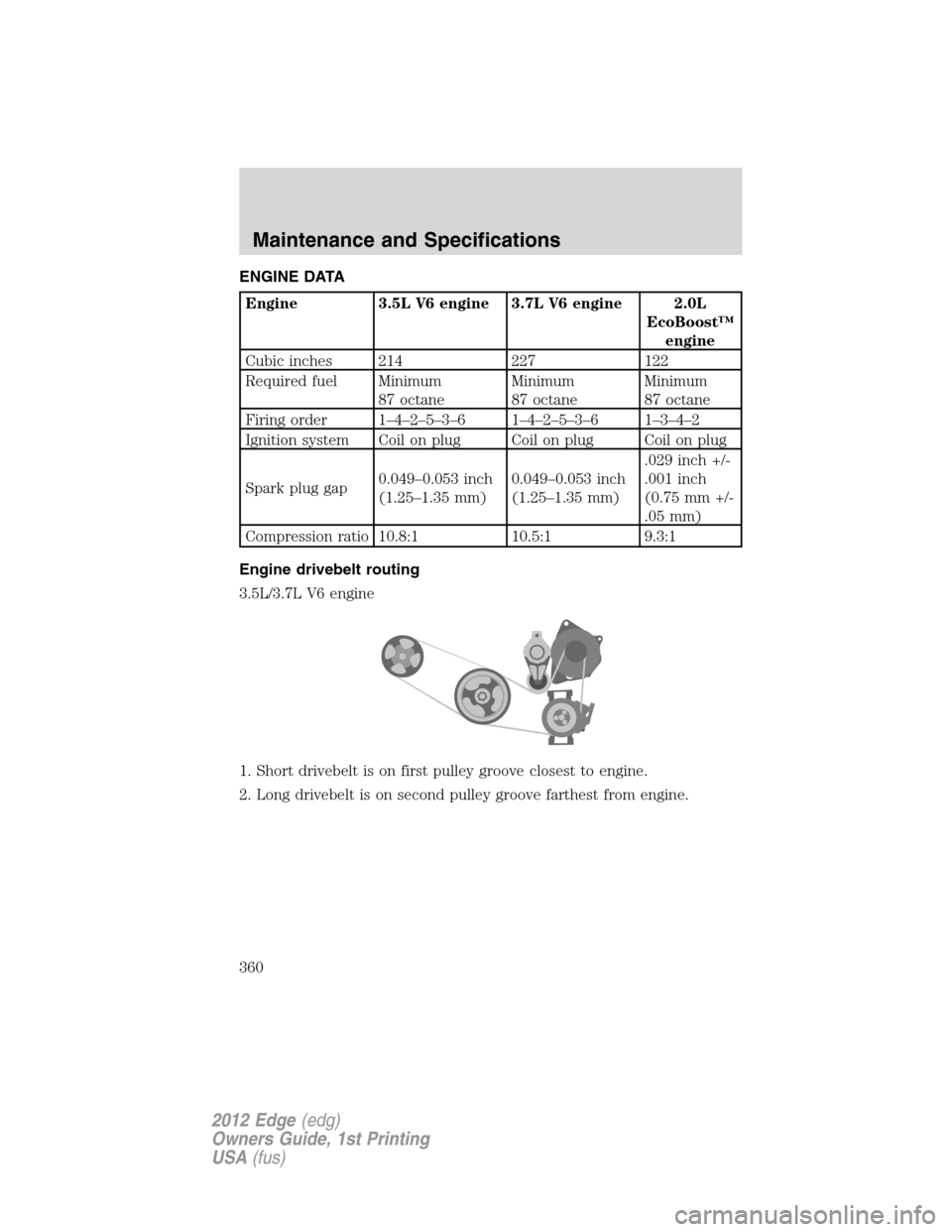

ENGINE DATA
Engine 3.5L V6 engine 3.7L V6 engine 2.0L
EcoBoost™
engine
Cubic inches 214 227 122
Required fuel Minimum
87 octaneMinimum
87 octaneMinimum
87 octane
Firing order 1–4–2–5–3–6 1–4–2–5–3–6 1–3–4–2
Ignition system Coil on plug Coil on plug Coil on plug
Spark plug gap0.049–0.053 inch
(1.25–1.35 mm)0.049–0.053 inch
(1.25–1.35 mm).029 inch +/-
.001 inch
(0.75 mm +/-
.05 mm)
Compression ratio 10.8:1 10.5:1 9.3:1
Engine drivebelt routing
3.5L/3.7L V6 engine
1. Short drivebelt is on first pulley groove closest to engine.
2. Long drivebelt is on second pulley groove farthest from engine.
Maintenance and Specifications
