2012 FIAT IDEA technical specifications

196
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Fluid and lubricant specifications
for correct car operation
Synthetic-based oils, grade SAE 10W-40, ACEA A3, API SL;
FIAT 9.55535-G2 qualification
Synthetic-based oils, grade SAE 5W-40,
FIAT 9.55535-N2 qualificationOriginal
fluids and lubricants
SELENIA 20K
Contractual
Technical Reference
N° F405.N04
SELENIA WR
Contractual
Technical Reference
N° F515.D06
According to Service
Schedule
According to Service
Schedule
FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use
For diesel engines, in emergency cases where genuine products are not available, lubricants with min. performance ACEA C2 are accepted. If
this is the case, the best engine performance is not guaranteed. We however recommend replacing the lubricant with those recommended by
Fiat Dealership.
The use of products with features lower than ACEA A1/B1 and ACEA C2 could cause engine damage which is not covered by warranty.
If the vehicle is used in particularly cold climates, ask your Fiat Dealership for the right Seleniaproduct. Lubricants for
petrol engines
Lubricants for
Multijet enginesChange
181-199 idea GB 1 ed 10-07-2008 8:31 Pagina 196

197
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Windscreen/
rear window Protective agent
for radiator Brake liquid Lubricants and
greases for
transmission
Use
(●) IMPORTANT Do not add or mix with fluids with specifications other than the specified ones.
(❒) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLU UP and demineralised water.
Fluid and lubricant specifications
for correct car operation
Fully synthetic oil, grade SAE 75W-85 that passes API GL-4
PLUS, FIAT 9.55550 MIL-L- 2105 D LEV. Specifications
Qualification FIAT 9.55550-MX3
Specific transmission fluid with “ATF DEXTRON III”
type additives.
Qualification FIAT 9.55550-AG2
Grease containing Molybdenum bisulphide for high
temperature appliances. N.L.G.I. 1-2 consistency.
Qualification FIAT 9.55580
Poly-urea oil synthetic-based grease suitable for high
temperatures. NL.GI. 2 consistency
Qualification FIAT 9.55580
Specifc grease to be used for constant-velocity joints with
low friction coefficient. N.L.G.I. 0-1 consistency.
Qualification FIAT 9.55580
Synthetic fluid FMVSS no. 116 DOT 4, ISO 4925 SAE J1704,
CUNA NC 956- 0
Qualification FIAT 9.55597
Red protective with antifreeze action, based on inhibited
monoethylen glycol with organic formula based on O.A.T,
that passes CUNA NC 956-16, ASTM D 3306 specifications.
Qualification FIAT 9.55523
Additive for diesel fuel, protecting Diesel engines.
Mixture of alcohol, water and surfactants CUNA NC 956-II
Qualification FIAT 9.55522Original fluids
and lubrificants
TUTELA CAR
TECHNYX
Contractual Technical
Reference
N° F010.B05
TUTELA CAR GI/E
Contractual Technical
Reference
N° F001.C94
TUTELA ALL STAR
Contractual Technical
Reference
N° F702.G07
TUTELA STAR 325
Contractual Technical
Reference
N° F301.D03
TUTELA STAR 700
Contractual Technical
Reference
N° F701.C07
TUTELA TOP 4
Contractual Technical
Reference
N° F001.A93
PARAFLU UP (●)
Contractual Technical
Reference
N° F101.M01
TUTELA DIESEL ART
Contractual Technical
Reference
N° F601.L06
TUTELA PROFES-
SIONAL SC 35
Contractual Technical
Reference N° F201.D02 Additive for
diesel fluidApplications
Mechanical gearbox
and differential
Hydraulic power
steering
CV joints
on wheel side
CV joints on differential
side (1.4 16V)
CV joints on
differential side
Brake and clutch
hydraulic controls
Cooling circuits
Proportion: 50% down
to -35° C (❒). Not to be
mixed with products
having different formulas
To be mixed with fuel
oil(25 cc per 10 litres)
To be used diluted or
undiluted in windscreen/
rear window washer/
wiper systems
181-199 idea GB 1 ed 10-07-2008 8:31 Pagina 197

198
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
FUEL CONSUMPTION
The fuel consumption figures given in the table below are determined on the basis of the homologation tests set down by specific
European Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒extra-urban cycle: frequent accelerating in all gears, simulating extraurban use of the car; the speed varies between 0 and
120 km/h;
❒combined consumption: is calculated weighing about 37% of urban cycle consumption and about 63% of extraurban
consumption.
IMPORTANT The type of route, traffic situations, weather conditions, driving style, general conditions of the car, trim level/equip-
ment/accessories, load, climate control system, roof rack, other situations that affect air drag may lead to different fuel consump-
tion levels than those measured.
Fuel consumption according to Directive 1999/100/EC (litres x 100 km)Urban Extra-urban Combined
1.216V8,4 5,4 6,5
1.48V(◊) 7,9 5,2 6,2
1.416V (5 gears) 8,5 5,5 6,6
1.416V (6 gears) 8,7 5,4 6,6
1.3 Multijet 70HP 5,7 4,0 4,6
1.3 Multijet 90HP 5,8 3,9 4,6
1.6 Multijet 6,2 4,2 4,9
(◊) Engine model provided for certain versions/markets only
181-199 idea GB 1 ed 10-07-2008 8:31 Pagina 198

199
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CO2EMISSIONS
The CO2, emission levels at the exhaust given in the following table refer to combined consumption.
CO
2emissions according to 1999/100/EC Directive (g/km)
1.216V1.48V (◊)1.416V1.3 Multijet 70HP 1.3 Multijet 90HP 1.6 Multijet
5 gears 6 gears
154 146 157 157 123 120 129
(◊) Engine model provided for certain versions/markets only
181-199 idea GB 1 ed 10-07-2008 8:31 Pagina 199

200
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
DASHBOARD
AND CONTROLS
INDEX
II I
N N
D D
E E
X X
ABS (system) ............................. 83
Accessories purchased by
the user ..................................... 86
Air bags (front)........................... 106
– driver's air bag ...................... 106
– passenger's front air bag .... 107
– passenger's front air bag
manual deactivation ........... 108
– Side bags ............................... 108
Air cleaner................................... 166
Air vents .....................................
Ashtray (Smokers' kit) ............ 71
At the filling station ................... 90
Automatic two-zone climate
control system ......................... 51
Battery
– checking the charge............. 173
– jump starting ......................... 134
– recharging .............................. 158
– replacing ............................... 173 Bodywork
– maintenance ......................... 178
– version codes........................ 184
Bonnet ......................................... 80
Boot ............................................. 76
– extension ............................... 77
– light ......................................... 152
Brake lights
– bulb replacement ................. 151
Brakes
– fluid level ............................... 172
– handbrake ............................. 114
– service and emergency ....... 188
Bulb (replacement) ................... 144
Capacities ................................... 195
Car inactivity ............................. 122
Car maintenance ........................ 161
– additional checks.................. 165– Annual Inspection Schedule 165
– scheduled service................. 162
– Service Schedule .................. 163
Cargo box ................................... 69
Carrying children safely ............ 99
Ceiling lights ................................ 64
– bulb replacement ................. 152
Cellular telephones
– presetting............................... 85
Checking fluid levels ............... 167
Child lock ................................... 17
Cigar lighter (Smokers' kit) ..... 71
Clutch .......................................... 187
CO
2emissions .......................... 199
Containing running costs ......... 116
Correct use of the car ............ 111
Cruise Control .......................... 63
Dashboard and controls ......... 4
Diesel fuel filter ................... 166-173
Dimensions ............................... 193
200-208 idea GB 1 ed 10-07-2008 10:58 Pagina 200

201
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
DASHBOARD
AND CONTROLS
INDEX
Dipped beam headlights
– bulb replacement ................. 148
– control .................................. 59
Direction indicators ................. 59
– bulb replacement ................. 148
– control .................................. 59
Door pockets ............................. 69
Doors ........................................ 17-134
Emergency device for locking
doors from the outside ...... 17-134
Dualdrive
(electric power steering) ...... 87
EBD (electronic brake force
distributor) ................................. 83
Emergency device for locking
doors from the outside ......... 17
Engine
– fuel feed ................................. 187
– identification code ............... 184
– injection/ignition ................. 187– technical data ....................... 185
Engine coolant gauge................. 19
Engine coolant level ................ 170
Engine oil
– checking level........................ 169
– consumption ......................... 169
– technical specifications ....... 195
EOBD (system) ......................... 84
External lights ............................. 58
Fiat CODE (system) ............... 9
Fix &Go (tyre repair kit) ......... 136
Flashing the headlights ............. 58
Fluids and lubricants ................ 196
Follow me home (device) ....... 59
FPS (fuel cut-off switch) .......... 67
Front fog lights
– bulb replacement ................. 149
– control button ...................... 66Fuel
– consumption ......................... 198
– fuel cut-off switch ................ 67
– level gauge ............................ 19
Fuel cut-off switch ..................... 67
Fuel filler cap............................... 91
Fuses ............................................. 153
Gearbox (use). .......................... 115
Glass/can holders ....................... 69
Handbrake ................................. 114
Hazard lights
– control .................................. 66
Head restraints ......................... 41
Headlights ................................... 82
(electric adjusting device) ..... 82
Heated rear window ............... 44
Heating and ventilation............. 45
Identification data .................... 182
Ignition switch ........................... 18
200-208 idea GB 1 ed 10-07-2008 10:58 Pagina 201

202
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
DASHBOARD
AND CONTROLS
INDEX
In an emergency ........................ 133
Instrument panel ....................... 7
Instruments ................................. 19
Interior equipment ................... 68
Interior fittings
– glass / can holder ................. 69
– magnetic card/ticket slots .. 69
– oddment compartments .... 68
– rear CD compartment
with glass/can holder .......... 70
– roof bracket .......................... 68
– roof console.......................... 70
– upper oddment
compartments ....................... 68
Interiors ...................................... 180
Isofix ............................................. 103
Jack .............................................. 141
Jacking the car ............................ 158
Key kit and door locking ........ 10
Light control buttons ............. 58Load limiters ............................... 97
Lubricants (specifications)........ 196
Magnetic card/ticket slots ...... 69
Main beam headlights
– bulb replacement ................. 147
– control .................................. 58
– flashing .................................... 58
Manual climate control
system ....................................... 48
Multifunction display (on
comfort instrument panel) ... 20
– controls .................................. 21
Multifunction display
(on modal instrument panel) 23
– controls .................................. 23
Number plate light
– bulb replacement ................ 151
Oddment compartments ........ 68
Outlets ......................................... 70
Parking ....................................... 114
Parking sensors .......................... 88
Performance................................ 193
Plates ........................................... 182
Pollen filter ................................. 166
Power windows ......................... 74
Pretensioners.............................. 97
Prolonged car inactivity .......... 122
Protecting the environment .... 92
Radio transmitters and
cellular telephones .................. 86
Rain sensor ................................ 61
Rear fog lights
– bulb replacement ................. 150
– control button ...................... 66
Rear window washer
– control .................................. 62
– fluid level ............................... 171
Rear window wipers
– control .................................. 62
200-208 idea GB 1 ed 10-07-2008 10:58 Pagina 202

203
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
DASHBOARD
AND CONTROLS
INDEX

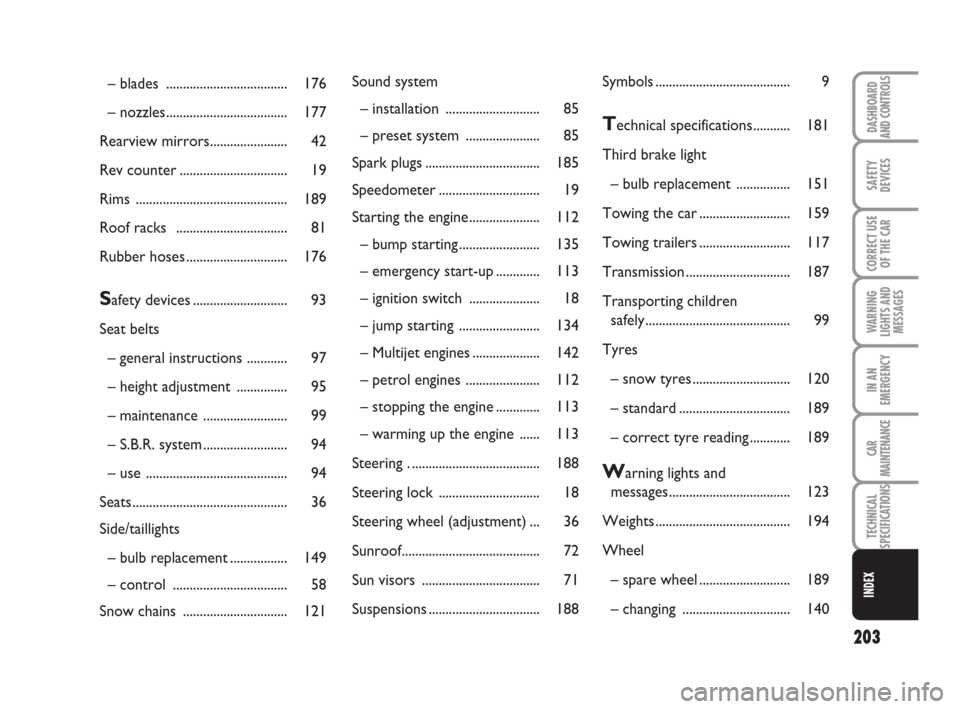

– blades .................................... 176
– nozzles.................................... 177
Rearview mirrors....................... 42
Rev counter ................................ 19
Rims ............................................. 189
Roof racks ................................. 81
Rubber hoses .............................. 176
Safety devices ............................ 93
Seat belts
– general instructions ............ 97
– height adjustment ............... 95
– maintenance ......................... 99
– S.B.R. system ......................... 94
– use .......................................... 94
Seats .............................................. 36
Side/taillights
– bulb replacement ................. 149
– control .................................. 58
Snow chains ............................... 121Symbols ........................................ 9
Technical specifications........... 181
Third brake light
– bulb replacement ................ 151
Towing the car ........................... 159
Towing trailers ........................... 117
Transmission ............................... 187
Transporting children
safely ........................................... 99
Tyres
– snow tyres ............................. 120
– standard ................................. 189
– correct tyre reading ............ 189
Warning lights and
messages.................................... 123
Weights ........................................ 194
Wheel
– spare wheel ........................... 189
– changing ................................ 140 Sound system
– installation ............................ 85
– preset system ...................... 85
Spark plugs .................................. 185
Speedometer .............................. 19
Starting the engine..................... 112
– bump starting ........................ 135
– emergency start-up ............. 113
– ignition switch ..................... 18
– jump starting ........................ 134
– Multijet engines .................... 142
– petrol engines ...................... 112
– stopping the engine ............. 113
– warming up the engine ...... 113
Steering . ...................................... 188
Steering lock .............................. 18
Steering wheel (adjustment) ... 36
Sunroof......................................... 72
Sun visors ................................... 71
Suspensions ................................. 188
200-208 idea GB 1 ed 10-07-2008 10:58 Pagina 203
