2012 FIAT DUCATO technical specifications

228
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0160mfig. 235F0N0338mfig. 237
F0N0162mfig. 236
ENGINE MARKING
This is stamped onto the cylinder block and shows the
type and the manufacture serial number. BODYWORK PAINT IDENTIFICATION
PLATE fig. 235
This plate is fitted to the engine compartment front
crossmember and contains the following identification
data:
A Paint manufacturer.
B Colour name.
C Fiat colour code.
D Respray and touch up code.
CHASSIS MARKING fig. 236
One is located on the passenger’s side inner wheel arch,
A-fig. 236, the other on the lower part of the
windscreen, fig. 237.
❒vehicle model;
❒the chassis progressive number.

229
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
ENGINE CODES – BODYWORK VERSIONS
Versions Engine type code
115 Multijet250A1000
130 MultijetF1AE3481D
150 MultijetF1AE3481E
180 Multijet PowerF1CE3481E
There is an example of a bodywork version code below
by way of explanation with a key which is valid for all
bodywork version codes:
Key 250 A A M F A AX
MODEL
GVW
ENGINE
ENGINE TRANSMISSION/AXLES
BODYWORK
WHEELBASE
VERSION
GVW
A3000 kg
B3300 kg
C3500 kg
D3500 kg MAXI
E4005 kg
TRANSMISSION
MManual gearbox
AAutomatic
transmissionENGINE
M130 Multijet
N150 Multijet
P180 Multijet Power
R115 Multijet
WHEELBASE
AShort wheelbase
BMedium wheelbase
CLong wheelbase
DMedium-long
wheelbase
UAll wheelbases
(incomplete vehicles).
BODYWORK
AChassis cab frame
BPlatform frame without drive cab
CPlatform chassis cab
DFlatbed truck
EPrimary school bus
FVan
GLong cab trailer
HLong cab frame
LSecondary school bus
MBus
PPanorama
R6/9 seater crew cab

230
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
Diesel for automotive engines (Specification EN590)
130
Multijet
F1AE3481D
Diesel
4 in line
88 x 94
2287
16.2 : 1
96
130
3600
320
1800
150
Multijet
F1AE3481E
Diesel
4 in line
88 x 94
2287
16.2 : 1
109
148
3600
350
1500
180
Multijet Power
F1CE3481E
Diesel
4 in line
95.8 x 104
2999
17.5 : 1
130
177
3500
400
1400
115
Multijet
250A1000
Diesel
4 in line
83 x 90.4
1956
16.5 : 1
84.6
115
3750
280
1500
ENGINE
GENERAL INFORMATION
Engine code
Cycle
Cylinder
number and position
Piston bore
and stroke mm
Total displacement cm3
Compressionratio:
Max power
(EEC) kW
HP
corresponding
speed rpm
Maximum
torque (EEC) Nm
corresponding speed rpm
Fuel

Mac Pherson independent wheels
Rigid rear axle with tubular axle; longitudinal leaf spring
Self-adjusting pedal without idle stroke
Front
Modifications or repairs to the fuel
supply system that are not carried out
properly or do not take the system’s technical
specifications into account can cause
malfunctions leading to the risk of fire.

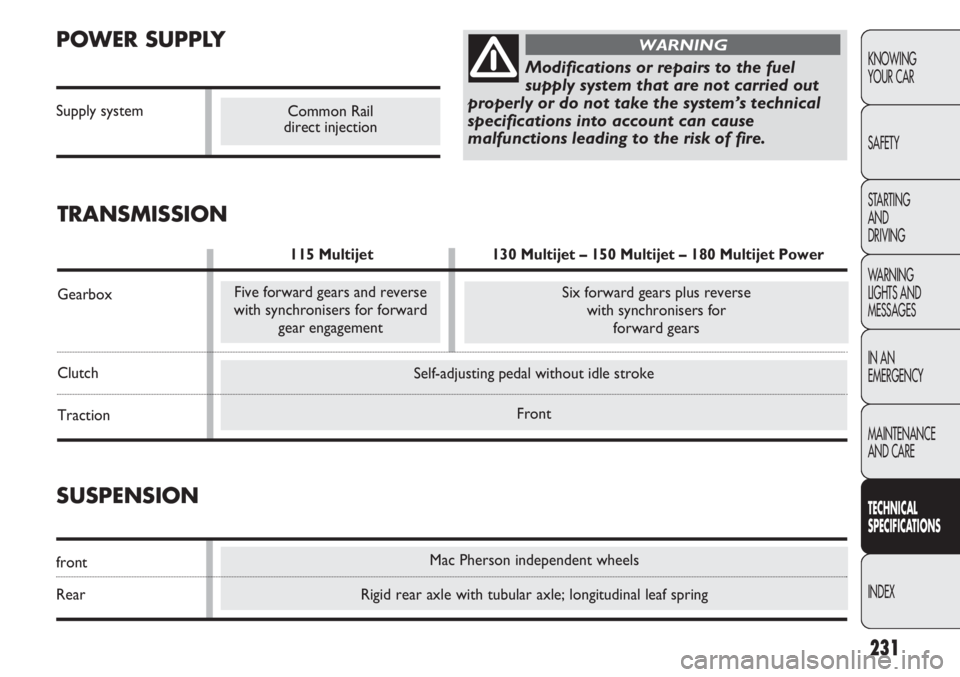

POWER SUPPLY
Supply system
231
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
WARNING
Common Rail
direct injection
SUSPENSION
front
Rear
Six forward gears plus reverse
with synchronisers for
forward gearsFive forward gears and reverse
with synchronisers for forward
gear engagement
TRANSMISSION
115 Multijet 130 Multijet – 150 Multijet – 180 Multijet Power
Gearbox
Clutch
Traction

self-ventilated discs
discs
controlled by hand lever, acting on rear brakes
232
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
STEERINGShort Medium Medium-long Longwheelbase wheelbase wheelbase wheelbase
Type
Steering circle
(kerb to kerb) m 11.06 12.46 13.54 14.28
Rack and pinion with hydraulic power steering
BRAKES
Service brakes: front
rear
Parking brake
IMPORTANT Water, ice and antifreeze salt spread on the roads may deposit on the brake discs reducing braking efficiency
the first time the brakes are applied.

233
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Radial type tubeless tyres.
The vehicle registration document also lists all type-
approved tyres.
IMPORTANT In the event of discrepancies between the
information provided on this “Owner Handbook” and
the “Vehicle registration document”, only the latter is
valid.
Fit tyres of the same make and type on all wheels,
to ensure the safety of the vehicle in movement
IMPORTANT Do not use inner tubes in the case of
tubeless tyres.
SPARE WHEEL
Pressed steel wheel.
Tubeless tyre, same as standard tyre.
WHEEL GEOMETRY
Total front toe in: – 1 ± 1 mm
The values refer to the vehicle in running order.
F0N0113mfig. 238
READING TYRE CODE fig. 238
Example: 215/70 R 15 109S
215 = Nominal width (S, distance between sidewalls in
mm).
70 = Height/width ratio (H/S) in percentage.
R = Radial tyre.
15 = Rim diameter in inches (Ø).
109 = Load rating (capacity).
S = Maximum speed index.

234
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.
Maximum speed index
Maximum speed index for snow tyres
Load rating (capacity)RIM PROTECTOR TYRES fig. 239
DO NOT fit wheel hub caps when using
integral hub caps fixed (with springs) to
the steel rim and after sale tyres provided with
Rim Protector (fig. 234). The use of unsuitable
tyres and wheel hub caps could cause a sudden
pressure loss in the tyre.
WARNING
F0V0217mfig. 239

235
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
READING RIM CODE fig. 238
Example: 6J x 15 ET43
6 = rim width in inches 1.
J = rim drop centre outline (side projection where the tyre bead rests)
2.
15 = rim nominal diameter in inches (corresponds to diameter of the tyre to be mounted)
3= Ø.
ET43 = wheel camber (distance between the disc/rim support plane and the wheel rim centre line).
215/70 R15C 109/107S
225/70 R15C 112/110S
215/70 R15CP 109/107Q
215/75 R16C 116/114R
225/75 R16C 118/116R
225/75 R16CP 116/114Q6J x 15" – H2
6J x 15" – H2
6J x 16" – H2
6J x 16" – H2
Versions Rims Tyres provided
Ducato (except recreational)
Ducato (recreational)
Ducato Maxi (except recreational)
Ducato Maxi (recreational)
If using M+S winter tyres with speed index lower than “S” for 15 inch wheels and “R” for 16 inch wheels, respect the max
vehicle speed indicated in the table: Maximum speed index.
important Use only the tyres shown in the vehicle vehicle registration document.
If using class C tyres on a Camping vehicle, always use wheels with a metal inflation valve. When replacing, it is always advisable
to use Camping tyres.
